Naim Audio

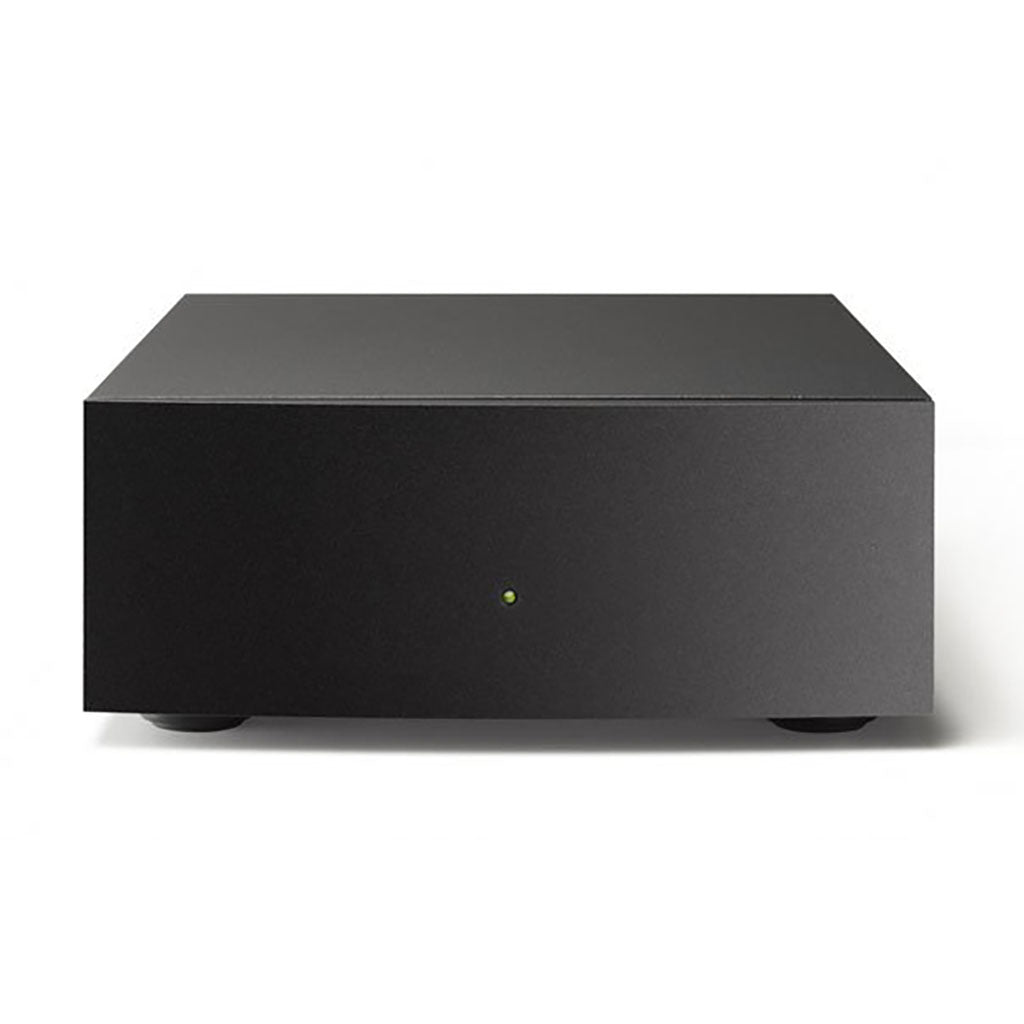

Naim StageLine Phono Stage (OPEN)

Naim StageLine Phono Stage (OPEN)

» More buying options available
SALE Sold out
Regular price $599 In stock now!
Regular price $799 Sale price $599 In stock now!
Shipping calculated at checkout.
Type

Product questions? Found a lower price?

Let us know: 909.931.9686 or chat.

This item qualifies to earn HiFives. What's a HiFive?

View full details

Naim StageLine Phono Stage (MM and MC Options Available, Power Supply Sold Separately)

Naim may not build a turntable, but it has decades of experience making the most of the black magic offered by the vinyl LP. The StageLine phonostage, available in either moving coil or moving magnet versions, can be powered just from the NAIT XS 2 amplifier or via its own dedicated power supply, such as a FlatCap XS.

The StageLine N is a 47 kOhm moving magnet stage. The StageLine S is a 470 Ohm moving coil, and the StageLine E is a 560 Ohm moving coil.

They all use RCA inputs and take a 24 V supply NaimUniti 2, NAIT XS2, SUPERNAIT 2, Naim Audio preamplifier (except NAC-N172 XS & NAC-N 272), FlatCap XS, HiCap or SuperCap.

Specifications

Supplied with standard interconnect

Input load options: S 470Ω, K & E 560Ω, N 47kΩ

Shipping weight: 2.64 lb (1.2 kg)

Shipping dimensions: 100 x 170 x 265 mm

Dimensions (HxWxD): 57 x 121 x 187 mm

Power Supply Options
NaimUniti, NAIT XS, SuperNait, 152XS, 202, 282, 252, 552, FlatCap XS, HiCap, SuperCap

Supply voltage: 24 V

Audio output gain: N 35dB at 1kHz, K & S 60dB at 1kHz

Audio input: Analog RCA

Input sensitivity: K & S 100μV, E 400μV, N 2mV
