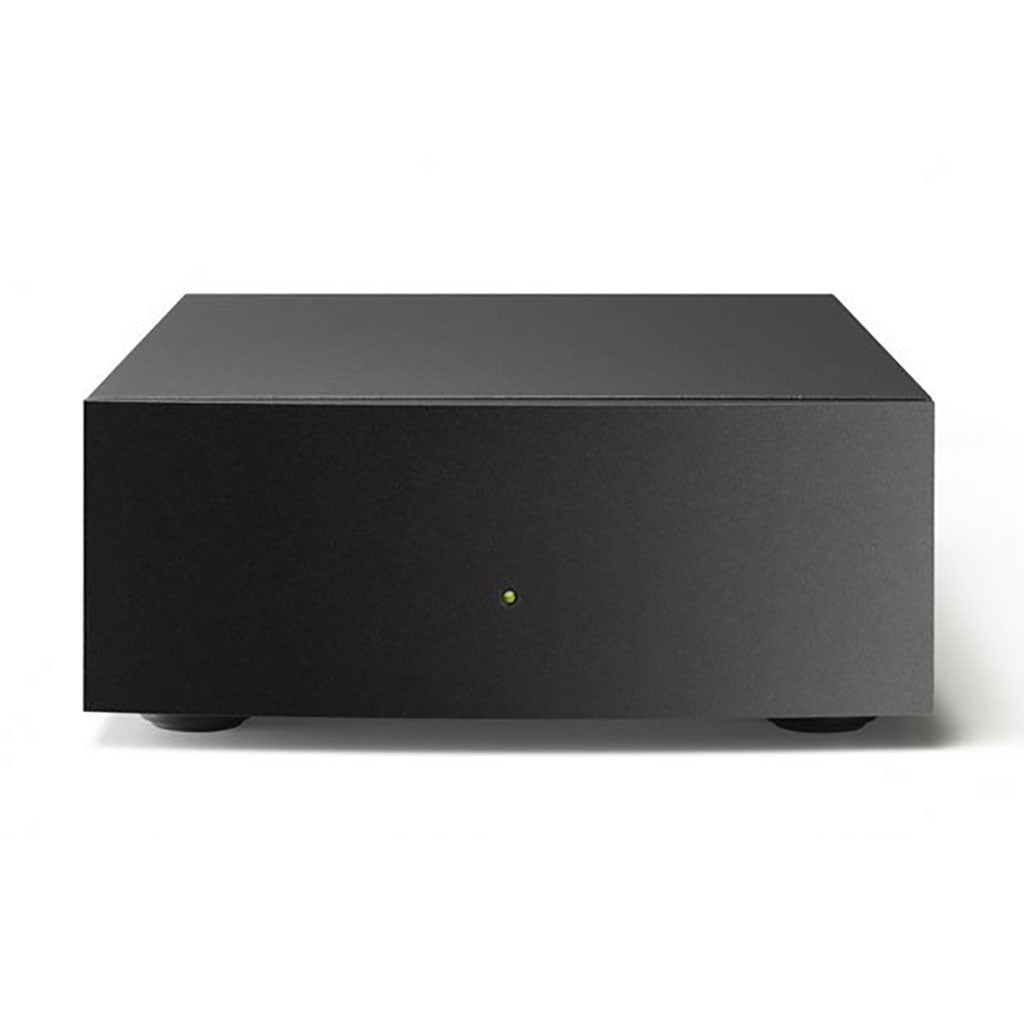

Naim StageLine Phono Stage (MM and MC Options Available, Power Supply Sold Separately)
Naim may not build a turntable, but it has decades of experience making the most of the black magic offered by the vinyl LP. The StageLine phonostage, available in either moving coil or moving magnet versions, can be powered just from the NAIT XS 2 amplifier or via its own dedicated power supply, such as a FlatCap XS.
The StageLine N is a 47 kOhm moving magnet stage. The StageLine S is a 470 Ohm moving coil, and the StageLine E is a 560 Ohm moving coil.
They all use RCA inputs and take a 24 V supply NaimUniti 2, NAIT XS2, SUPERNAIT 2, Naim Audio preamplifier (except NAC-N172 XS & NAC-N 272), FlatCap XS, HiCap or SuperCap.
Supplied with standard interconnect
Input load options: S 470Ω, K & E 560Ω, N 47kΩ
Shipping weight: 2.64 lb (1.2 kg)
Shipping dimensions: 100 x 170 x 265 mm
Dimensions (HxWxD): 57 x 121 x 187 mm
Power Supply Options
NaimUniti, NAIT XS, SuperNait, 152XS, 202, 282, 252, 552, FlatCap XS, HiCap, SuperCap
Supply voltage: 24 V
Audio output gain: N 35dB at 1kHz, K & S 60dB at 1kHz
Audio input: Analog RCA
Input sensitivity: K & S 100μV, E 400μV, N 2mV
