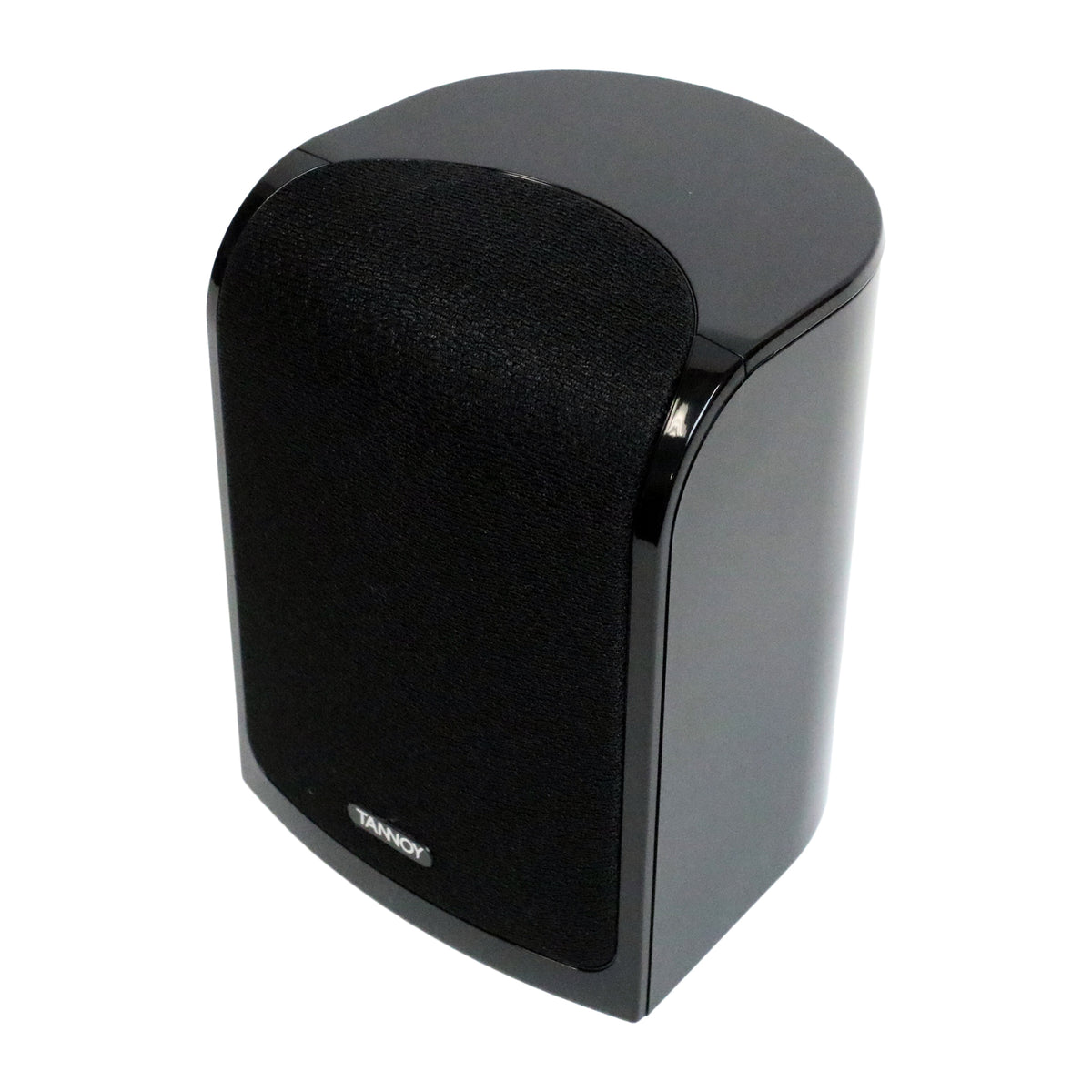

Tannoy TFX 2-Way Satellite Loudspeaker

Compact 2-way satellite speaker with titanium-dome tweeter and wall-mounting capability

The Tannoy TFX Satellite Loudspeaker was designed as the compact main and surround speaker for the TFX home-theater system. Its small enclosure makes it easy to integrate into a room without dominating the décor, while the 2-way driver configuration provides the clarity and dispersion needed for both movie soundtracks and multichannel music.

A 15 mm titanium-dome tweeter with a neodymium magnet system handles high frequencies, while a 75 mm multi-fiber paper-cone driver covers the midrange and upper bass. The satellite is magnetically shielded and was supplied with a wall bracket, making it suitable for flexible front, side, or rear-channel placement.

Features

• 2-way satellite loudspeaker
• 15 mm titanium-dome tweeter with neodymium magnet system
• 75 mm multi-fiber paper-cone driver
• Magnetically shielded enclosure
• Compact design for front or surround-channel use
• Wall-mounting capability
• Gloss black or gloss white finish

What's Included

• Tannoy TFX Satellite Loudspeaker
• Wall-mount bracket

Specifications

Type: 2-way satellite loudspeaker

Recommended Amplifier Power: 15–100 W

Sensitivity: 85 dB (2.83 V/1 m)

Nominal Impedance: 6 ohms

Frequency Response (-6 dB): 140 Hz–78 kHz

High-Frequency Driver: 15 mm (0.6") titanium dome with neodymium magnet system

Low-Frequency Driver: 75 mm (3") multi-fiber paper cone

Crossover Frequency: 2.9 kHz

Magnetic Shielding: Yes

Finish: Gloss black or gloss white

Dimensions (H × W × D): 5.15" × 3.78" × 3.94" (130.9 × 95.9 × 100 mm)

Weight: 1.9 lb. (0.8 kg)
