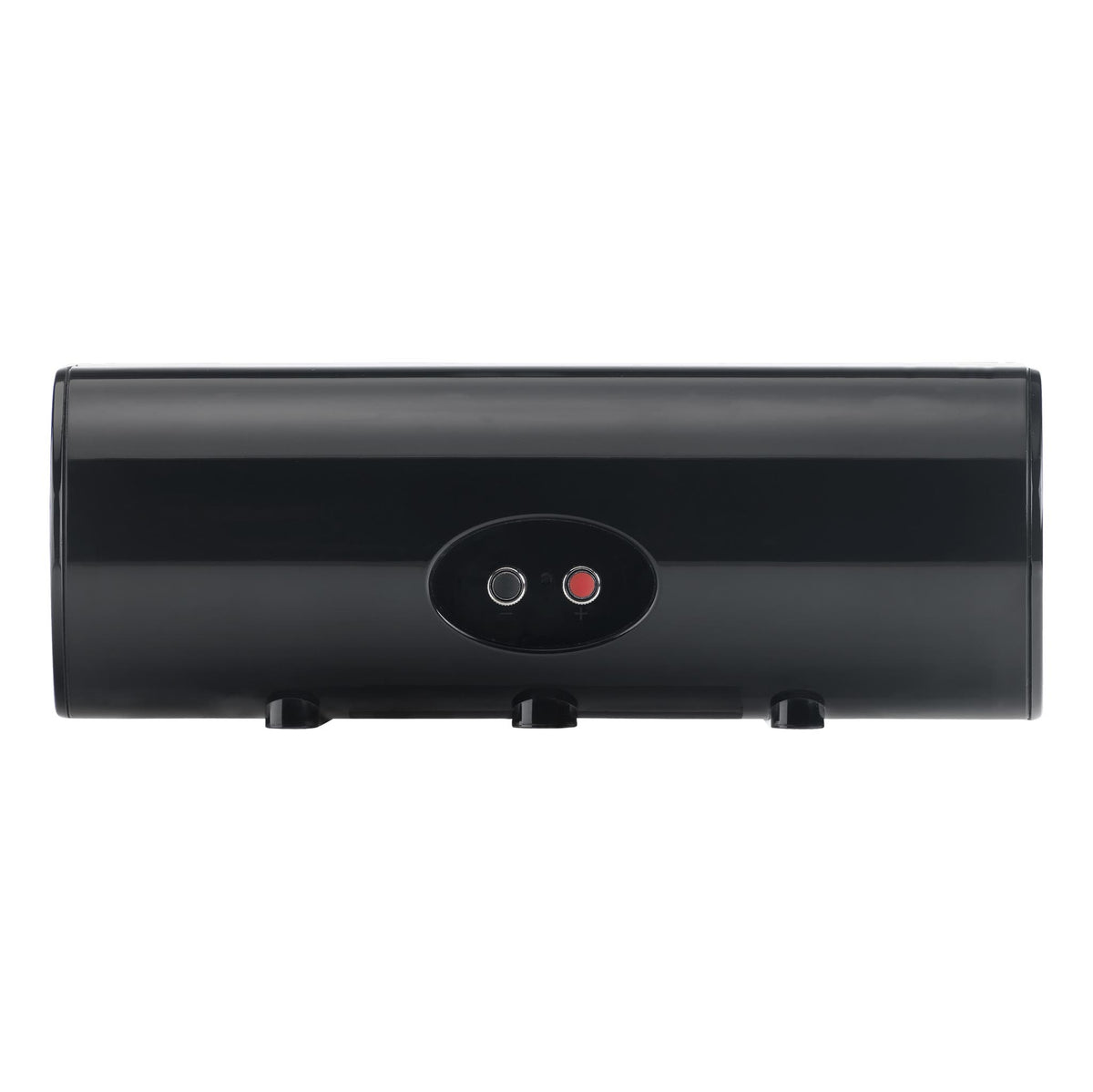

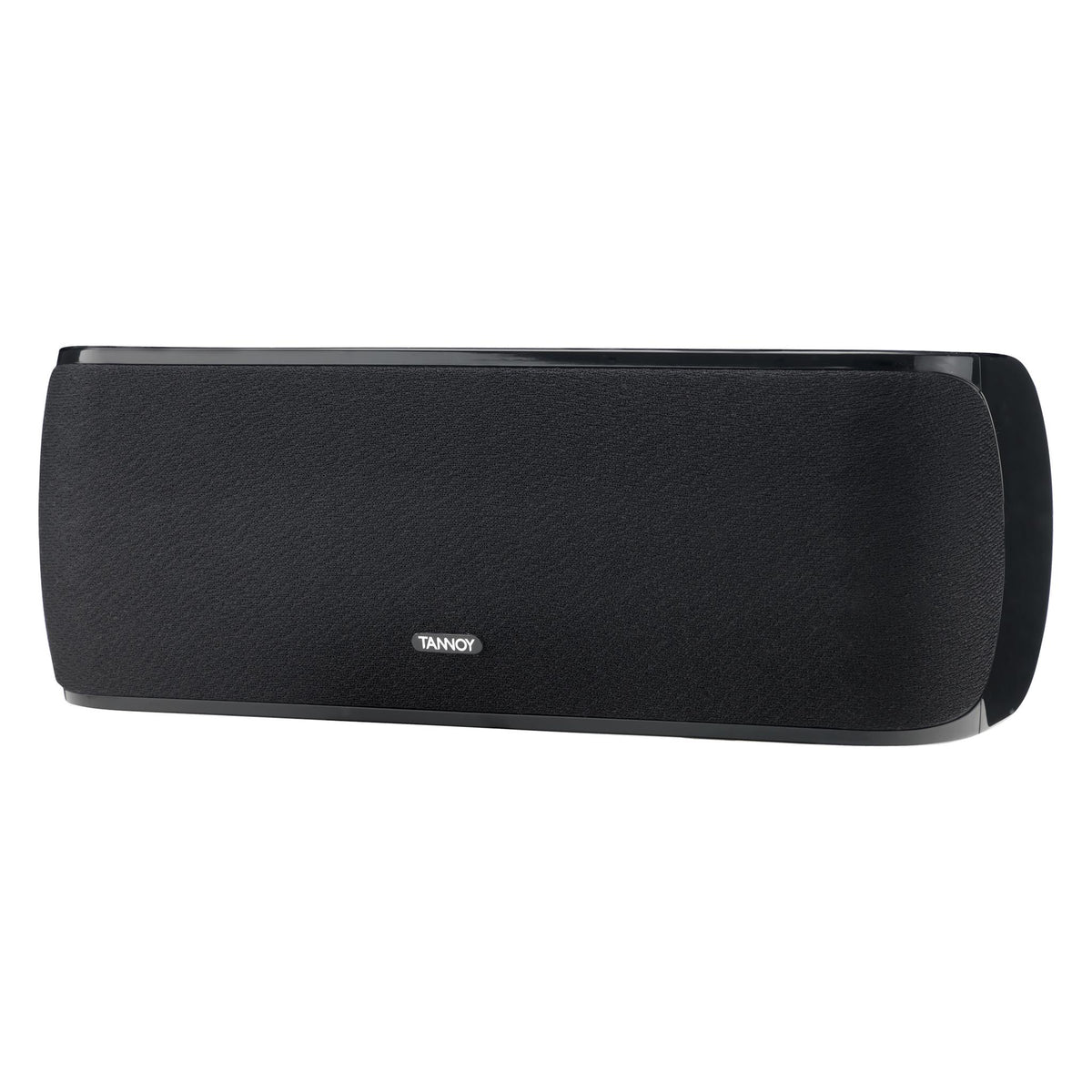

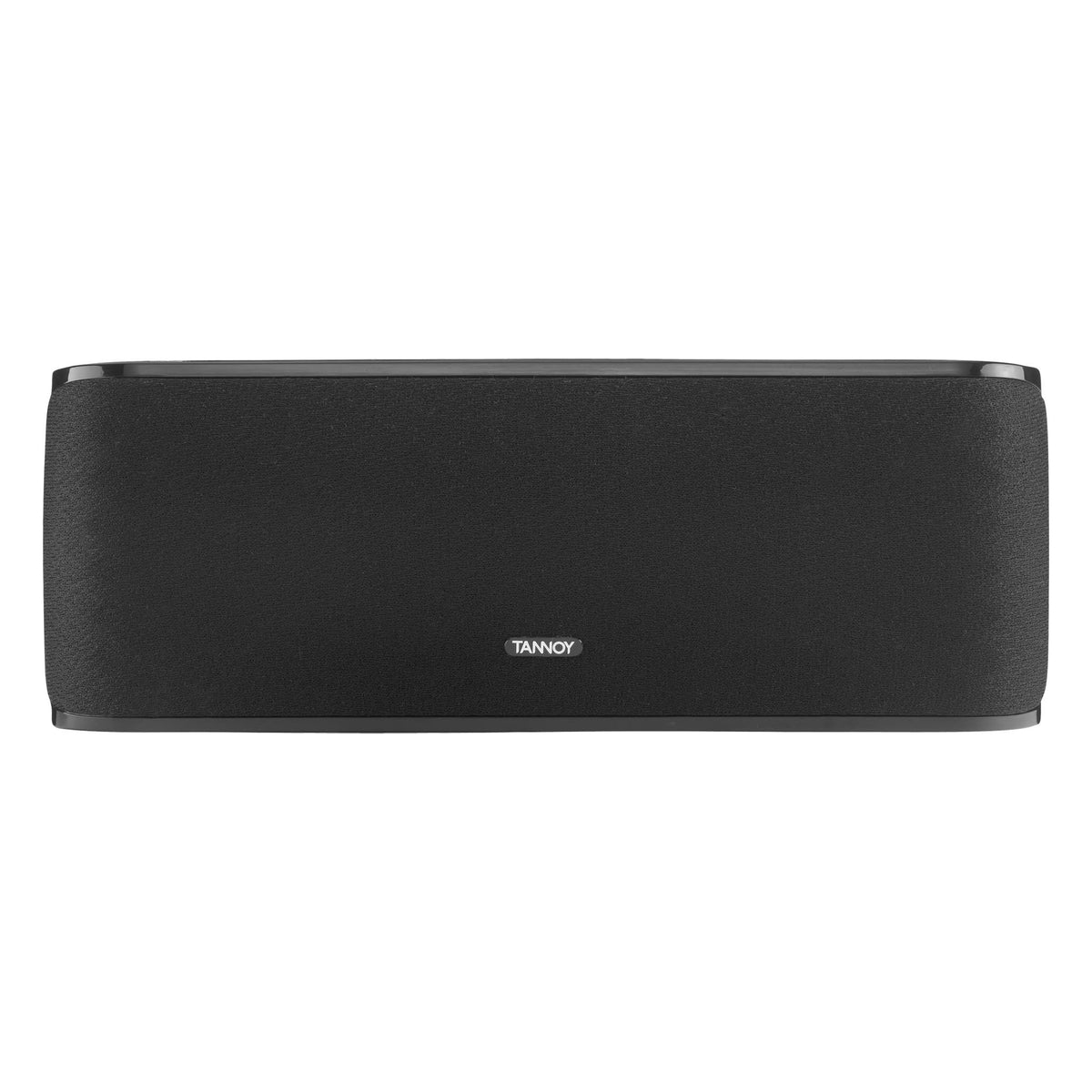

Tannoy TFX 2-Way Center Channel Loudspeaker

Compact center-channel speaker with WideBand titanium tweeter and dedicated dialogue voicing

The Tannoy TFX Center Channel Loudspeaker was designed as the dialogue anchor for Tannoy's compact TFX home-theater system. Its low-profile cabinet makes it easy to place beneath a television or screen, while dedicated center-channel voicing emphasizes clear, intelligible speech without sacrificing the tonal balance needed for music and effects.

A 15 mm titanium-dome tweeter uses Tannoy's WideBand technology for extended high-frequency response, while 75 mm multi-fiber paper-cone drivers handle the midrange and bass. The compact polymer enclosure is magnetically shielded and finished in high-gloss black for an unobtrusive installation in smaller home-theater systems.

Features

• 2-way center-channel loudspeaker
• 15 mm titanium-dome WideBand tweeter with neodymium magnet system
• 75 mm multi-fiber paper-cone low-frequency drivers
• Dedicated center-channel voicing for clear dialogue
• Magnetically shielded enclosure
• Compact, low-profile cabinet
• High-gloss finish

What's Included

• Tannoy TFX Center Channel Loudspeaker

Specifications

Type: 2-way center-channel loudspeaker

Recommended Amplifier Power: 15–100 W

Sensitivity: 85 dB (2.83 V/1 m)

Nominal Impedance: 6 ohms

Frequency Response (-6 dB): 140 Hz–78 kHz

High-Frequency Driver: 15 mm (0.6") titanium dome with neodymium magnet system

Low-Frequency Driver: 75 mm (3") multi-fiber paper cone

Crossover Frequency: 2.9 kHz

Magnetic Shielding: Yes

Dimensions (H × W × D): 3.78" × 10.25" × 3.94" (95.9 × 260.3 × 100 mm)

Weight: 3.3 lb. (1.5 kg)
