Chord Electronics Suzi Pre Preamp, Headphone Amplifier, and Phonostage

A compact three-input analog preamp with MM/MC phonostage, selectable gain and impedance, dual headphone outputs, and direct Suzi Amp integration

The Chord Electronics Suzi Pre is a compact, versatile preamp designed for use as the front end of a small high-performance system. It combines three RCA inputs, a built-in MM/MC phono stage, headphone output, and stereo RCA output in a small chassis from Chord’s Hugo range.

Used on its own, the Suzi Pre can serve as a standalone analog preamp, phono stage, and headphone amplifier. Paired with the matching Suzi Amp, it creates a compact pre/power amplifier system with turntable support and headphone listening built in.

Built-In MM/MC Phono Stage

The Suzi Pre includes a turntable input with support for both MM and MC cartridges. Its phono stage offers selectable gain and impedance, allowing it to work with a range of cartridge outputs and loading requirements.

Headphone Listening Built In

Front-panel 3.5 mm and 6.35 mm headphone outputs allow the Suzi Pre to be used with one or two pairs of headphones. Connecting headphones switches the unit to headphone output, making it suitable for private listening without adding a separate headphone amplifier.

Compact System Flexibility

With three RCA inputs and one stereo RCA output, the Suzi Pre can anchor a simple analog system, integrate a turntable, or feed a suitable unbalanced power amplifier. When partnered with the Suzi Amp, it forms a small-footprint Chord pre/power system with phono and headphone functionality.

Polychromatic Control Sphere

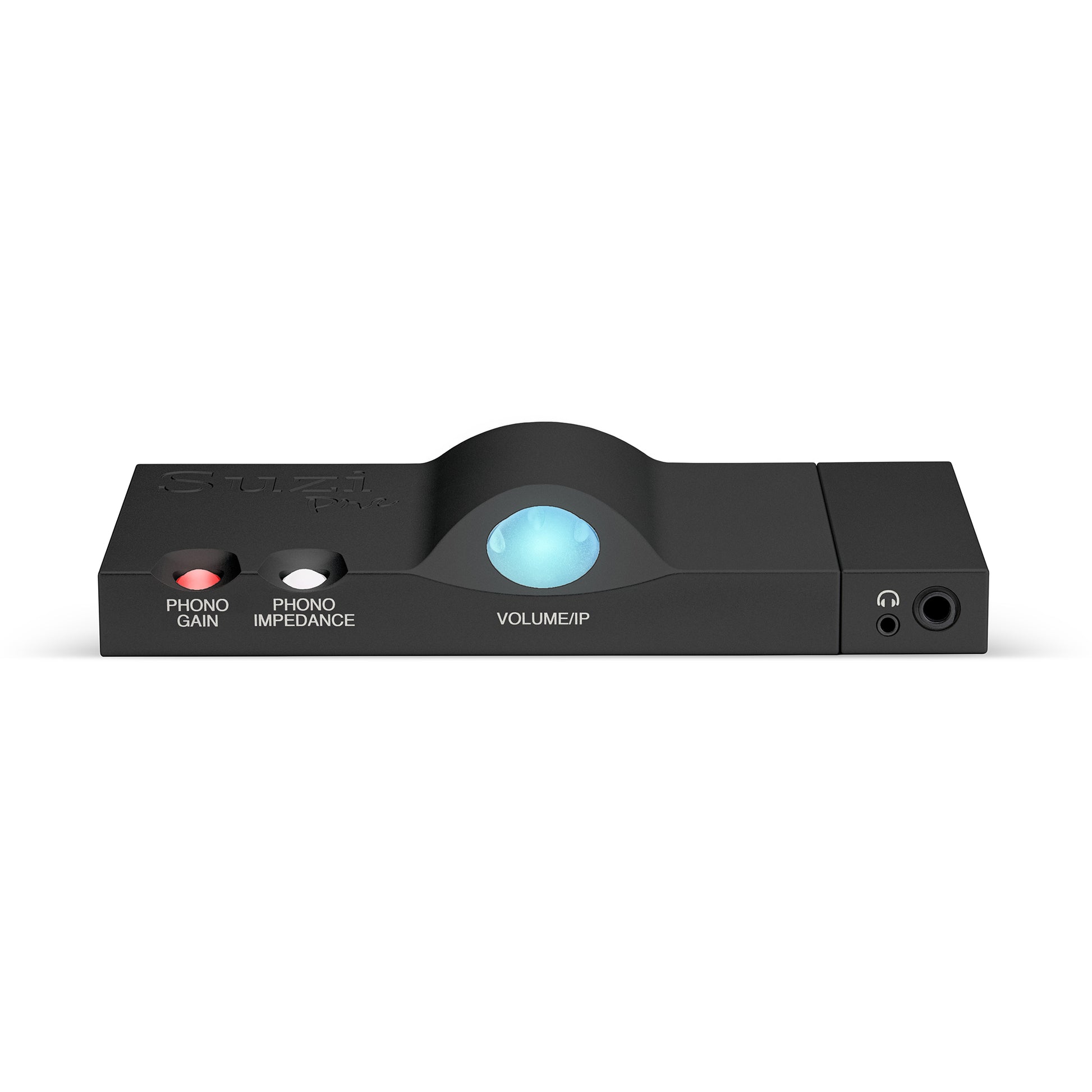

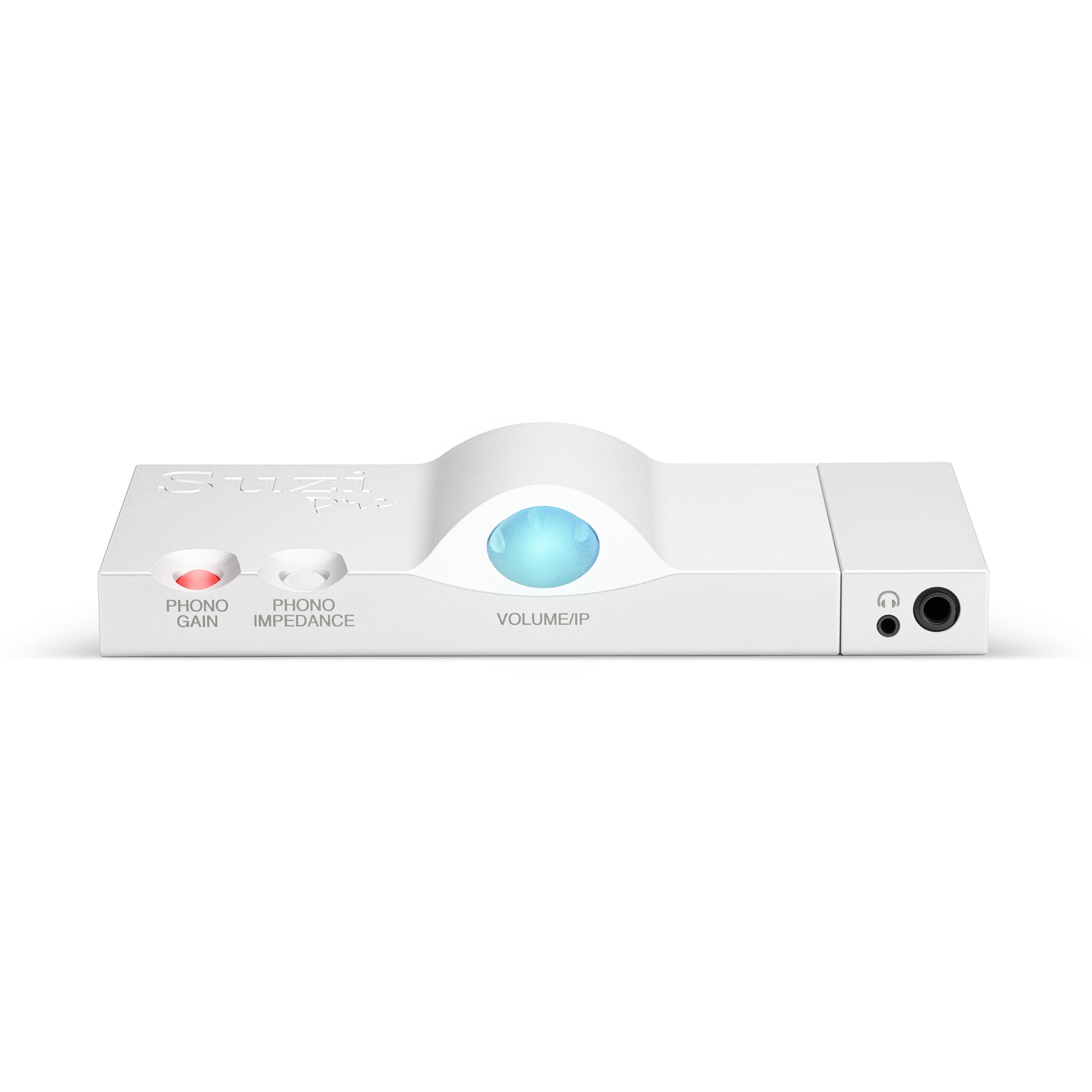

A central polychromatic control sphere handles volume and input selection, while front-panel controls provide access to phono gain and impedance settings. Remote control operation is also supported.

Features

• Compact three-input analog preamp
• Built-in MM/MC phono stage
• Selectable phono gain
• Selectable MC impedance settings
• 47 kΩ MM impedance
• 3.5 mm and 6.35 mm headphone outputs
• Stereo RCA output for use with a power amplifier
• Central polychromatic control sphere for volume and input selection
• Remote control operation
• Designed and handmade in the UK

Included Accessories

• 12 V DC power supply
• Remote control
• 2 AAA batteries
• Safety document

Specifications

Product Type: Preamp, headphone amplifier, and MM/MC phono stage

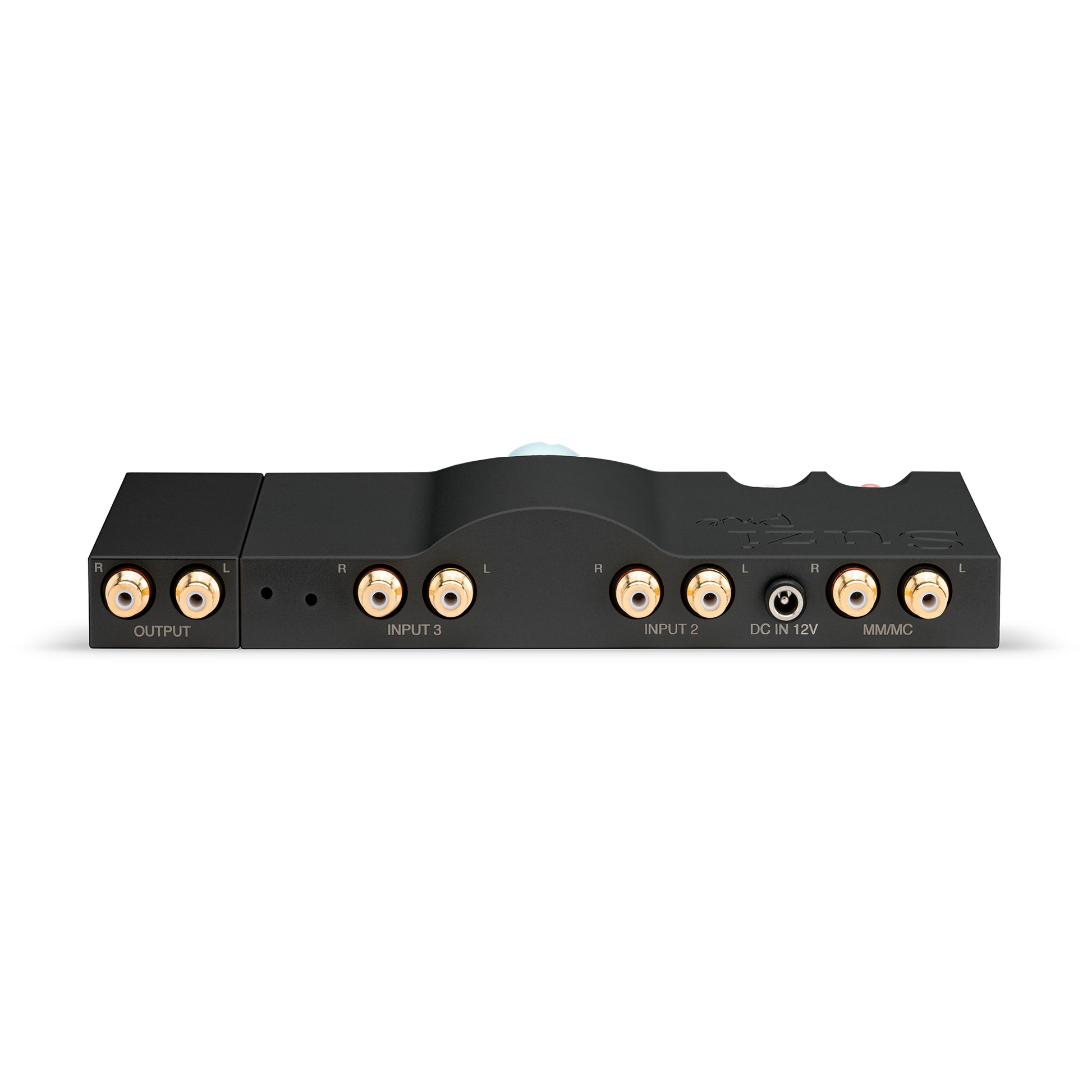

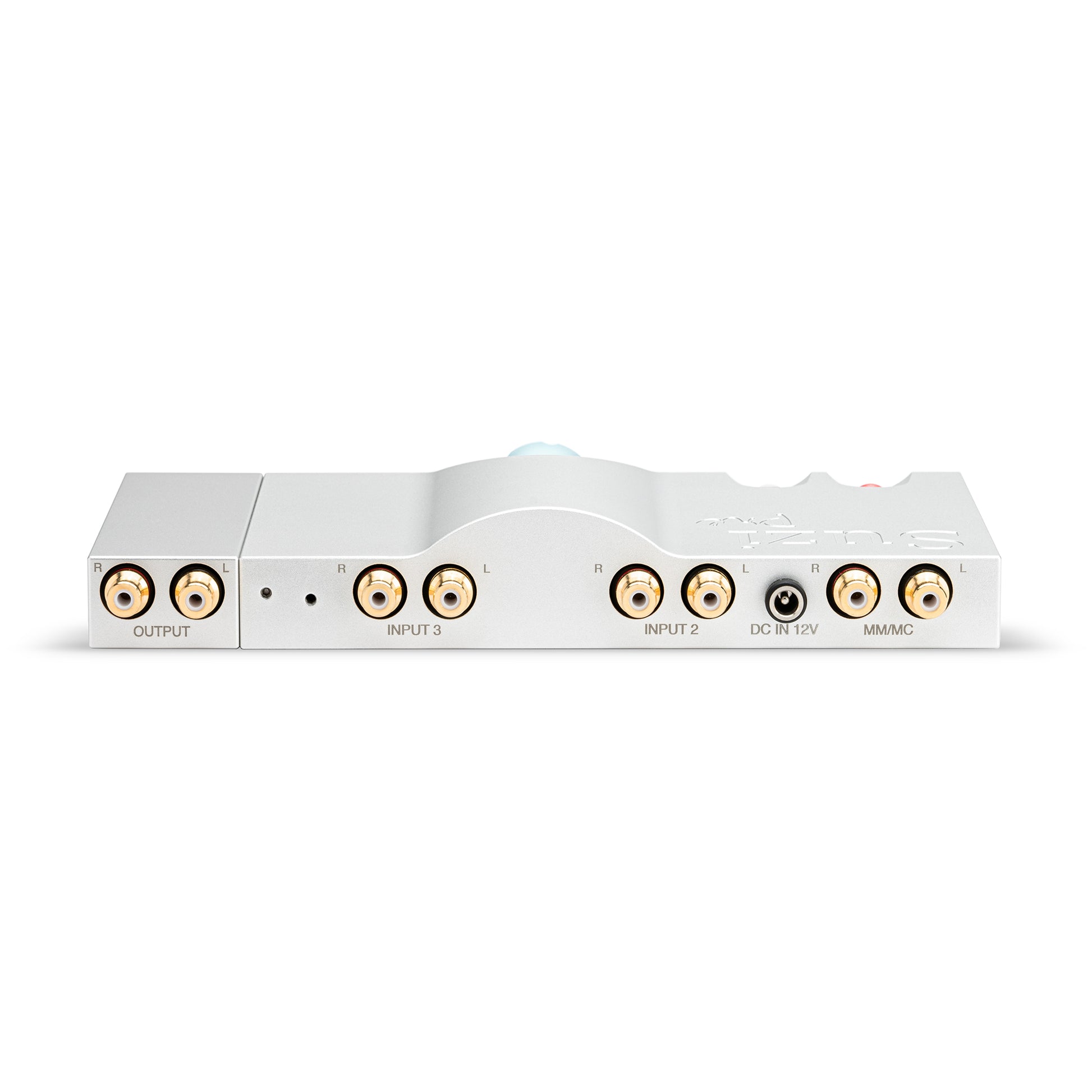

Inputs: 1 x stereo RCA MM/MC phono input; 2 x stereo RCA line inputs; 1 x 12 V DC power input

Outputs: 1 x stereo RCA output; 1 x 3.5 mm headphone output; 1 x 6.35 mm headphone output

Output Power (Headphones): 160 mW into 100 Ω

Frequency Response (±3 dB): 7 Hz–30 kHz

THD: 0.0007% A-weighted

Signal-To-Noise Ratio: -103 dB

Input Impedance: 46 kΩ

Output Impedance: 5 Ω

Input Maximum Voltage: 3.5 V RMS

Output Maximum Voltage: 3.5 V RMS

Gain: 0 dB

Channel Separation: -95 dB

Operation Voltage: 12 V DC

Power Consumption: 20 W

Phono Stage Gain: High and low gain options

MM Impedance: 47 kΩ

MC Impedance Options: 50 Ω; 235 Ω + 47 pF; 470 Ω + 47 pF

Dimensions (HLW): 1.34" x 8.46" x 3.94" (34 mm x 215 mm x 100 mm)
