Chord Electronics Suzi Amp Modular Stereo Power Amplifier

A compact ULTIMA-technology stereo power amplifier with 30 Wpc output, modular Hugo-range integration, RCA inputs, banana speaker outputs, and flexible Suzi Pre, Hugo 2, and 2go system options

The Chord Electronics Suzi Amp is a compact modular stereo power amplifier built around Chord’s ULTIMA amplifier topology. Delivering 30 W per channel into 8 Ω, it is designed to work as a standalone power amplifier or as the foundation of a small-footprint Chord system.

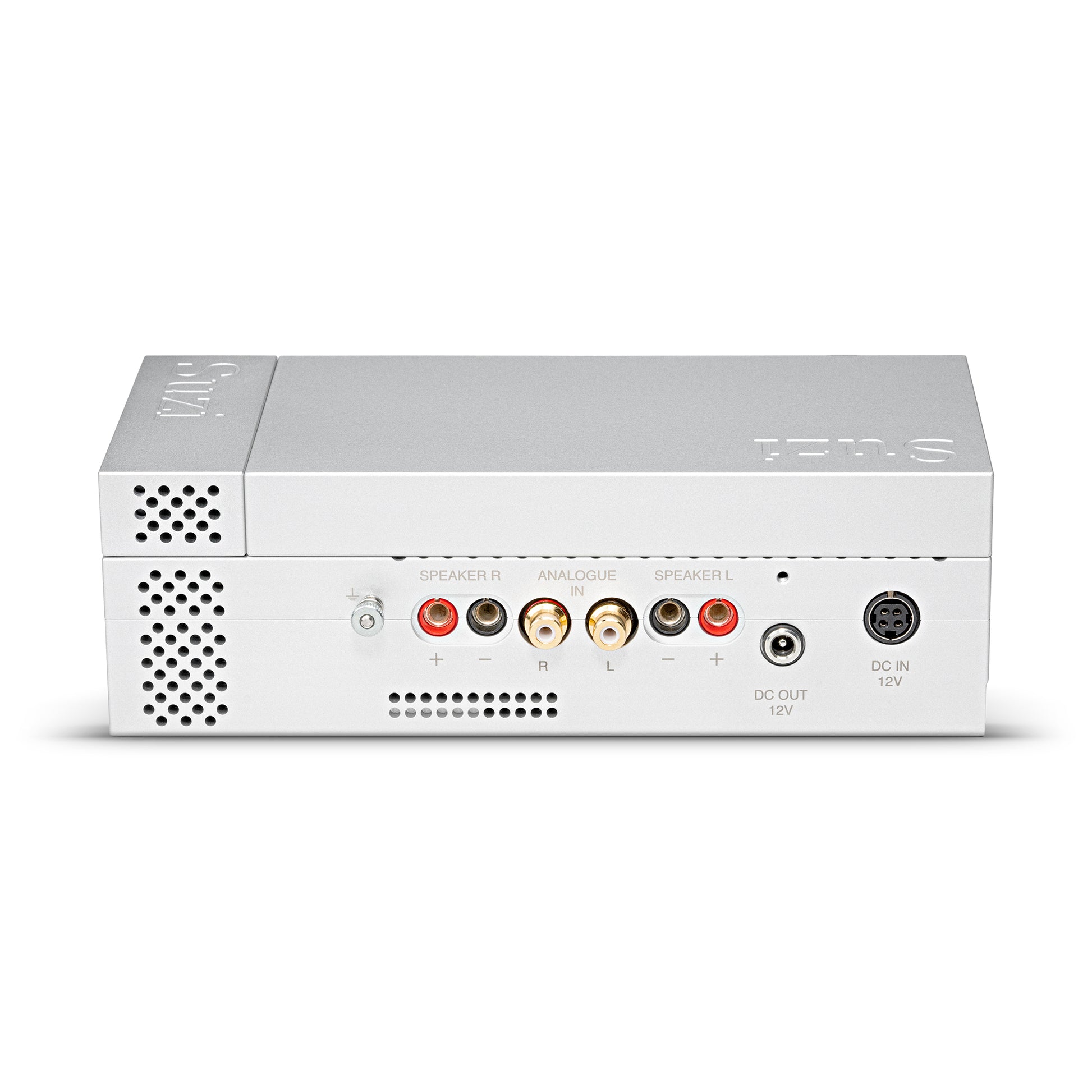

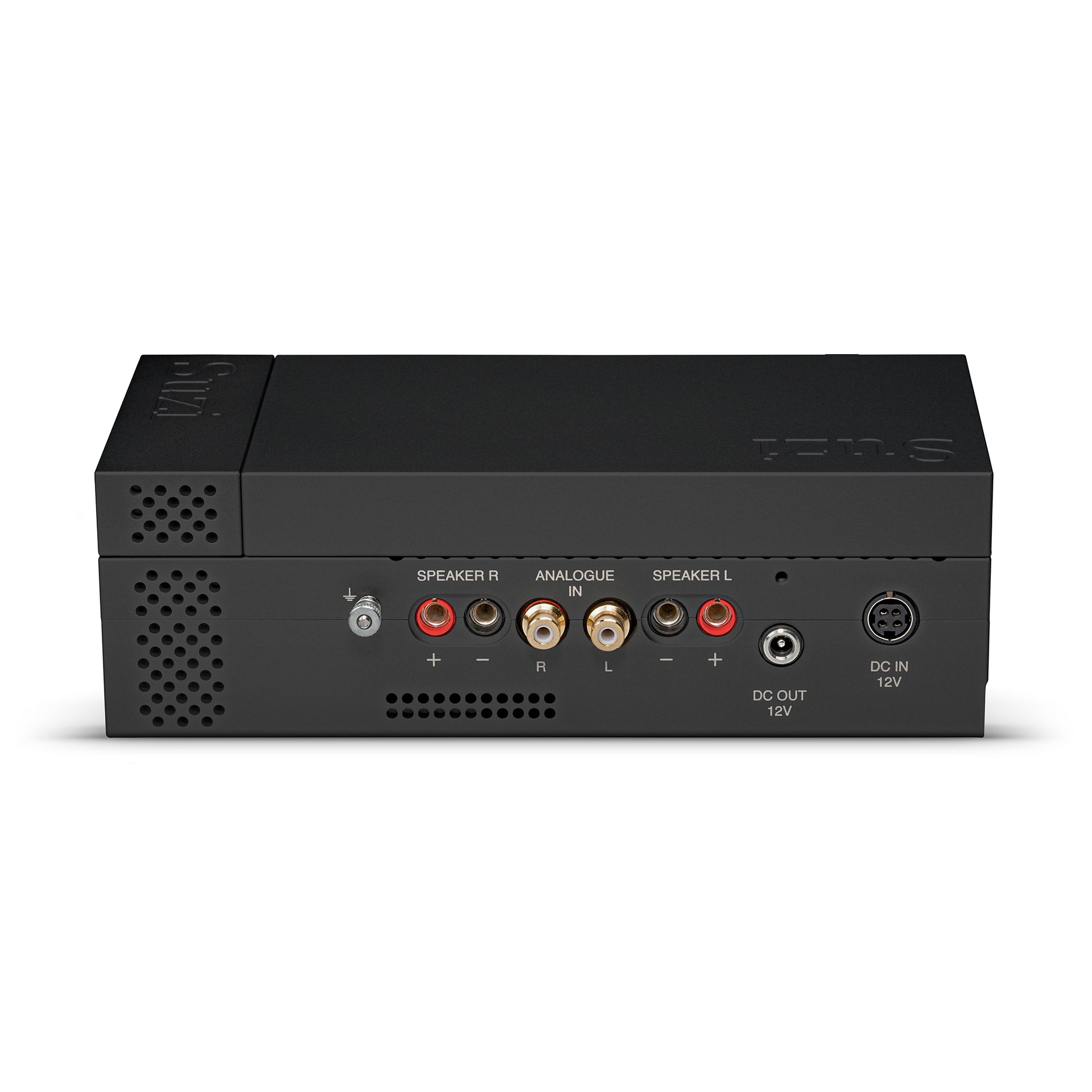

Used on its own, the Suzi Amp accepts an analog signal from an existing preamp and drives loudspeakers through 4 mm banana outputs. Its rear RCA inputs, AV bypass control, 12 V DC output, and modular top-panel interface allow it to adapt to several different Chord system configurations.

ULTIMA Technology in a Compact Chassis

The Suzi Amp uses Chord’s ULTIMA amplifier topology in a chassis sized to match products from the Hugo range. Its vented casework supports thermal performance while keeping the amplifier compact enough for desktop, bookshelf, or small-room systems.

Standalone Power Amplifier

With RCA analog inputs and 4 mm banana speaker outputs, the Suzi Amp can be used with an existing preamp as a compact stereo power amplifier. The AV bypass function engages the rear RCA inputs for this use case.

Suzi Pre Integration

Pairing the Suzi Amp with the matching Suzi Pre creates a compact analog pre/power amplifier system with phono stage and headphone output. The two units connect directly, giving the system a tidy, stacked footprint without requiring conventional interconnects between the preamp and power amplifier.

Hugo 2 and 2go System Options

The Suzi Amp can also be partnered with Chord’s Hugo 2 DAC to create a DAC/amplifier system. Add the optional USB Multiplexer for USB-B data plus USB-C data and charging, or combine Hugo 2 with 2go to create a streaming DAC/amplifier with Wi-Fi, Ethernet, Roon Endpoint, DLNA/UPnP connectivity, and up to 2 TB of MicroSD storage through 2go’s twin card slots.

Headphone Pass-Through

The front-panel 3.5 mm and 6.35 mm headphone outputs are active when the Suzi Amp is connected to a Suzi Pre or Hugo 2, allowing one or two listeners to use headphones through a connected source.

Features

• Compact modular stereo power amplifier
• 30 W per channel into 8 Ω
• Chord ULTIMA amplifier topology
• RCA analog inputs for use with a preamp
• 4 mm banana speaker outputs
• AV bypass function for rear RCA input use
• Direct mechanical and electrical integration with Suzi Pre
• Compatible with Hugo 2 for DAC/amplifier configuration
• Compatible with Hugo 2 and 2go for streaming DAC/amplifier configuration
• Optional USB Multiplexer support for USB-B data and USB-C data/charging
• 12 V DC output for compatible Chord Electronics devices
• 3.5 mm and 6.35 mm headphone pass-through outputs when used with Suzi Pre or Hugo 2
• Vented casework for thermal performance
• Designed and handmade in the UK

Specifications

Product Type: Modular stereo power amplifier

Inputs: 2 x RCA sets, one reserved for Hugo 2 integration; 12 V power input; 5 V Micro USB for charging bridge assembly use with Hugo 2/USB Multiplexer or Hugo 2/2go

Outputs: 1 x pair of 4 mm banana speaker outputs; 1 x 12 V DC output

Headphone Pass-Through Outputs: 1 x 3.5 mm; 1 x 6.35 mm

Power Output: 30 W into 8 Ω

Input Maximum Voltage: 3 V RMS

Output Maximum Voltage: 15 V RMS into 8 Ω

THD: 0.01%

Signal-To-Noise Ratio: -116 dB

Crosstalk: -97 dB

Operation Voltage: 80–250 V AC auto-switching

Dimensions (HLW): 2.72" x 8.46" x 3.94" (69 mm x 215 mm x 100 mm)

Weight: 5.25 lb. (2.38 kg)
