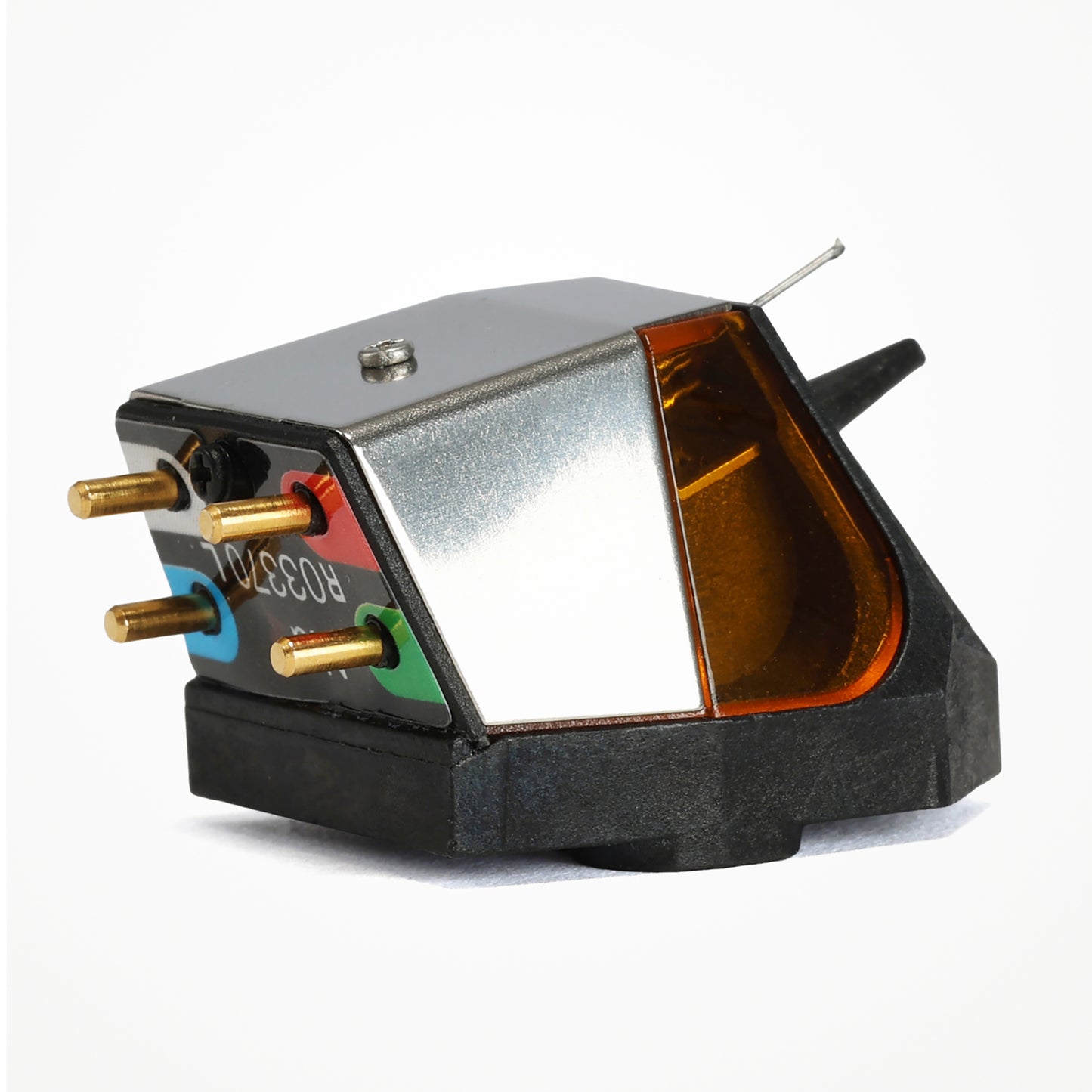

Rega Nd9 Moving Magnet Cartridge

Boron cantilever moving magnet cartridge with fine-line nude diamond stylus and Neodymium N55 magnet

The Rega Nd9 is a reference moving magnet cartridge developed from decades of Rega cartridge and cantilever research. It uses a boron rod cantilever with a fine-line nude diamond stylus derived from the Aphelion 2 moving-coil cartridge, allowing fast, precise response to fine groove modulations and highly resolved playback. The Nd9 is also available as a factory-fitted option on the Planar 8 turntable.

Each Nd9 is hand-built by Rega and features its most advanced Fine Line nude diamond profile, bonded to the boron cantilever via an ultra-fine connecting tube developed with a high-end watchmaker. The stylus has an extremely small contact radius—approximately 3 µm from above and 30 µm from the front—allowing accurate tracing of low-level groove detail while maintaining stable tracking. A revised generator geometry with symmetrical construction, miniaturised parallel coils, and an optimised pole gap delivers accurate channel balance, low inductance, low impedance, and extended high-frequency response with a stable soundstage.

The assembly is housed in a lightweight, rigid glass-filled PPS body designed to minimise stress on tonearm bearings. Rega’s three-point mounting system ensures secure, repeatable alignment on compatible Rega tonearms, and the Nd9’s 5–6 mV output pairs well with quality moving magnet phonostages. The cartridge ships in fully recyclable packaging.

Features

• Reference moving magnet cartridge with boron rod cantilever
• Fine-fine nude diamond stylus profile derived from Aphelion 2 MC
• Neodymium (Nd) N55 magnet for a powerful, compact generator
• New low-inductance, low-impedance generator geometry with optimised pole gap
• Miniaturized parallel coils wound in-house with 38 µm wire and 1,275 turns
• Injection-moulded glass-filled PPS body for low mass and high rigidity
• Rega three-point mounting system for secure, precise installation on Rega tonearms
• Handmade by specialist Rega technicians in the UK
• Available factory fitted on the multi-award-winning Planar 8 turntable
• 100% recyclable packaging


Specifications

Cartridge Type: Moving magnet

Generator: Low inductance, low impedance design with optimised pole gap and new symmetrical geometry

Body Material: Injection-moulded glass-filled PPS

Mounting: Rega 3 point mounting system (for Rega tonearms only)

Stylus Profile:  Fine-line nude diamond

Cantilever: Boron rod

Magnet: Neodymium (Nd) N55

Output Voltage (Nominal): 5-6 mV

Tracking Force (Recommended): 1.75 g

Coil Configuration:  Miniaturised parallel coils wound in-house with 38 µm wire (1,275 turns)
