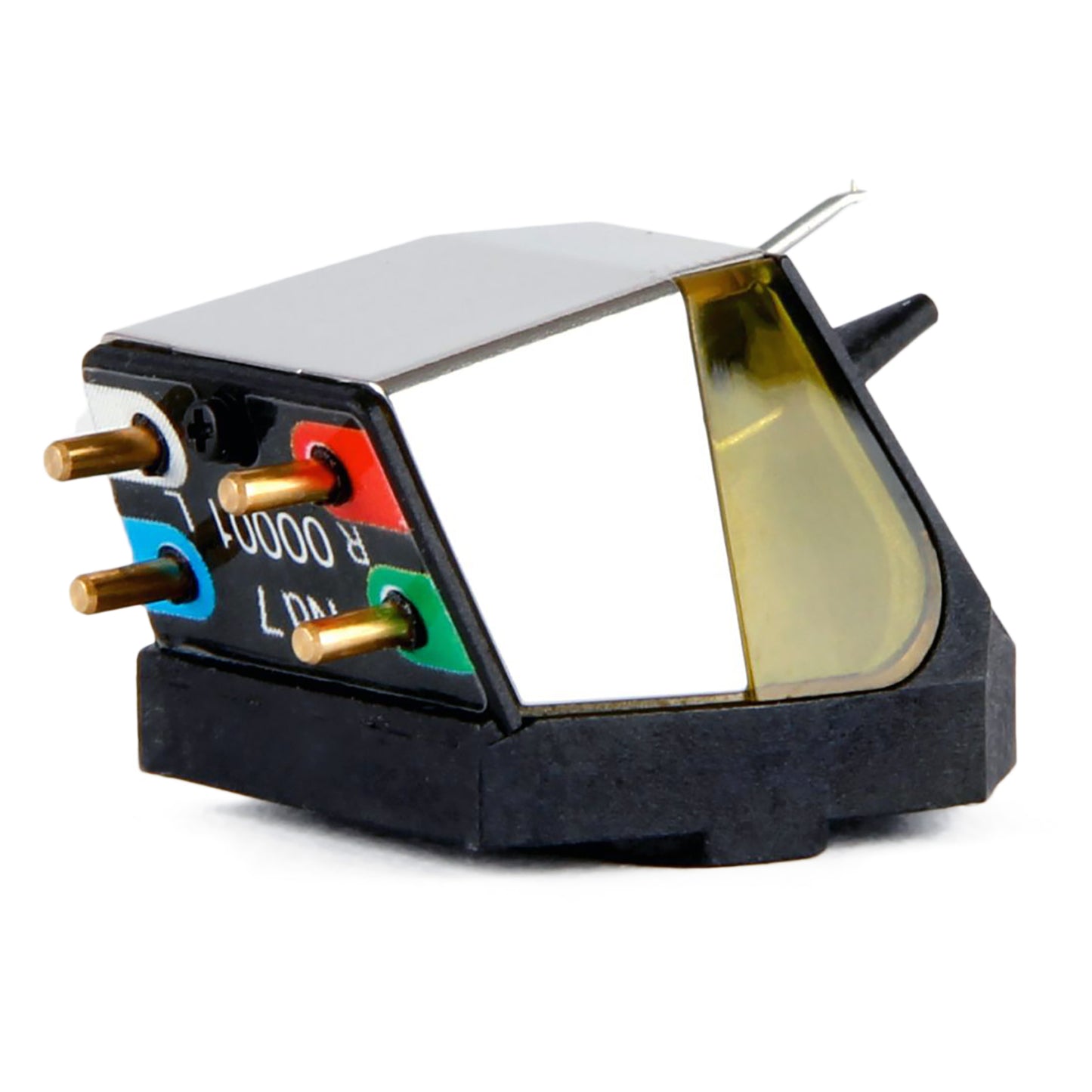

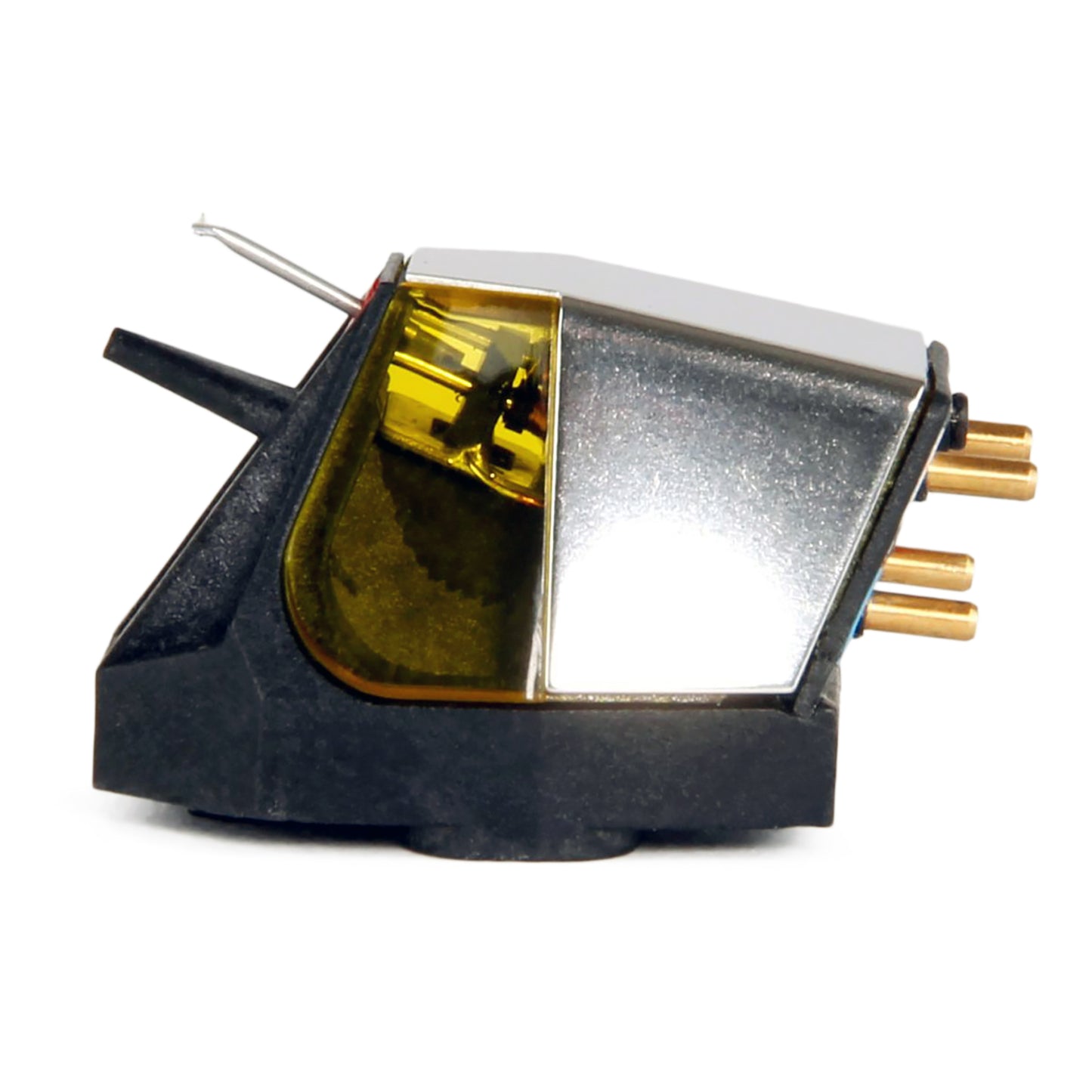

View full detailsRega ND7 Moving Magnet Cartridge
The all-new Nd moving magnet cartridge line was developed over 10 years, and promises to deliver ‘next level’ performance from moving magnet technology. Rega believes the patent pending Nd range is the first in the world to use ultra-high powered neodymium magnets.
Each Nd7 is meticulously hand-made by Rega's highly skilled technicians. The Nd7 uses Rega's most advanced “fine line” nude diamond profile for the ultimate in detail retrieval. (The same profile is used on Rega's high-end MC models, the Apheta 3 and Aphelion 2). This profile has an exceptionally small radii monocrystalline manmade diamond. This profile allows immediate adjustment to very small changes in the vinyl due to the small contact area of the diamond which results in exceptional levels of detail being retrieved. The design uses brand new generator geometry with perfect symmetry to achieve highly accurate channel balance.
The Nd7 also has an optimized pole gap for superior linearity and crosstalk characteristics. This provides a far wider soundstage than the previous models. This new cartridge is created with miniaturized parallel coils wound in-house utilising 38-micron wire with just 1,275 turns. This produces a low-inductance, low-impedance generator giving vastly improved high-frequency response. In keeping with Rega's commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.
Nd Magnet Technology
Often used in moving coil designs, Rega believes the Nd7 is the first moving magnet to use a neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.
Glass-Filled PPS Body
The complete assembly is housed in Rega's zero-tolerance, injection-molded, glass-filled polyphenylene sulfide body (PPS), which is a lightweight and highly rigid material. A low-mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by Rega's hugely successful MC range.
Cantilever and Stylus Profile
The Nd7 aluminum cantilever is fitted with a precision perfect elliptical nude diamond stylus. This profile provides exceptional tracking accuracy and extracts greater levels of detail from the vinyl surface.
Features
- Handmade stereo cartridge
- Highly rigid lightweight PPS body
- Fine line nude diamond profile
- Aluminum cantilever
- Neodymium magnet
- Rega three-point mounting system
- 100% recyclable packaging
- Lifetime warranty against manufacturing defects
Specifications
Nominal Output Voltage: 5-6 mV
Stylus: Fine line nude diamond profile
Coil: Miniaturized parallel
Tracking Pressure: 1.75g
