Pro-Ject Tube Box DS2 Phonostage

Pro-Ject Tube Box DS2 Phonostage

SALE Sold out
Regular price $999 In stock now!
Regular price $999 Sale price $999 In stock now!
Shipping calculated at checkout.
Color

Product questions? Found a lower price?

Let us know: 909.931.9686 or chat.

This item qualifies to earn HiFives. What's a HiFive?

View full details

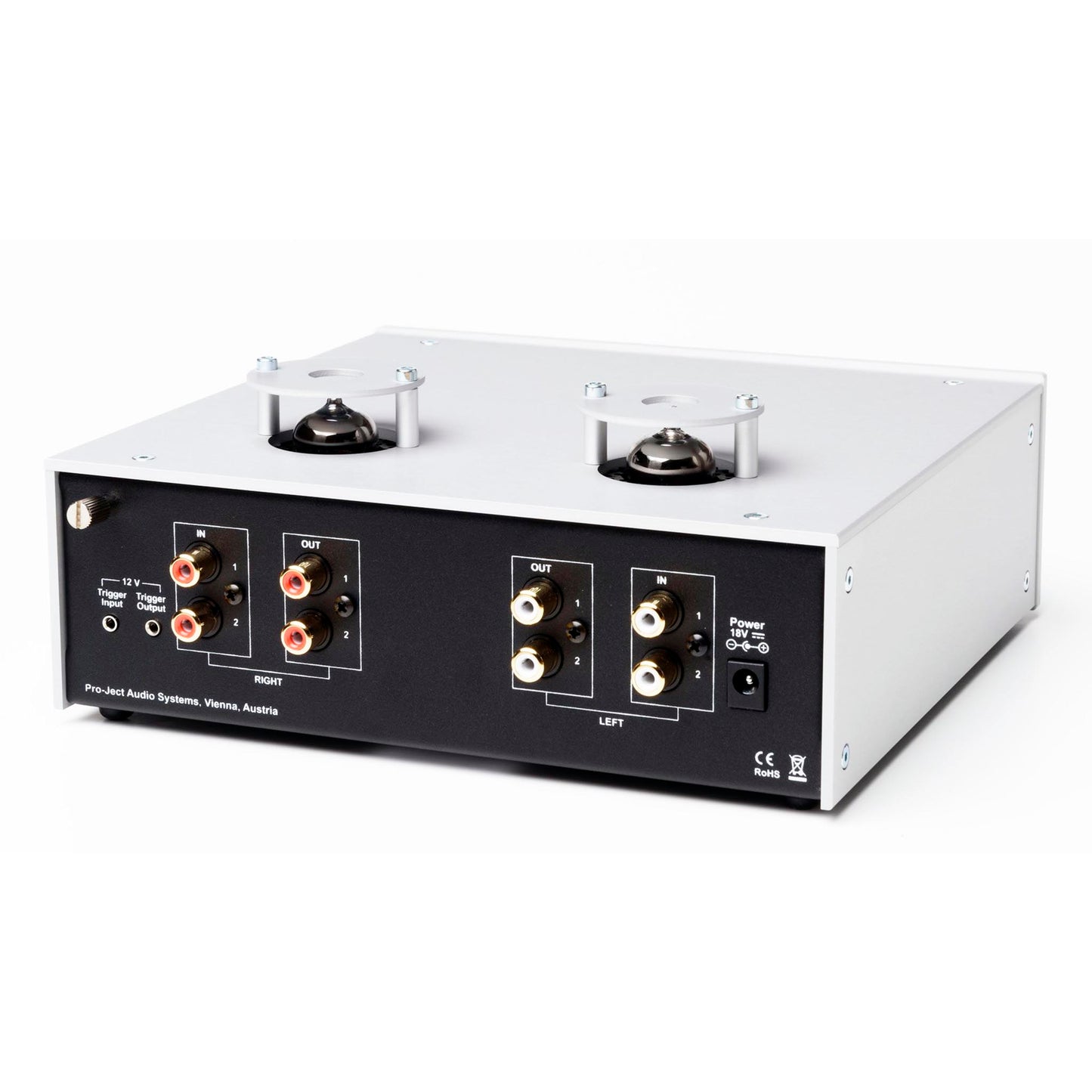

Pro-Ject Tube Box DS2

This precision tube phono preamplifier benefits from outstanding circuit technology from Dr. Sykora and uses ultimate components. Compatible with both MM and MC cartridges. It offers connection for two turntables plus two selectable line outputs and a continuously variable selection of input impedance for low output MC cartridges while playing a record! Other features include input capacitance for MM cartridges and switchable subsonic, that prevents your amplifier and speakers of ultra low rumble below 20Hz. All components including tube output and polypropylene capacitors are audiophile-grade and guarantee a breathtaking sound experience. A perfect upgrade for ambitious vinyl lovers!

Specifications

Tubes 2 x ECC83 (12AX7)
Input impedance Variable 10-1000 Ohm, fix 47 kOhm
Capacitance 100 / 220 / 320 pF
Gain MM / MC 40 / 45 / 50 / 60 / 65 dB
Output voltage typically 500 mV/1kHz at 5mV/1kHz (at 40dB)
SNR 88 dBA
THD < 0.04%
RIAA curve accuracy +/- 0.2dB/20Hz - 20kHz
Subsonic filter 20Hz @ 12dB/octave
Inputs 2 x Phono (RCA)
Outputs 2 x Line (RCA)
Power supply 18V/1000mA DC
Power consumption max 490mA DC / < 0.5 Watt Standby
Dimensions B x H x T 206 x 91 x 227 mm (Alu)
240 x 93 x 227 mm (Wood)
Weight (without power supply) 1500 g (Alu)
1960 g (Wood)
