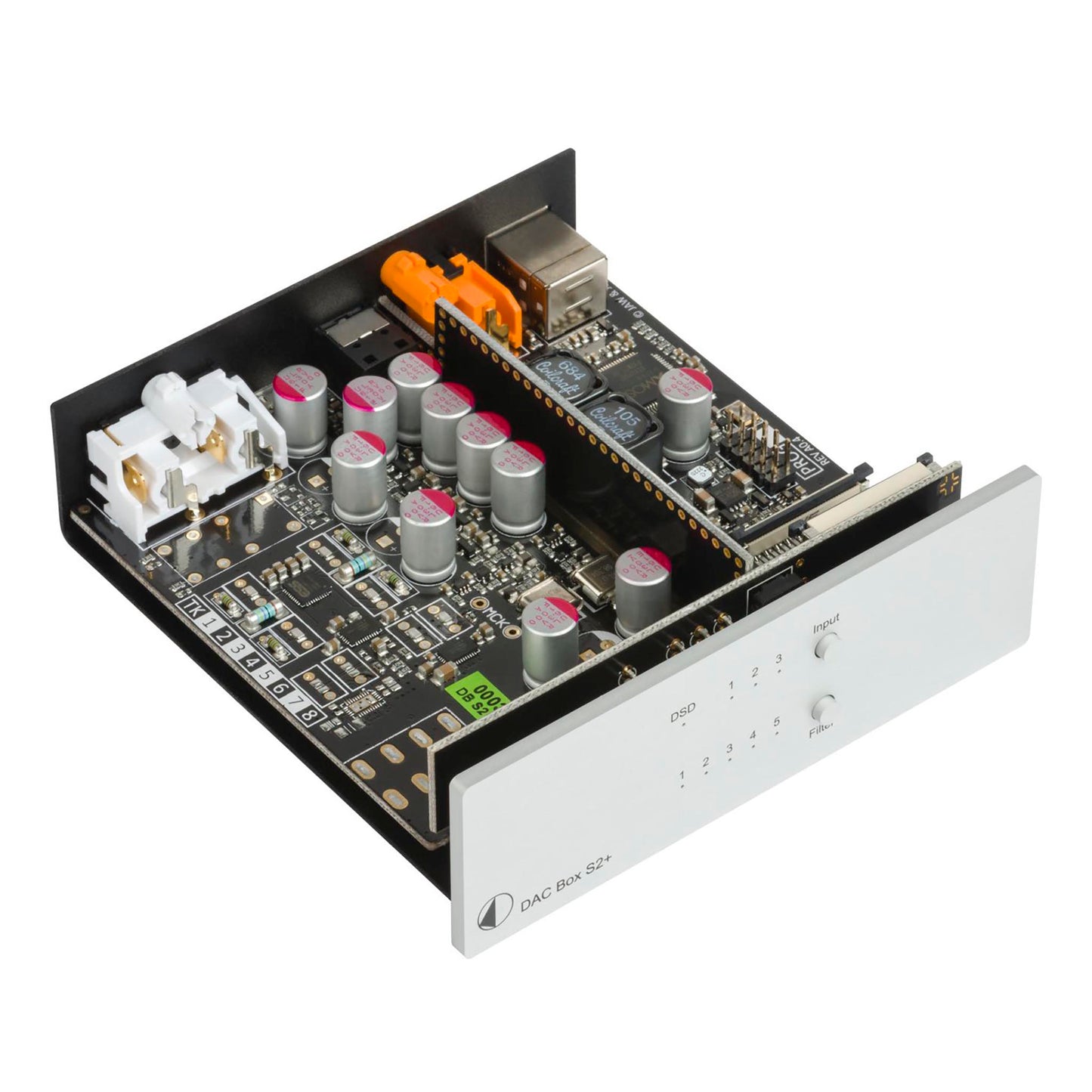

Pro-Ject DAC Box S2+
Pro-Ject DAC Box S2+
Product questions? Found a lower price?
Let us know: 909.931.9686 or chat.
This item qualifies to earn HiFives. What's a HiFive?
View full detailsPro-Ject DAC Box S2+
A miniature high quality digital to analogue converter
DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32Â bit / 768 kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for soundshaping to the listener's preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the USB B input or a TV set via the optical input. The co-axial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T.
All inputs offer support for high-resolution data up to 24 bit /192 kHz. The USB input offers full high-resolution support for all files up to PCM 32/768 and DSD256. The USB input is double filtered to remove all noise.Â
Note: We sell the black finish only
Features
- High-end ESS Sabre ESS9038 DAC
- Proprietary clock circuity design
- Organic polymer capacitors and thin film
- miniMELF resistors
- 32bit / 768kHz PCM support
- DSD64, DSD128 & DSD256(DSD over PCM)
- Up to 24bit/192kHz for optical & coax inputs
- 5 selectable digital filter characteristics
- 1 proprietary optimum transient digital filter
- Synchronization of all internal oscillators
- Jitter as low as 100 Femtoseconds
- Gold plated four layer PCB
- Full alu/metal sandwich casing in silver or black
- Handmade in EuropeÂ
SpecificationsÂ
DAC chip: ESS9038K2M 32-bit
Sampling rates
USB:Â Up to DSD256, PCM up to 32-bit, 768 kHz
Optical: PCM up to 24-bit, 192 kHz
Coaxial: PCM up to 24-bit, 192 kHz
Inputs: 1x USB B, 1x S/PDIF RCA, 1 x OpticalÂ
Outboard power supply: 5 V/1 A DC (included)
Dimensions (WHD):Â 4" x 1.5" x 4.8" (103 x 37 x 122 mm)
Weight (without power supply):Â 0.78 lb
