PrimaLuna EVO 100 Tube Integrated Amp
PrimaLuna EVO 100 Tube Integrated Amp
Eligible for PrimaLuna Tube Bundle
Choose an additional discounted set of power tubes below. Available to you through any authorized North American PrimaLuna retailer.
Special terms and conditions apply.Learn About PrimaLuna Tube Bundles and Tube Rolling
PrimaLuna EVO 100 Tube Integrated Amp
Replacing beloved the PrimaLuna Classic, this entry into the EVO series offers an integrated with astonishing bandwidth and musicality, and a smaller, lighter footprint than the others in the series.
Compare PrimaLuna construction to any other brand, at any price. You'll be amazed.
Price | $2,795 |
Power Ultra-linear |
40 watts x 2 (EL34) (8Ω, 1% THD) |
Inputs | 4x Stereo RCA |
Outputs | 4 & 8 Ω Stereo RCA Tape Out 1/4" Headphone |
Freq. Response | 10Hz-75Hz +/- 3dB |
THD | < 0.2% @ 1W < 2% @ Rated Power |
S/N Ratio | 90 dB (EL34) |
Input Sensitivity | 260mV (EL34) |
Power Consumption | 270 watts (EL34) |
Standard Tube Complement | 2 - 12AX7 2 - 12AU7 4 - EL34 |
Dimensions (WxHxD) | 11" x 7.5" x 15.9" |
Weight | 39.6 lbs |
What PrimaLuna EVO 100 Tube Integrated Amp owners think:
Read Owner Reviews »(Optional) Internal Moving Magnet Phonostage
Freq. Response | 10Hz-50kHz |
Distortion & Noise | -83dB |
Input Impedance | 50kΩ |
Gain | 42dB |
Suggested Min. Cartridge Output | 2.0 mV |
EVO internal phonostage connects directly to one of the existing line inputs on your PrimaLuna EvoLution series Integrated Amp or Preamplifier. No extra plugs or cables required. Uses Surface Mount Technology implementation for the shortest signal path and reduction of parasitic capacitances and inductance.
Made in Holland to ISO 9001 standards, boasting selected components for the best sound quality. Miniature film capacitors, minimelf resistors, and a superior op-amp for lowest noise, highest speed, and robust drive. Low impedance electrolytics and a super low noise power supply results in a turntable experience with goose bumps!
Suitable for both moving magnet and high-output moving coil cartridges. Can be installed any time (requires basic soldering skills) or installed at time of purchase (no installation fee).
Bad Tube Indicator
PrimaLuna engineers wanted to make owning a tube amp so simple you would have no excuse not to have your tube dreams come true.
If a tube fails, Adaptive AutoBias will instantly put the amplifier into protection mode so no parts can get damaged. A red LED will light up in front of the tube that needs replacing. Simply plug in another tube, and listen. No guesswork. No smoking amp. No getting out the soldering iron or dropping your amp off at UPS
Custom Toroidal Power Transformers
Power transformers generate two types of noise, magnetic and acoustic. That's why toroidal power transformers are used in the very best audio products. Compared to standard transformers, toroids radiate about 1/10 the magnetic field that pollutes music and obscures detail. Additionally, the absence of an air gap typically means toroids have an 8:1 reduction of acoustic noise. As transformers are the most expensive components in any audio product, manufacturers will even house cheaper C-core and EI-core transformers in an outboard power supply box with an umbilical cable rather than upgrade to an expensive toroid. The increased cost is significant, but PrimaLuna doesn’t cut corners. All PrimaLuna products use massive, potted toroidal transformers. PrimaLuna transformers are enclosed in a metal housing and then potted in a non-microphonic resin to further reduce noise and to protect the windings from moisture and deterioration forever.
Custom Super-Wide-Bandwidth Output Transformers
Output transformers are the most important part of any tube amp. They determine how low the bass will reach and how high the top end goes. 250 watts of power will have no top and bottom extension if the output transformers don't have the bandwidth. We use lower power to extend tube life, and bandwidth to give you slam. Transformers are the most expensive components in an amplifier, so manufacturers save money by using ‘off the shelf’ units available on the market. PrimaLuna output transformers are custom-designed, wound in-house, and massive. One reason why no other brand sounds like a PrimaLuna. "The flat tops and bottoms of these squarewaves correlate with the amplifier's extended low-frequency response; PrimaLuna's output transformers are of excellent quality." -John Atkinson, Stereophile Magazine
Adaptive Autobias
What most companies call Auto Bias is actually "Cathode Bias"- A commonly used method that is cheap to make, and often found in guitar amps, but also $20,000 high end audio amps. It reduces the available power of the amp and runs the tubes hard, meaning shorter tube life and failures via "shorts".
PrimaLuna's Adaptive AutoBias is a true, smart technology employing an array of sensors to monitor tubes and make adjustments seamlessly in real time. More important, it is the ONLY circuit of its kind that is truly "adaptive" by addressing "tube pinch off" at higher volumes, therefore reducing distortion by over 50% and greatly extending tube life. Adaptive AutoBias is completely passive and NOT in the signal path. The result is low to no maintenance, long tube life, and the lowest possible distortion for amazing sound.
Point-to-Point Wiring
You spend a lot of money on interconnects. So why have the signal go right from the RCA jacks or speaker terminals into circuit boards with copper traces so thin you can hardly see them? What’s high-end about that?
PrimaLuna employs Point to Point Wiring on all products. The entire signal path, including resistors and capacitors, is painstakingly hand wired with heavy-gauge cable by craftsman.
No Internal DAC / No Internal Phonostage (sub of p2p wiring)
Never buy an integrated amp with an internal DAC. Why? Because digital changes, and history shows that integrated amps with “old” digital become unwanted and have almost no resale value.
Built in phonostages are “throw in” and are rarely good quality because manufacturers assume 90% of buyers won’t use them. The external phonostage market is very competitive. You can get something much better for as little as $200, and buy one that actually meets your cartridges needs and YOUR budget.
SmartWatts - Extended Tube Life
Tube life is simply a matter of how hard you run the tubes. That’s it. The only way to extend tube life is to run them as close to zero as you possible can, making sure it is not so low you go into crossover distortion. The life of a tube will depend on two things: Plate and screen voltage.
If the plate and screen voltage is high, you are more likely to get tube shorts when you turn the amp on and you get cathode stripping which greatly effects the cathodes ability to spit out electrons. Manufacturers that run the hell out of tubes to pump up their power ratings will never tell you what voltages they use. They’ll say it’s “proprietary” as if it’s some secret sauce. There is no such thing. But if they told you that they used 575, 600, or even 625 volts you probably wouldn’t buy. We proudly tell you our tubes run at just about 417 volts for the plates and screens.
PrimaLuna runs their output tubes at a minimum dissipation without going into crossover distortion. When you look at our amps, they provide less power from each tube. With KT-120’s as an example, a PrimaLuna will give you only 21 watts per tube. So running a pair of them you get 42 watts. That’s a lot of power, but the demands per tube are a fraction of some manufacturers that give you 100 watts from a pair of KT-120’s. It’s a cheap way to get big power, and it’s cheap. In fact, free. To get more power the right way is expensive. It requires bigger transformers, sockets, wiring, resistors, capacitors, and the tubes to do it. Which is exactly what PrimaLuna did. But we didn’t stop there.
Read this carefully: Power has nothing to do with sound quality. Or bass slam. Only first-time buyers think that way. Experienced audiophiles know that for the majority of listening sessions, you use maybe 10 watts of power.
Our amps are perfect. But your system may not be.
Ask any seasoned tube-head what the most musical output tube is and they will most certainly declare it the EL34. Other amp manufacturers would love to use it. Only PrimaLuna, through our proprietary output transformer designs, can give you EL34 midrange beauty with top-end air that goes on forever. And, bass extension with so much slam, our amps are used to power subwoofers.
However, every system is different. What if you bought a speaker with bass that overloads the room? Or, that is too dark? Or, too bright? What if you just want to have fun trying the different colors of sound from a vast pallet of tubes? With other manufacturers' products, you're stuck. They're a one-trick pony. How are you going to fine-tune your sound? Buy some different cables?!
With PrimaLuna, you get to choose. Go for it. 6L6G, 6L6GC, 7581A, EL34, EL37, 6550, KT66, KT77, KT88, KT90, even the KT120 (the EVO 100 is not KT150 compatible). A future-proof design, PrimaLuna is compatible with NEW tube types not even thought of today!
PrimaLuna Integrated Amplifier Feature Comparison
EVO 400 |
EVO 300 |
EVO 200 |
EVO 100 |
|
---|---|---|---|---|
Price | $5,595 | $4,695 | $3,395 | $2,795 |
Headphone Amplifier | ✔ | ✔ | ✔ | ✔ |
Swiss Made Wiring | ✔ | ✔ | ||
Takman Resistors | ✔ | ✔ | ||
DuRoch Tinfoil Capacitors | ✔ | ✔ | ||
Subwoofer Output | ✔ | ✔ | ||
Home Theater Bypass | ✔ | ✔ | ✔ | |
AC Offset Killer | ✔ | ✔ | ||
Triode/Ultra-Linear Switching | ✔ | ✔ | ||
SuperQuiet Inputs | ✔ | ✔ | ✔ | ✔ |

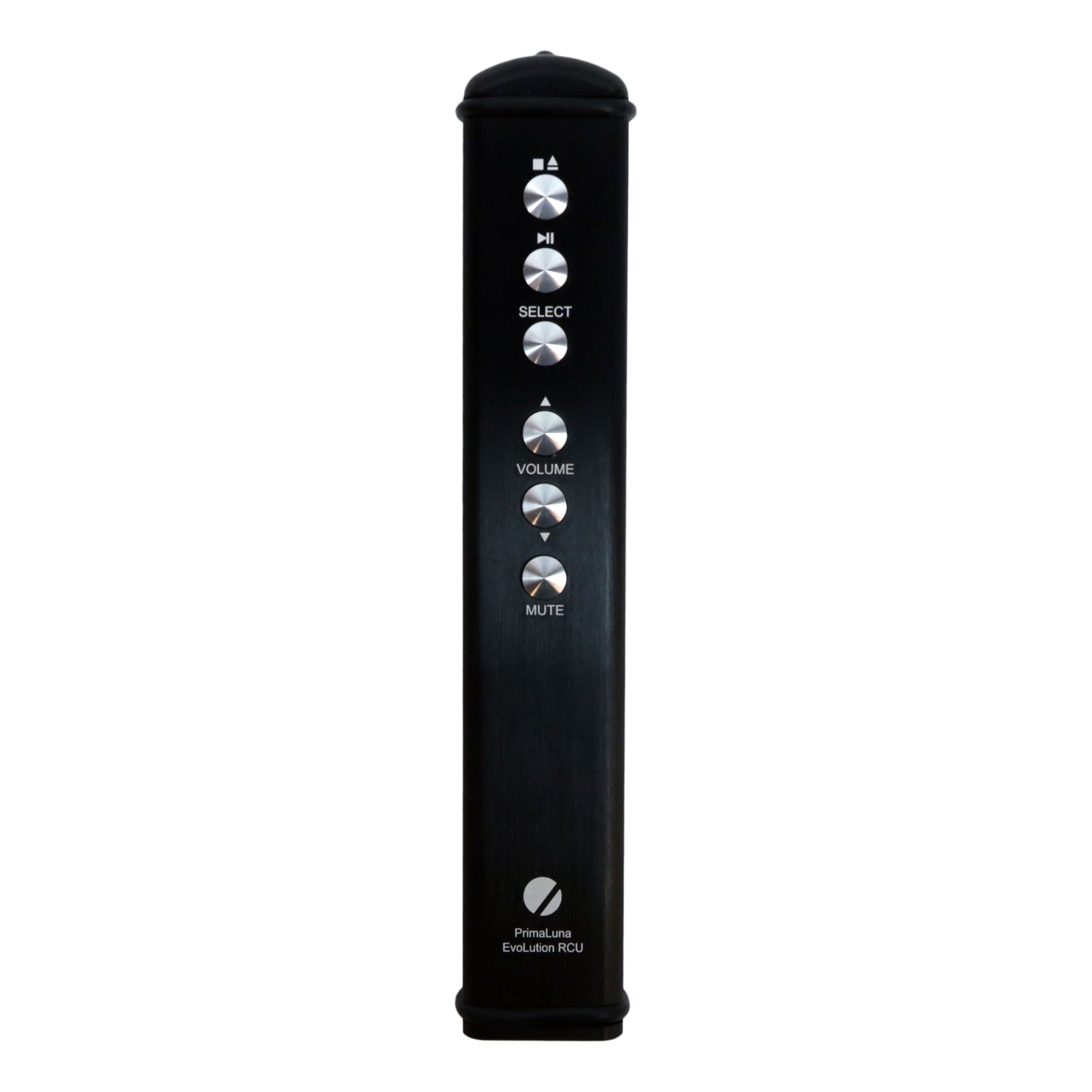

Remote Control | Full Remote | Full Remote | Slim Remote | Slim Remote |
KT150 Compatible | ✔ | ✔ | ✔ | |
Adaptive AutoBias | ✔ | ✔ | ✔ | ✔ |
Point-to-Point Wiring | ✔ | ✔ | ✔ | ✔ |
Bade Tube Indicator | ✔ | ✔ | ✔ | ✔ |
Wide-Bandwidth Output Transformers | Largest | Largest | Larger | Large |
Toroidal Power Transformers | Largest | Largest | Larger | Large |
ALPS Blue Velvet Potentiometer | ✔ | ✔ | ✔ | ✔ |
PrimaLuna Tube Bundle Details
Bundle Detials
For a limited time, customers who order select PrimaLuna power or integrated amplifiers can choose to add, at a discounted price, a set of cryogenically treated KT120 or KT150 power tubes - in addition to the stock EL34 power tubes.
Returns & Exchanges
PrimaLuna Amplifiers Bundled with Tung-Sol Tubes may be returned or exchanged in accordance with our normal return policy, HOWEVER, to prevent fraudulent purchases for discounted tubes, bundled discounted tubes cannot be returned, and a restocking fee for the full retail value of the bundled tubes will be applied to returned amplifiers.
