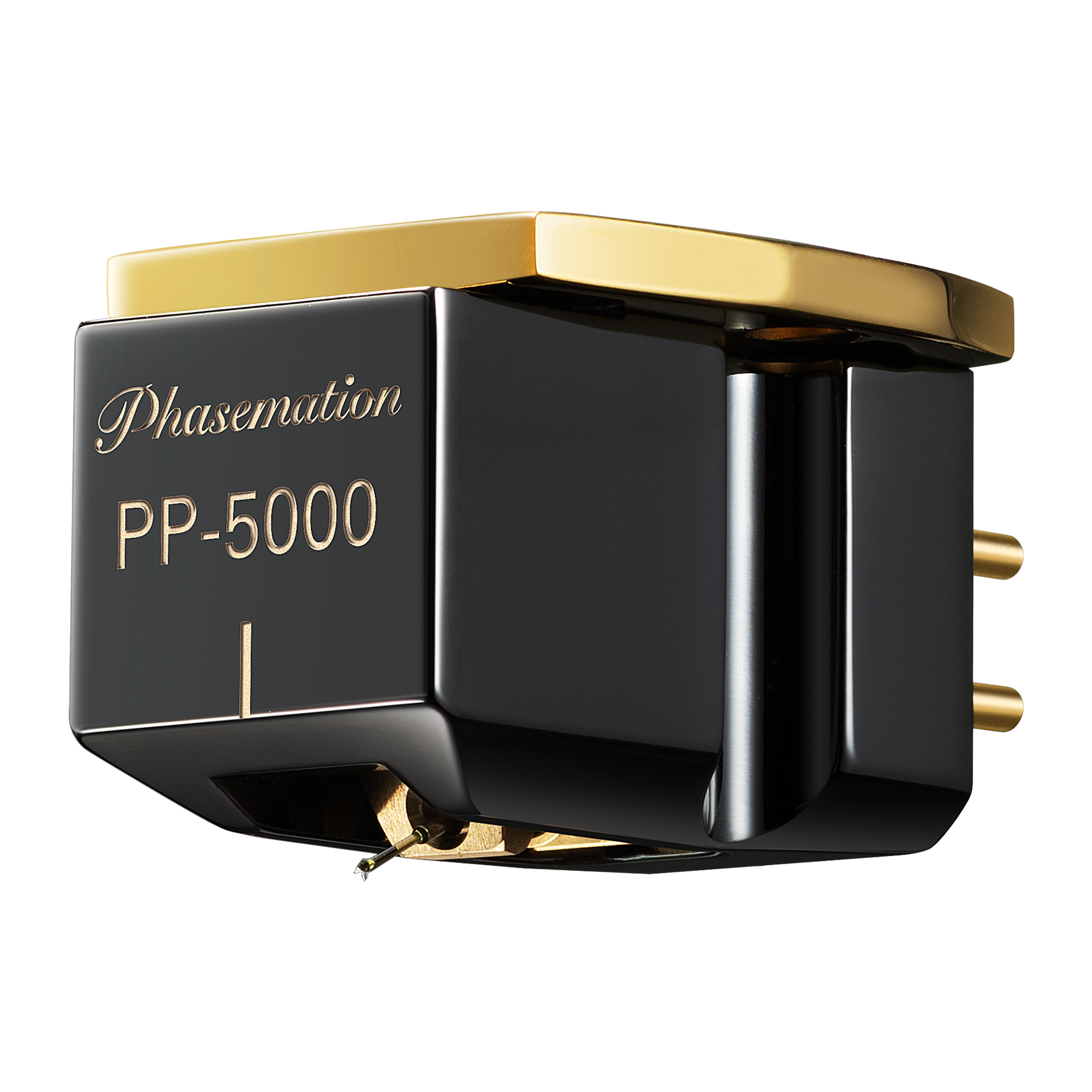

Phasemation PP-5000 Moving Coil Cartridge

Anniversary flagship low-impedance moving-coil cartridge with diamond cantilever, natural diamond line-contact stylus, TiN-treated stainless base, and DLC-coated duralumin body.

Created to mark the 20th anniversary of the brand’s founding, the Phasemation PP-5000 is a commemorative flagship MC cartridge that the company describes as a new milestone and a return to its origins in cartridge design. It is built on a stainless-steel base treated with TiN (titanium nitride) for a golden finish, corrosion resistance, and hardness, topped by a duralumin body treated with DLC (Diamond Like Carbon) to control resonance and deliver a more direct, highly resolved presentation.

At the heart of the PP-5000 is a synthetic diamond cantilever, adopted here for the first time in a Phasemation cartridge to increase propagation speed and expand the amount of musical information. A natural diamond line-contact stylus with a precisely controlled mounting angle, an improved vibration system and damper, and carefully polished permendur yoke in the magnetic circuit are all aimed at better trackability, more uniform magnetic fields, and enhanced spatial expression and sound image localization.

The PP-5000 is a low-impedance moving-coil design with a 4 Ω internal impedance and an output of 0.3 mV or more at 1 kHz, 50 mm/s, intended for use with an appropriate MC step-up transformer or head amplifier. With a compliance of 8.5 µm/mN, a recommended tracking force of 1.7–2.0 g, and a specified playback frequency range of 10 Hz–30 kHz, it is designed for serious analog systems set up.

Features

• 20th-Anniversary Flagship: Developed to commemorate Phasemation’s 20th anniversary, the PP-5000 is positioned as a new flagship MC cartridge and a reference point in the brand’s cartridge lineup
• Diamond Cantilever: A synthetic diamond cantilever is used for the first time in a Phasemation cartridge, chosen to enhance propagation speed and expand the amount of musical information retrieved from the groove
• Natural Diamond Line-Contact Stylus: The stylus tip is a natural diamond with a line-contact profile (0.03 × 0.003 mm), with mounting angle precision tightened from ±5° to ±3° for more accurate tracing and improved tracking performance
• Refined Vibration System: The vibration system, including the damper, is revised to work in harmony with the new cantilever, improving trackability and the cartridge’s ability to follow complex groove modulations
• Polished Permendur Magnetic Circuit: The permendur yoke in the magnetic circuit receives an additional polishing process to make the magnetic field more uniform, improving the reproduction of low-level signals and spatial detail
• Next-Generation Body Structure: A machined stainless-steel base with TiN treatment and a machined duralumin body with DLC treatment combine to control unwanted vibrations, increase rigidity, and deliver a more direct, flagship-grade sound

Specifications

Power Generation Method: Moving coil type

Impedance: 4 Ω

Applicable Stylus Force: 1.7–2.0 g

Output Voltage (1 kHz, 50 mm/s horizontal): 0.3 mV or more

Compliance: 8.5 µm/mN

Playback Frequency Range: 10 Hz–30 kHz

Separation (1 kHz): 30 dB or more

Channel Balance (1 kHz): Within 1 dB

Recommended Operating Temperature: 20°C–26°C

Stylus Tip: Natural diamond (line contact / curvature 0.03 × 0.003 mm)

Cantilever: Synthetic diamond (0.2 mm square)

Magnet: Samarium-cobalt

Magnetic Circuit Material: Permendur

Base: Machined stainless steel (TiN treatment)

Body: Machined duralumin (DLC treatment)

Weight: 14.3 g
