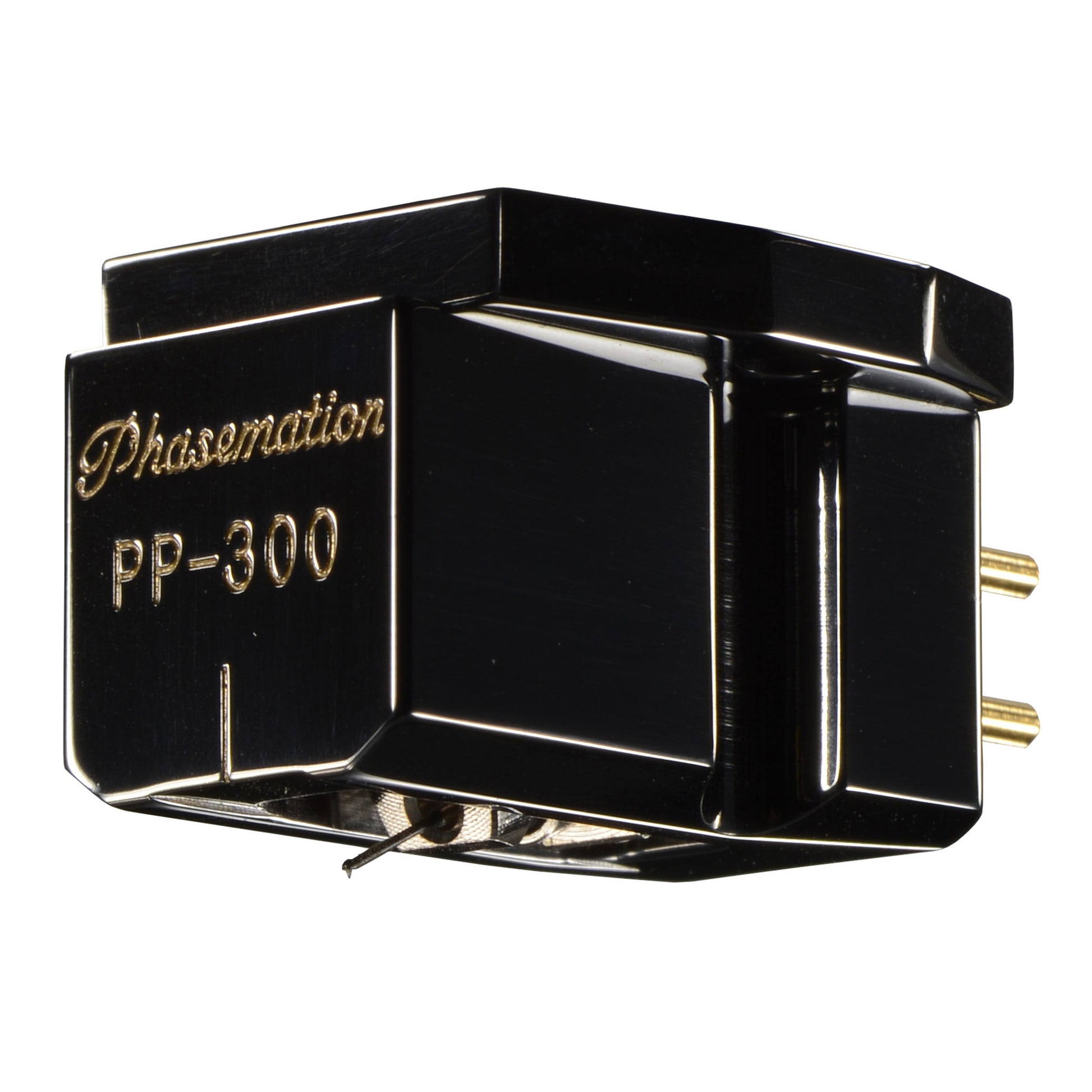

Phasemation PP-300 Moving Coil Cartridge

The PP-300 from Phasemation marks the brand’s tenth anniversary. It is heavily derived from the top-tier PP-1000. With a refined magnetic circuit, duralumin base and DLC coating, pure boron cantilever, and low-impedance output, the PP-300 delivers crisp mids and highs, resonant bass, and excellent spatial expression for serious vinyl enthusiasts.

Features

• Magnetic-Circuit Technology: The PP-300 applies the flagship PP-1000’s magnetic-circuit design, refining materials, manufacturing, and finishing to improve cost performance. A switch to a samarium-cobalt magnet enhances sound-field reproduction and freshness beyond the earlier P-3.
• High-End Body: The PP-300 uses a duralumin base and body, as in the P-3, now upgraded with a DLC (Diamond Like Carbon) coating to achieve high rigidity and excellent vibration-damping characteristics.
• Top-Shelf Materials: The PP-300 continues Phasemation’s use of premium materials from the PP-1000, including a pure boron cantilever, 6N oxygen-free copper coil wire, and a pure-iron coil bobbin.

Specifications

Type: Moving coil

Stylus: Diamond (Line-contact / curvature 0.03×0.003 mm)

Magnet: Samarium-cobalt

Magnetic Circuit Material: Pure iron

Base Material: Machined duralumin

Body Material: Machined aluminum with DLC coating

Impedance: 4 Ω

Tracking Force: 2.0 g

Output Voltage (1 kHz, 50 mm/s horizontal): 0.28 mV

Compliance (8.0 × 10⁻⁶ cm/dyne): 8.0 µm/mN

Frequency Range: 10 Hz to 30 kHz

Separation (1 kHz): 30 dB or more

Channel Balance (1 kHz): Within 1 dB

Cantilever: Pure Boron Ø0.26 mm

Weight: 11.1 g
