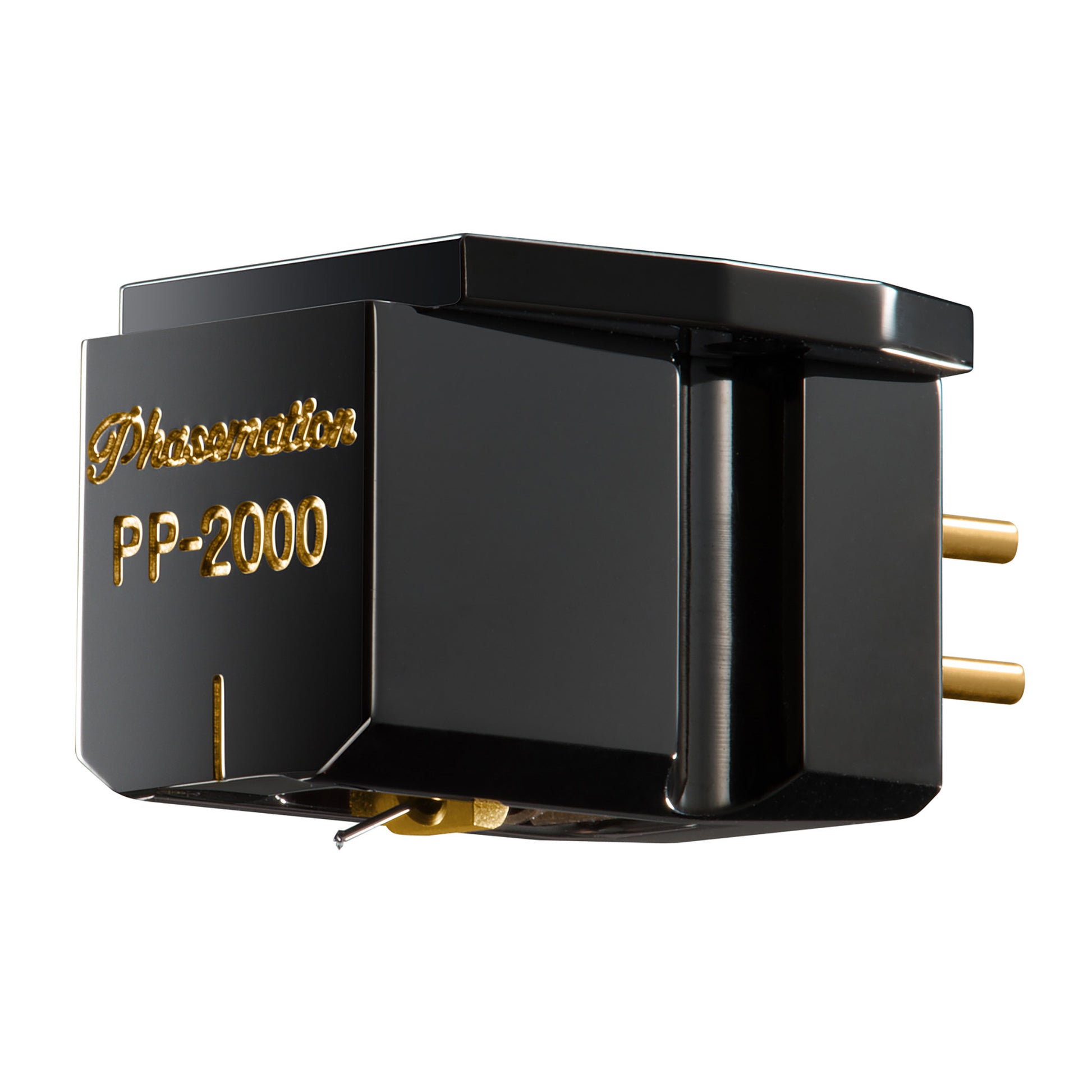

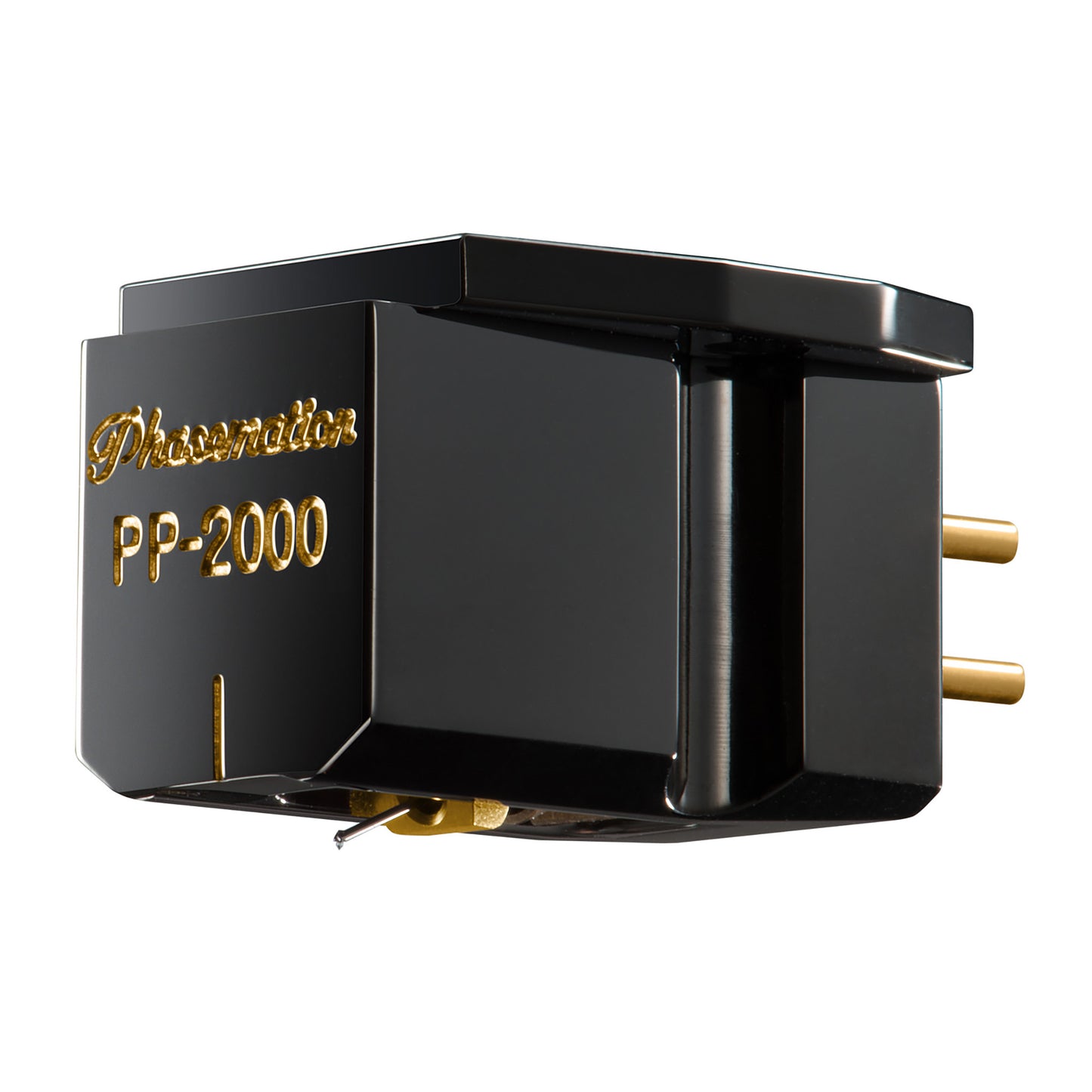

Phasemation PP-2000 Moving Coil Cartridge

Flagship low-impedance moving-coil cartridge with Permendur magnetic circuit, DLC-processed chassis, pure boron cantilever, and line-contact diamond stylus.

Phasemation has continued to research moving-coil cartridges since the brand’s beginning, and the PP-2000 is presented as an “ultimate” design created from that ongoing work. By combining a Permendur magnetic circuit and samarium-cobalt magnet with carefully chosen materials, the PP-2000 is engineered to realize auditory lateralization, spacious sound-field reproduction, fresh mid-to-high frequencies, and resonant bass.

The cartridge uses a stainless base and duralumin body, both treated with Diamond Like Carbon (DLC) processing. This structure is designed to offer excellent rigidity and vibration-damping characteristics, helping achieve sound quality “without fuzzy sounds,” as described by Phasemation.

A pure boron cantilever, line-contact diamond stylus, 6N oxygen-free copper coil wire, pure-iron coil bobbin, and wire damper are carried over from Phasemation’s high-quality models. These elements are tuned together as a low-impedance moving-coil system with a 4 Ω internal impedance and 0.3 mV output.

Features

• Low-Impedance Moving-Coil Design: Power generation is by a moving-coil system with 4 Ω internal impedance for use with appropriate MC step-up transformers or head amplifiers.
• Permendur Magnetic Circuit: The magnetic circuit uses Permendur as the core magnetic material in combination with a samarium-cobalt magnet.
• DLC-Processed Body and Base: Stainless base and duralumin body are both treated with Diamond Like Carbon (DLC) processing, providing high rigidity and excellent vibration-damping characteristics to reduce fuzzy noise.
• High-Quality Audio Materials: Pure boron cantilever, 6N oxygen-free copper coils, a pure-iron coil bobbin, and a wire damper are employed, inheriting the material choices from Phasemation’s high-grade cartridges.
• Needle Exchange Support: Stylus exchange is supported via Phasemation’s “needle exchange” service; customers are instructed to contact their dealer when the stylus needs replacement.

Specifications

Power Generation Method: Moving coil type

Impedance: 4 Ω

Tracking Force Range: 1.7–2.0 g

Output Voltage (1 kHz, 50 mm/s horizontal): 0.3 mV

Compliance: 8.0 × 10⁻⁶ cm/dyne

Frequency Range: 10 Hz–30 kHz

Separation (1 kHz): 30 dB or more

Channel Balance (1 kHz): Within 1 dB

Stylus: Diamond (line contact / curvature 0.03 × 0.003 mm)

Cantilever: Pure boron φ0.26 mm

Magnet: Samarium-cobalt magnet

Magnetic Circuit Material: Permendur

Base: Stainless (Diamond Like Carbon processing)

Body: Duralumin (Diamond Like Carbon processing)

Weight: 14.3 g
