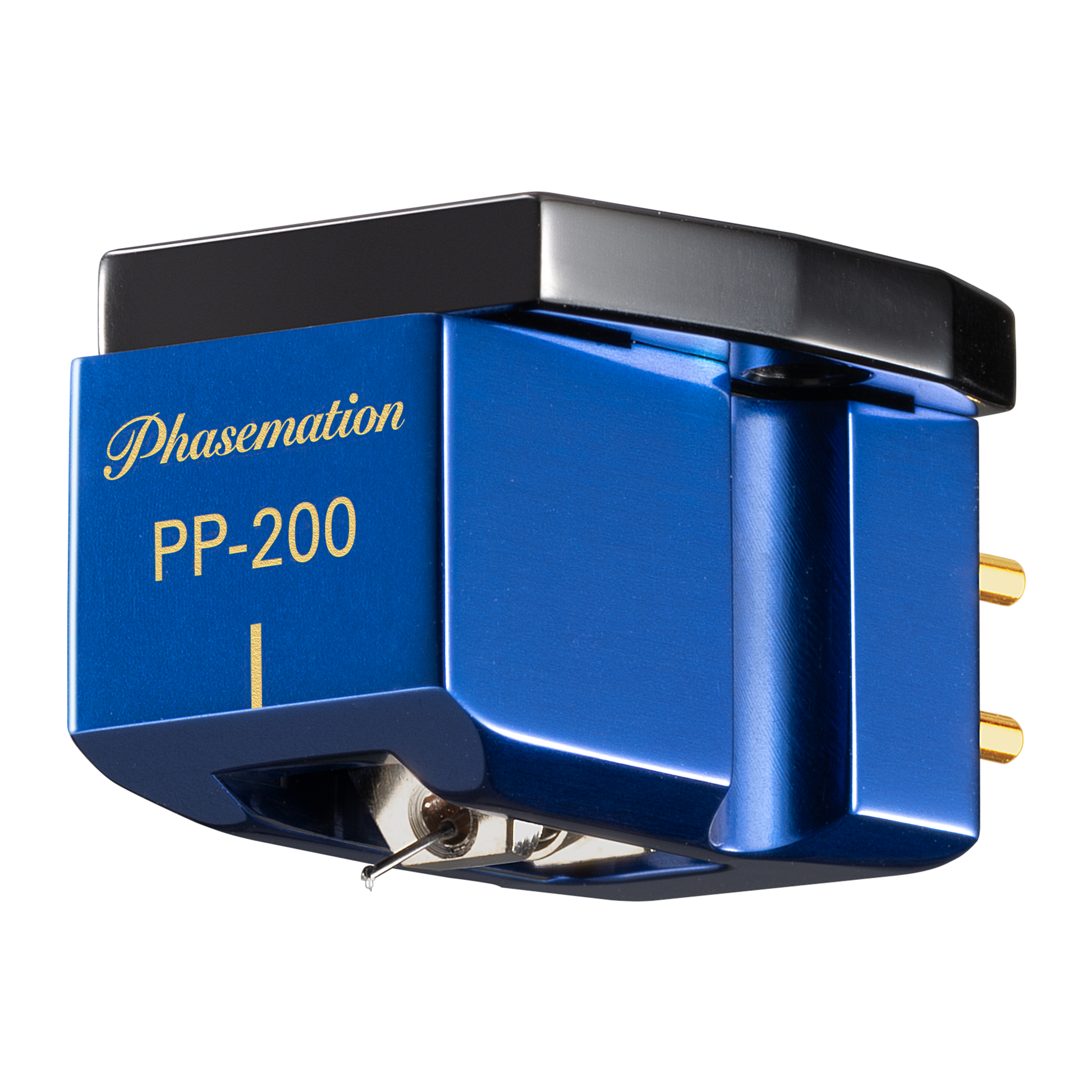

Phasemation PP-200 Moving Coil Cartridge

The PP-200 from Phasemation offers a refined entry into its flagship-inspired cartridge line. It inherits many of the high-end design elements of the company’s upper models while delivering exceptional value and performance. With neodymium magnets, a pure boron cantilever, diamond stylus and high-purity copper wiring, the PP-200 provides excellent detail, spatial imaging, and rich bass.

Specifications

Type: Moving Coil

Stylus: Diamond (Line-contact / curvature 0.03×0.003 mm)

Magnet: Neodymium

Magnetic Circuit Material: Pure Iron

Base Material: Machined Duralumin

Body Material: Machined Aluminum

Impedance: 4 Ω

Tracking Force Range: 1.7 to 2 g

Output Voltage (1 kHz, 50 mm/s horizontal): 0.3 mV

Compliance (8.5 × 10⁻⁶ cm/dyne): 8.5 μm/mN

Frequency Range: 10 Hz to 30 kHz

Separation (1 kHz): 25 dB

Channel Balance (1 kHz): Within 1 dB

Cantilever: Pure Boron Ø0.26 mm

Weight: 10.3 g
