Phasemation EA-2000 Tube Phono Amplifier

A six-box phonostage with monaural MC step-up transformers, LCR equalizers, and power supplies.

The Phasemation EA-2000 is a separate, six-unit tube LCR non-feedback phono amplifier system with completely independent left and right channels. Each channel uses a dedicated EA-2000T MC step-up transformer, EA-2000EQ equalizer, and EA-2000PS power supply. The chassis construction combines machined aluminum control knobs, a 20 mm-thick aluminum slant front panel, a 2 mm-thick copper-plated steel plate base, and a 2 mm-thick aluminum cover with magnetic shielding, with a walnut bottom board and TAOC high carbon insulator feet to enhance rigidity, reduce magnetic distortion, and suppress unwanted resonance.

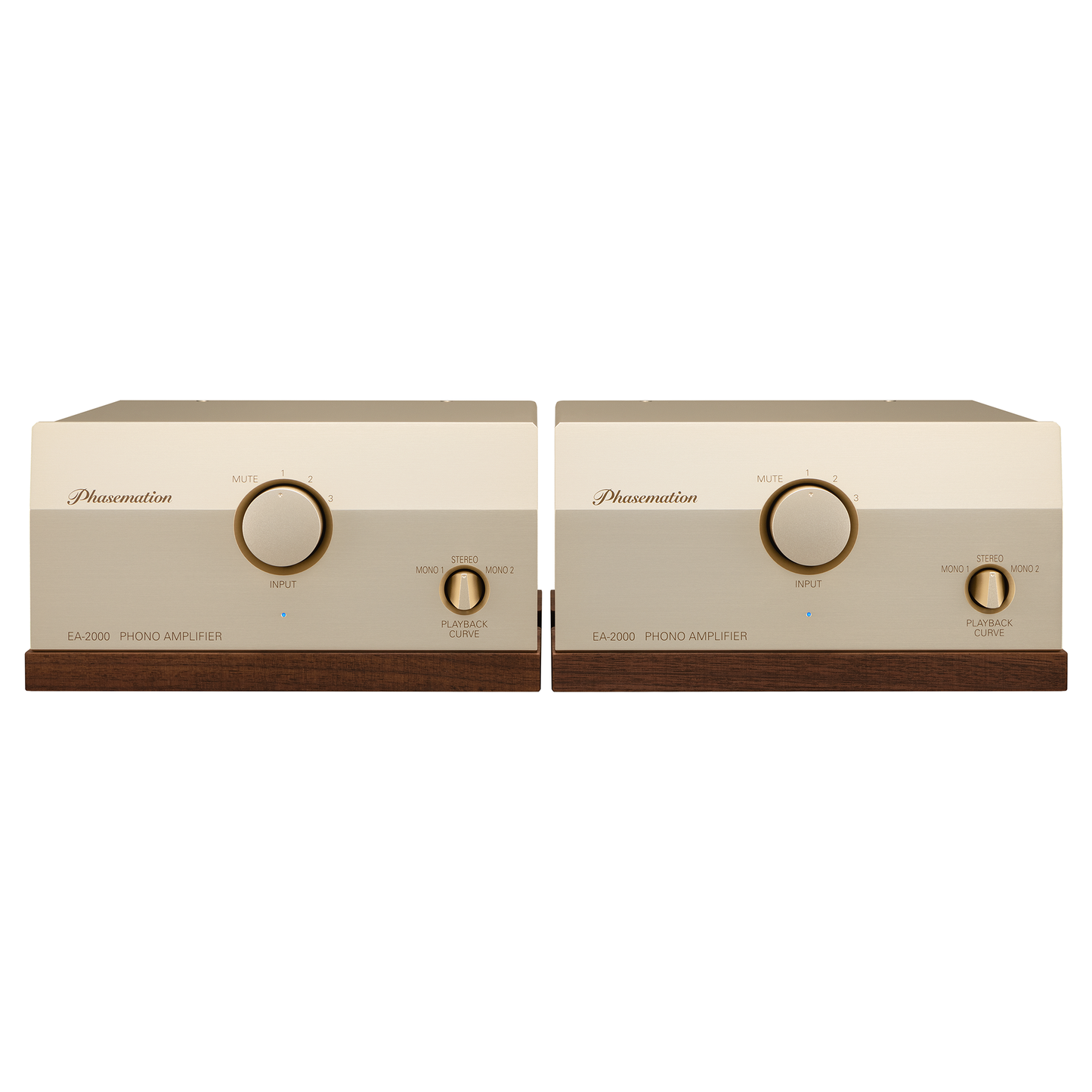

At the core of the EA-2000 is a non-feedback LCR equalizer built around tube amplifiers. The SRPP-type amplifying circuit uses ECC-803S, noted for excellent transient response, followed by an ultra-low impedance cathode follower using 6922 (6DJ8 high-reliability tube). The equalizing circuit adopts an LCR topology with Phasemation’s own winding coils and high-quality film capacitors to reduce signal-system impedance, minimize power loss and inductive noise, and suppress sound-quality deterioration, while a powerful, channel-separated power supply with high S/N ratio and high resolution is based on the supply of the EA-1000.

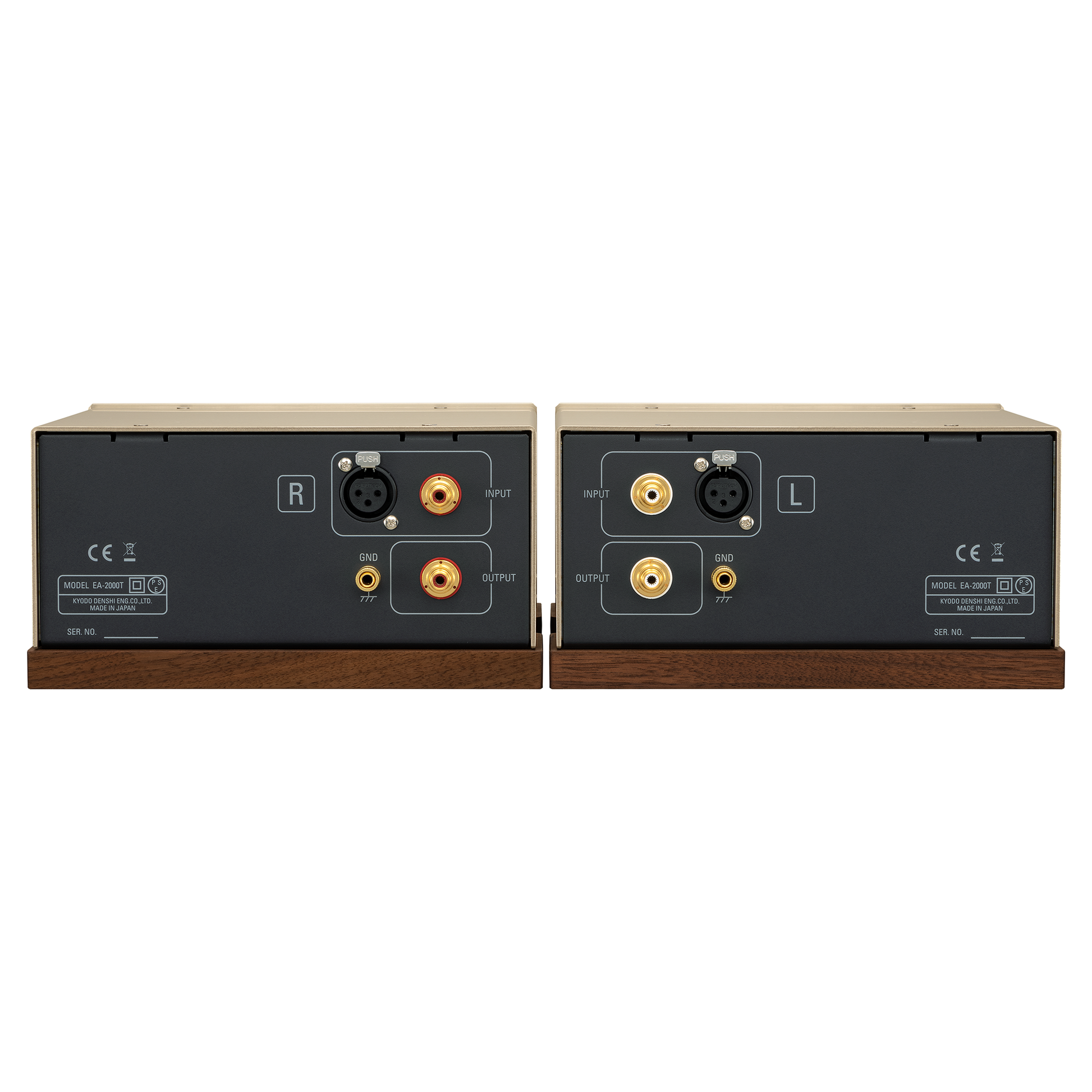

For system integration, the EA-2000 provides MM and MC input forms, with the EA-2000T MC step-up transformers tuned specifically for this amplifier on the basis of the T-2000 design. Three equalizer curves—RIAA for stereo, Mono 1 for labels such as DECCA, and Mono 2 for labels such as Columbia—allow higher fidelity playback of both stereo and monaural records. WBT RCA terminals and rhodium-plated Furutech XLR terminals are used to pursue balanced sound quality, with a note that only one of the XLR or RCA inputs on the EA-2000T should be used at a time.

Features

• Separate 6-unit, fully monaural tube LCR non-feedback phono amplifier with independent left and right channels composed of dedicated step-up transformers, equalizer units, and power supplies.

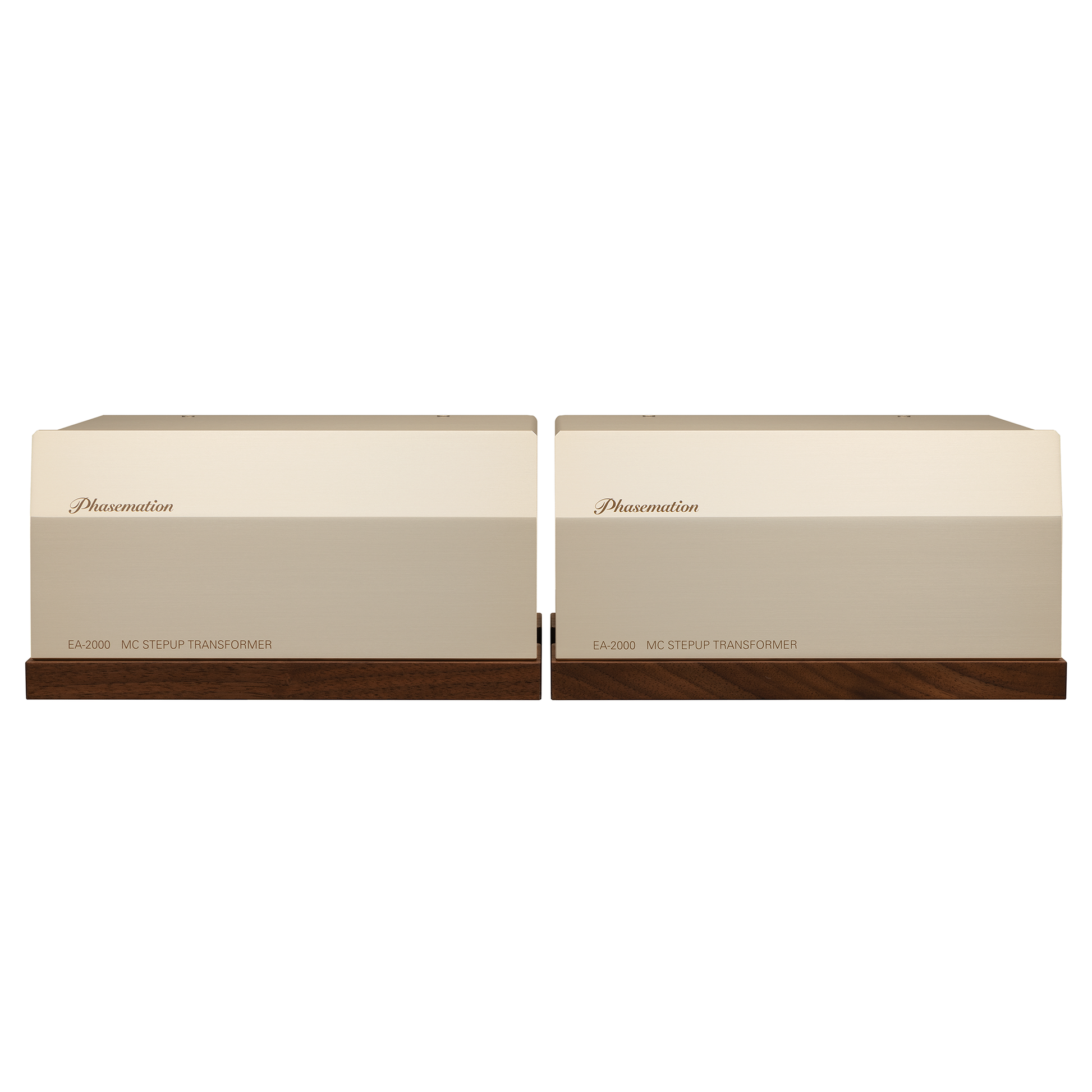

• EA-2000T MC step-up transformers tuned specifically for the EA-2000 based on the T-2000, with revised wire, core material, and winding structure and a double-layered magnetic shield to reduce interference between channels.
• Non-feedback SRPP-type tube unit amplifier using ECC-803S and an ultra-low impedance 6922 (6DJ8) cathode follower, combined with an LCR equalizing circuit using Phasemation’s own winding coils and high quality film capacitors.
• Three selectable equalizer curves: RIAA for stereo, Mono 1 for use with DECCA label and similar records, and Mono 2 for use with Columbia label and similar records, with Mono 1 and Mono 2 intended for monaural playback.

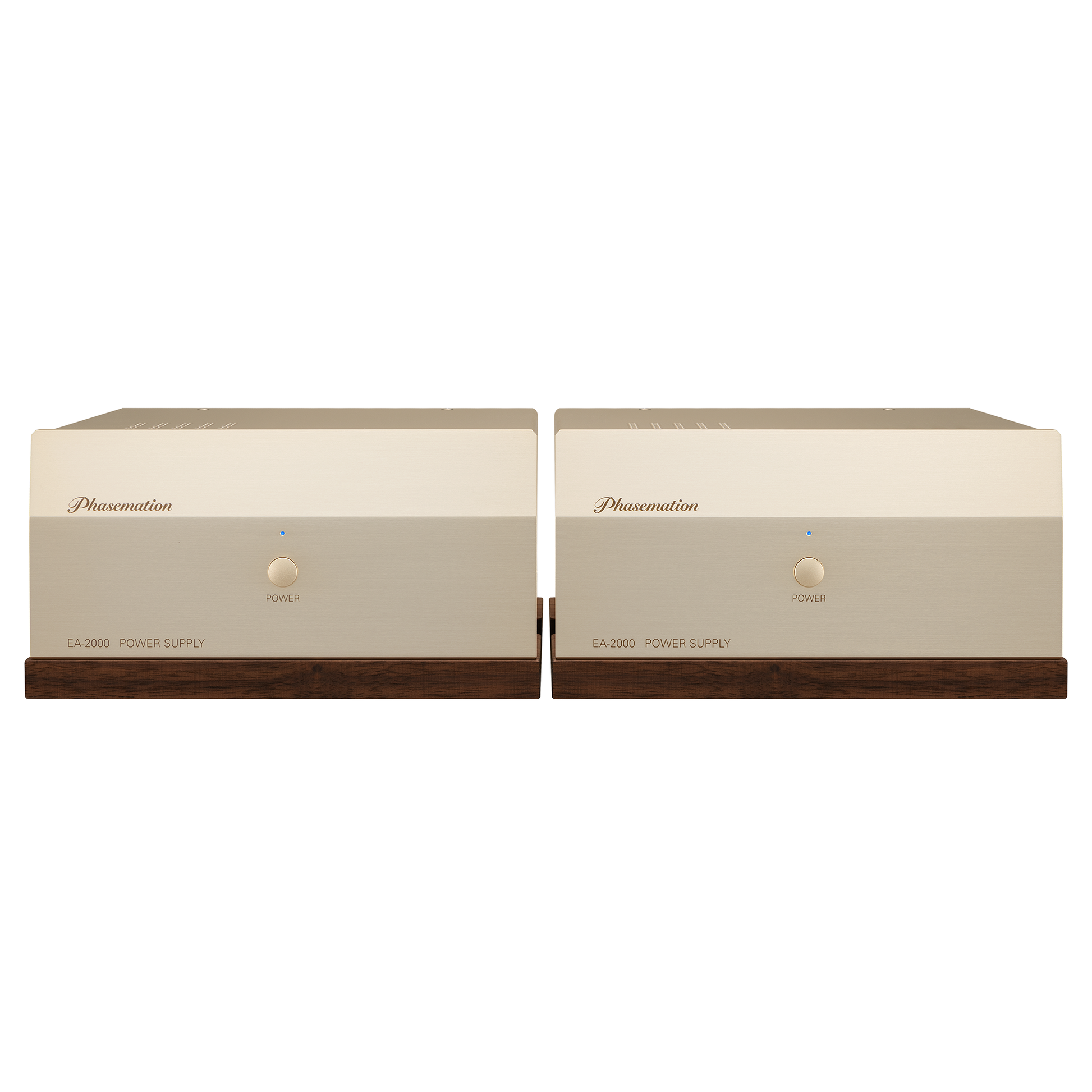

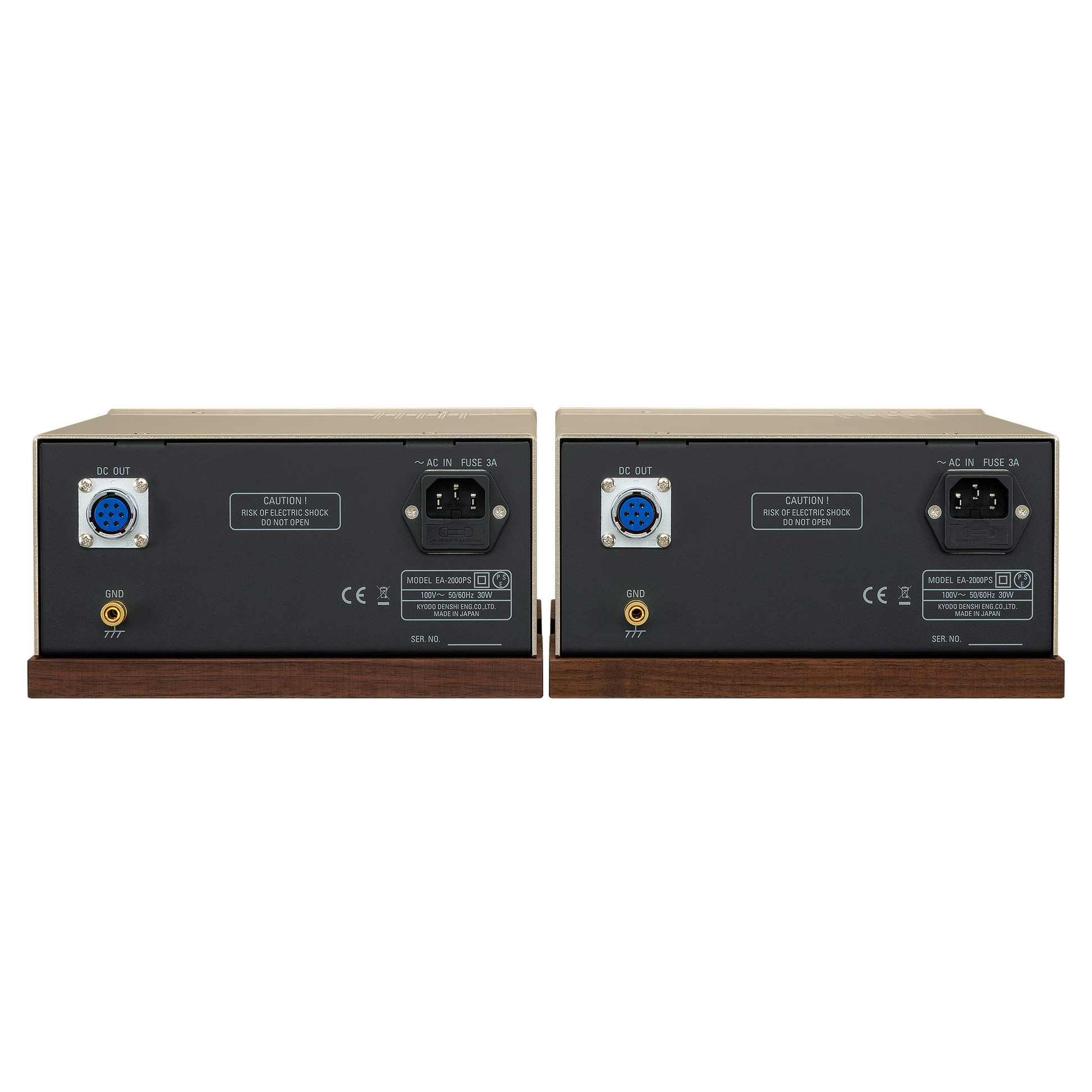

• Power supply with high-capacity R-core transformer, two choke coils in parallel per channel, and 5U4G direct-heated rectifier tubes, plus a 3-terminal regulator DC ignition system for the heater supply.
• Rigid chassis structure with 20 mm-thick aluminum slant front panel, 2 mm-thick copper-plated steel plate base, 2 mm-thick aluminum cover with magnetic shielding, walnut bottom board, and TAOC high carbon insulator feet for vibration control.

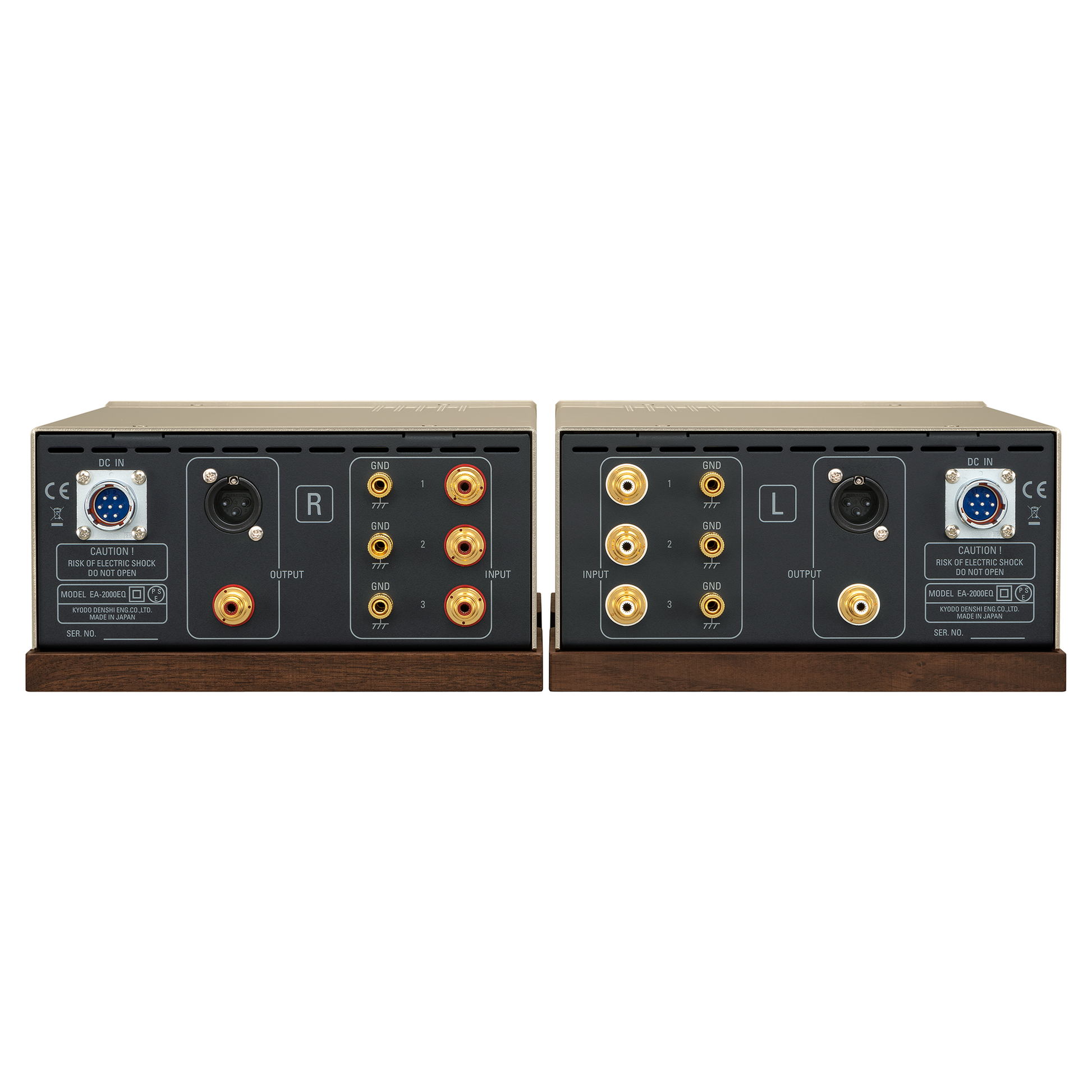

• WBT RCA terminals and rhodium-plated Furutech XLR terminals, selected to pursue total balance in sound quality.
• Recipient of multiple domestic and international audio awards, including product-of-the-year and technology awards from specialist magazines.

Specifications

Form: Tube type LCR non-feedback phono amplifier

Input Form: MM, MC

Input Sensitivity: MM: 2 mV; MC: 0.1 mV

Suitable Cartridge Output Impedance: MM: 47 kΩ or less; MC: 1.5 Ω-40 Ω

Gain: MM: 40 dB; MC: 66 dB

Input Conversion S/N Ratio: MM: –120 dBV; MC: –140 dBV

Rated Output Voltage: 200 mV (1 kHz)

Equalizer Curve Tolerance: ±0.5 dB (20-20 kHz)

Power Consumption: 35 W (100 VAC, 50-60 Hz) for each channel

Dimensions (WHD)
EA-2000T: 8.43" x 4.65" x 10.43" (214 x 118 x 265 mm) ×2
EA-2000EQ: 8.43" x 4.65" x 14.49" (214 x 118 x 368 mm) ×2
EA-2000PS: 8.43" x 4.65" x 13.86" (214 x 118 x 352 mm) ×2

Weight
EA-2000T: 9.92 lb. (4.5 kg) ×2
EA-2000EQ: 13.45 lb. (6.1 kg) ×2
EA-2000PS: 17.2 lb. (7.8 kg) ×2
