Phasemation CM-2200 Control Meister Hybrid Passive Preamplifier

Hybrid passive transformer attenuator preamplifier with 0 dB / +6 dB gain switch and balanced / unbalanced I/O

The Phasemation CM-2200 is a hybrid passive preamplifier built around a patented transformer-based attenuator, designed to preserve signal purity while offering both 0 dB and +6 dB operating modes. It accepts both balanced (XLR) and unbalanced (RCA) inputs and provides corresponding balanced and unbalanced outputs, using rhodium-plated Furutech terminals and TAOC high-carbon cast-iron insulators to minimize vibration and contact losses. A newly developed attenuator transformer, wound with ultra-thin core material and PC-Triple C wire, delivers wide-bandwidth response, high channel separation, and exceptionally low distortion.

The CM-2200’s balanced-spec attenuator transformer integrates hot and cold windings in a single core, enabling true balanced operation while also generating a balanced signal internally from unbalanced inputs. This contributes to high common-mode rejection and stable impedance characteristics across its 0 dB and +6 dB gain settings. With no active gain devices or power cord in the signal path, the CM-2200 functions as a precision control center for high-resolution systems, emphasizing transparency, image stability, and a natural, unforced presentation.

Specifications

Form: Hybrid passive attenuator / preamplifier

Input Impedance: 47 kΩ or more

Output Impedance: 250 Ω or less

Channel Separation: 100 dB or more (20 Hz–20 kHz)

Frequency Response: 10 Hz–100 kHz (+0, -3 dB)

Gain: 0 dB / +6 dB

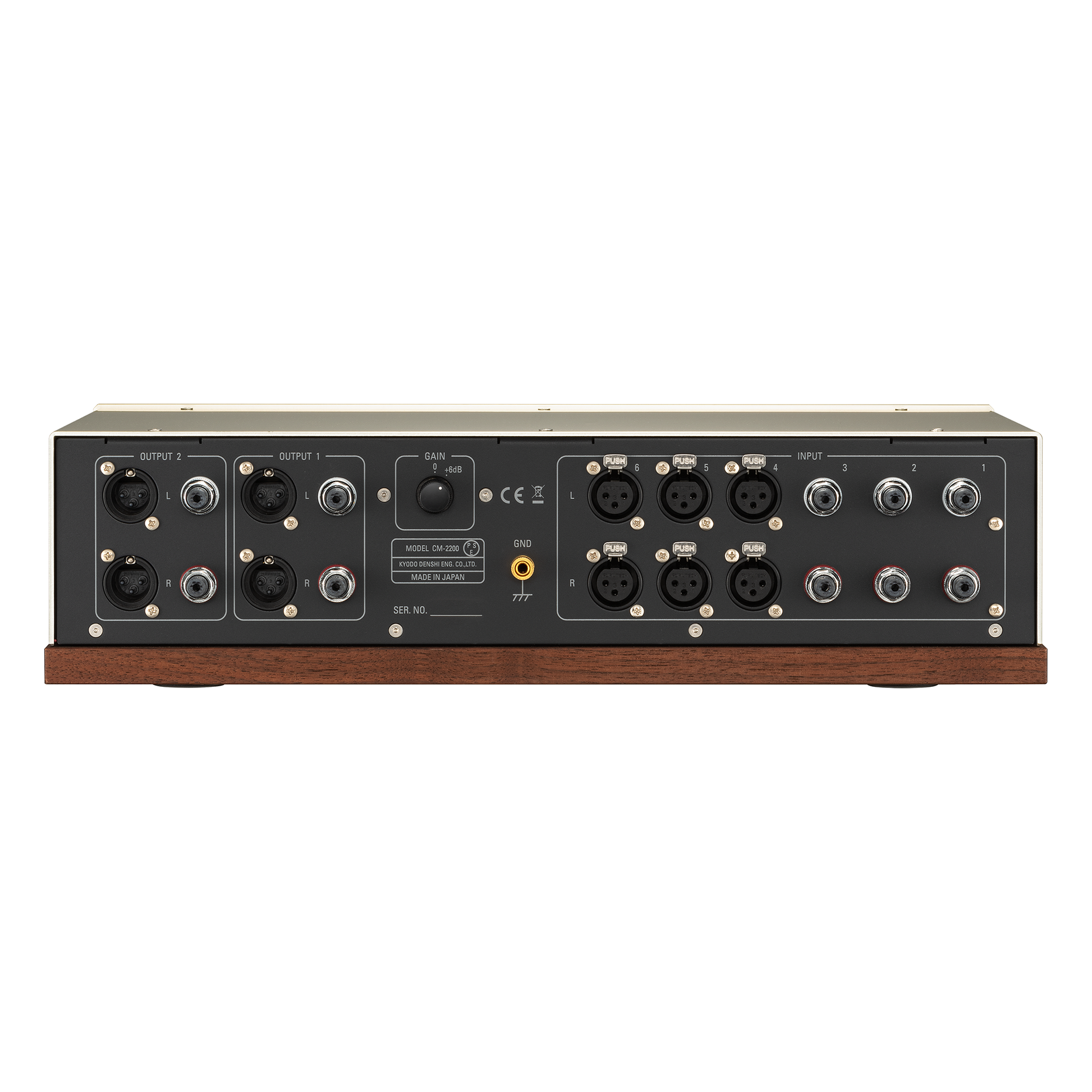

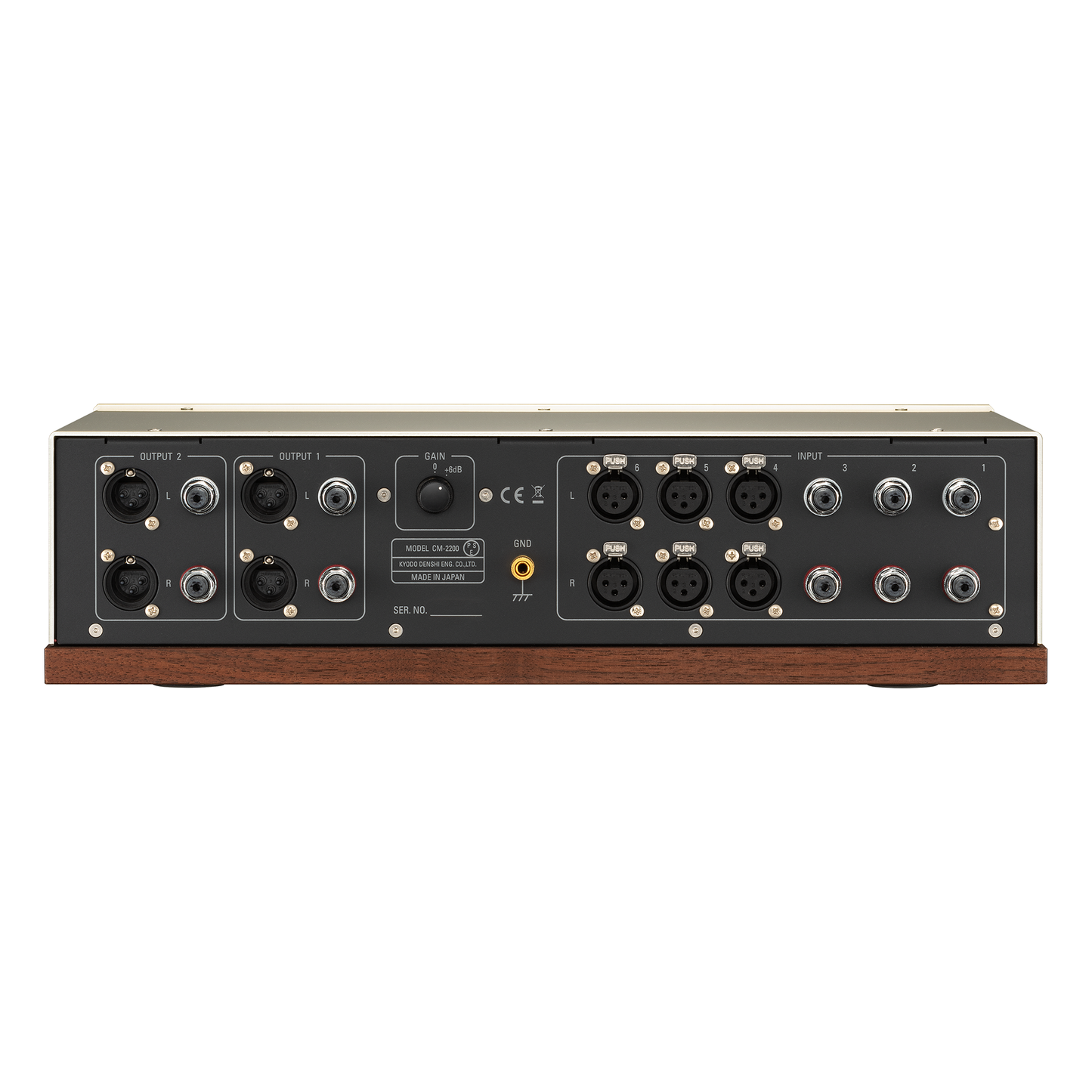

Input Terminals: RCA x 3, XLR x 3 (rhodium-plated by Furutech)

Output Terminals: RCA x 2, XLR x 2 (rhodium-plated by Furutech)

Dimensions (WHD): 17.09" x 4.61" x 11.38" (434 x 117 x 289 mm)

Weight: 22.05 lb. (10 kg)
