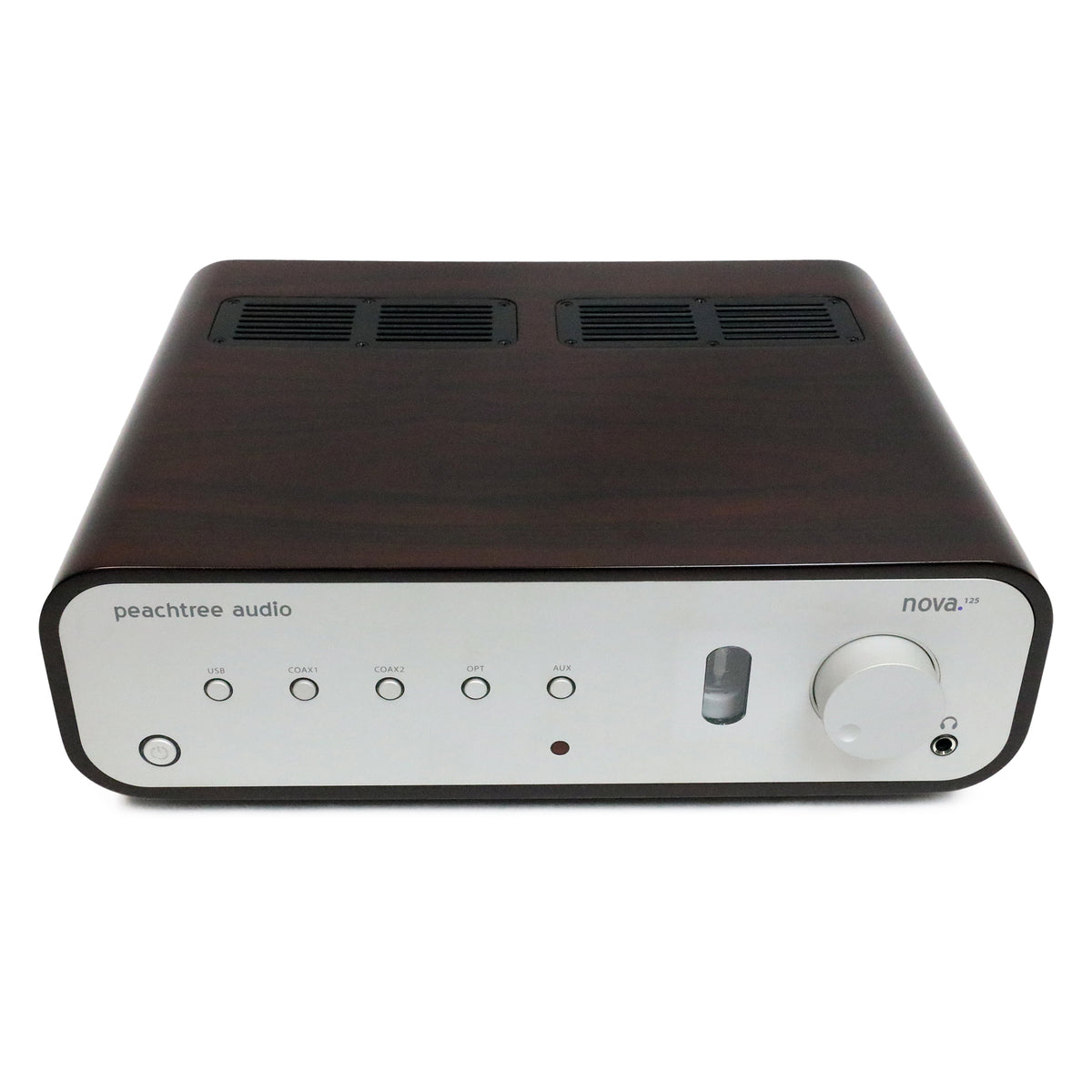

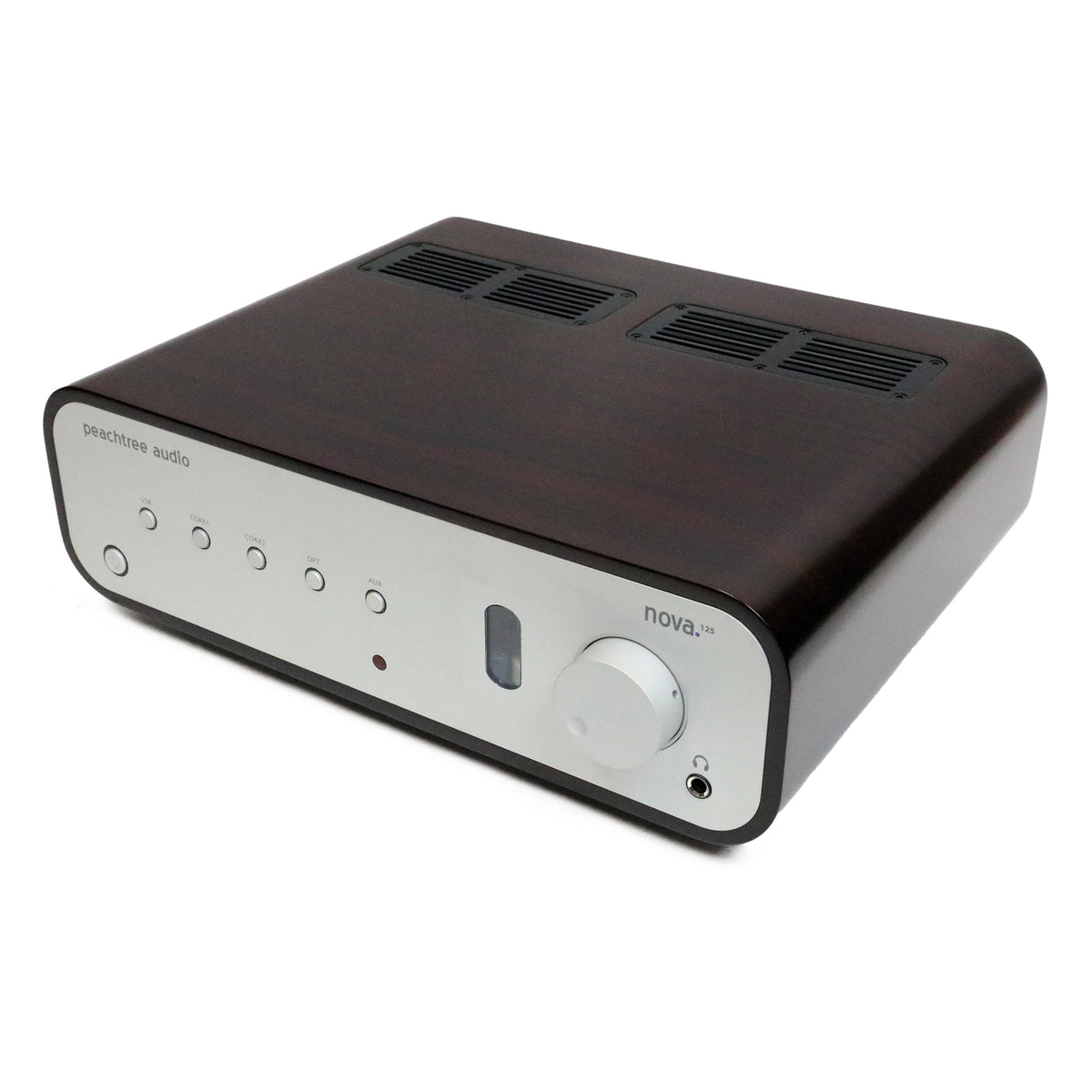

Peachtree Audio Nova 125 Integrated Amplifier and DAC

125 Wpc class-D amplification, an ESS Sabre DAC, and a switchable 6N1P tube buffer. This new old-stock product comes with a 90-day warranty.

The Peachtree Audio Nova 125 combines an integrated amplifier, high-resolution DAC, analog preamplifier, and headphone amplifier in one compact component. Developed as a more powerful member of the Nova family, it delivers 125 Wpc into 8 ohms and 220 Wpc into 4 ohms while accommodating both digital and analog sources.

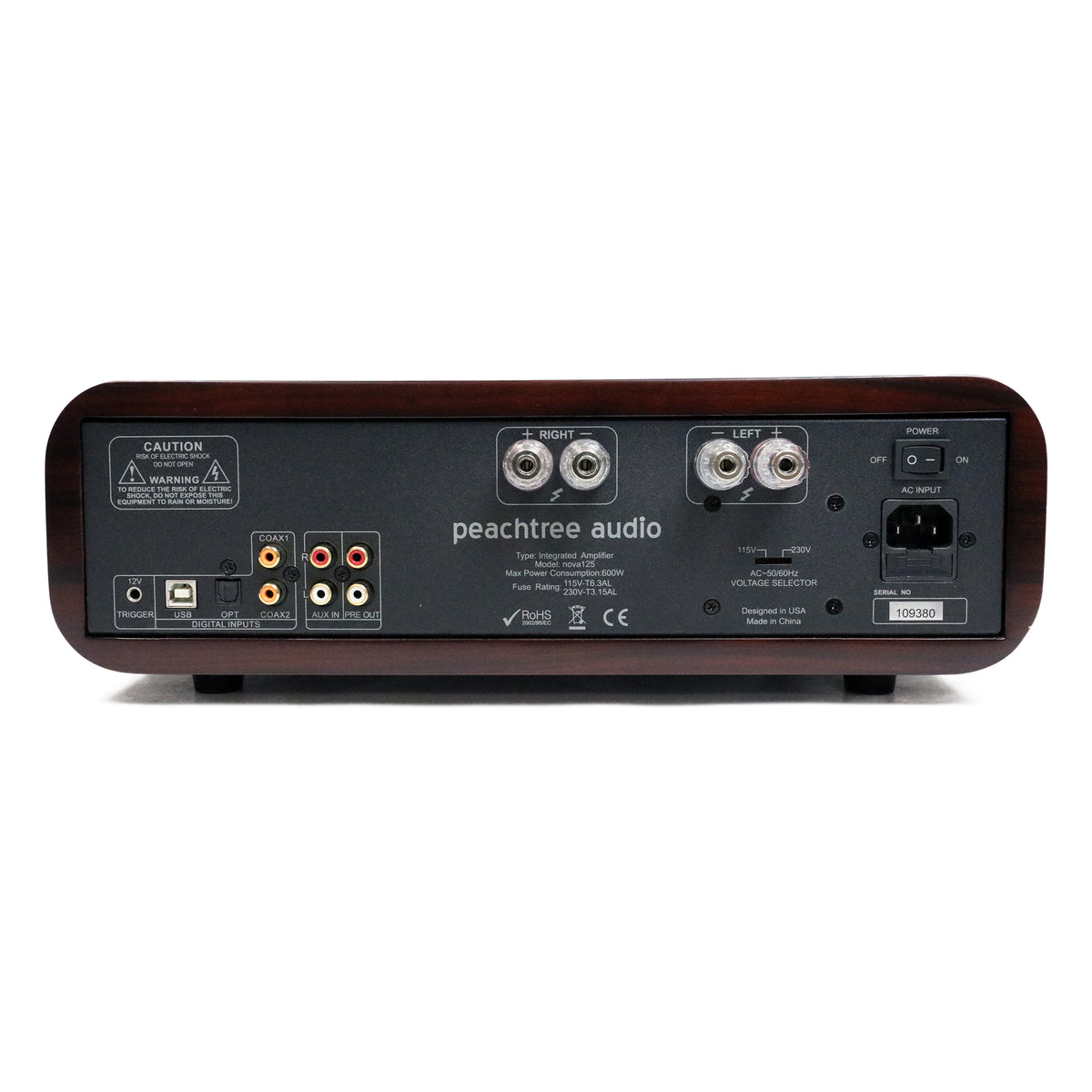

Its high-current class-D power amplifier is rated to drive speaker loads as low as 2 ohms, with up to 30 A of output current. A variable preamp output can feed an external power amplifier or powered subwoofer, while five-way binding posts accept banana plugs, spades, or bare speaker wire.

ESS Sabre Digital Conversion

The digital section is built around an ESS Sabre 9023 DAC and supports resolutions up to 24-bit/192 kHz. Its asynchronous USB input accepts signals up to 24/192, as do the two coaxial inputs, while the optical input supports resolutions up to 24/96.

Galvanic isolation helps prevent electrical noise from connected computers and digital sources from entering the audio circuitry. Peachtree specifies jitter at less than 3 ps measured at the master clock and a dynamic range of 121 dB.

Switchable Tube Buffer

A single 6N1P triode provides Peachtree’s switchable tube buffer. It can be engaged or bypassed from the remote control, allowing the listener to choose between tube-buffered and solid-state operation without changing components or connections.

An analog auxiliary input accommodates line-level sources such as a phonostage, tape deck, or other analog component. The Nova 125 also includes a 12 V trigger output for automatically switching compatible connected equipment.

Dedicated Headphone Amplifier

The front-panel headphone amplifier provides a dedicated output for personal listening rather than relying on the comparatively limited headphone circuitry found in many source components. It is integrated into the Nova 125’s preamplifier section, making the unit equally suitable for speaker and headphone systems.

This new old-stock product comes with a 90-day warranty.

Features

• 125 Wpc into 8 ohms and 220 Wpc into 4 ohms
• High-current class-D power amplifier
• ESS Sabre 9023 DAC
• Digital playback up to 24-bit/192 kHz
• Asynchronous USB input up to 24/192
• Two coaxial digital inputs up to 24/192
• Optical digital input up to 24/96
• Galvanically isolated digital inputs
• Switchable 6N1P tube buffer
• Analog auxiliary input
• Dedicated headphone amplifier
• Variable preamp output for an external amplifier or powered subwoofer
• Five-way speaker binding posts
• 12 V trigger output
• Detachable power cord
• Switchable voltage for international use
• Remote control with tube-buffer switching

Specifications

Output Power (Into 8 Ohms): 125 Wpc

Output Power (Into 4 Ohms): 220 Wpc

Amplifier Class: class-D

Minimum Speaker Load: 2 Ω

Maximum Output Current: 30 A

Gain: 24 dB

Sensitivity: 1.2 V

Input Impedance: 50 kΩ

Output Impedance: 18 mΩ

Damping Factor (At 100 Hz, 8 Ohms): >1,000

Frequency Response: 20 Hz–20 kHz, +0.5 dB

Channel Separation: 94 dB

Crosstalk: >90 dB, 20 Hz–20 kHz

Tube: 6N1P

Digital-to-Analog Converter: ESS Sabre 9023

Supported Resolution: MP3, 16/44.1, 16/48, 24/88, 24/96, 24/176, 24/192

USB Input: Asynchronous, up to 24/192

Optical Input: Up to 24/96

Coaxial Inputs: Up to 24/192

Signal-to-Noise Ratio: 96 dB

Dynamic Range: 121 dB

Jitter (At Master Clock): <3 ps

Preamp Output Impedance: 50 Ω

Maximum Power Consumption: 600 W

Standby Power Consumption: <1 W

Finishes: High-gloss black, cherry, rosewood

Dimensions (H × W × D): 4.37" × 14.8" × 11.5"

Weight: 21.56 lb. (9.8 kg)
