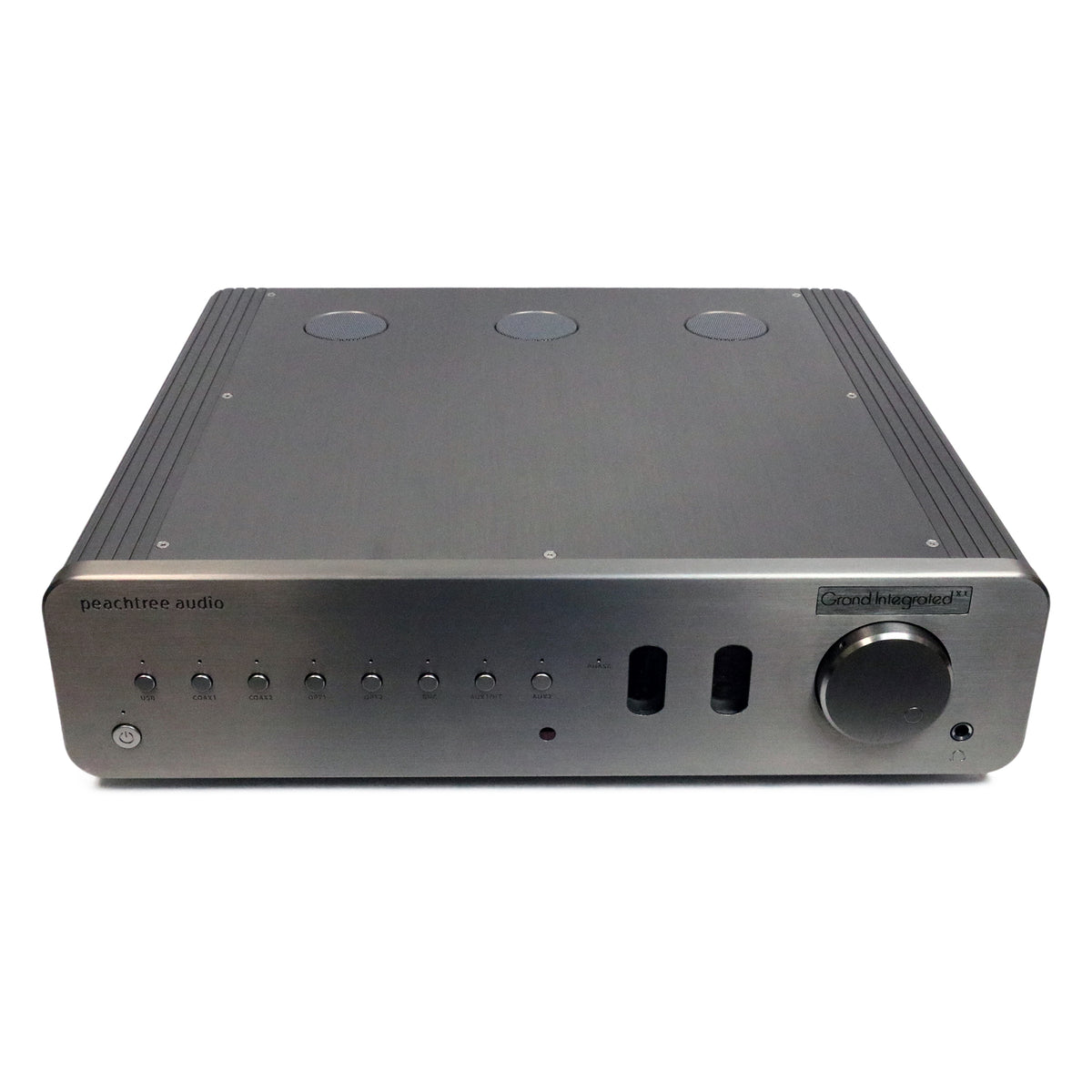

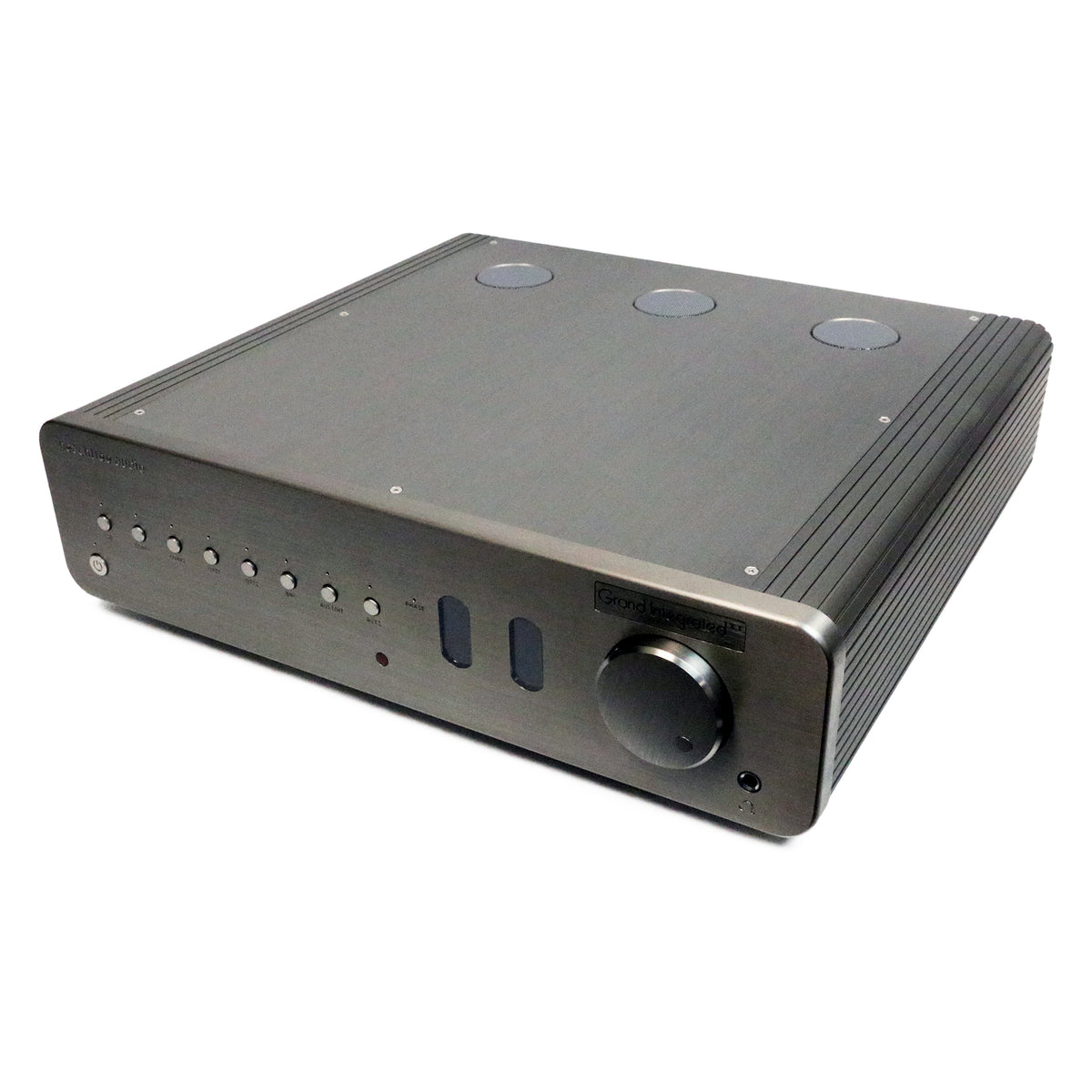

Peachtree Audio Grand Integrated X-1 Integrated Amplifier and DAC

440 Wpc class-D amplification, an ESS Sabre32 DAC, and a Bascom King 12AU7 tube stage. This new old-stock product comes with a 90-day warranty.

The Peachtree Audio Grand Integrated X-1 combines a high-power integrated amplifier, high-resolution DAC, hybrid tube preamplifier, and class-A headphone amplifier in one chassis. Designed as Peachtree’s no-compromise integrated of its generation, it delivers 440 Wpc into 8 ohms while providing digital and analog connectivity for a complete two-channel system.

The balanced class-D power amplifier was designed to work directly with the Grand Integrated X-1’s preamplifier section. Its 440 Wpc output provides substantial power for demanding loudspeakers, while the amplifier’s approximately 90% efficiency keeps heat output comparatively low.

ESS Sabre32 Digital Conversion

The digital section is built around the ESS Sabre32 9018 DAC and supports resolutions up to 24-bit/192 kHz. Its asynchronous USB input uses an XMOS receiver, allowing the Grand Integrated X-1’s internal clock to control data flow from the computer rather than relying on the computer’s audio clock.

Two coaxial, two optical, BNC, and USB digital inputs accommodate a wide range of sources. Galvanic isolation is used on grounded digital inputs to help prevent electrical noise from connected components from reaching the DAC circuitry, while selectable Sharp and Slow digital filter slopes provide two choices of digital filtering.

Bascom King Tube Stage

The hybrid preamplifier incorporates a Bascom King-designed tube buffer using two 12AU7 tubes. The tube stage can be engaged or bypassed from the remote control, allowing the listener to switch between hybrid tube and solid-state operation.

Two analog line-level inputs are provided, with Aux 1 switchable to home-theater bypass. In bypass mode, a surround processor controls the front-channel volume while the Grand Integrated X-1 functions as the power amplifier for the main left and right speakers.

Flexible Preamplifier Outputs

The Grand Integrated X-1 provides both fixed and variable analog outputs. Its variable preamp output can feed an external power amplifier or powered subwoofer, while a separate high-pass preamp output can operate full-range or engage an 80 Hz, 12 dB/octave high-pass filter. The fixed line output allows the unit to function as a DAC and source selector feeding another preamplifier.

Class-A Headphone Amplifier

The dedicated class-A headphone amplifier routes its signal through the 12AU7 tube stage, bringing the Grand Integrated X-1’s hybrid architecture to headphone listening as well as loudspeaker playback.

This new old-stock product comes with a 90-day warranty.

Features

• 440 Wpc balanced class-D power amplifier
• ESS Sabre32 9018 DAC
• Digital playback up to 24-bit/192 kHz
• Asynchronous USB input with XMOS receiver
• Two coaxial digital inputs
• Two optical digital inputs
• 75-ohm BNC digital input
• Galvanically isolated grounded digital inputs
• Selectable Sharp and Slow digital filter slopes
• Bascom King tube buffer with two 12AU7 tubes
• Remote-controlled tube bypass
• Two analog line-level inputs
• Selectable home-theater bypass
• Class-A headphone amplifier
• Fixed line-level output
• Variable preamp output for an external amplifier or powered subwoofer
• Switchable 80 Hz high-pass preamp output
• 12 V trigger output
• Phase inversion from the remote control
• Detachable power cord
• Switchable voltage for international use
• Designed and final assembled in the USA

Specifications

Output Power (Into 8 Ohms, 20 Hz–20 kHz): 440 Wpc

Amplifier Class: class-D

Digital-to-Analog Converter: ESS Sabre32 9018

Maximum Digital Resolution: 24-bit/192 kHz

USB Input: Asynchronous with XMOS receiver

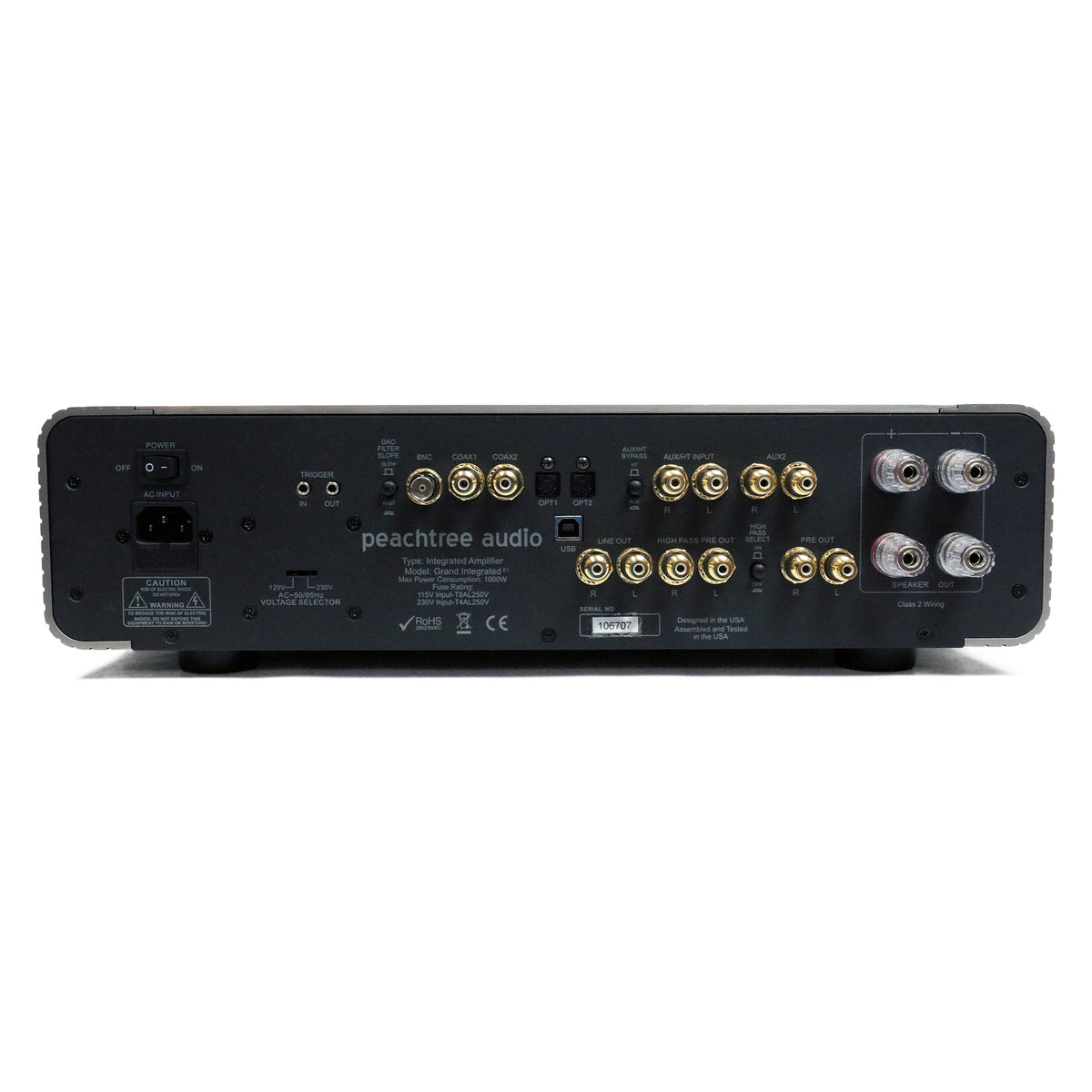

Digital Inputs: 1 USB, 2 coaxial, 2 optical, 1 BNC

Analog Inputs: 2 stereo line-level inputs; Aux 1 switchable to home-theater bypass

Tube Stage: Bascom King tube buffer with 2 12AU7 tubes

Digital Filters: Sharp, Slow

Fixed Line-Level Output: 2 Vrms, 448 Ω

Variable Preamp Output: 8 Vrms / 11.2 V peak, 448 Ω

Variable Analog Output Signal-to-Noise Ratio: 104 dB

Jitter (At Master Clock): <3 ps

Channel Tracking: 0.025 dB

Stereo Separation: 96 dB

High-Pass Output: Switchable 80 Hz, 12 dB/octave

Power-Supply Filtering: 69,000 µF

Dimensions (H × W × D): 4.8" × 17.5" × 16.5" (122 × 445 × 419 mm)

Weight: 28 lb. (12.7 kg)
