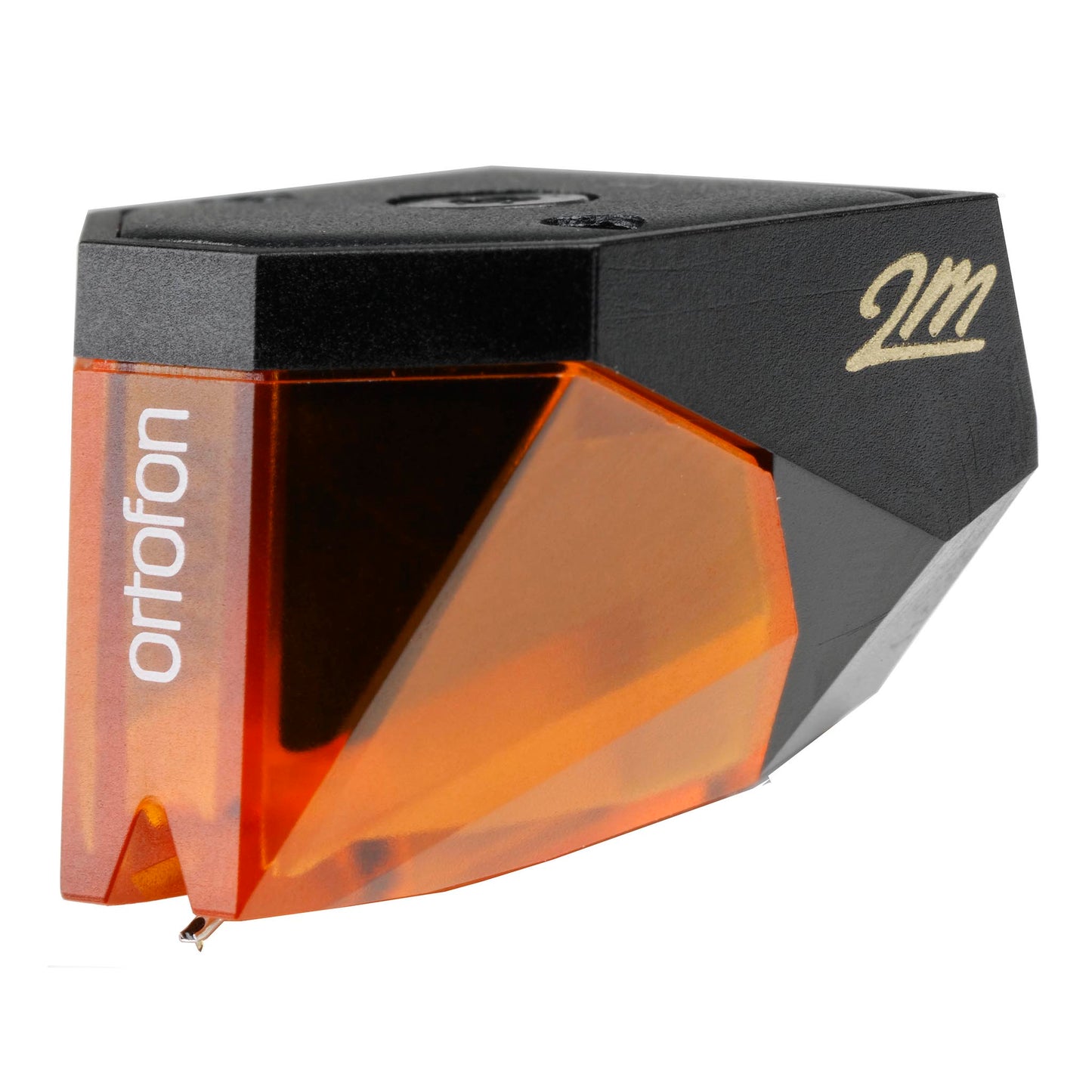

Ortofon 2M Bronze Moving Magnet Cartridge

  • Sale
  • Regular price $440.00


Ortofon 2M Bronze Moving Magnet Cartridge

Features a nude fine-line stylus and offers an accurate, uncolored sound

The 2M series was developed with the MøllerJensen Design from Copenhagen; the designers of the award-winning MC Jubilee and the Kontrapunkt series.

The series was designed for precise and accurate retrieval of the information in the record groove. Ortofon has optimized the design for ease of mounting the cartridge,  with a weight and size to fit the most common turntables on the market today. They use diamonds that are polished to the highest standards in the industry.

To obtain a flat frequency response, Ortofon uses slit pole pins to reduce eddy currents. Slit pole pins are an Ortofon invention first used in the 500 and Super OM series. 2M Red and 2M Blue both have the same engine, which allows for an increased output of 5.5 mV.

The cartridge body of the 2M Bronze and 2M Black is manufactured from a newly-developed Noryl plastic/glass combination, a revolutionary material that ensures high rigidity while eliminating unwanted resonances. These models use a special upgraded engine, featuring split pole pins with silver-plated copper wire.

The 2M Bronze features a nude fine line diamond stylus, which is particularly suited for extracting detail without causing undue record wear.

Specifications

Stylus type: Nude fine line

Tracking force range: 1.4-1.7 g (14-17 mN)

Tracking force, recommended: 1.5 g (15 mN)

Tracking angle: 20°

Internal impedance: 1.2 kOhm

Internal inductance: 630 mH

Recommended load resistance 47 kOhm

Recommended load capacitance: 150-300 pF

Cartridge weight: 7.2 g

2M PnP MkII cartridge with integrated headshell weight: 20 g

2M PnP MkII cartridge with integrated headshell length: 52 mm

Output voltage (1000 Hz, 5 cm/sec.): 5 mV

Channel balance (1 kHz): 1 dB

Channel separation (1 kHz): 26 dB

Channel separation (15 kHz): 15 dB

Frequency response (+2/-1 dB): - 20-20,000 Hz

Tracking ability at 315 Hz at recommended tracking force: 80 µm

Compliance, dynamic, lateral: 22 µm/mN

Stylus tip radius: r/R 8/40 µm
