Musical Fidelity X-Power TT Linear Power Supply

A clean power upgrade for turntables, with an isolating transformer, 10,000 µF filtration capacity, 15 V DC/2 A output, surge protection, and Musical Fidelity’s classic X-profile chassis

The Musical Fidelity X-Power TT is a linear power supply upgrade for Musical Fidelity turntables, designed for the Roundtable S/S2, M8xTT, and M6xTT. It replaces the standard power adapter with a non-switching supply built around an isolating transformer, precise regulation, substantial filtration, and low-noise components.

Musical Fidelity turntables already use built-in speed control, with the motor powered by a precision DC-driven AC generator for stable speed and voltage. The X-Power TT is designed to give that system a cleaner and more consistent power source, helping the speed-control electronics do their job with less interference from the AC line.

Inside, the X-Power TT uses a main isolating transformer with copper-foil shielding, low-ESR capacitors, and 10,000 µF of filtration capacity. The transformer has higher power reserve than the standard adapter, with low output impedance to support demanding turntable loads, including heavy mass-loaded platters.

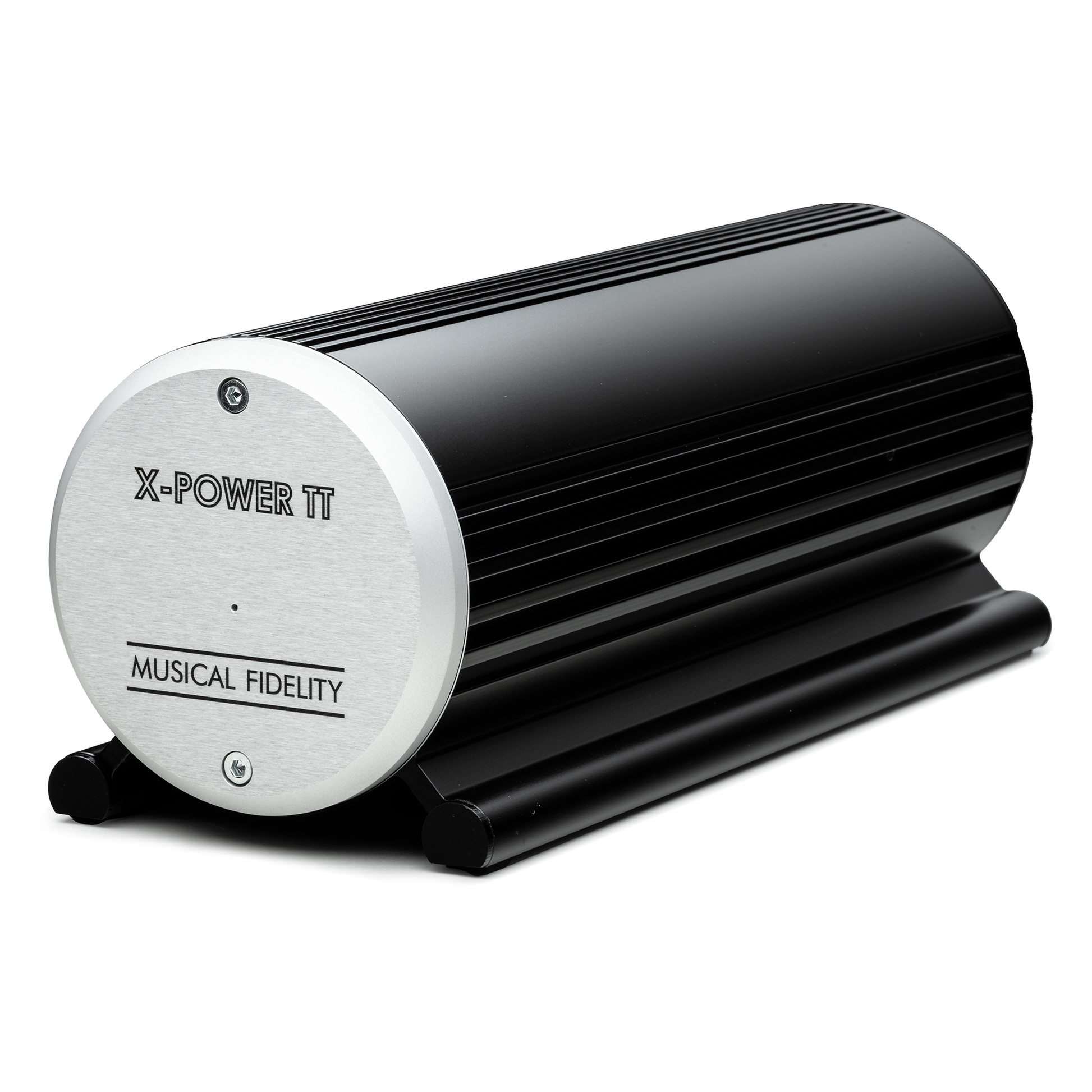

The chassis revives Musical Fidelity’s classic X-profile design, using a one-piece aluminum extrusion for improved shielding against electromagnetic interference, finished with a brushed aluminum faceplate.

Compatible Turntables: Musical Fidelity Roundtable S/S2, M8xTT, M6xTT. This power supply will also work with other brands, notably Pro-Ject tables that use 15 V DC and 2 A. Contact our analog department and ask if this will work for your table!

Features

• Linear power supply upgrade for Musical Fidelity Roundtable S/S2, M8xTT, and M6xTT turntables
• Non-switching supply design for cleaner power delivery
• Main isolating transformer with copper-foil shielding
• Voltage rectification with precise regulation
• 10,000 µF filtration capacity
• Low-ESR capacitors and low-noise components
• Surge protection
• Soft-start system to avoid current inrush
• One-piece aluminum extrusion chassis for shielding against electromagnetic interference
• Brushed aluminum faceplate

Specifications

Power Supply Type: linear, non-switching

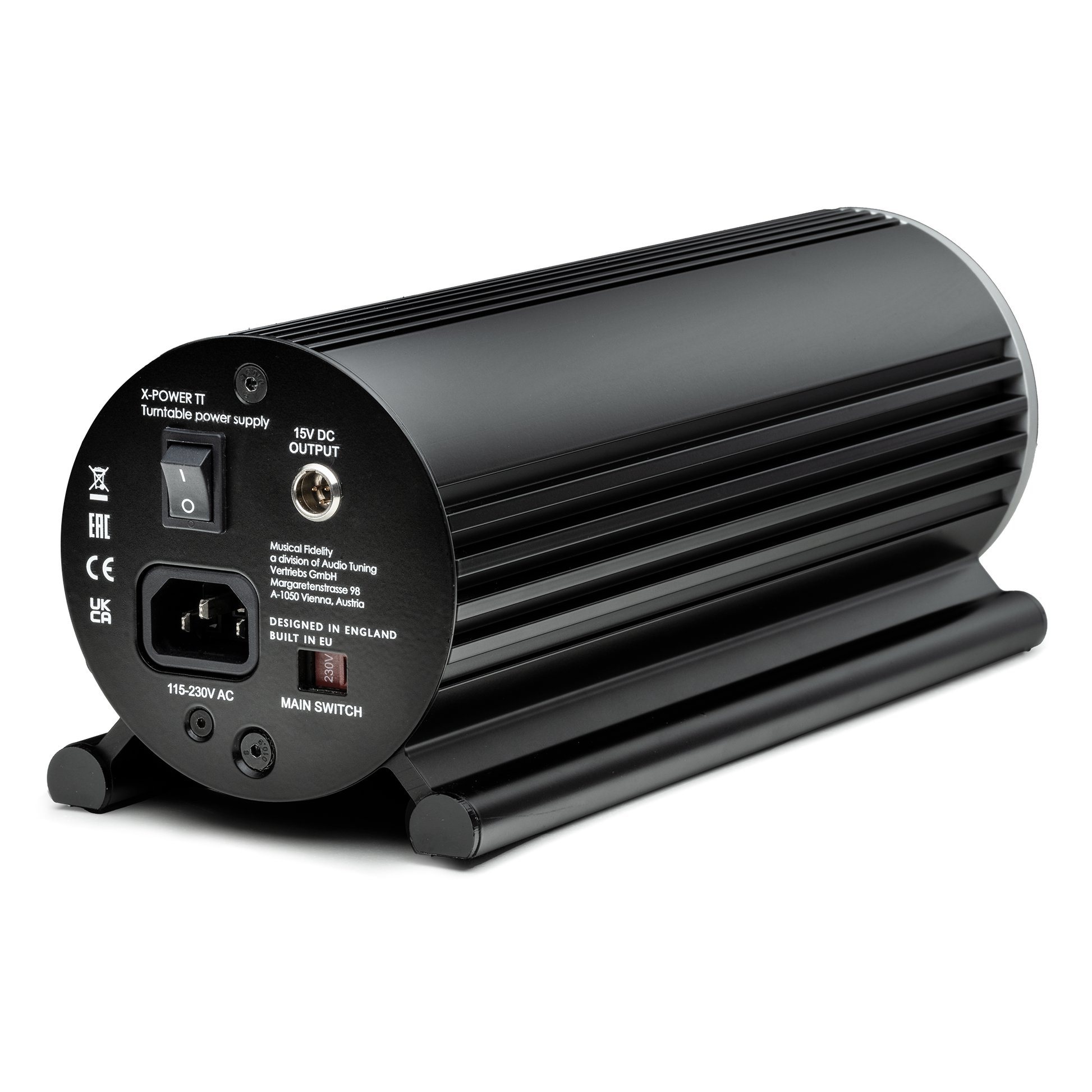

Input: IEC C14 10 A socket

Turntable Output: 15 V DC/2 A

Input Voltage: AC 115 V, 50/60 Hz

Filtration Capacity: 10,000 µF

Output Voltage/Current/Ripple: 1 x 15 V ±0.5% / 2 A / max. 35 mV pp

Dimensions (HLW): 4.13" x 10.79" x 4.25" (105 x 274 x 108 mm)

Weight: 5.05 lb. (2.29 kg)
