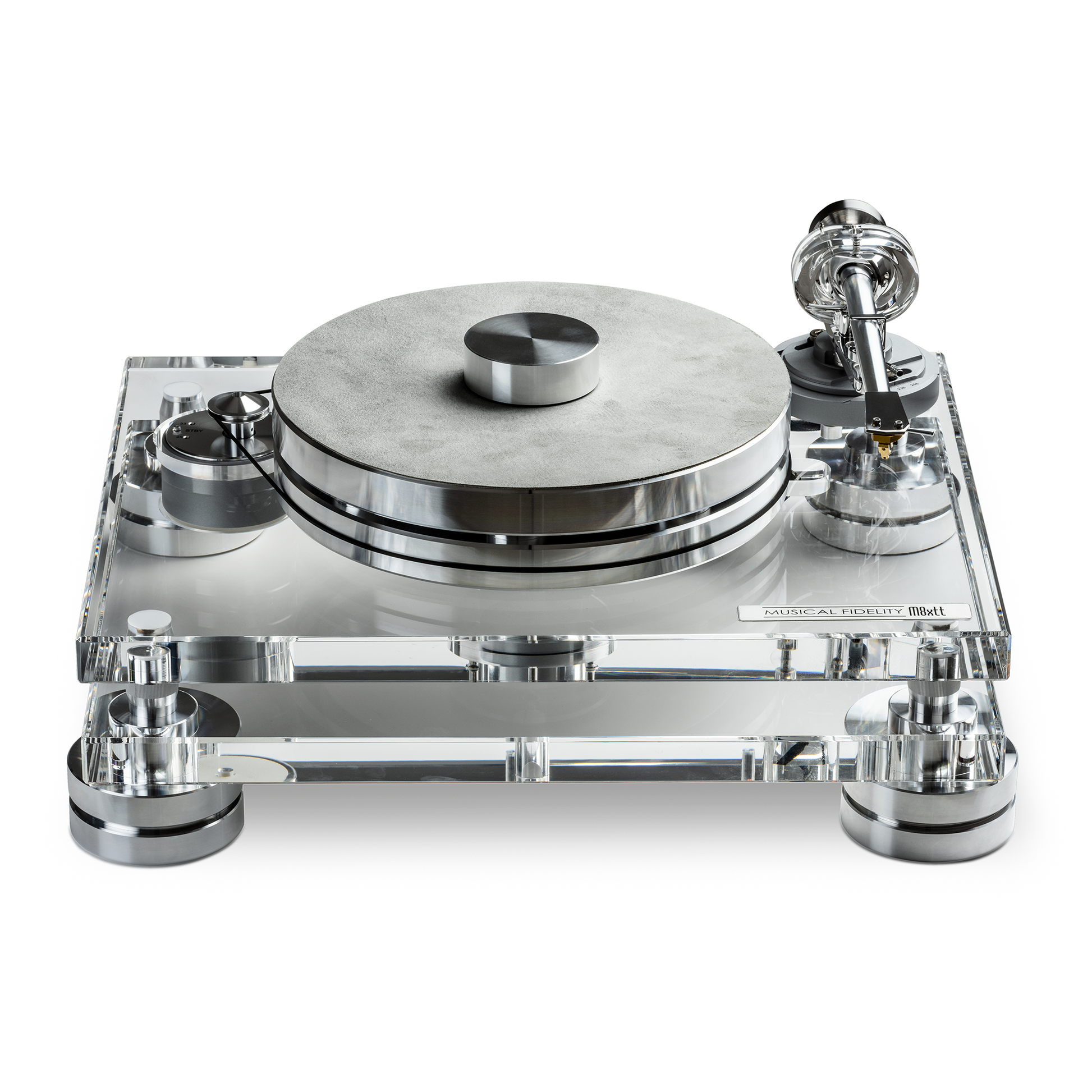

Musical Fidelity M8xTT Turntable

A high-end belt-drive turntable with a 10" Musical Fidelity tonearm, electronic 33/45 speed control, 10 kg TPE-damped aluminum platter, acrylic dual-plinth chassis, magnetic feet, and RCA/XLR outputs

The Musical Fidelity M8xTT is a high-end turntable that revisits the design philosophy of Musical Fidelity’s legendary M1 from 2004. The original concept was to combine the inert mass of metal alloys with the low-resonance behavior of acrylic, while using a dual-chassis structure to decouple the motor from the tonearm and platter. The M8xTT follows that same idea, but with updated engineering throughout.

The chassis uses two acrylic plinths joined by four heavyweight aluminum feet with TPE damping and magnetic support. The feet are height-adjustable, making it easy to level the turntable precisely. The motor sits on special foam in the lower acrylic plinth, helping isolate it from the platter and tonearm, while electronic speed control lets you switch between 33 and 45 rpm.

The platter is a 10 kg sandwich aluminum design with aluminum inserts to improve flywheel effect, with TPE damping on both levels. A silicone belt connects the motor to the platter, while an inverted bearing with a ceramic ball tip provides a low-friction rotational foundation.

The included 10" Musical Fidelity tonearm is a new ultra-low-resonance design with a transparent acrylic bearing ring and conical aluminum arm tube. It is fully adjustable for VTA and azimuth, and comes with two TPE-damped counterweights for use with cartridges from 6 to 20 g. Around the back, the M8xTT provides both standard phono RCA outputs and balanced XLR outputs, giving you flexibility with a wide range of phono preamps.

Features

• Mass-loaded belt-drive design with electronic 33/45 speed control
• 10 kg sandwich aluminum platter with aluminum inserts and TPE damping
• Inverted platter bearing with ceramic ball tip
• 10" Musical Fidelity tonearm with transparent acrylic bearing ring
• Fully adjustable VTA and azimuth
• Two TPE-damped counterweights for cartridges from 6 to 20 g
• Dual-level acrylic plinth with effective motor decoupling
• Height-adjustable aluminum feet with TPE damping and magnetic support
• RCA and balanced XLR outputs
• Handmade in Europe

Included Accessories

• Heavyweight aluminum record puck
• Leather turntable mat
• Semi-balanced phono interconnect cable with gold-plated connectors

Specifications

Speed: 33, 45 rpm, electronic speed change

Drive Principle: Belt drive with electronic speed control

Platter: Sandwich aluminum platter with aluminum inserts, 10 kg, both levels with TPE damping

Platter Bearing: Inverted bearing with ceramic ball tip

Tonearm: 10" Musical Fidelity tonearm

Effective Tonearm Mass/Length: 17 g/254 mm

Overhang: 16 mm

Wow and Flutter: 33 rpm: ±0.05%; 45 rpm: ±0.04%

Speed Drift: 33 rpm: ±0.11%; 45 rpm: ±0.10%

Signal-to-Noise Ratio: -78 dB

Dimensions (WHD): 20.98" x 9.65" x 16.26" (533 x 245 x 413 mm)

Weight: 69.4 lb. (31.5 kg)
