Musical Fidelity BPC5 Power Conditioner

A balanced power conditioner with 4 outlets, 2 isolated power zones, a balanced toroidal transformer, RFI attenuation, surge protection, DC blocking, and voltage protection

The Musical Fidelity BPC5 is a balanced power conditioner for systems built around one amplifier up to 800 W, along with digital and analog source components, phono preamps, preamps, and CD players. It is designed to give hi-fi components a cleaner, more isolated AC supply while keeping system organization simple.

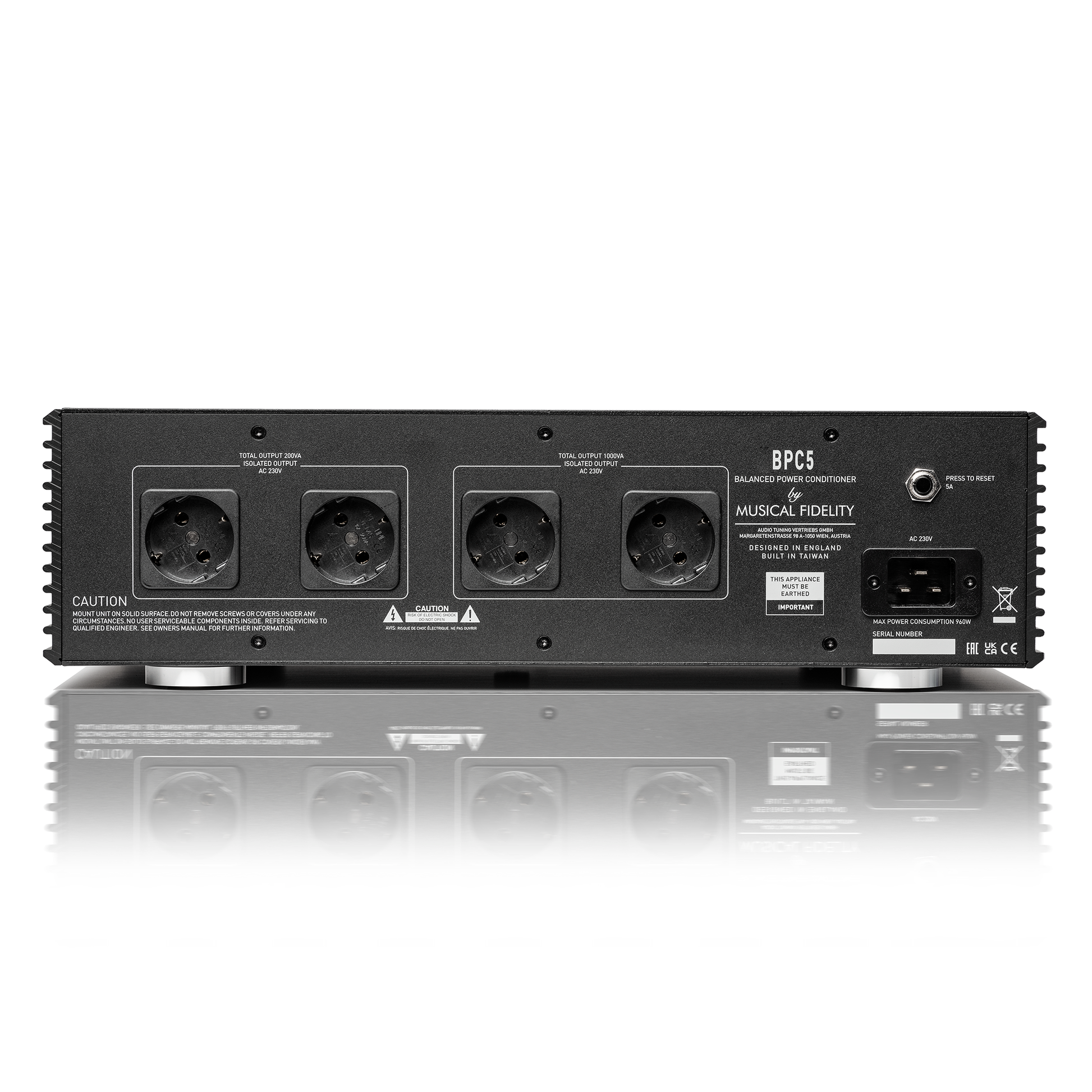

The BPC architecture uses separate output zones so connected components can be grouped by power-supply type or function. On the BPC5, four outlets are divided across one 200 VA zone and one 800 VA zone, allowing switch-mode power supplies to be kept away from electronics with linear power supplies and helping reduce differential-mode cross-contamination between components.

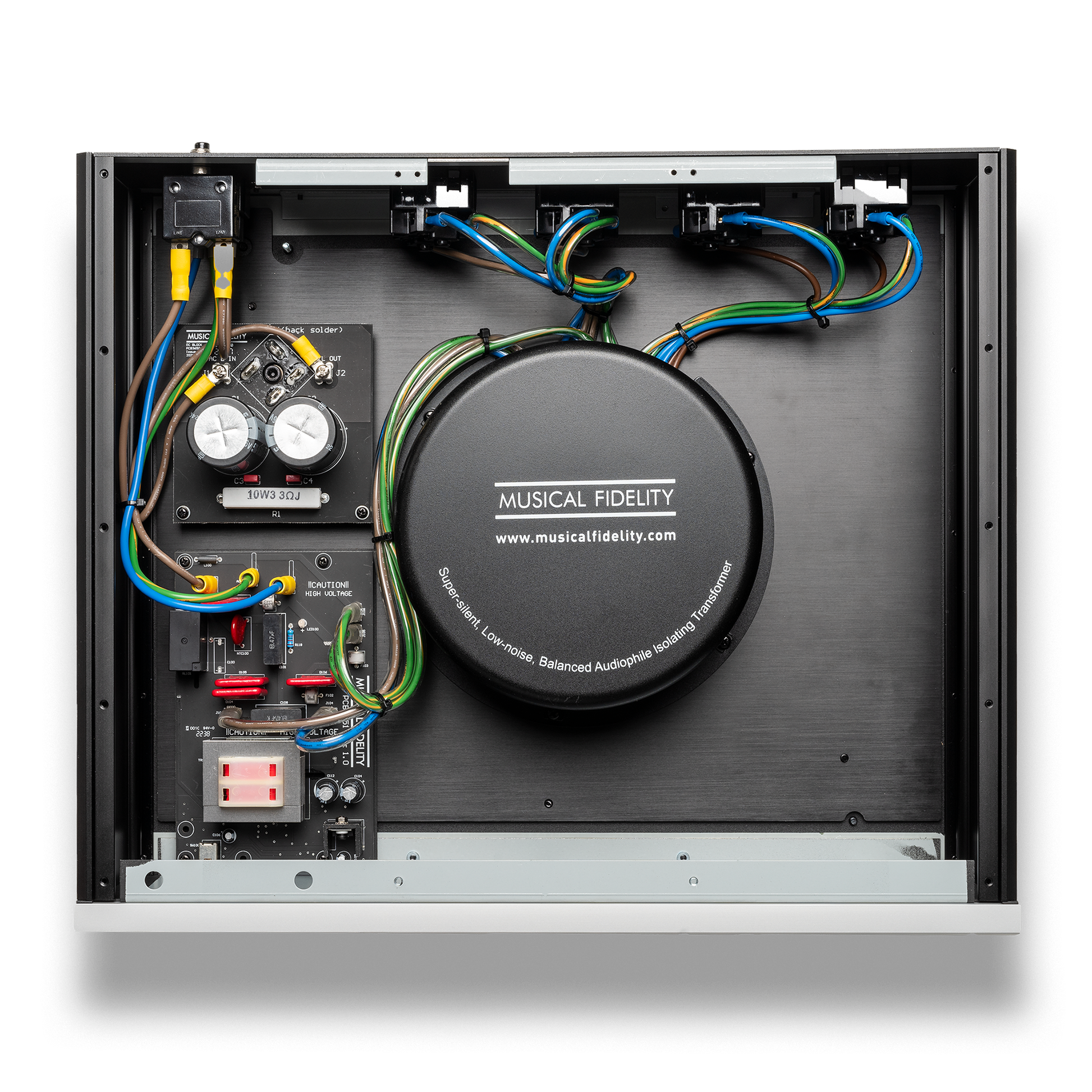

At the center of the BPC5 is a super-silent, low-noise balanced toroidal isolating power transformer. Musical Fidelity specifies RFI attenuation of more than 57 dB at 235 kHz and more than 40 dB up to 1 MHz, with common-mode rejection, series-mode surge protection, DC blocking, and over-voltage, under-voltage, and overload protection.

Features

• Balanced power conditioner for one amplifier up to 800 W and source components
• 4 power outlets across 2 isolated power zones
• 1 x 200 VA and 1 x 800 VA isolated power zones
• 1,200 VA / 5 A combined peak output
• 800 VA / 5 A maximum rated output
• Balanced toroidal isolating power transformer
• RFI attenuation of more than 57 dB at 235 kHz and more than 40 dB up to 1 MHz
• Output zones allow switch-mode power supplies to be separated from linear power supplies
• Series-mode surge protection and DC blocker rated at ≥ 2 V
• Over-voltage, under-voltage, and overload protection

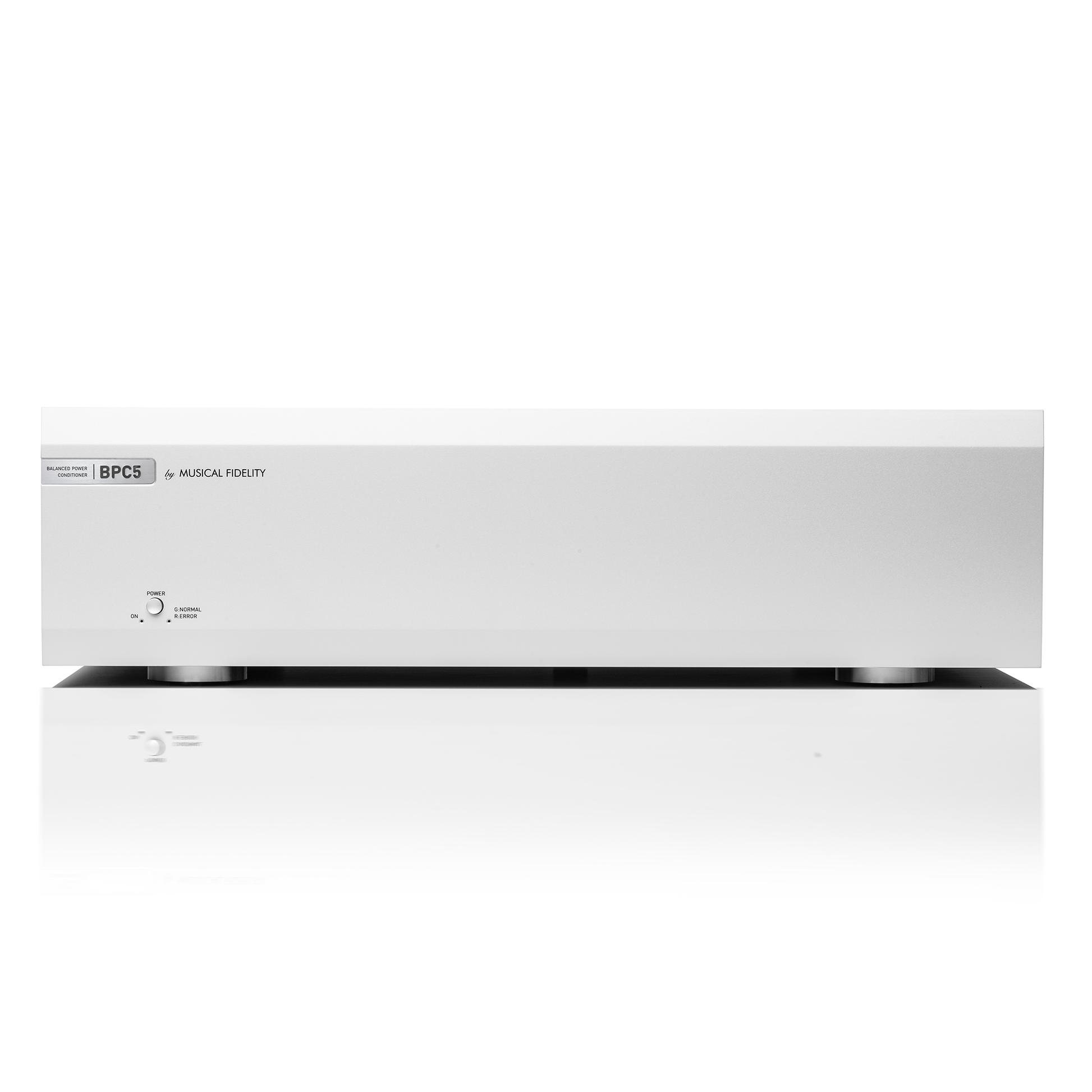

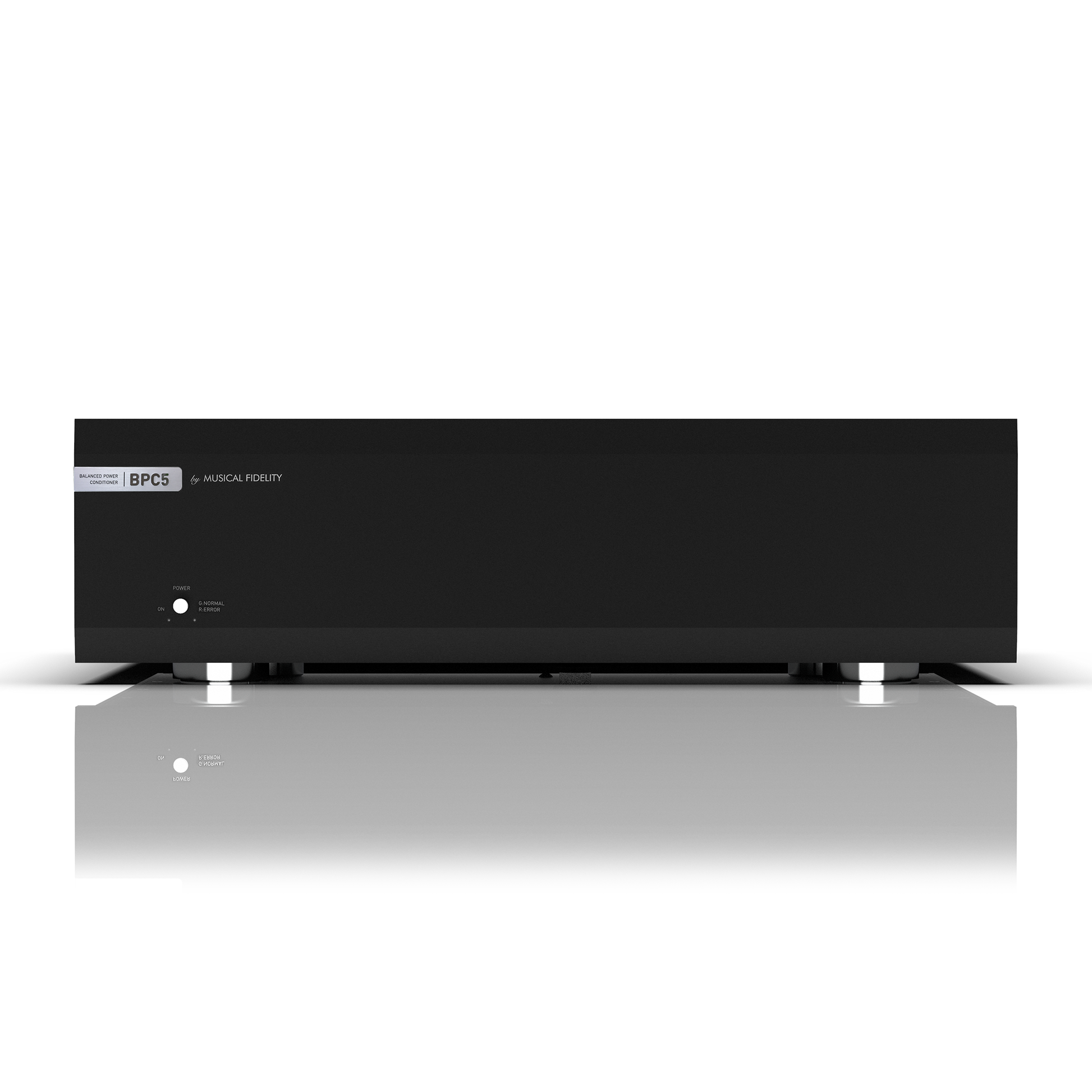

• Massive aluminum front panel and heavy steel casework

Specifications

Power Conditioner

Output Voltage: 110–120 V / 220–240 V

RFI Attenuation: >57 dB at 235 kHz, >40 dB up to 1 MHz

Isolated Power Output Zones: 2

Transformer: Balanced toroidal power transformer

Surge Protection and DC Blocker: ≥ 2 V

Voltage Protection: Over-voltage and under-voltage protection

Overload Protection: Yes

Connections

Power Outlets: 4

Isolated Power Zones: 1 x 200 VA, 1 x 800 VA

Peak Combined Power Output: 1,200 VA / 5 A

Maximum Rated Power Output: 800 VA / 5 A

General Information

Mains Voltage: 110–120 V / 220–240 V, AC 50/60 Hz

Maximum Consumption: 800 W

Dimensions (WHD): 17.3" x 4.9" x 15.7" (440 x 125 x 400 mm)

Weight: 45.4 lb. (20.6 kg)
