Musical Fidelity BPC3 Power Conditioner

A balanced power conditioner with 4 outlets, 2 isolated power zones, a balanced toroidal transformer, RFI attenuation, surge protection, DC blocking, and voltage protection

The Musical Fidelity BPC3 is a balanced power conditioner for digital and analog source components, phono preamps, preamps, CD players, turntables, TVs, and very low-powered amplifiers. It is designed to give sensitive front-end components a cleaner, more isolated AC supply while keeping system organization simple.

The BPC architecture uses separate output zones so connected components can be grouped by power-supply type or function. On the BPC3, four outlets are divided across two 300 VA zones, allowing switch-mode power supplies to be kept away from electronics with linear power supplies and helping reduce differential-mode cross-contamination between components.

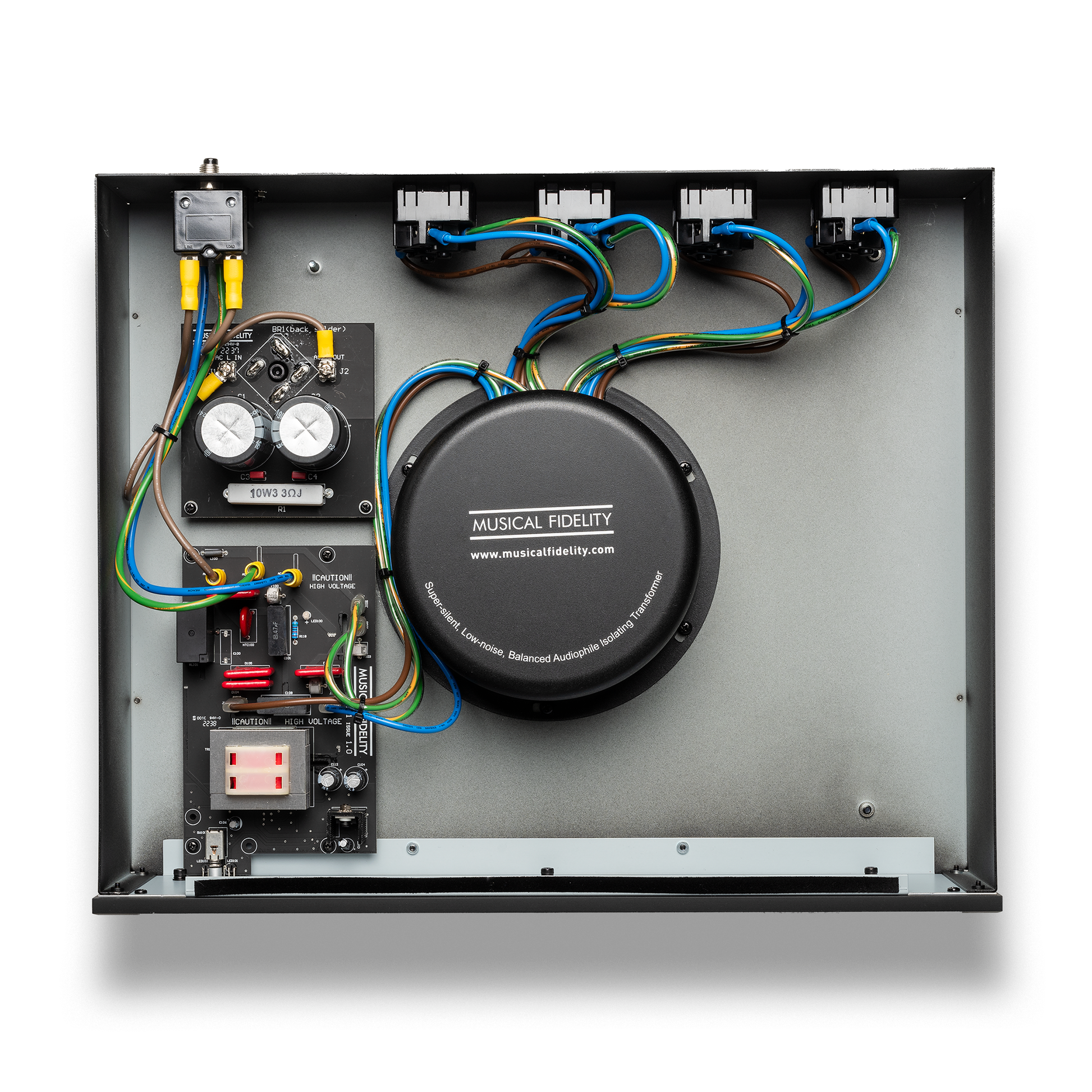

At the center of the BPC3 is a super-silent, low-noise balanced toroidal isolating power transformer. Musical Fidelity specifies RFI attenuation of more than 57 dB at 235 kHz and more than 40 dB up to 1 MHz, with common-mode rejection, series-mode surge protection, DC blocking, and over-voltage, under-voltage, and overload protection.

Features

• Balanced power conditioner for source components and very low-powered amplifiers
• 4 power outlets across 2 isolated power zones
• 2 x 300 VA isolated power zones
• 600 VA / 3 A combined peak output
• 480 VA / 3 A maximum rated output
• Balanced toroidal isolating power transformer
• RFI attenuation of more than 57 dB at 235 kHz and more than 40 dB up to 1 MHz
• Output zones allow switch-mode power supplies to be separated from linear power supplies
• Series-mode surge protection and DC blocker rated at ≥ 2 V
• Over-voltage, under-voltage, and overload protection
• Massive aluminum front panel and heavy steel casework

Specifications

Power Conditioner

Output Voltage: 110–120 V / 220–240 V

RFI Attenuation: >57 dB at 235 kHz, >40 dB up to 1 MHz

Isolated Power Output Zones: 2, 300 VA each

Transformer: Balanced toroidal power transformer

Surge Protection and DC Blocker: ≥ 2 V

Voltage Protection: Over-voltage and under-voltage protection

Overload Protection: Yes

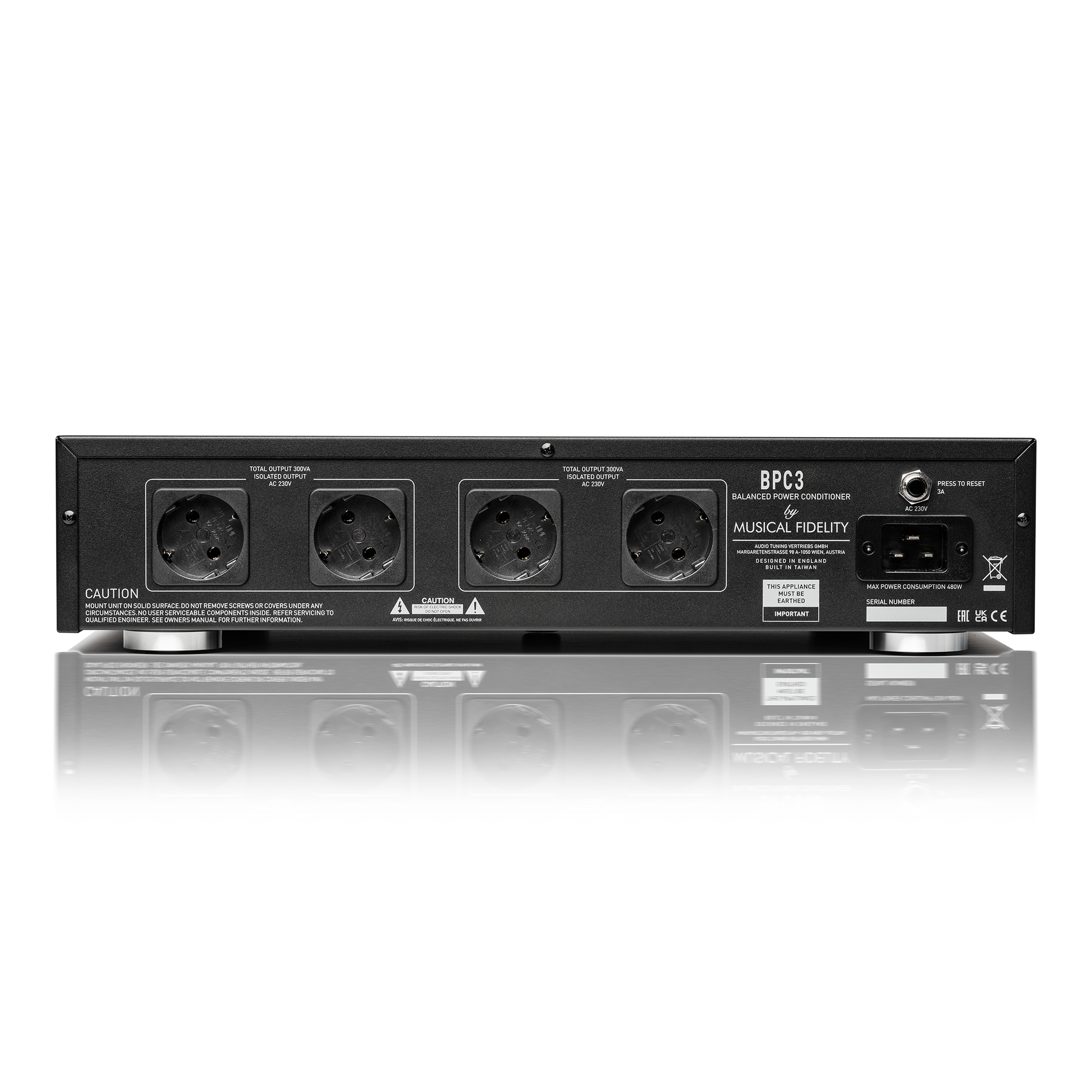

Connections

Power Outlets: 4

Isolated Power Zones: 2 x 300 VA

Peak Combined Power Output: 600 VA / 3 A

Maximum Rated Power Output: 480 VA / 3 A

General Information

Mains Voltage: 110–120 V / 220–240 V, AC 50/60 Hz

Maximum Consumption: 480 W

Dimensions (WHD): 17.3" x 3.9" x 15.7" (440 x 100 x 400 mm)

Weight: 25.8 lb. (11.7 kg)
