Musical Fidelity BPC16 Power Conditioner

A balanced power conditioner with 8 outlets, 3 isolated power zones, a balanced toroidal transformer, RFI attenuation, surge protection, DC blocking, and voltage protection

The Musical Fidelity BPC16 is a balanced power conditioner for big stereo amplifiers, power-hungry monoblocks, and home theater systems with large multichannel amplifiers. It is designed to give demanding systems a cleaner, more isolated AC supply while keeping system organization simple.

The BPC architecture uses separate output zones so connected components can be grouped by power-supply type or function. On the BPC16, eight outlets are divided across two 600 VA zones and one 2,000 VA zone, allowing switch-mode power supplies to be kept away from electronics with linear power supplies and helping reduce differential-mode cross-contamination between components.

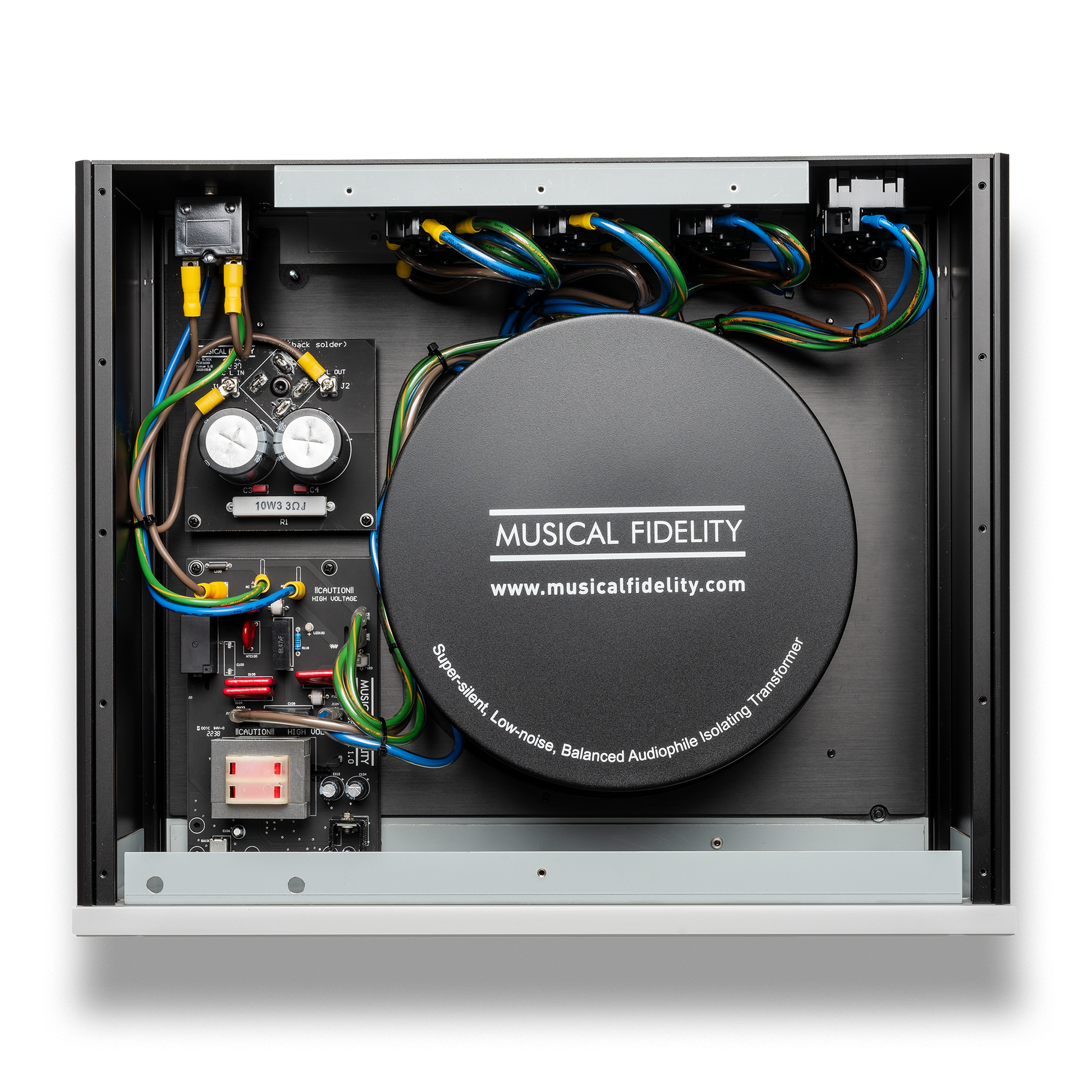

At the center of the BPC16 is a super-silent, low-noise balanced toroidal isolating power transformer. Musical Fidelity specifies RFI attenuation of more than 57 dB at 235 kHz and more than 40 dB up to 1 MHz, with common-mode rejection, series-mode surge protection, DC blocking, and over-voltage, under-voltage, and overload protection.

Features

• Balanced power conditioner for big stereo amplifiers, power-hungry monoblocks, and home theater systems

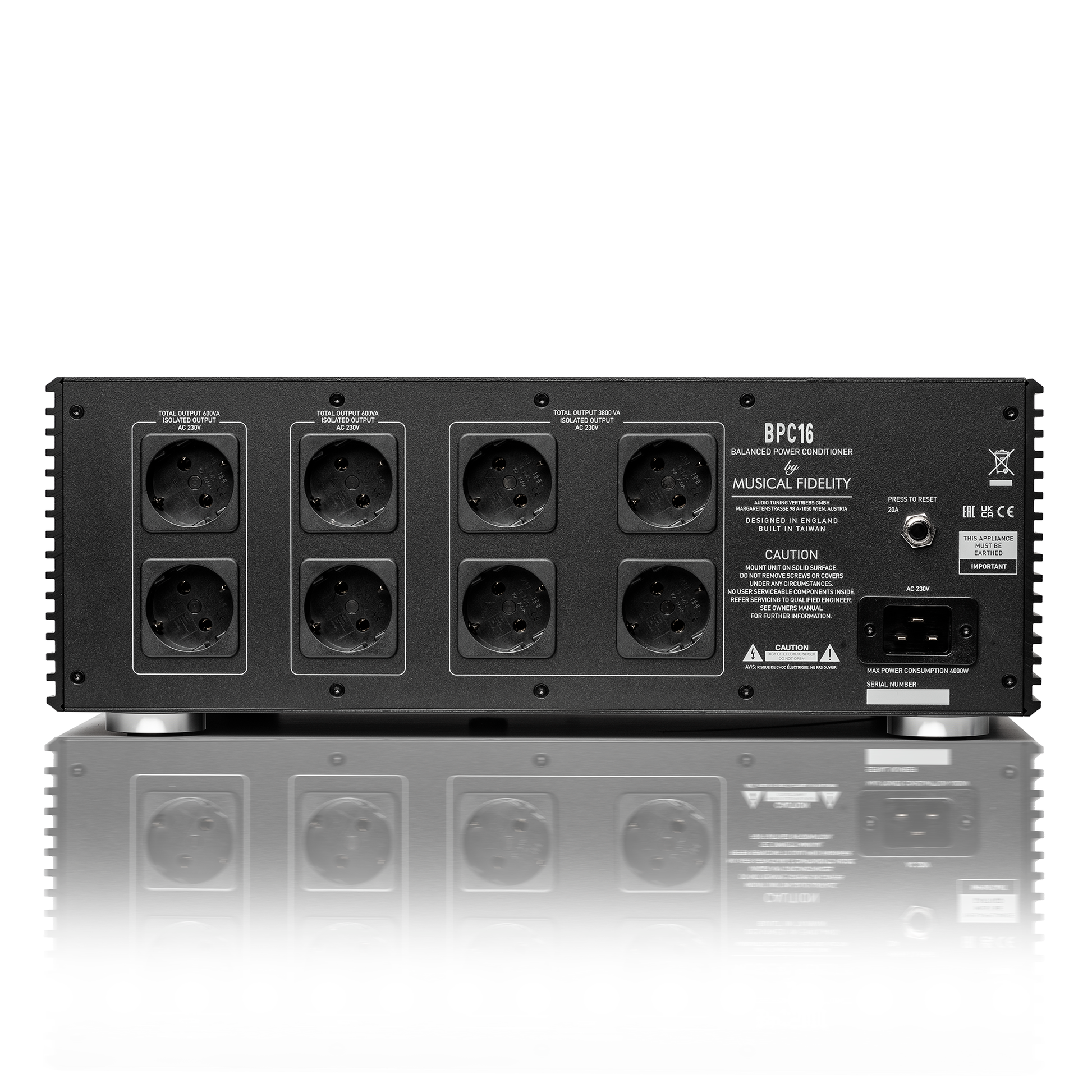

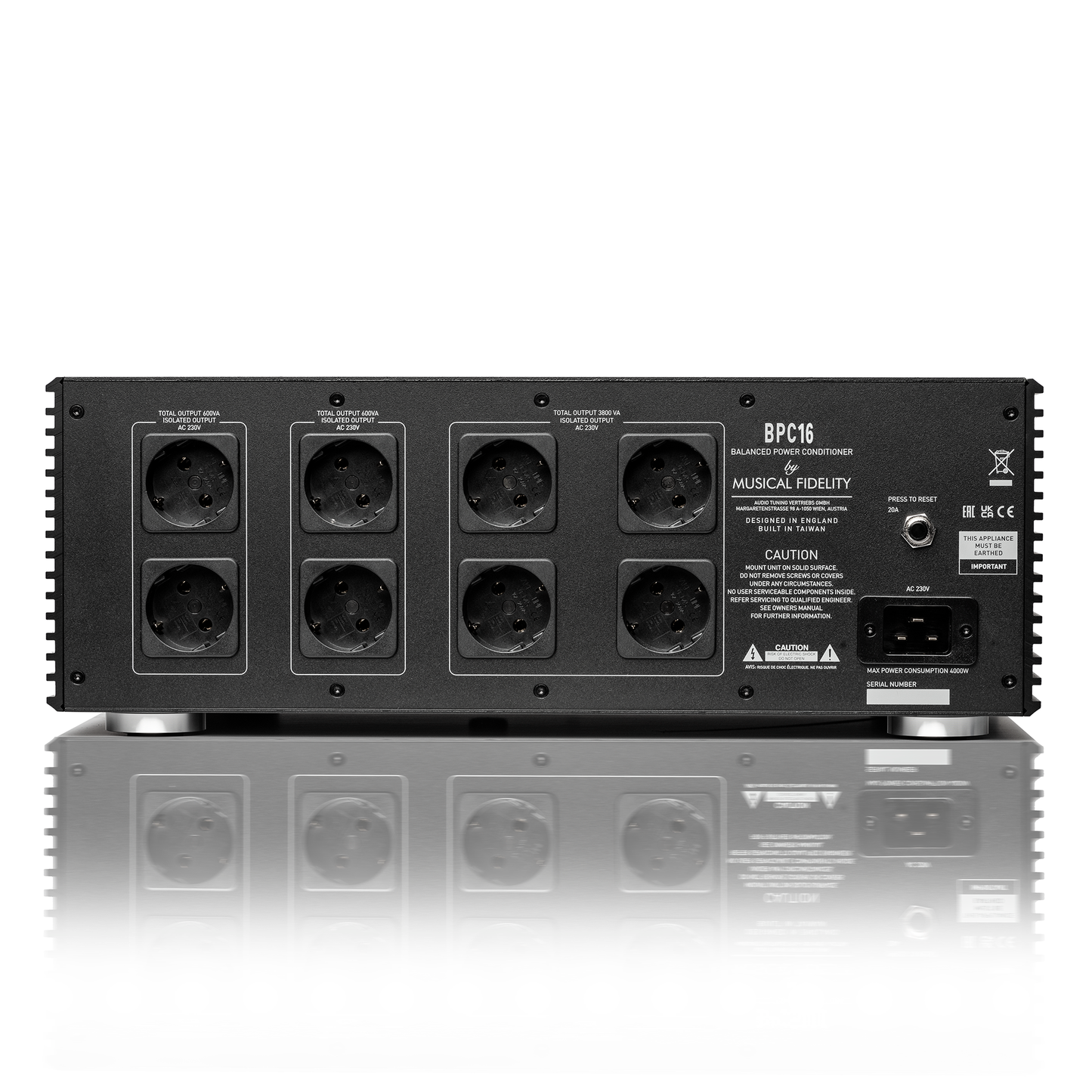

• 8 power outlets across 3 isolated power zones
• 2 x 600 VA and 1 x 2,000 VA isolated power zones
• 5,000 VA / 20 A combined peak output
• 2,000 VA / 16 A maximum rated output
• Balanced toroidal isolating power transformer
• RFI attenuation of more than 57 dB at 235 kHz and more than 40 dB up to 1 MHz
• Output zones allow switch-mode power supplies to be separated from linear power supplies
• Series-mode surge protection and DC blocker rated at ≥ 2 V
• Over-voltage, under-voltage, and overload protection

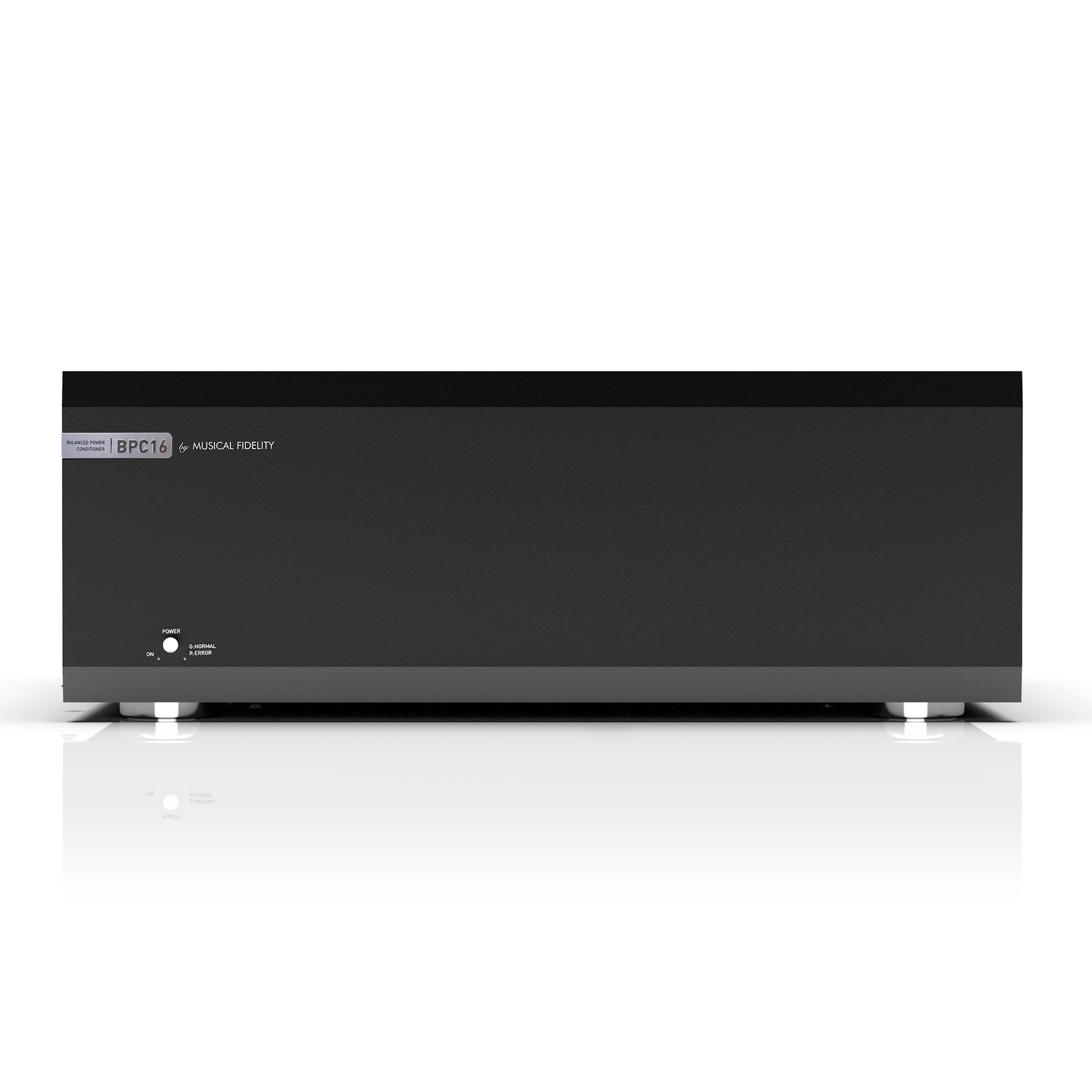

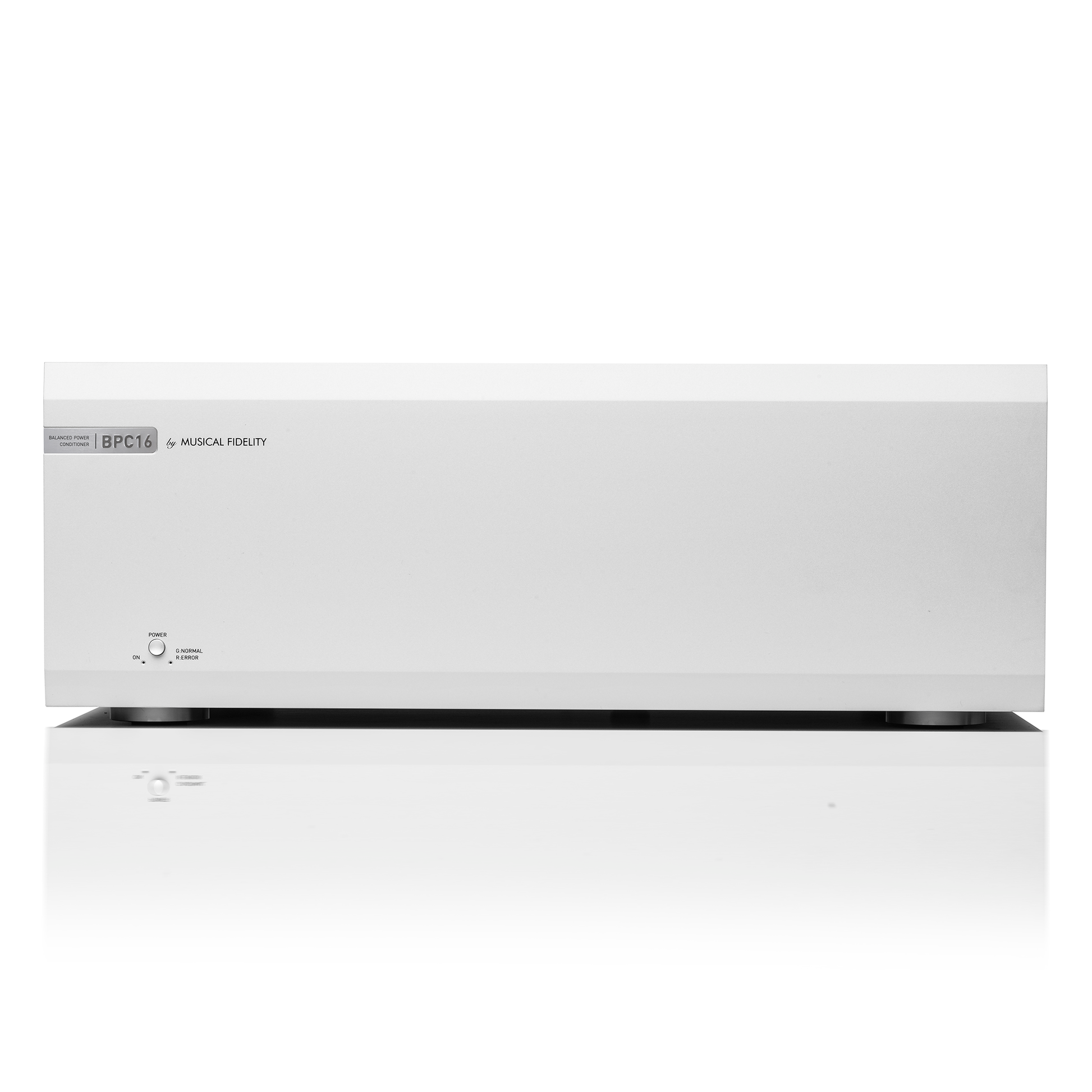

• Massive aluminum front panel and heavy steel casework

Specifications

Power Conditioner

Output Voltage: 110–120 V / 220–240 V

RFI Attenuation: >57 dB at 235 kHz, >40 dB up to 1 MHz

Isolated Power Output Zones: 3

Transformer: Balanced toroidal power transformer

Surge Protection and DC Blocker: ≥ 2 V

Voltage Protection: Over-voltage and under-voltage protection

Overload Protection: Yes

Connections

Power Outlets: 8

Isolated Power Zones: 2 x 600 VA, 1 x 2,000 VA

Peak Combined Power Output: 5,000 VA / 20 A

Maximum Rated Power Output: 2,000 VA / 16 A

General Information

Mains Voltage: 110–120 V / 220–240 V, AC 50/60 Hz

Maximum Consumption: 4,000 W

Dimensions (WHD): 17.3" x 6.4" x 15.7" (440 x 162 x 400 mm)

Weight: 85.8 lb. (38.9 kg)
