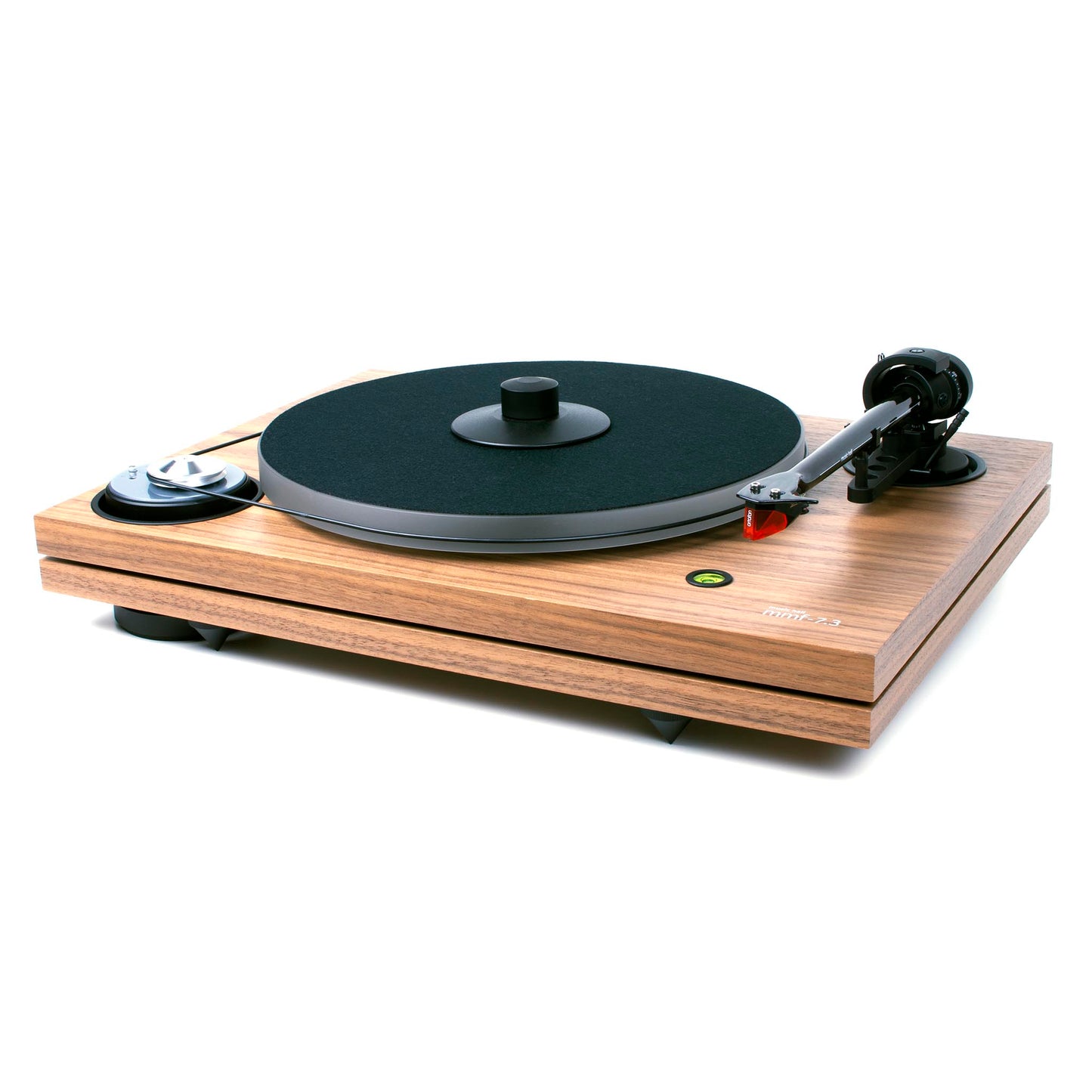

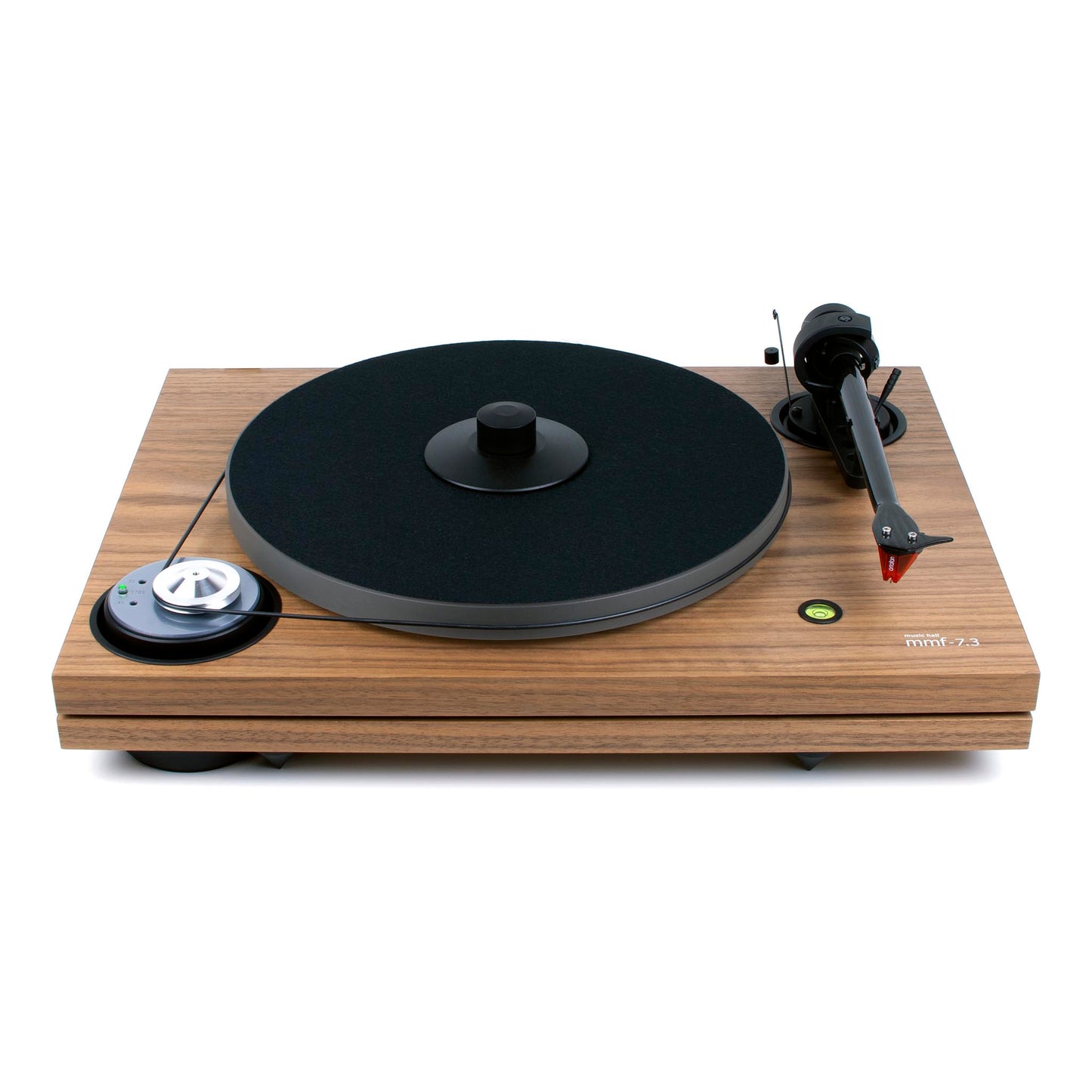

MUSIC HALL MMF-7.3SE Walnut Turntable
MUSIC HALL MMF-7.3SE Walnut Turntable
This product is an exception to our normal return policy.
Product questions? Found a lower price?
Let us know: 909.931.9686 or chat.
This item qualifies to earn HiFives. What's a HiFive?
View full detailsMUSIC HALL MMF-7.3SE Walnut
Â
The Music Hall MMF-7.3 turntable is a two-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by Music Hall.
Sorbothane hemispheres separate the two platforms and provide additional suspension and vibration damping. The MMF-7.3 comes in a high-gloss piano black lacquer finish.
The distinctive design of the MMF-7.3 isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the adjustable tip-toe feet which are mounted on the bottom platform. The motor speed controls, and wiring are isolated on their own platform and completely decoupled from the turntable.
Feature List
- Music Hall’s unique dual plinth construction
- One-piece full carbon fiber tonearm
- Counterweight’s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
- Completely isolated/decoupled DC motor with 33â…“ and 45 rpm speed controls located in the front left corner of the turntable, thus canceling any potential vibration from the motor/belt to the cartridge
- Motor sits on its own resonance damping puck
- Ortofon 2M Bronze cartridge with a nude fine line stylus
($440 value) - The supplied cartridge is properly aligned and mounted
- Precision stainless steel main bearing sheathed in Teflon® for noise-free, fluid operation
- Non-resonant acrylic platter with metal screw-on record clamp
and soft felt mat - High quality gold RCA connectors and detachable phono cable
- Adjustable tip toe feet with anti scratch cups
- Low noise fully manual belt drive design
- Built-in round spirit level for proper leveling
- Dust cover and 45rpm adaptor included
- Excellent instruction manual and easy assembly
Technical Specifications
Power supply | 15V / 0-0.8mA DC universal power supply |
Power connection | 100 – 240 Volt 50 or 60 Hz |
Standby power consumption | < 1 W |
Speeds | 33â…“ rpm & 45 rpm electronic speed change |
Wow and flutter | ± 0.10 % |
Speed deviation | ± 0.06% |
Rumble max | > – 73 db |
Effective tonearm length | 9 in. (230 mm) |
Tonearm weight | 250 g (without counterweight) |
Effective tonearm mass | 8.5 g |
Overhang | 18 mm |
