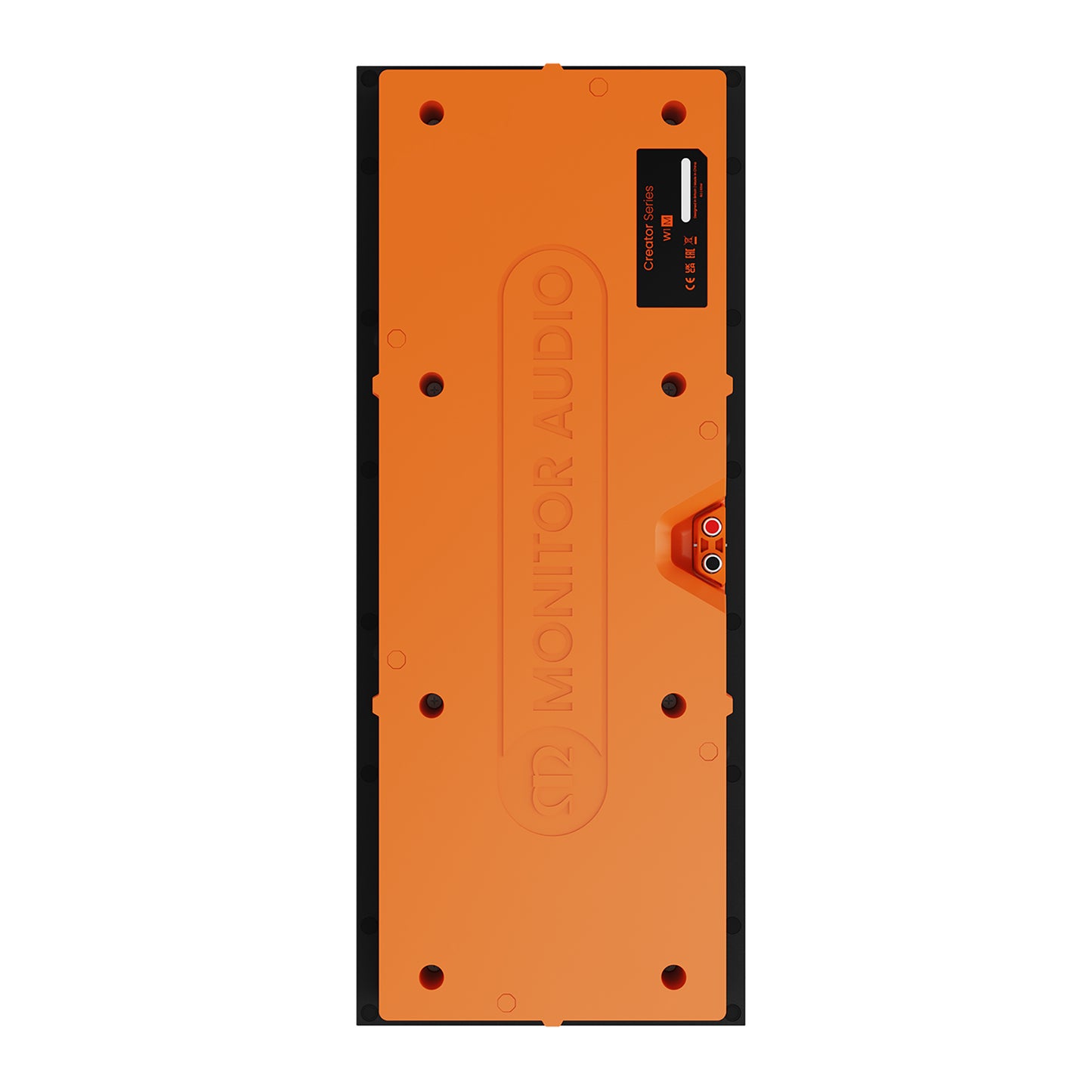

Monitor Audio W1M In-Wall Loudspeaker (each)

A two-way with 2 x 5" mid/bass and 1" tweeter

This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter.

The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionizes the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Features

  • Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
  • Two-way design
  • 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
  • 2 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
  • Tri-Grip II for easy and secure fitment

Specifications

Type: 2–way, 1 channel

Frequency Response (-6dB): 40 Hz – 30 kHz

Impedance (Nom., Min.): 6 ohm, 4.8 ohm

Sensitivity: 87 dB

Drivers
HF: 1 x 1" (25 mm) C-CAM tweeter
Mid/Bass: 2 x 5" (127 mm) C-CAM mid-bass driver

Crossover Frequency: 2.75 kHz

Mounting Depth: 85 mm (3-3/8")

Cutout (LW): 527 x 198 mm (20-3/4" x 7-13/16")

Dimensions (HWD): 22-1/16" x 9-1/8" x 3-9/16" (560 x 231 x 90 mm)

Weight: 7.5 lb. (3.4 kg)
