Monitor Audio Platinum PLIC II In-Ceiling Speaker (each)

A three-way, four-driver in-ceiling loudspeaker with MPD tweeter, two 2" C-CAM midrange drivers, 8" long-throw RDT II bass driver, and 90 dB sensitivity

The Monitor Audio Platinum PLIC II is a three-way in-ceiling speaker designed for high-performance architectural audio systems. It is intended for both new-build and retrofit installations, making it a strong choice for home theater, distributed audio, or discreet high-end music systems where ceiling installation is required.

An MPD high-frequency transducer handles treble, joined by two 2" C-CAM midrange drivers and an 8" long-throw RDT II bass driver. Monitor Audio says this driver array is mounted on a rigid aluminum baffle and directed toward the listening zone to provide uniform mid- and high-frequency dispersion.

The Platinum PLIC II features Monitor Audio’s Tri-Grip fixing system, a magnetic low-profile trimless grille, and compatibility with the optional MDF PLIC-BOX II or CB10 pre-construction bracket. It is supplied with a lifetime warranty.

Objects of Desire

The Platinum PLIC II is engineered to deliver a compelling high-performance in-ceiling listening experience with minimal room intrusion. Its three-way, four-driver configuration, directed mid/high-frequency array, and recommended 24 L sealed enclosure option help it deliver the performance expected from Monitor Audio’s Platinum architectural speakers.

MPD, C-CAM, and RDT II Driver Technology

The high-frequency section uses Monitor Audio’s MPD transducer, partnered with two 2" C-CAM midrange drivers and an 8" long-throw RDT II bass driver. This driver array is intended to deliver high-quality sound, ease of installation, and discreet design in an architectural in-ceiling format.

Features

• Three-way, four-driver in-ceiling loudspeaker
• MPD high-frequency transducer
• Two 2" C-CAM midrange drivers
• 8" long-throw RDT II bass driver
• Tri-Grip fixing system

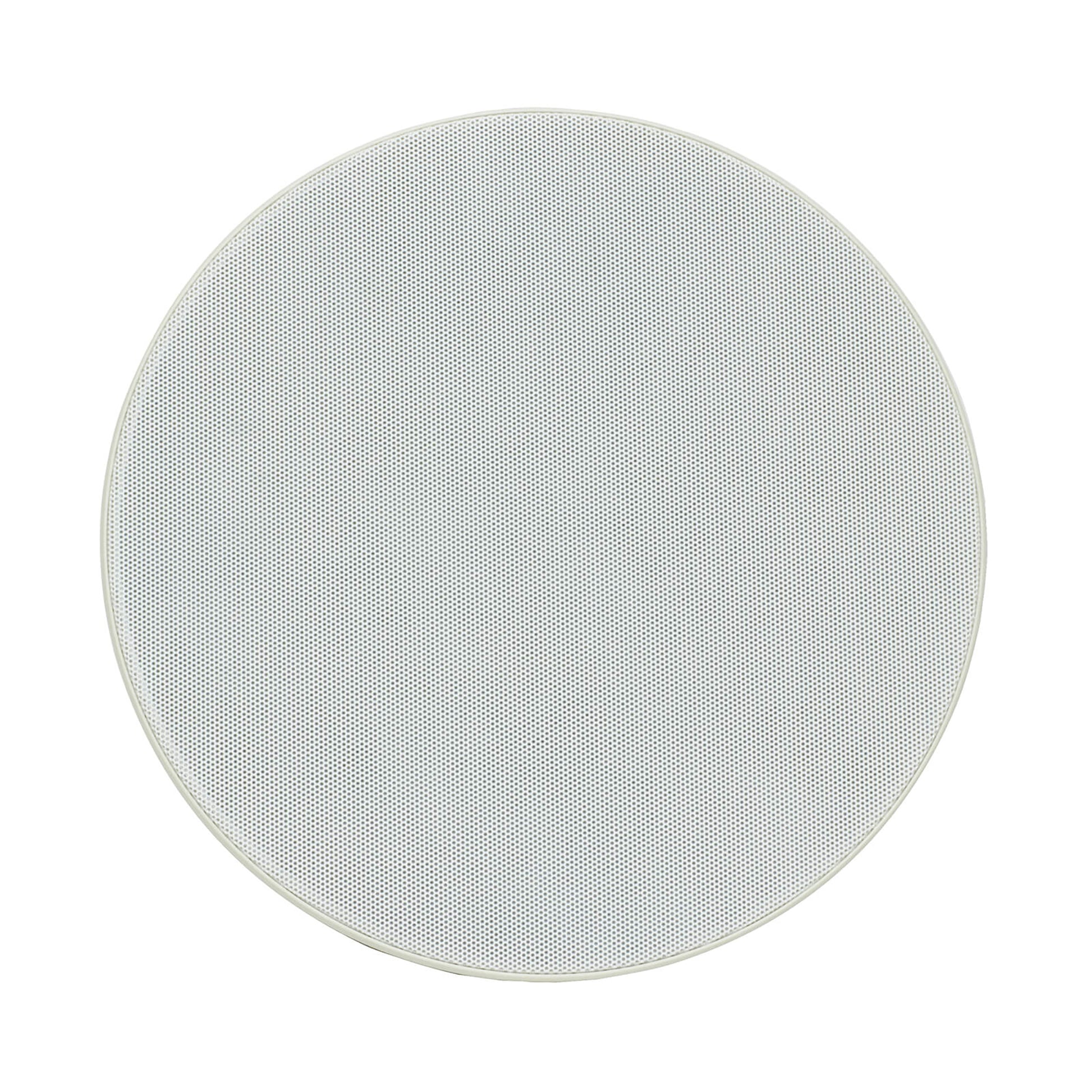

• Magnetic low-profile trimless grille
• Paintable grille
• Optional square grille available
• Compatible with MDF PLIC-BOX II
• Compatible with CB10 pre-construction bracket
• Lifetime warranty

Specifications

System Format: 3-way, 4-driver

Frequency Response (-6 dB): 45 Hz–60 kHz

Sensitivity: 90 dB

Maximum SPL: 112 dBA

Impedance (Nom., Min.): 4 ohm, 3.1 ohm @ 1.1 kHz

Recommended Enclosure: PLIC-BOX II or bespoke sealed enclosure of 24 L

Crossover Frequency: 380 Hz, 5.3 kHz

Adjustment Controls: HF level switch (+1 dB / 0 dB / -1 dB), MF level switch (+1 dB / 0 dB / -1 dB)

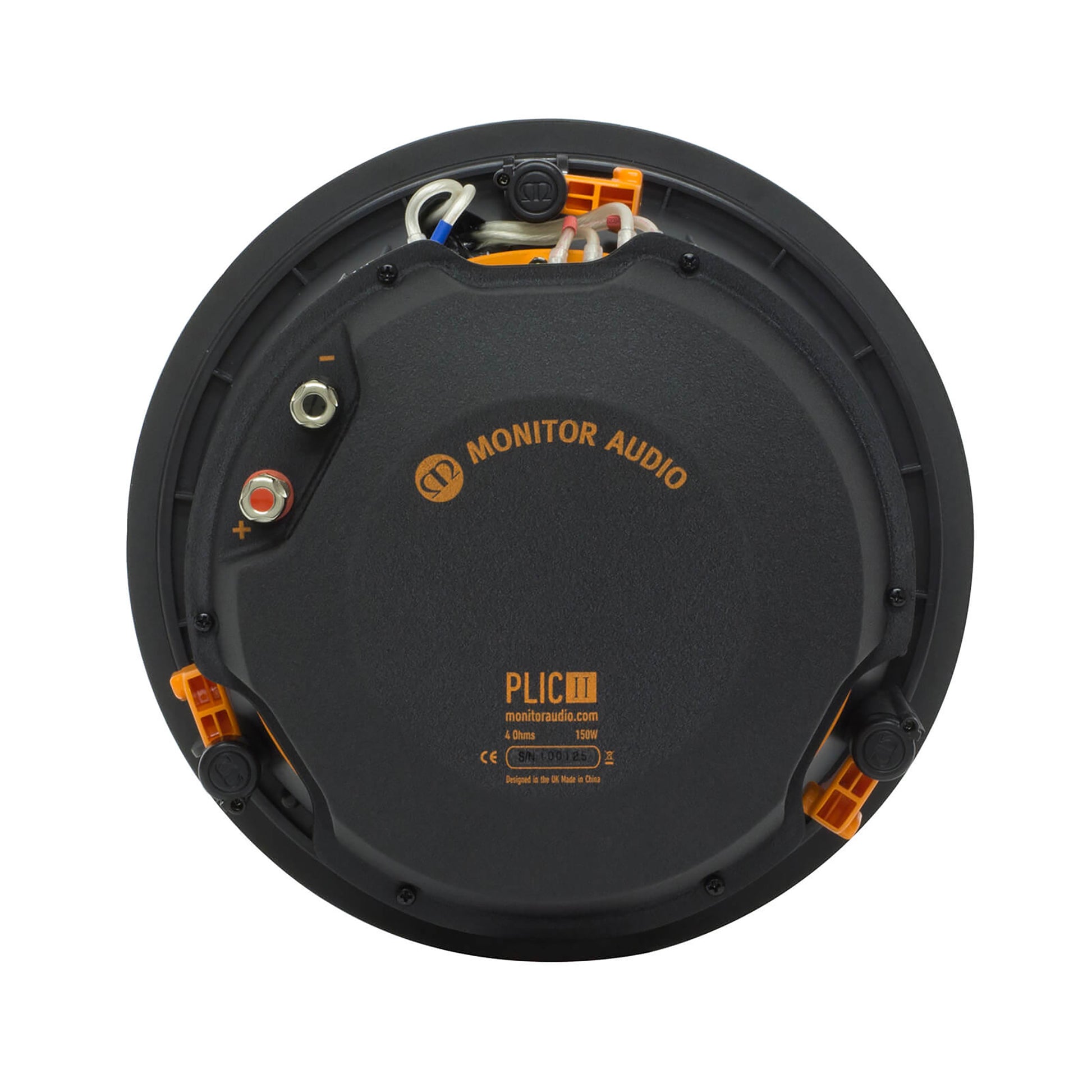

Connection: High-end push-type terminals

Fixing Type: 3-position Tri-Grip dog fixings

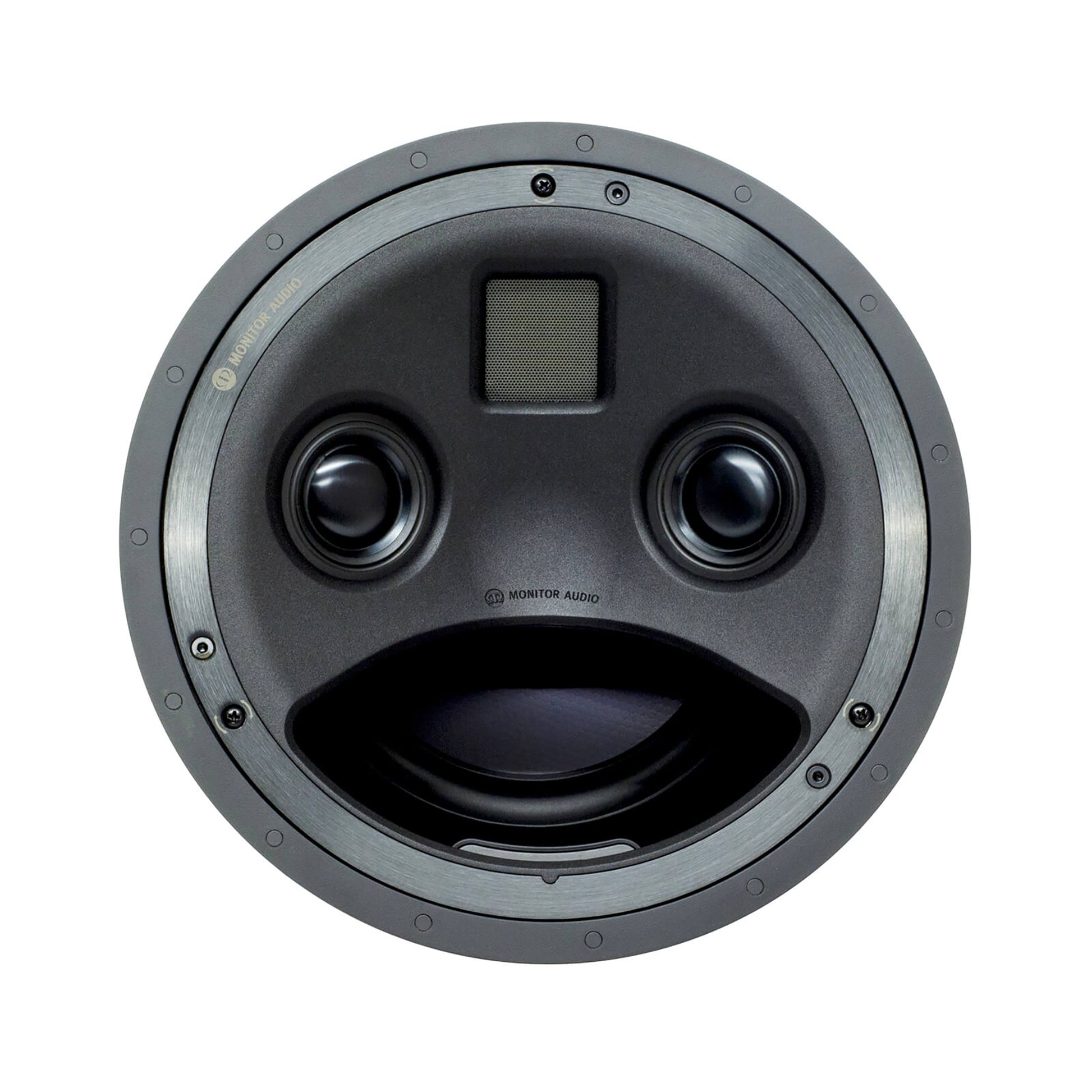

Drivers:
HF: 1 x MPD high-frequency transducer
Mid: 2 x 2" C-CAM midrange drivers
LF: 1 x 8" long-throw RDT II bass driver

Overall Diameter, Grille On/Off: 12-3/16", 11-11/16" (309 mm, 296.25 mm)

Overall Depth, Grille On/Off: 7-1/2", 7-3/8" (191.5 mm, 188 mm)

Cut-Out Hole Diameter: 10-3/4" (273 mm)

Mounting Depth: 7-5/16" (185 mm)

Weight: 11.5 lb. (5.22 kg)
