A made-in-the-USA DAC designed with Mytek and voiced by MoFi

Designed in collaboration with Mytek Audio engineer Michal Jurewicz, the MoFi Electronics StudioDAC is built in the USA and voiced by MoFi to give you that open, clean, nothing added vibe. It supports DSD, DXD, and up to 32 bit 384 kHz PCM playback, plus full MQA decoding and rendering for MQA encoded music.

With USB 2.0, coax S/PDIF, and optical Toslink inputs, StudioDAC drops into almost any system without drama. Up front, LED indicators show the incoming format and resolution so you can confirm you are getting bit perfect playback. Under the hood, a low noise precision clock generator helps minimize jitter, and an Apodizing Filter reduces pre ringing artifacts for a more natural top end. An outboard power supply is included for lower noise performance and easy future upgrade options.

Features

  • Designed in collaboration with Mytek Audio engineer Michal Jurewicz

  • Custom designed and manufactured in the USA

  • Voiced by MoFi Electronics

  • DSD, DXD, and 32 bit 384 kHz PCM playback

  • Full MQA decode + render by hardware

  • Low noise precision clock generator to minimize jitter

  • Apodizing Filter to reduce pre ringing artifacts

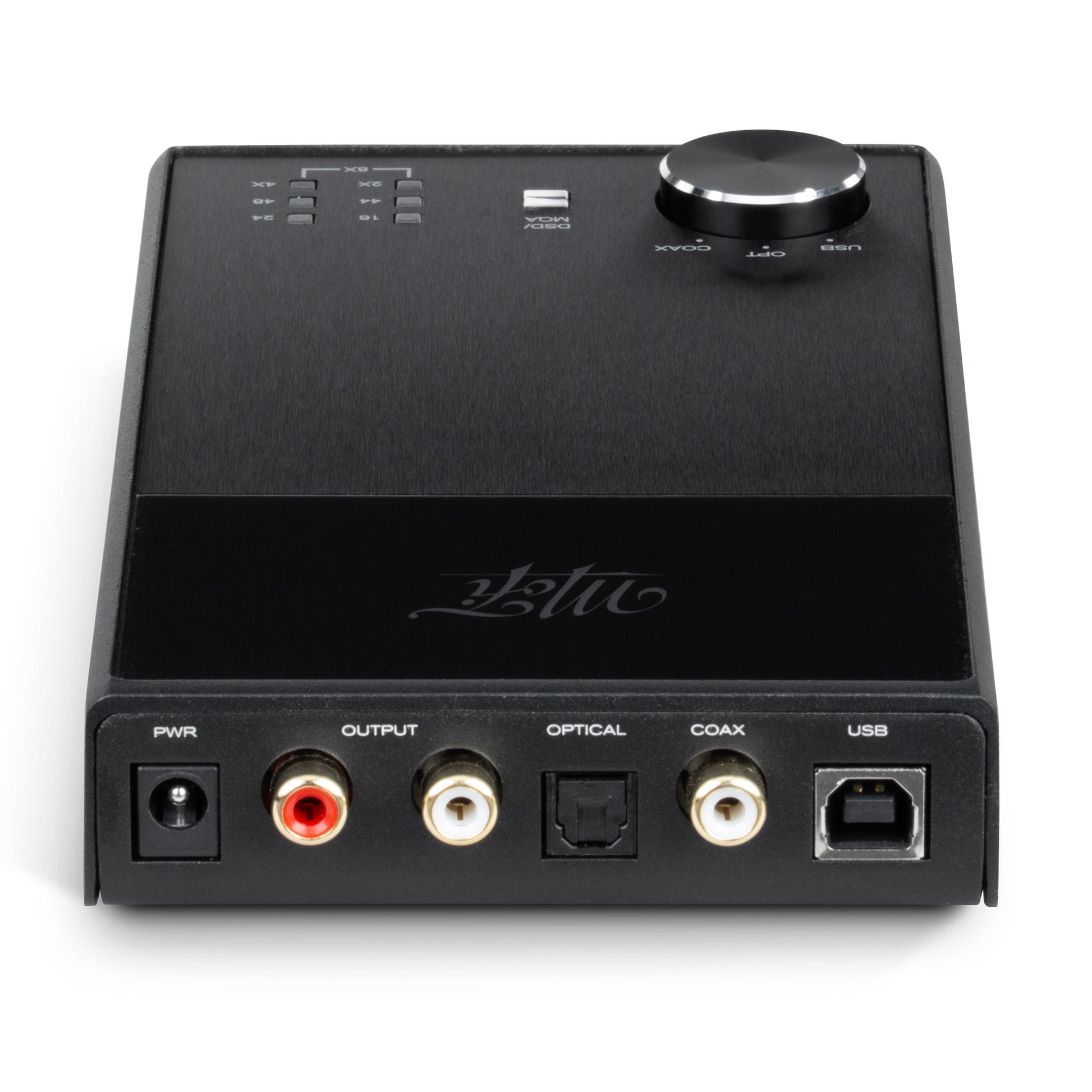

  • USB 2.0, coax S/PDIF, and optical Toslink inputs

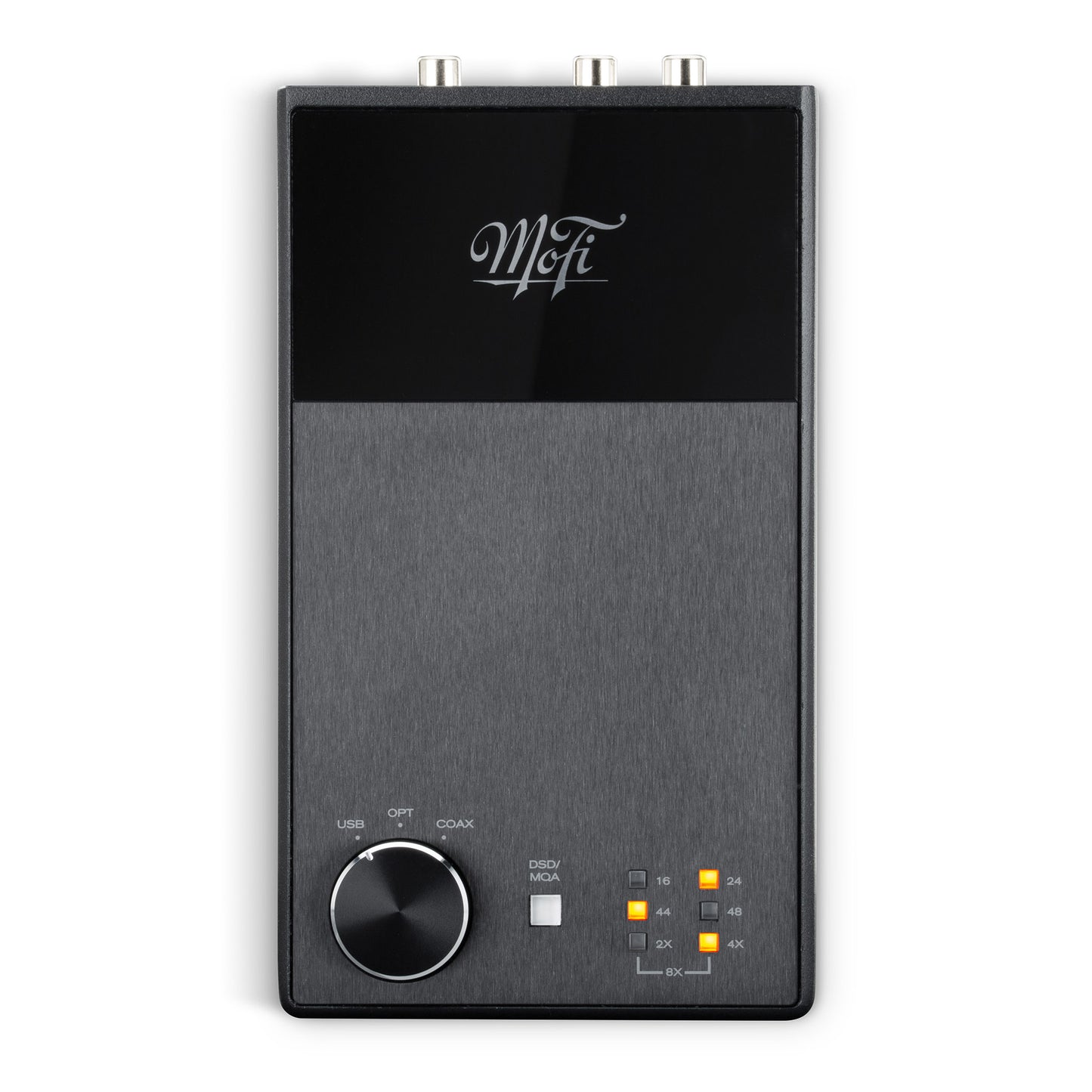

  • Front panel LED indicators show format and resolution

  • Outboard power supply included



Specifications

Digital Inputs: 1x Coax (S/PDIF), 1x Optical (Toslink), 1x USB B

D/A Converter: ESS9038Q2M

Sampling Rates: 32/44.1/48/88.2/96/176.2/192/352.8/384 kHz

DSD Support (USB): DSD64, DSD128

MQA Support: Full MQA decode + render by hardware

Bit Depth (USB): 16 to 32 bit

Bit Depth (Coax, Toslink): 16 to 24 bits

Frequency Response: 20 Hz to 20 kHz +/- 0.2 dB

Analog Out: 1x Fixed Level Out (RCA)

Output Voltage: 2.5 VRMS @ 0 dBFS

THD+N: <0.002% (20 Hz to 20 kHz)

Dynamic Range: 115 dB (A weighted)

SNR: >114 dB (A weighted)

Crosstalk @ 10 kHz: -110 dB

Output Impedance: 75 Ohms (unbalanced)

Linearity: <+/-0.25 dB @ -110 dB

Power Supply (external 100 to 240 VAC): +12 VDC 3.3 Amp center positive

Output Connector (external 100 to 240 VAC): 5.5/2.5 mm barrel connector
