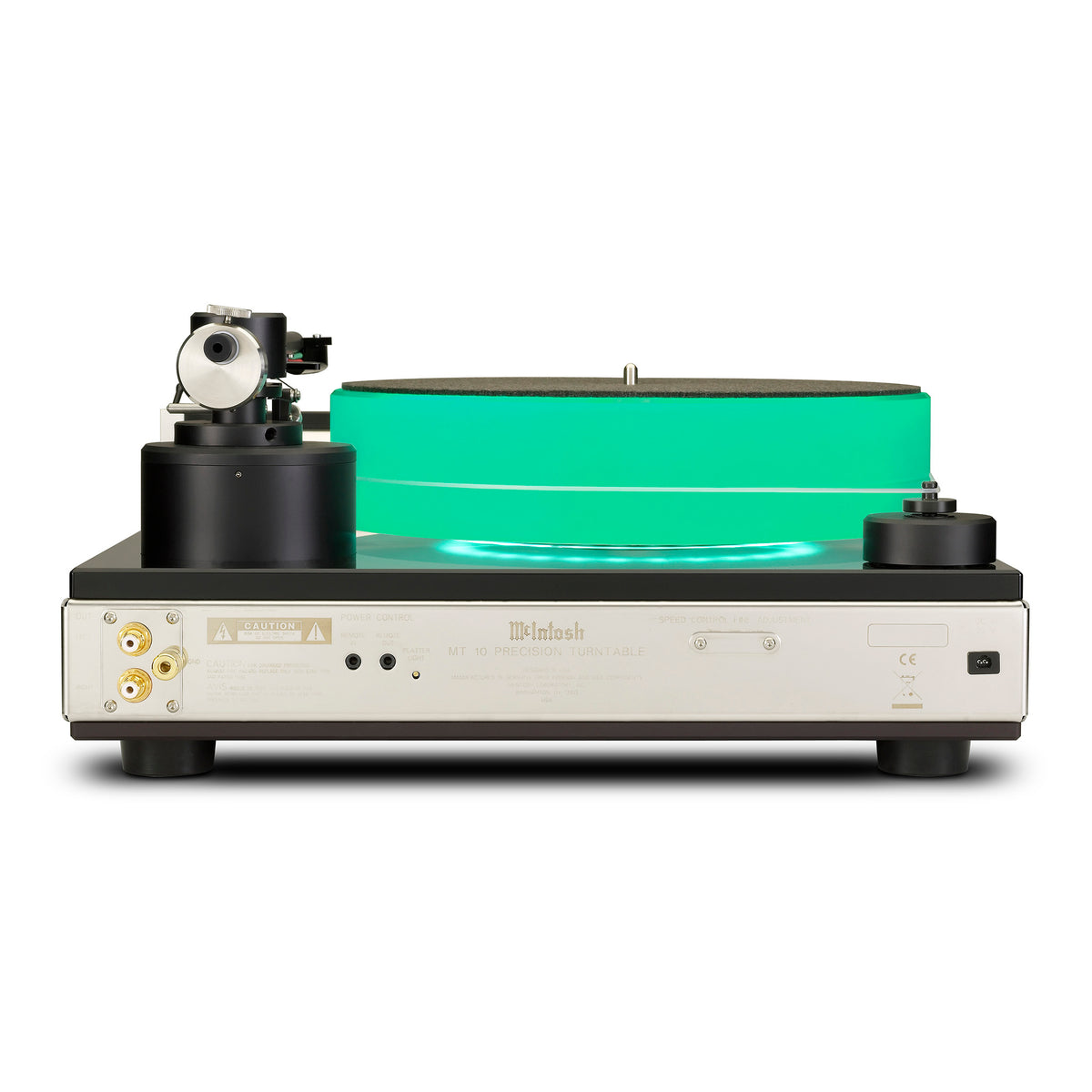

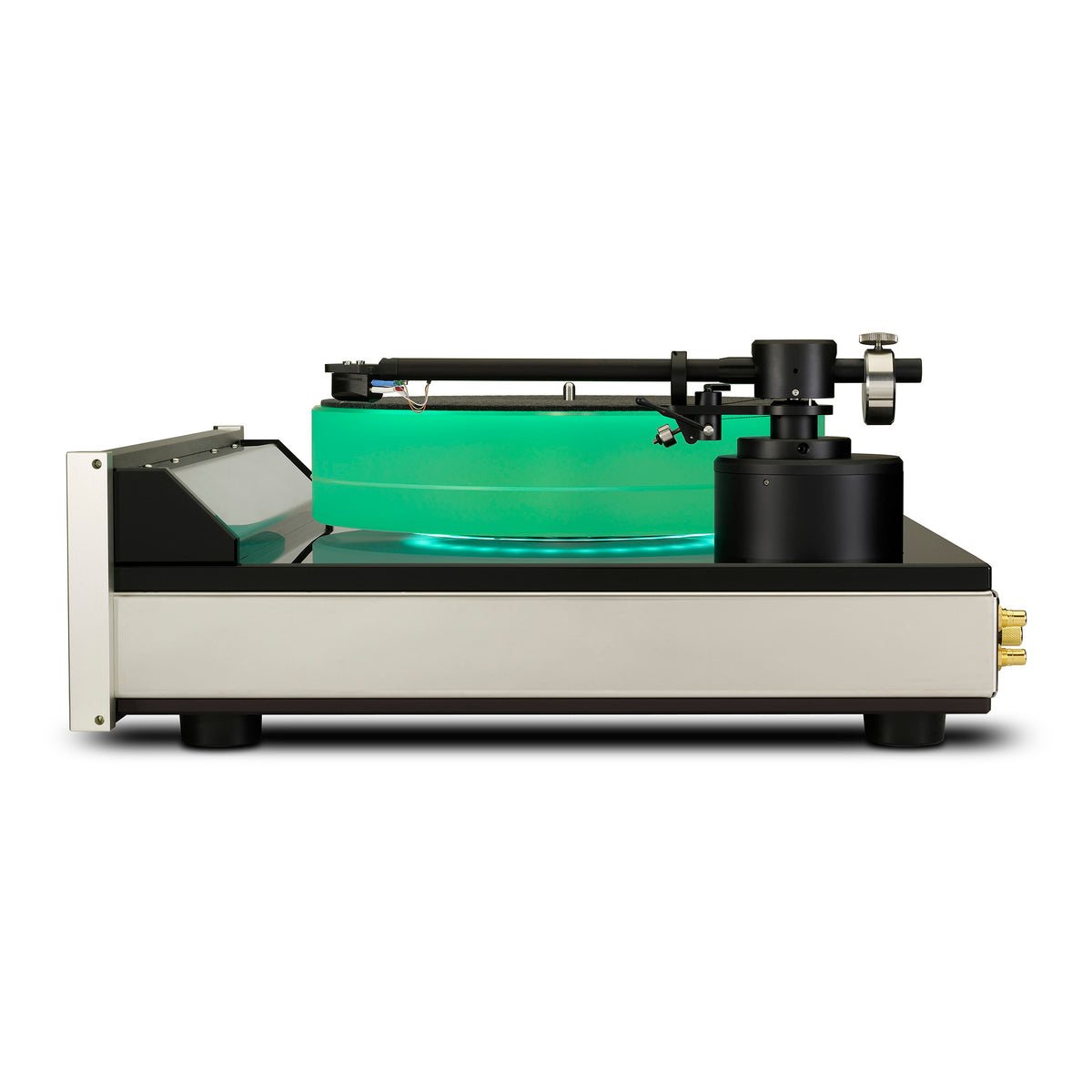

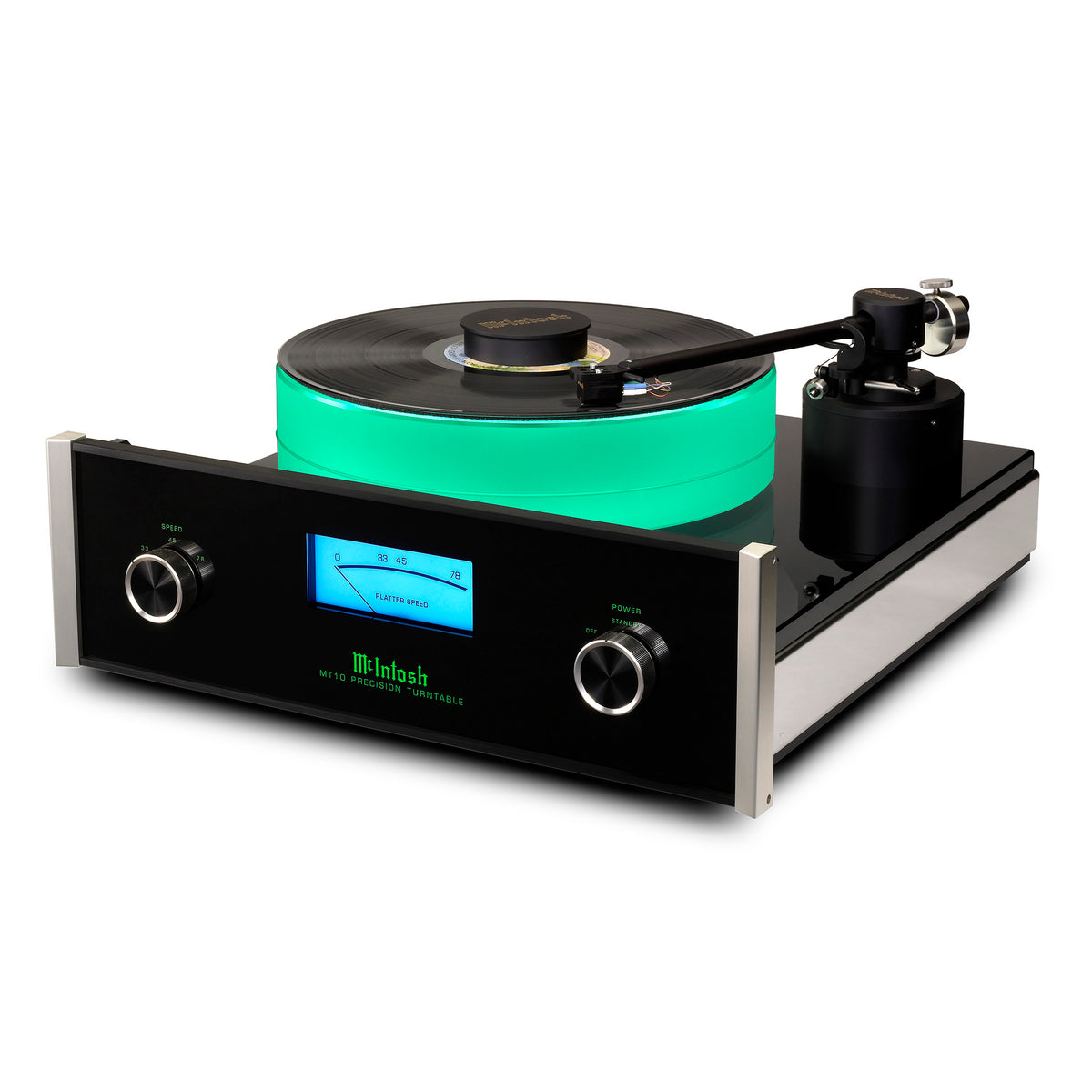

McIntosh MT10 Precision Turntable

Belt-drive turntable with low-output moving coil cartridge

The McIntosh MT10 Precision Turntable combines a substantial belt-drive design, carefully engineered platter and bearing system, precision tonearm, and factory-installed low-output moving coil cartridge in a turntable designed to deliver high-performance vinyl playback with minimal setup. It plays 33-1/3, 45, and 78 rpm records, with tracking force, antiskate, and cartridge position preset at the factory.

The silicon acrylic platter rotates on a magnetic suspended ceramic bearing designed to provide smooth, stable operation with minimal mechanical contact. Electronic speed control incorporates a braking feature, while fine speed adjustment allows precise calibration. An illuminated speed meter makes it easy to confirm the selected platter speed.

The DC brushless motor drives the platter by belt and is electronically controlled for stable rotational speed. The MT10’s substantial chassis, weighing 42 lb., is designed to provide a stable foundation for playback, while illuminated McIntosh styling integrates the turntable visually with other components in a McIntosh system.

The lightweight, rigid tonearm uses a dural-aluminum arm tube. Its vertical bearings use precision ceramic surfaces, while the horizontal bearing uses a gimballed sapphire design. Vertical tracking angle, antiskate, and azimuth are adjustable.

A low-output moving coil cartridge is supplied with the MT10. It uses an ebony body, elliptical diamond stylus, aluminum cantilever, and a recommended tracking force of 2.4 g. Its 0.5 mV output is intended for use with a compatible moving coil phonostage.

Features

• Belt-drive turntable for 33-1/3, 45, and 78 rpm records
• Low-output moving coil cartridge
• Silicon acrylic platter
• Magnetic suspended ceramic platter bearing
• DC brushless motor
• Electronic speed control with braking feature
• Dural-aluminum tonearm with sapphire and ceramic bearings
• Adjustable vertical tracking angle, antiskate, and azimuth

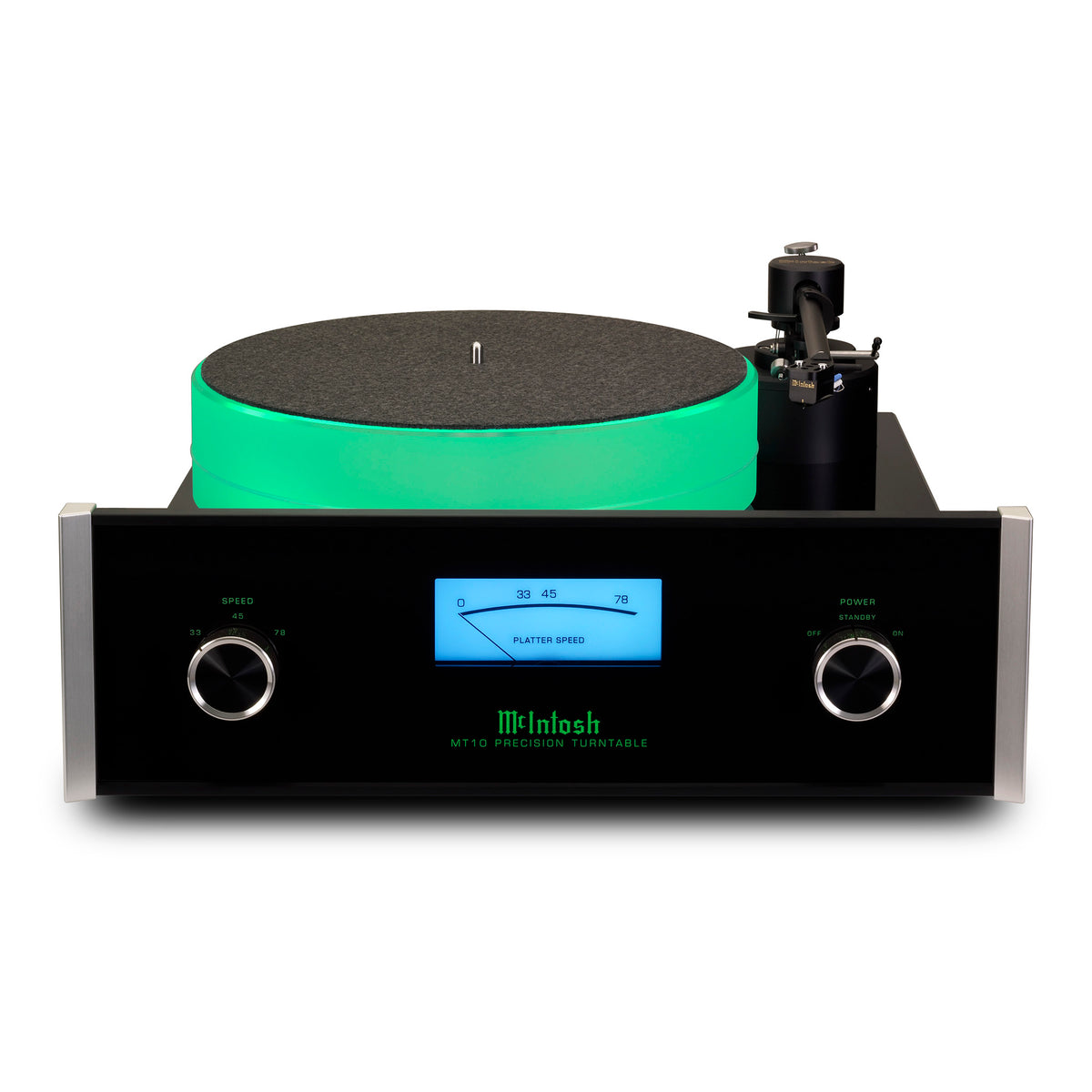

• Illuminated speed meter
• Fine speed adjustment
• Power Control input and output

What’s Included

• McIntosh MT10 Precision Turntable
• Low-output moving coil cartridge

Specifications

Cartridge Type: Moving coil, low output

Output Level: 0.5 mV at 5 cm/s

Load Impedance: 400–500 Ω recommended

Frequency Response: 20 Hz–50 kHz

Channel Separation: Greater than 30 dB at 1 kHz

Compliance: 6 × 10⁻⁶ cm/dyne

Recommended Tracking Force: 2.4 g

Channel Difference: Less than 0.3 dB at 1 kHz

Cartridge Mass: 11 g

Stylus: Elliptical diamond

Cantilever Material: Aluminum

Tonearm Bearing: Sapphire and ceramic

Arm Tube: Dural-aluminum

Counterweight: Eccentric

Tonearm Adjustments: Vertical tracking angle, antiskate, azimuth

Playback Speeds: 33-1/3, 45, and 78 rpm

Motor Type: DC brushless

Speed Control: Electronic with braking feature

Platter: Silicon acrylic

Platter Bearing: Magnetic suspended ceramic

Signal-to-Noise Ratio: 41–44 dB

Wow & Flutter: 0.10–0.15%

Unbalanced Stereo Outputs: 1

Power Control Inputs: 1

Power Control Outputs: 1

Platter Light: Yes

Speed Control Fine Adjustment: Yes

Dust Cover Included: No

Dimensions (H × W × D): 8-13/16" × 17-1/2" × 21" (223.8 × 444.5 × 533.4 mm)

Weight: 42 lb. (19 kg)
