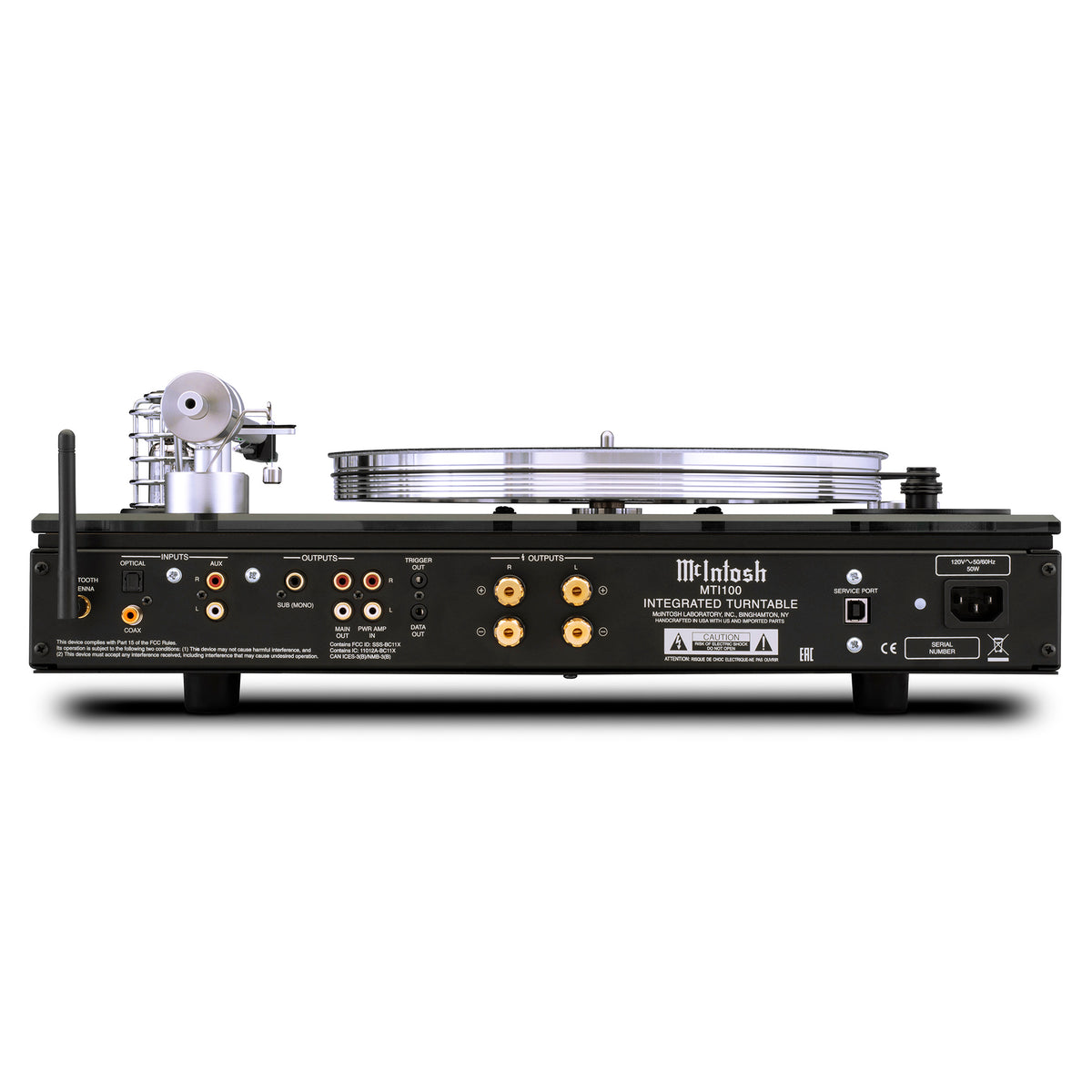

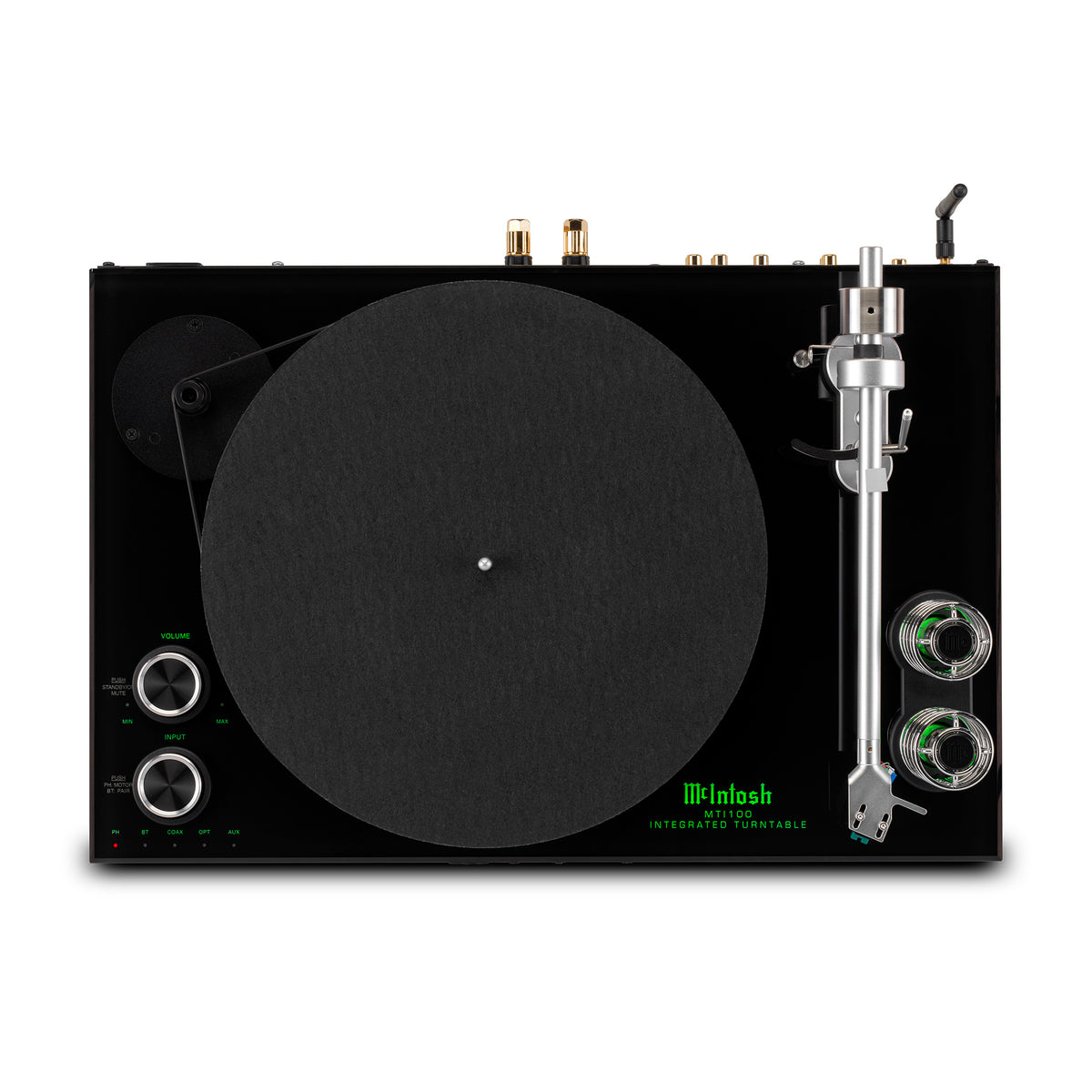

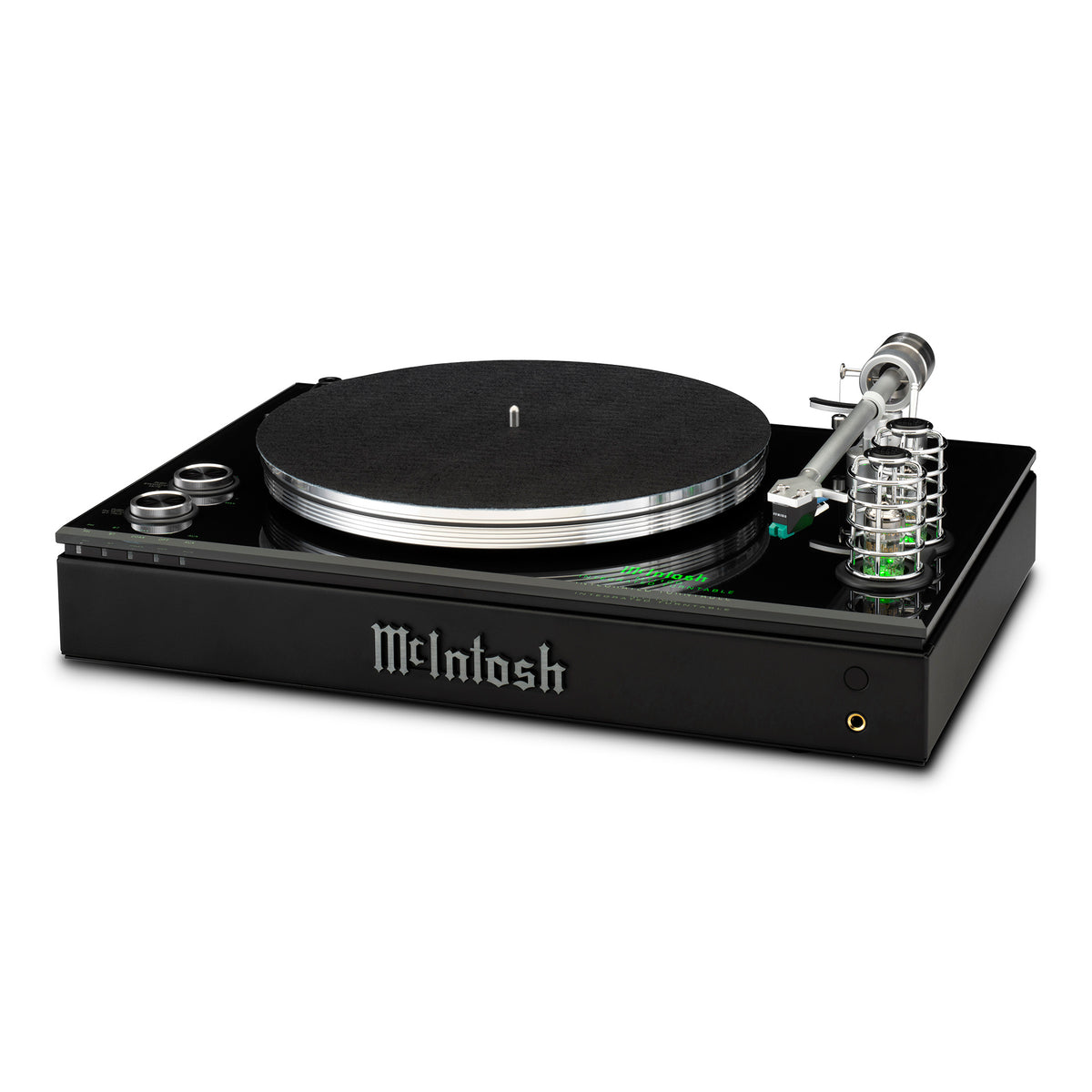

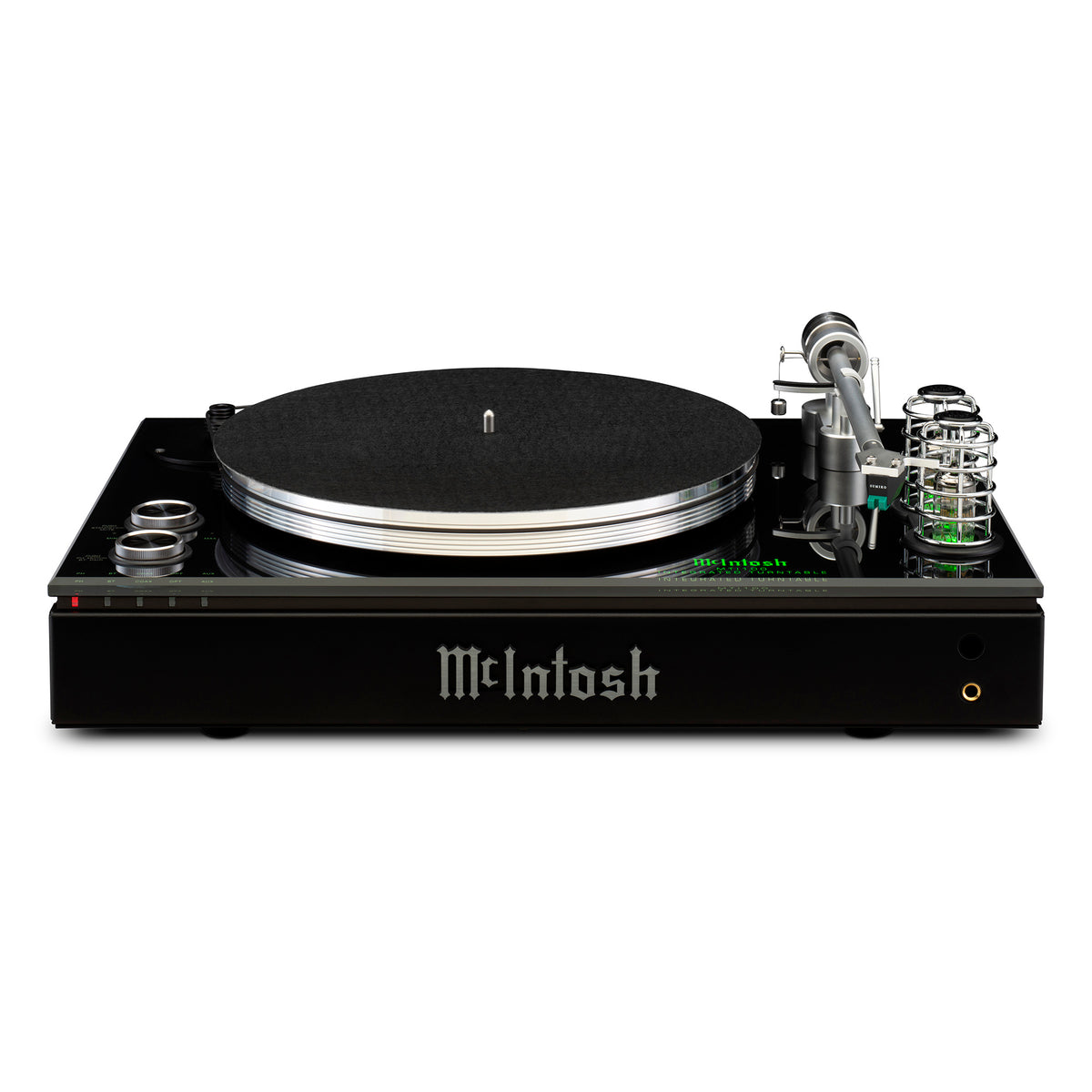

McIntosh MTI100 Integrated Turntable

Belt-drive turntable with tube preamplifier, 80 Wpc amplifier, Bluetooth, and digital inputs

The McIntosh MTI100 Integrated Turntable combines a belt-drive turntable, vacuum tube preamplifier, phonostage, power amplifier, digital and analog inputs, Bluetooth connectivity, and headphone amplifier in a single compact component. Add a pair of speakers and the MTI100 can serve as the center of a complete audio system.

The 7 lb. machined aluminum platter sits on a 3/8"-thick glass top plate above a 1/4"-thick metal plate, creating a substantial mechanical foundation designed to help resist and absorb vibration. The platter is driven by an industrial-grade permanent magnet AC synchronous motor with a two-speed pulley for 33-1/3 and 45 rpm playback. A Sumiko Olympia moving magnet cartridge is factory installed.

The machined aluminum tonearm uses a Cardan bearing arrangement, with ball bearings for lateral movement and sapphire/tungsten vertical bearings. Antiskate is incorporated into the tonearm design, while the inverted platter bearing uses a hardened steel shaft, axial ball arrangement, and bronze bushing.

A pair of 12AX7 vacuum tubes powers the main preamplifier section, while the dedicated phonostage is housed in a shielded enclosure to help prevent interference from reaching the low-level phono signal. The built-in class D power amplifier delivers 50 Wpc into 8 ohms or 80 Wpc into 4 ohms.

Additional sources can be connected through an unbalanced analog input, coaxial and optical digital inputs, or High Definition Bluetooth 4.2. The MTI100 also provides a subwoofer output, speaker outputs, a front-panel headphone jack powered by McIntosh’s High Drive headphone amplifier, and a preamplifier output bridged internally to the amplifier input.

Features

• Belt-drive turntable for 33-1/3 and 45 rpm records
• Sumiko Olympia moving magnet cartridge
• 7 lb. machined aluminum platter
• Permanent magnet AC synchronous motor
• Machined aluminum tonearm with antiskate
• Two 12AX7 vacuum tubes in the preamplifier section
• Shielded moving magnet phonostage
• Class D power amplifier rated at 50 Wpc into 8 ohms and 80 Wpc into 4 ohms
• High Definition Bluetooth 4.2
• Analog, coaxial, and optical digital inputs
• Subwoofer output
• High Drive headphone amplifier
• Remote control

What’s Included

• McIntosh MTI100 Integrated Turntable
• Sumiko Olympia moving magnet cartridge
• Remote control
• External Bluetooth antenna

Specifications

Cartridge Type: Moving magnet

Output Level: 4 mV at 1 kHz

Load Impedance: 47 kΩ

Frequency Response: 12 Hz–30 kHz

Channel Separation: 30 dB at 1 kHz

Compliance: 12 × 10⁻⁶ cm/dyne

Recommended Tracking Force: 2 g

Channel Difference: Less than 1 dB at 1 kHz

Cartridge Mass: 6.5 g

Stylus: Elliptical

Cantilever Material: Aluminum

Tonearm Bearing: Cardan arrangement with ball bearings for lateral movement and sapphire/tungsten vertical bearing

Arm Tube: Machined aluminum

Counterweight: Concentric

Tonearm Adjustments: None

Playback Speeds: 33-1/3 and 45 rpm

Motor Type: Permanent magnet AC synchronous

Speed Control: Manual speed change via two-speed pulley

Platter: Aluminum

Platter Bearing: Inverted hardened steel shaft and axial ball arrangement with bronze bushing

Signal-to-Noise Ratio: 35–40 dB

Wow & Flutter: 0.1%

Power Output: 50 Wpc into 8 ohms; 80 Wpc into 4 ohms

Number of Channels: 2

Speaker Impedance: 4 or 8 ohms

Rated Power Band: 20 Hz–20 kHz

Total Harmonic Distortion: Amplifier: 0.2% maximum from 250 mW to one-half rated power, 20 Hz–20 kHz; 0.5% maximum from one-half to full rated power, 20 Hz–20 kHz; preamplifier: 0.2%, 20 Hz–20 kHz

Dynamic Headroom: 1 dB into 8 ohms; 1.3 dB into 4 ohms

Frequency Response (+0, −0.7 dB): 20 Hz–20 kHz

Signal-to-Noise Ratio: Moving magnet: 75 dB; high level: 90 dB

Damping Factor: Greater than 200 into 8 ohms; greater than 100 into 4 ohms

Maximum Output: 9 V unbalanced

Analog Connections: 1 unbalanced input, 1 unbalanced output, 1 subwoofer output

Digital Inputs: 1 coaxial, 1 optical

Wireless Input: High Definition Bluetooth 4.2

Power Control: 1 output

Dust Cover Included: No

Dimensions (H × W × D): 6-3/4" × 19-1/4" × 14" (171.5 × 489 × 356 mm)

Weight: 33.5 lb. (15.2 kg)
