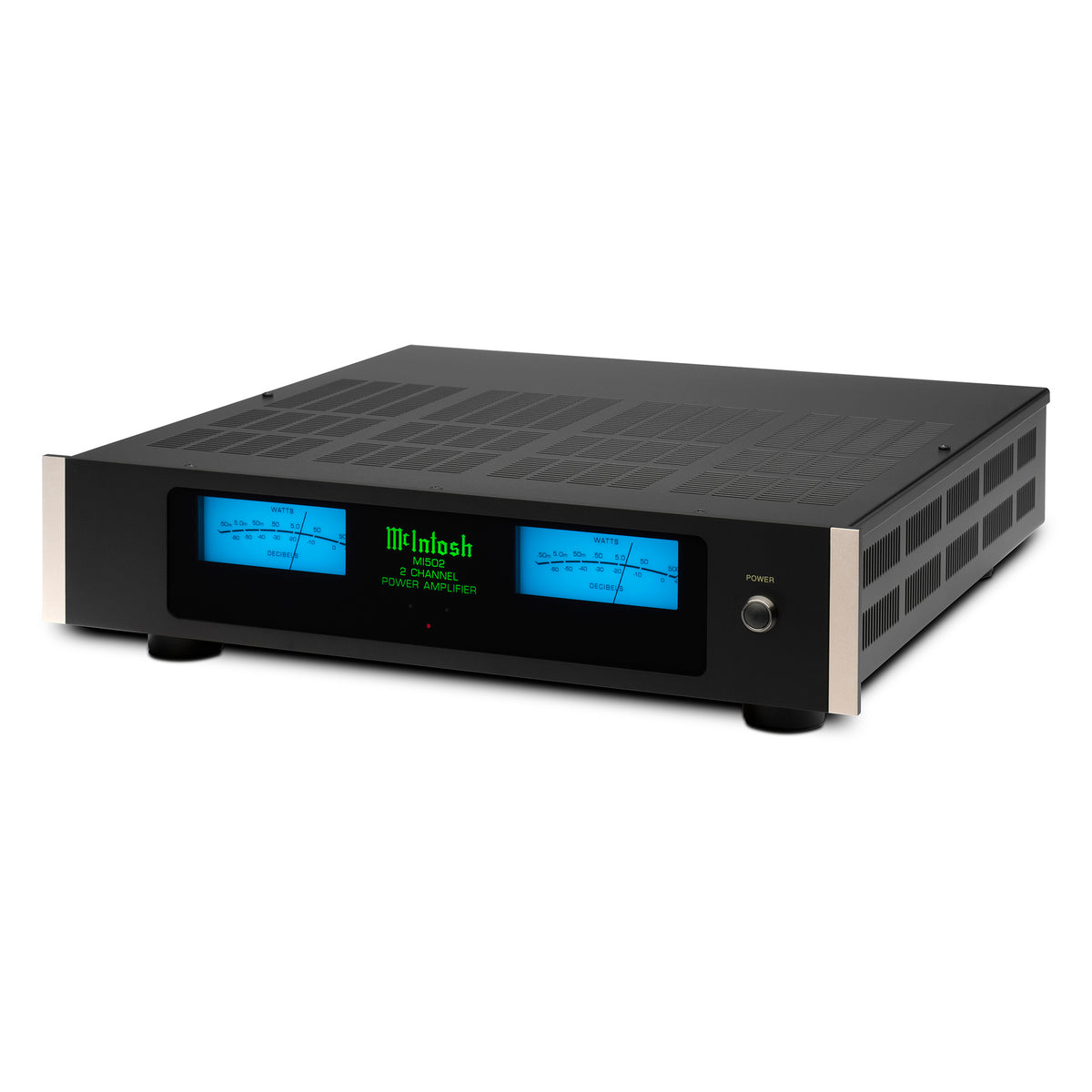

McIntosh MI502 2-Channel Power Amplifier
500 Wpc into 8 ohms, 800 Wpc into 4 ohms, with balanced inputs, dual Watt Meters, and 2U rack mounting
The McIntosh MI502 is a flexible 2-channel amplifier for stereo systems, home theaters, and custom-installed distributed audio. It delivers 500 W per channel into 8 ohms or 800 W per channel into 4 ohms using closed-loop digital switching amplifiers and robust power supplies.
Its compact 2U chassis can be rack mounted using the included removable mounting brackets or used as a conventional standalone component. The highly efficient class D design requires no cooling fans during normal operation, making it well suited to equipment racks and dedicated installation spaces.

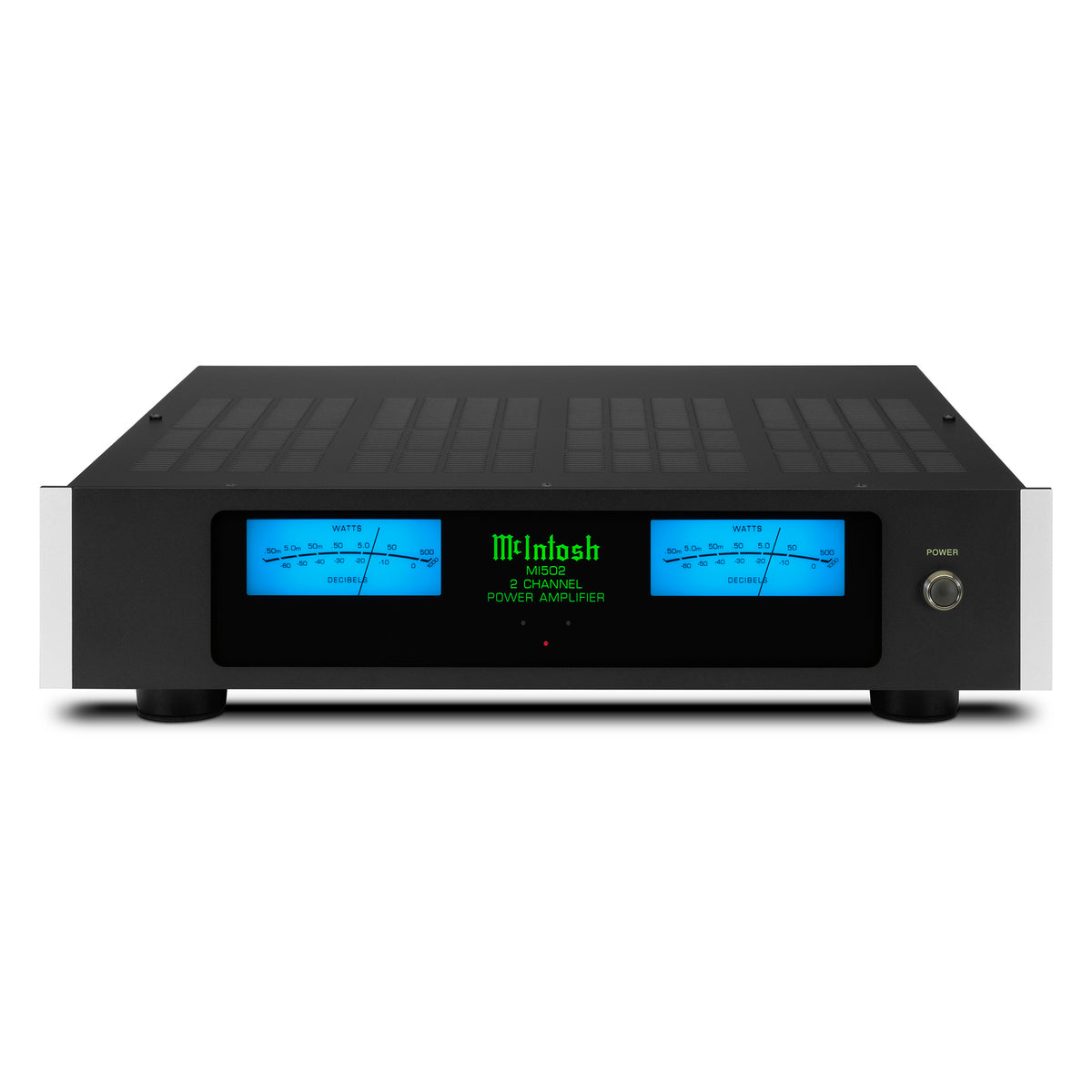

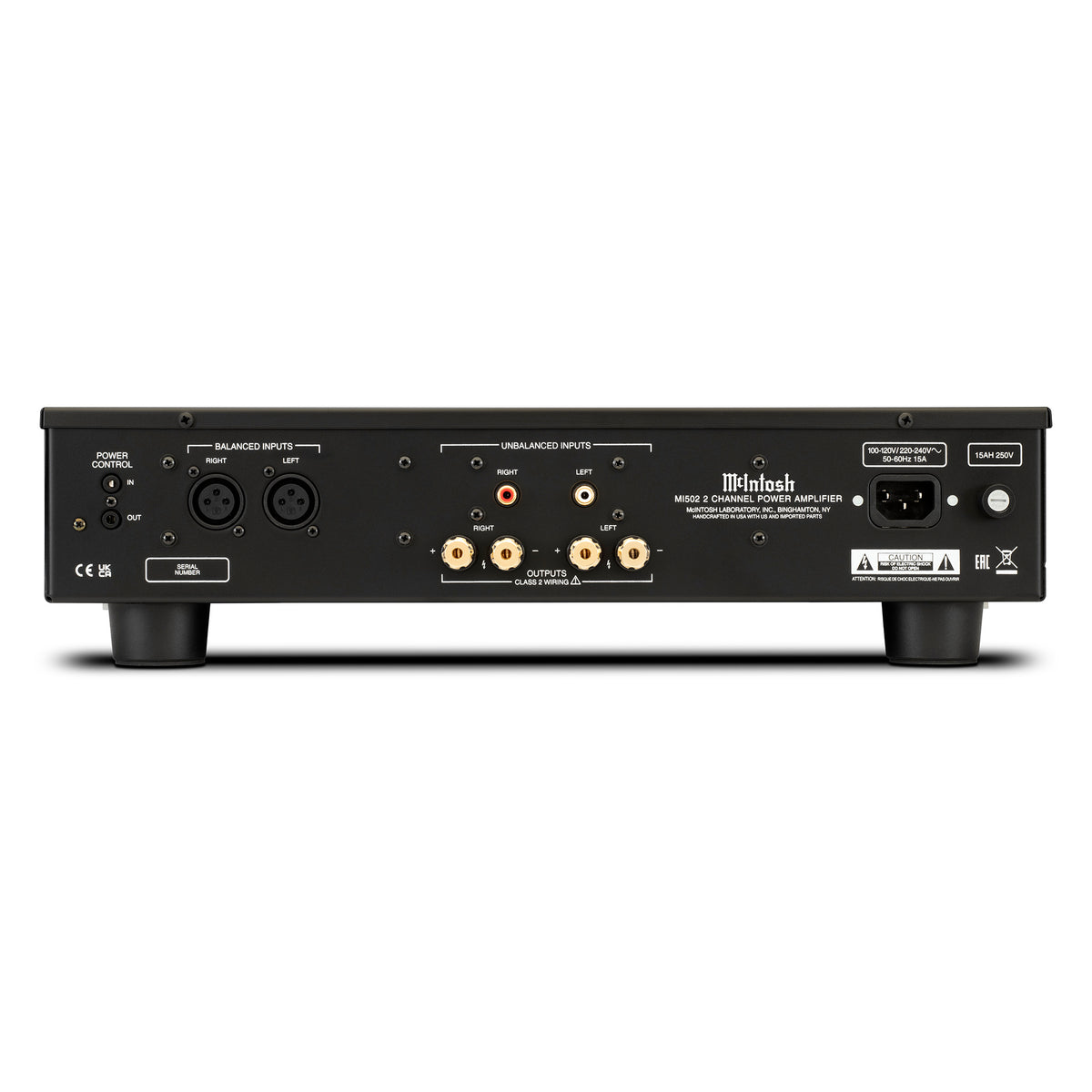

Two blue McIntosh Watt Meters display the power output of the individual channels, while multicolor LED indicators show channel status. The rear panel provides balanced and unbalanced inputs, standard 5-way speaker binding posts, Power Control triggering, and automatic signal-sensing power management.
Features
- 500 W per channel into 8 ohms
- 800 W per channel into 4 ohms
- Closed-loop digital switching amplifier design
- Balanced and unbalanced analog inputs
- Dual blue McIntosh Watt Meters
- Power Guard® signal overload protection
- Sentry Monitorâ„¢ short-circuit protection
- Power Control 12 V triggering
- Automatic on/off signal sensing
- Fanless operation
- 2U rack mounting with removable brackets
Specifications
Power Output: 500 W per channel into 8 ohms; 800 W per channel into 4 ohms
Number of Channels: 2
Total Harmonic Distortion: 0.05%
Signal-to-Noise Ratio: 98 dB below rated output
Dynamic Headroom: 2.7 dB into 8 ohms; 3.7 dB into 4 ohms
Damping Factor: >85 into 8 ohms; >45 into 4 ohms
Rated Power Band: 20 Hz–20 kHz
Frequency Response: +0, -0.9 dB from 20 Hz–20 kHz
Circuit Configuration: Closed-loop digital switching
Output Type: Direct coupled
Balanced Inputs: 1
Speaker Connections: 5-way binding posts
Dimensions (H × W × D): 4-5/16" × 17-1/2" × 21" (110 × 445 × 533 mm)
Weight: 21.5 lb. (9.8 kg)
