McIntosh MI347 7-Channel Power Amplifier

250 W for each front channel and 125 W for each surround channel into 8 ohms, with balanced inputs and 3U rack mounting

The McIntosh MI347 is a dedicated 7-channel home theater amplifier using closed-loop digital switching amplifiers. Its three front channels deliver 250 W each into 8 ohms or 300 W into 4 ohms, while the four surround channels provide 125 W each into 8 ohms or 200 W into 4 ohms.

This power distribution gives the front left, center, and right speakers additional output for dialogue, music, and demanding effects while providing ample power for surround and ceiling speakers. The efficient class D design operates without cooling fans and fits into a rack-friendly 3U chassis with removable mounting brackets.

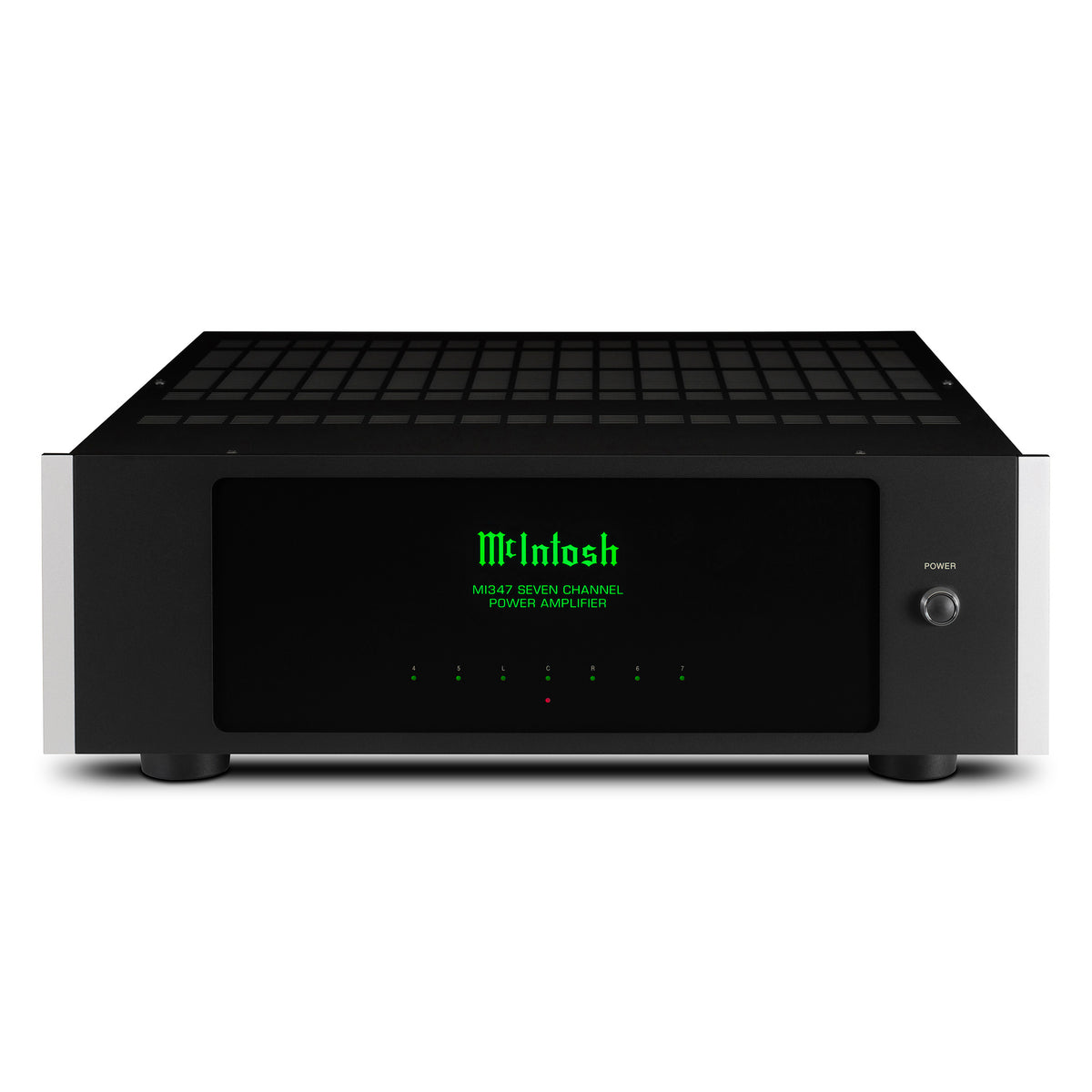

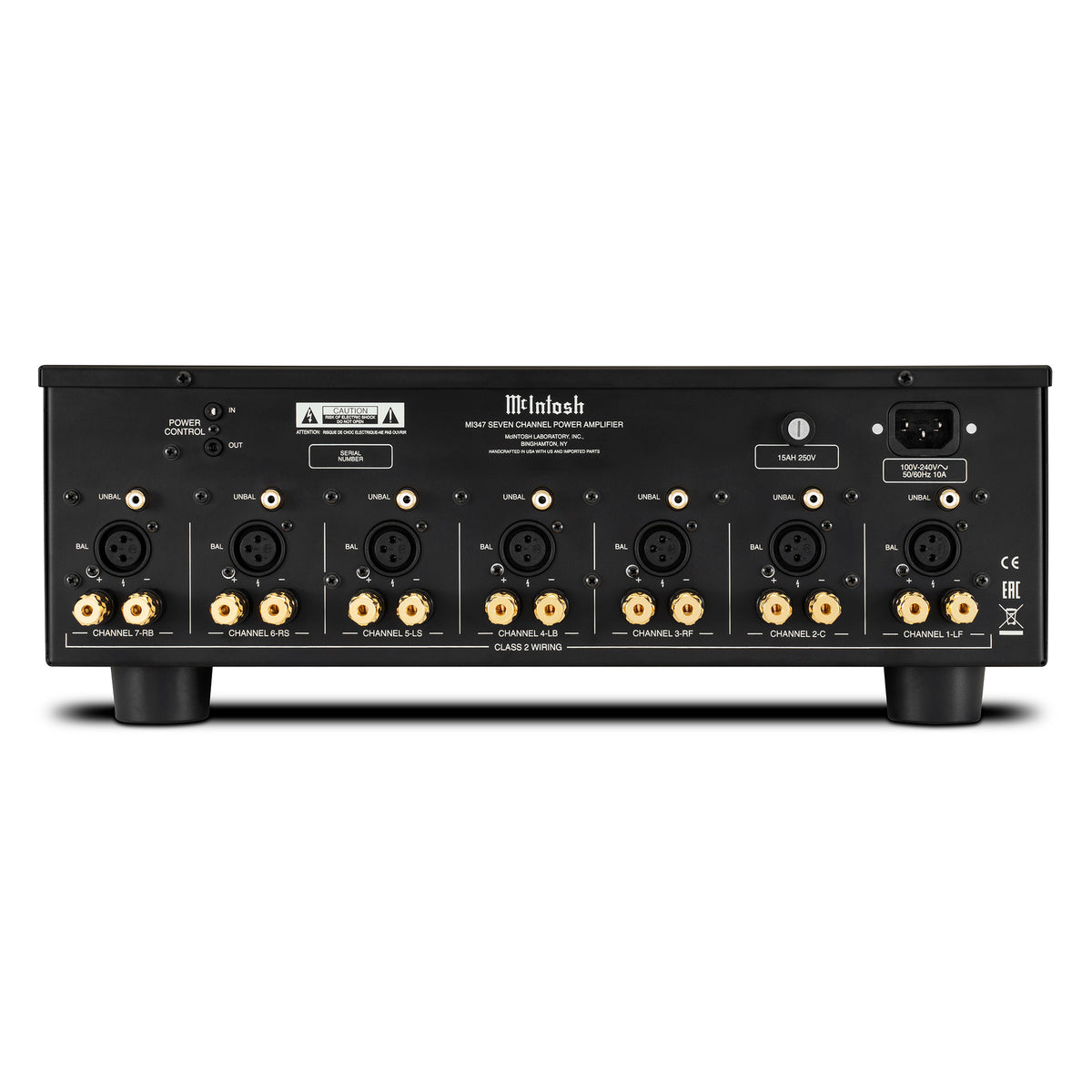

Multicolor LED indicators on the front panel display the status of each channel. Each of the seven channels has both balanced and unbalanced analog inputs, along with standard McIntosh 5-way speaker binding posts.

Features

• 250 W into 8 ohms or 300 W into 4 ohms for each of the three front channels
• 125 W into 8 ohms or 200 W into 4 ohms for each of the four surround channels
• Closed-loop digital switching amplifier design
• Balanced and unbalanced inputs for each channel
• Power Guard® signal overload protection
• Sentry Monitor™ short-circuit protection
• Power Control
• Automatic on/off signal sensing
• Fanless operation
• 3U rack mounting with removable brackets

Specifications

Power Output: Front channels: 250 W per channel into 8 ohms or 300 W per channel into 4 ohms; surround channels: 125 W per channel into 8 ohms or 200 W per channel into 4 ohms

Number of Channels: 7

Total Harmonic Distortion: 0.025%

Signal-to-Noise Ratio: 100 dB below rated output

Dynamic Headroom: 2.5 dB into 8 ohms; 3.5 dB into 4 ohms

Damping Factor: >85 into 8 ohms; >45 into 4 ohms

Rated Power Band: 20 Hz–20 kHz

Frequency Response: +0, -0.9 dB from 20 Hz–20 kHz

Circuit Configuration: Closed-loop digital switching

Output Type: Direct coupled

Balanced Inputs: 7

Speaker Connections: 5-way binding posts

Dimensions (H × W × D): 6-1/16" × 17-1/2" × 21" (154 × 445 × 533 mm)

Weight: 32.5 lb. (14.8 kg)
