McIntosh MI254 4-Channel Power Amplifier

250 Wpc into 8 ohms, 300 Wpc into 4 ohms, with balanced inputs, dual Watt Meters, and bussable inputs

The McIntosh MI254 is a flexible 4-channel amplifier for distributed audio, home theater, and stereo systems. It delivers 250 W per channel into 8 ohms or 300 W per channel into 4 ohms using closed-loop digital switching amplifiers and robust power supplies.

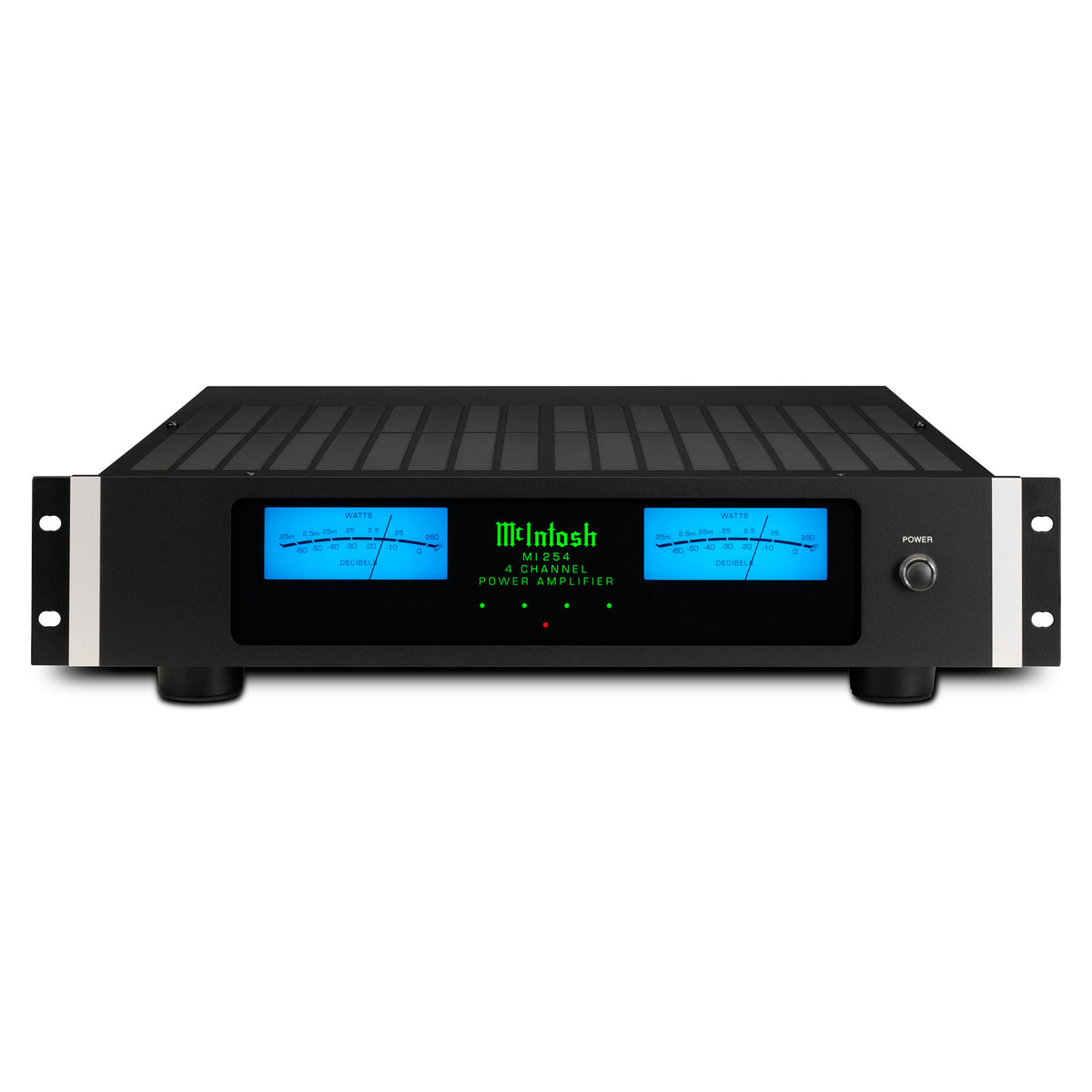

Its compact 2U chassis can be rack mounted using the included removable mounting ears or used as a conventional standalone component. The highly efficient class D design requires no cooling fans during normal operation, making it well suited to equipment racks and dedicated installation spaces.

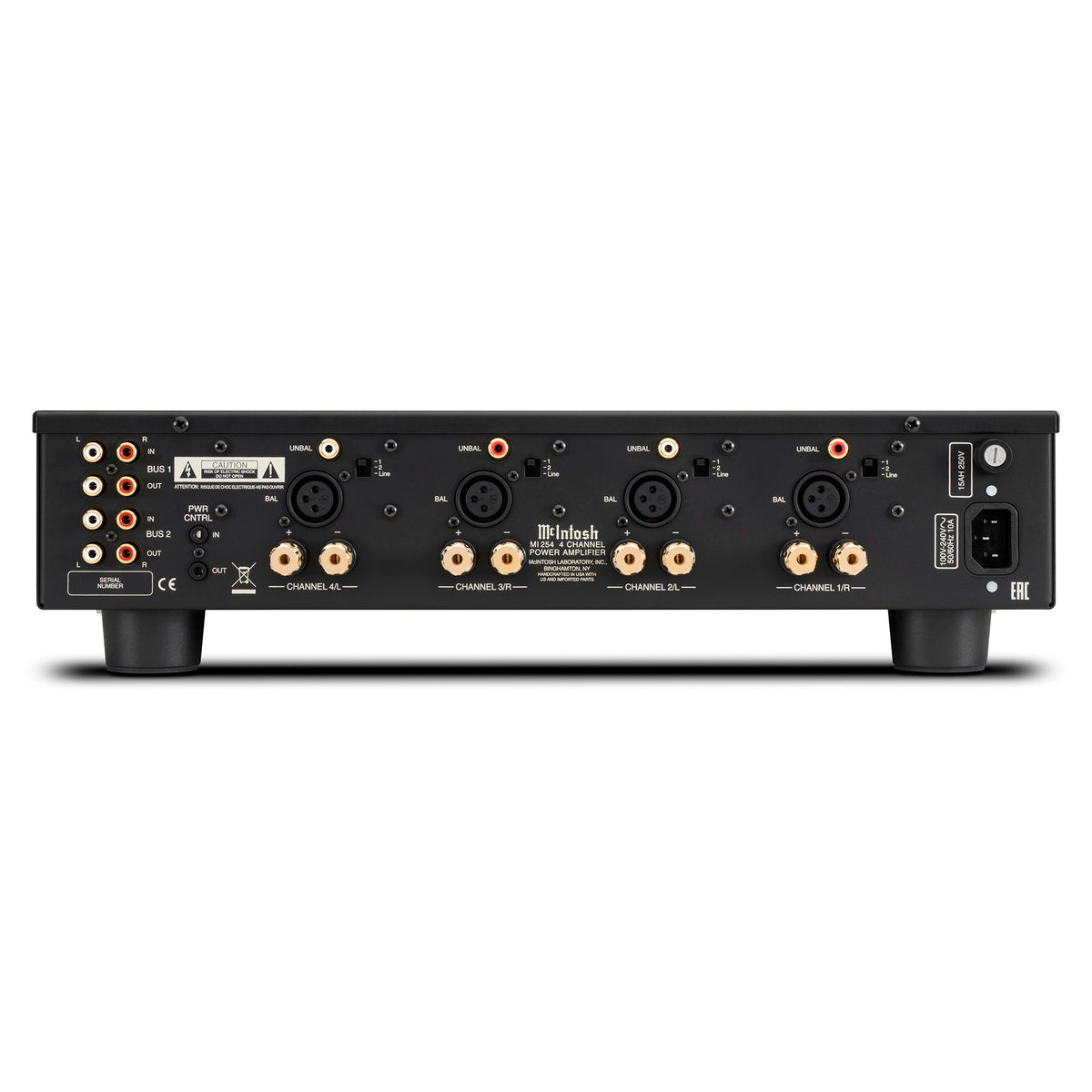

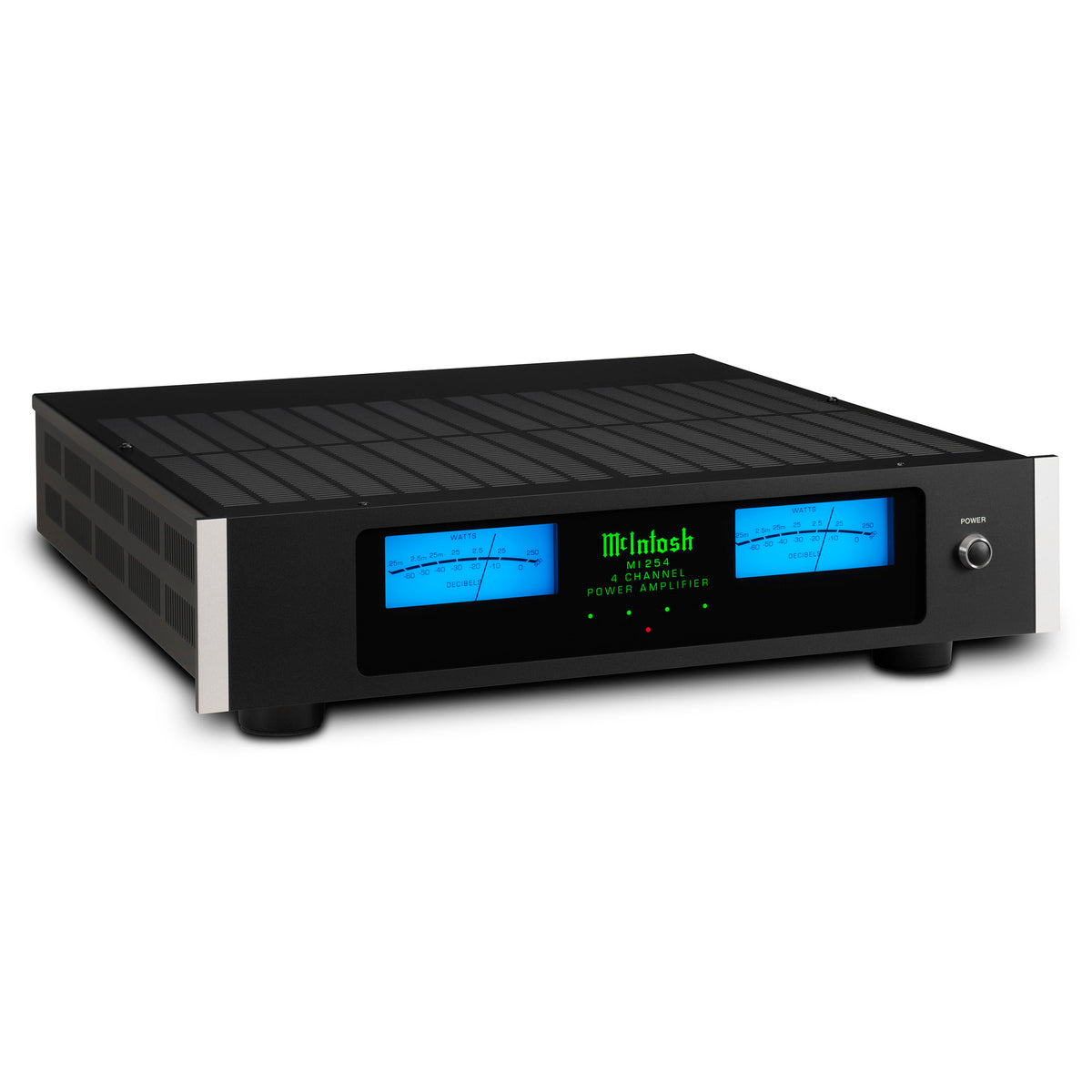

Two blue McIntosh Watt Meters display the summed output of channels 1 + 2 and channels 3 + 4, while multicolor LED indicators show individual channel status. Each channel has balanced and unbalanced inputs and a 5-way speaker binding post, while BUS inputs and outputs simplify distributing a stereo signal across multiple channels or amplifiers.

Features

• 250 W per channel into 8 ohms
• 300 W per channel into 4 ohms
• Closed-loop digital switching amplifier design
• Balanced and unbalanced inputs for each channel
• Dual blue McIntosh Watt Meters
• BUS inputs and outputs
• Power Guard® signal overload protection
• Sentry Monitor™ short-circuit protection
• Power Control 12 V triggering
• Automatic on/off signal sensing
• Fanless operation
• 2U rack mounting with removable ears

Specifications

Power Output: 250 W per channel into 8 ohms; 300 W per channel into 4 ohms

Number of Channels: 4

Total Harmonic Distortion: 0.025%

Signal-to-Noise Ratio: 100 dB below rated output

Dynamic Headroom: 2.5 dB into 8 ohms; 3.5 dB into 4 ohms

Damping Factor: >85 into 8 ohms; >45 into 4 ohms

Rated Power Band: 20 Hz–20 kHz

Frequency Response: +0, -0.9 dB from 20 Hz–20 kHz

Circuit Configuration: Closed-loop digital switching

Output Type: Direct coupled

Balanced Inputs: 4

Speaker Connections: 5-way binding posts

Dimensions (H × W × D): 4-5/16" × 17-1/2" × 21" (110 × 445 × 533 mm)

Weight: 23.5 lb. (10.7 kg)
