McIntosh MCD350 2-Channel SACD/CD Player

32-bit/192 kHz DAC with balanced fixed analog outputs

The McIntosh MCD350 is a high-performance SACD/CD player designed for straightforward playback of SACDs and CDs, with both analog and digital outputs for integration into a wide range of audio systems.

At its core is a balanced 2-channel, 32-bit/192 kHz PCM/DSD digital-to-analog converter. Fixed analog stereo outputs are provided in both balanced and unbalanced configurations.

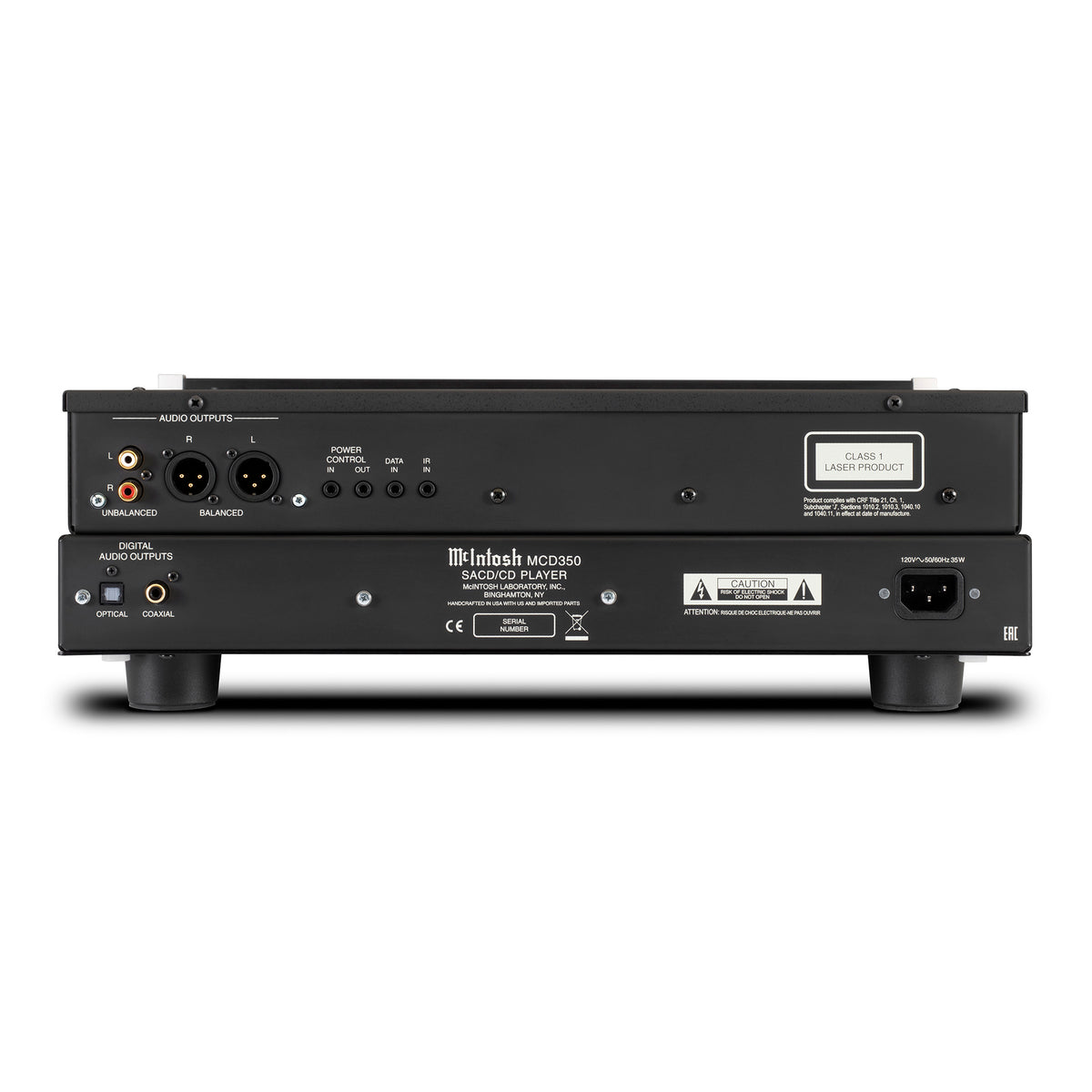

Balanced Analog Outputs

The MCD350 provides both balanced and unbalanced fixed analog outputs for connection to a preamplifier, integrated amplifier, or receiver.

The analog outputs use gold-plated connectors for corrosion resistance and reliable signal transfer.

Digital Outputs

Coaxial and optical digital outputs allow the MCD350 to send its digital audio signal to an external DAC, preamplifier, or home theater processor.

The digital outputs support sample rates up to 24-bit/192 kHz, while the coaxial output also uses a gold-plated connector for corrosion resistance.

SACD and CD Playback

In addition to SACDs and CDs, the MCD350 supports MP3 and WMA playback.

A twin-laser optical pickup uses a single objective lens with separate laser units operating at wavelengths optimized for SACD and CD playback. Discs are read at twice normal speed, allowing data to be stored in buffer memory for improved error correction and tracking.

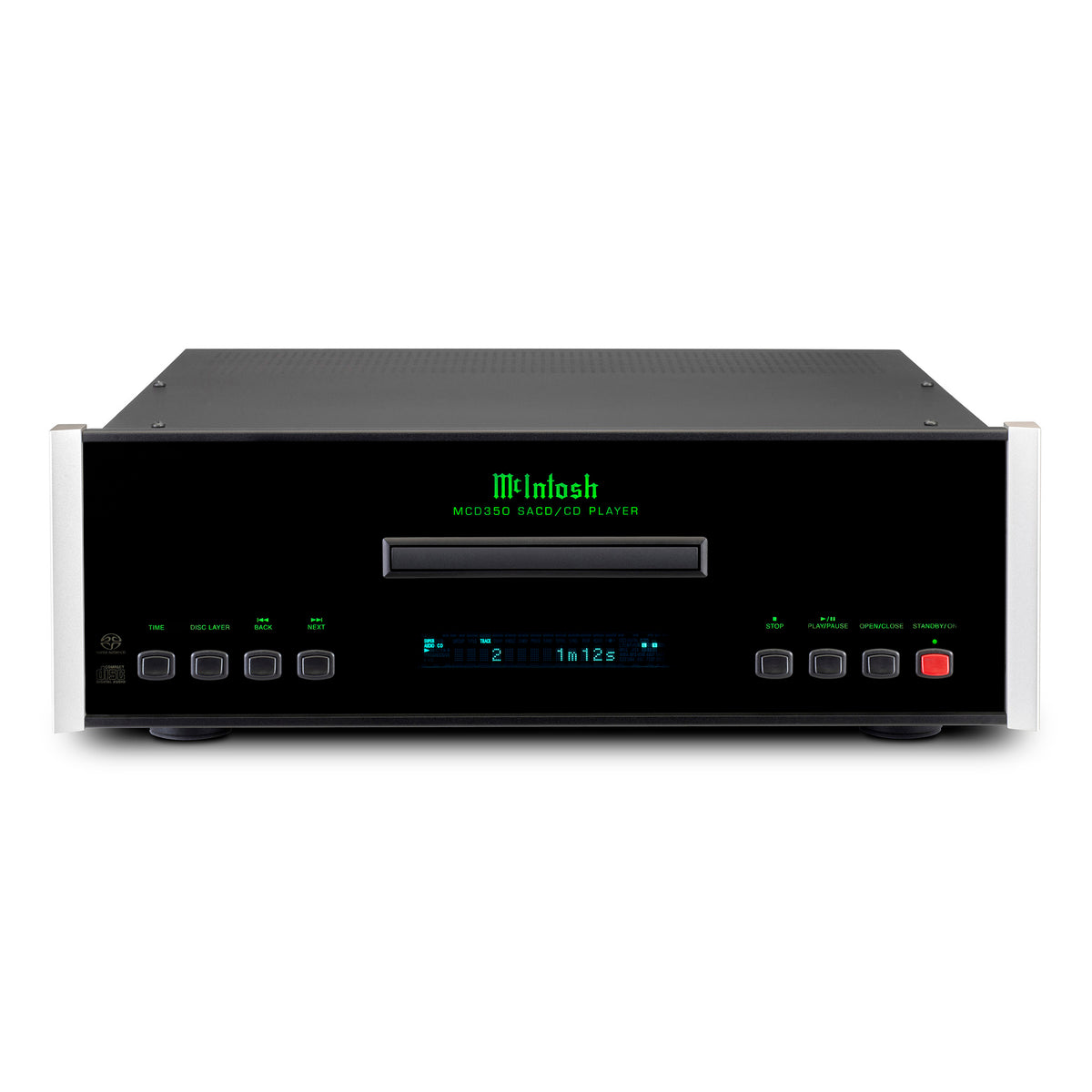

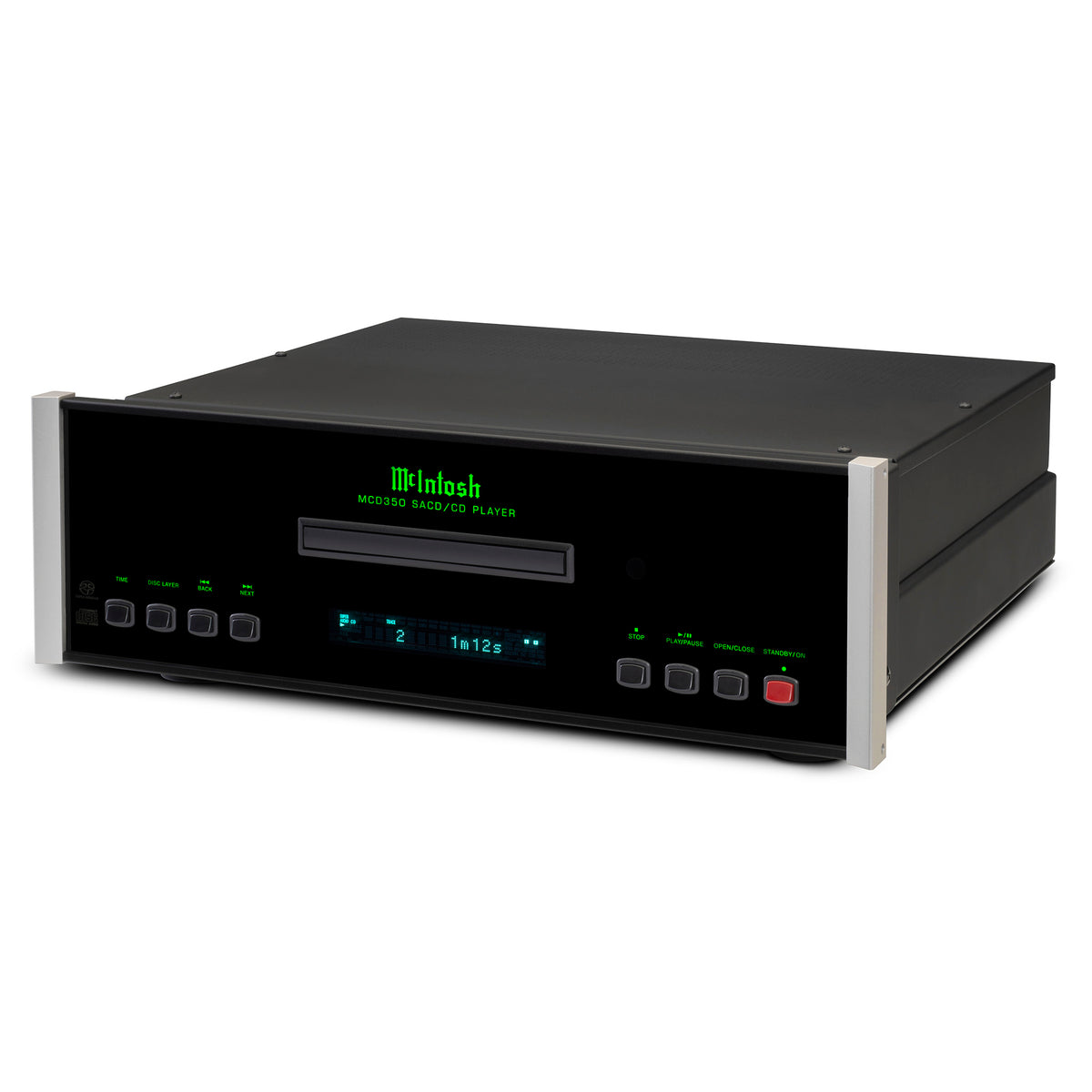

Classic McIntosh Design

The MCD350 features a rigid aluminum die-cast disc tray, classic McIntosh black glass front panel, illuminated logo, and aluminum end caps.

Its familiar McIntosh styling allows it to integrate visually with the company's amplifiers, preamplifiers, and other components.

What's Included

• McIntosh MCD350 2-Channel SACD/CD Player
• Remote control

Specifications

Channels: 2

Fixed Output Level: 2.0 Vrms unbalanced; 4.0 Vrms balanced

Output Impedance: 600 ohms balanced and unbalanced

Frequency Response: 4 Hz–40 kHz, +0.5/-2 dB (SACD); 4 Hz–20 kHz (±0.5 dB) (CD)

Signal-to-Noise Ratio: Better than 108 dB (A-weighted)

Dynamic Range: Better than 100 dB

Total Harmonic Distortion: 0.003% at 1 kHz (SACD); 0.002% at 1 kHz (CD)

Channel Separation: Better than 98 dB at 1 kHz

DAC: 2-channel, 32-bit/192 kHz PCM/DSD

Digital Output Sample Rate: Up to 24-bit/192 kHz

Balanced Fixed Outputs: 1 pair

Unbalanced Fixed Outputs: 1 pair

Digital Outputs: 1 coaxial, 1 optical

Disc Formats: CD, SACD, MP3, WMA

Disc Capacity: 1

Laser Type: Twin beam

Laser Wavelength: 650 nm (SACD); 790 nm (CD)

Standby Power: Less than 0.5 W

Dimensions (H × W × D): 6" × 17.5" × 19" (152.4 × 444.5 × 483 mm)

Weight: 28 lb.
