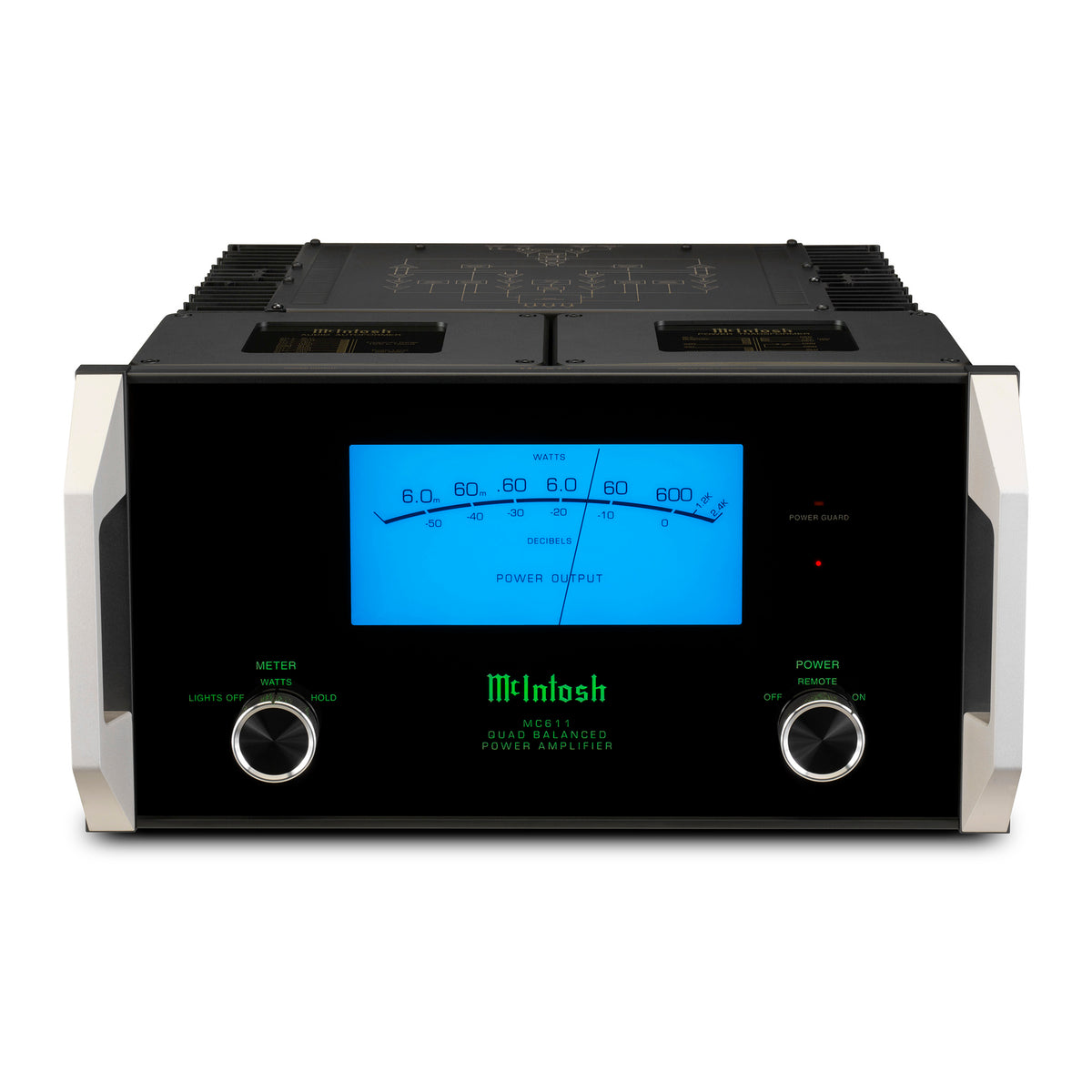

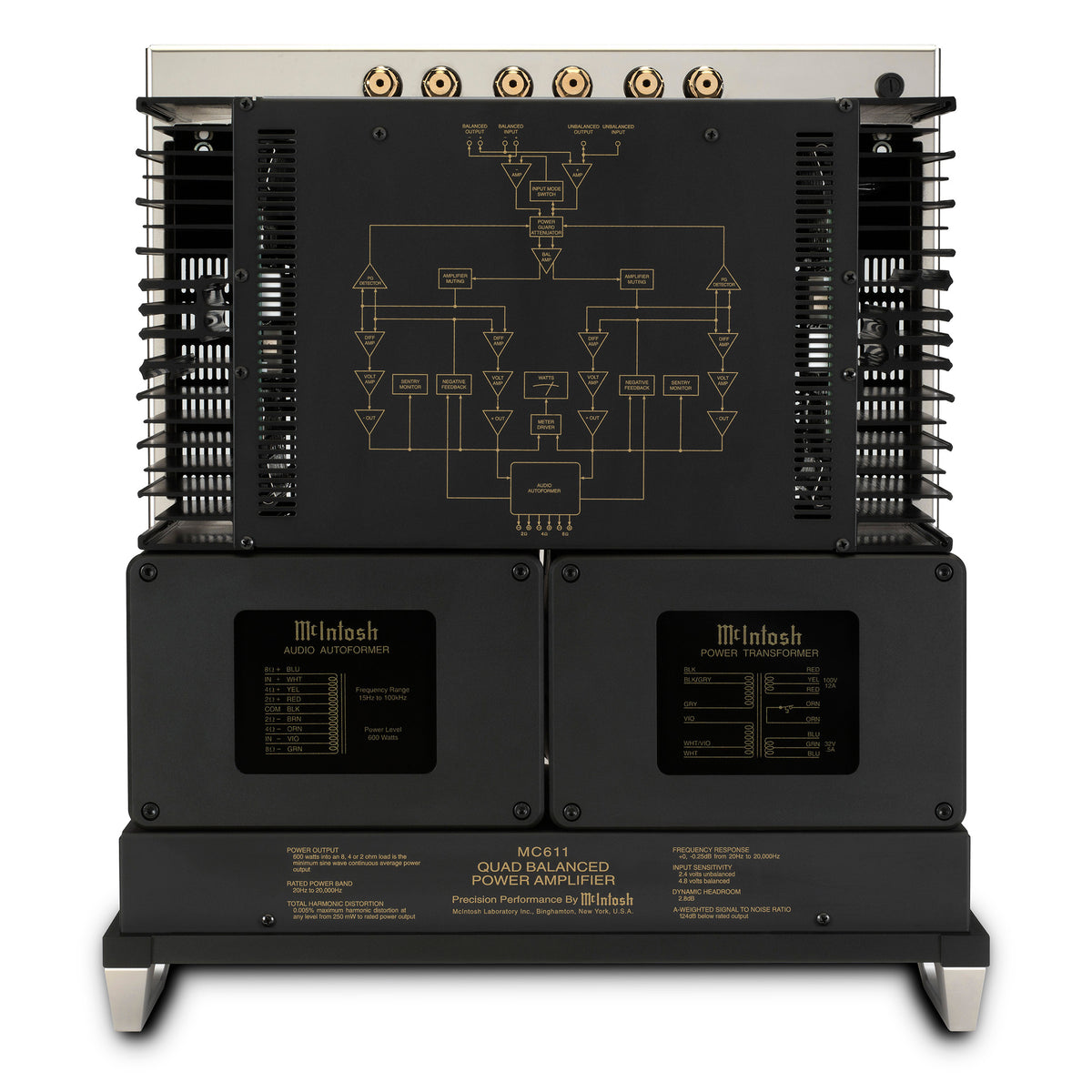

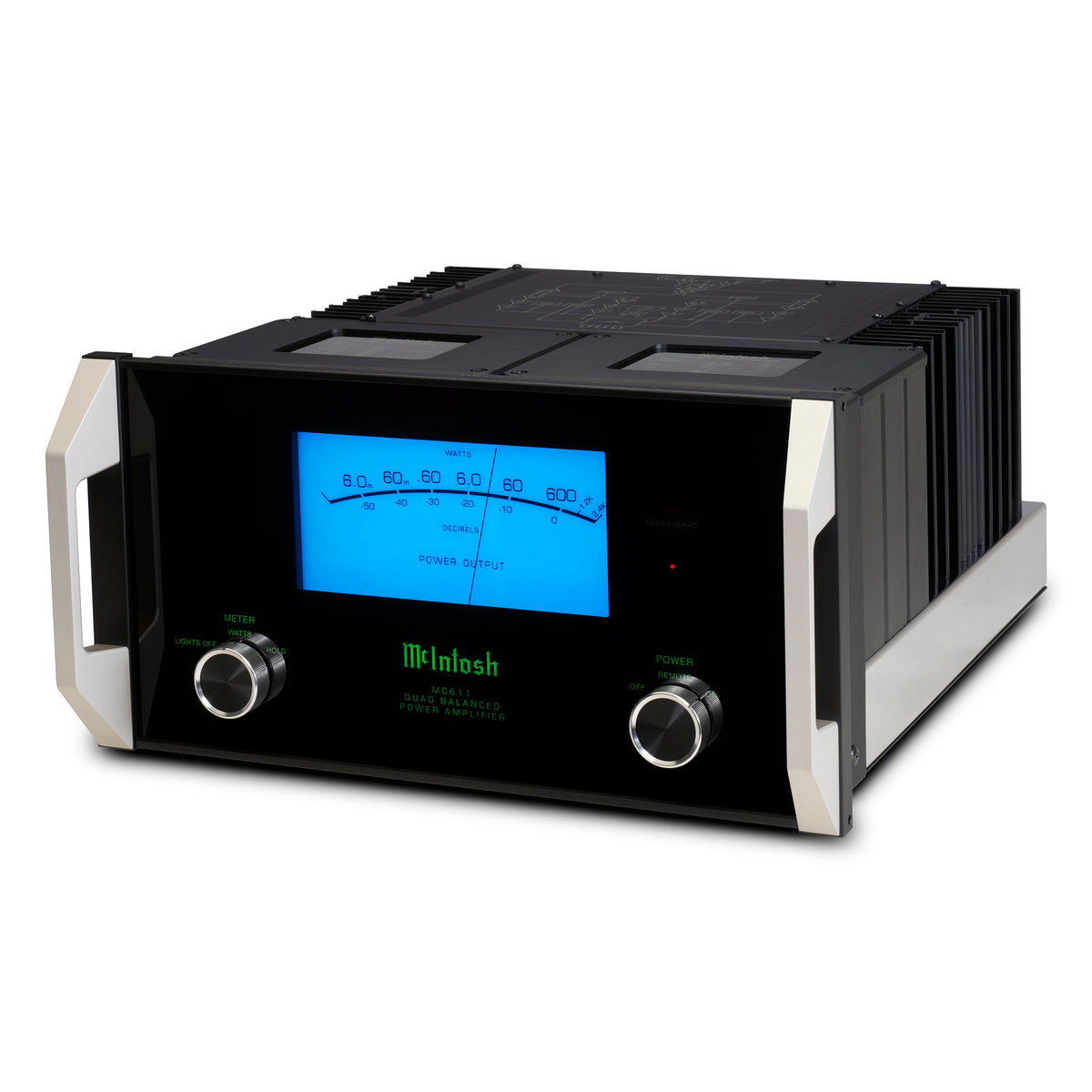

McIntosh MC611 1-Channel Power Amplifier

600 W monoblock power amplifier with Quad Balanced circuitry, Autoformer output, and 2.8 dB of dynamic headroom

The McIntosh MC611 is a monoblock power amplifier delivering 600 W into 2-, 4-, or 8-ohm loudspeaker loads. McIntosh Autoformer technology makes the amplifier’s full rated output available at each of those impedances, allowing the MC611 to provide consistent power delivery across a wide range of loudspeaker designs.

The MC611 uses McIntosh’s Quad Balanced circuit architecture, with two matched amplifier sections operating in push-pull to reduce noise and distortion. Compared with its 600 W predecessor, filter capacity was doubled, increasing dynamic headroom from 1.8 dB to 2.8 dB while providing additional energy storage for demanding musical peaks and low-frequency transients.

Two McIntosh Monogrammed Heatsinks are coupled to high-current output transistors for efficient thermal management. Power Guard continuously monitors the signal and helps prevent clipping, while Sentry Monitor provides fuse-less short-circuit protection for the output stage.

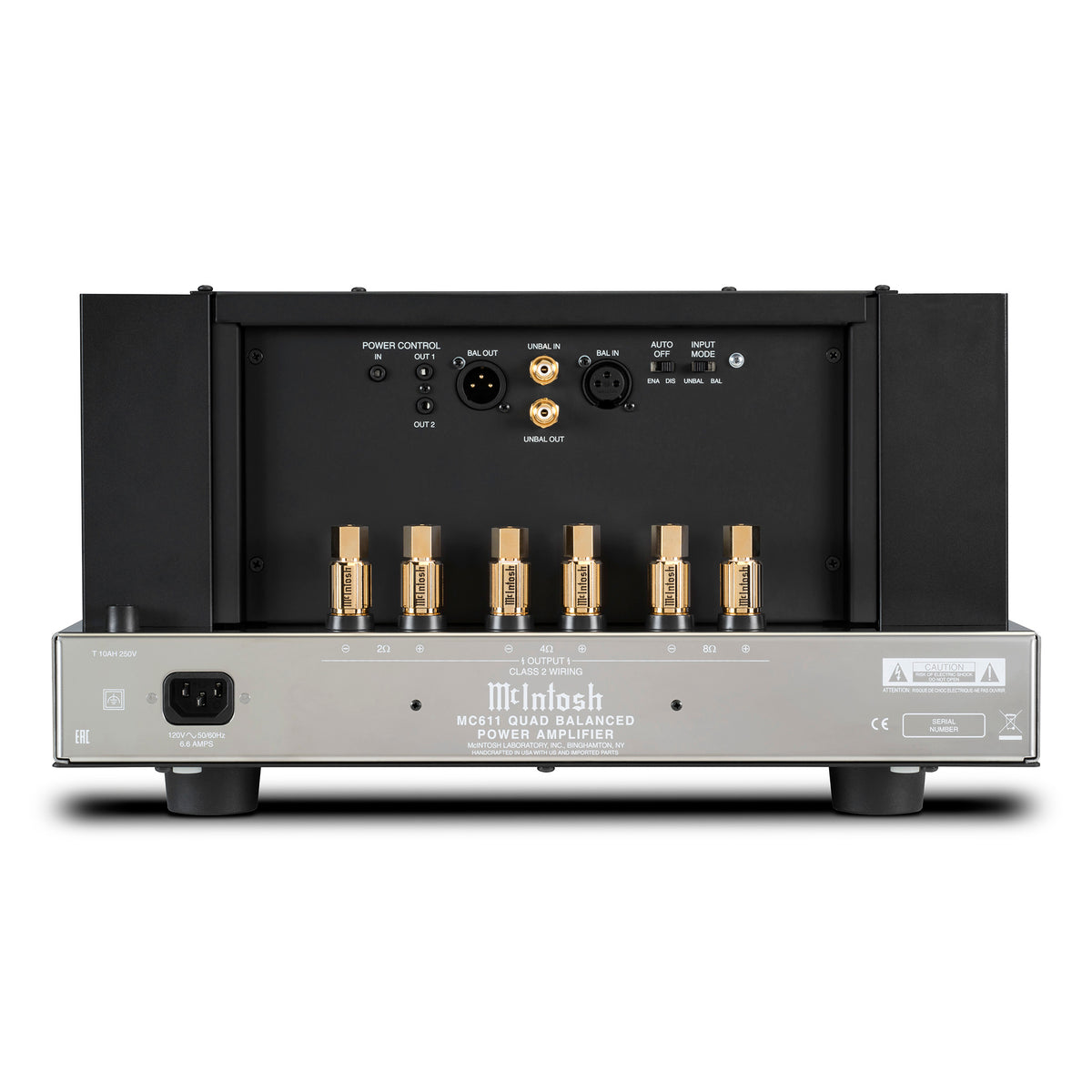

Balanced and unbalanced inputs are accompanied by corresponding pass-through outputs, making it easier to feed another amplifier for bi-amping or tri-amping, connect a powered subwoofer, or route the same signal to another system. Three sets of Solid Cinch speaker binding posts provide dedicated connections for 2-, 4-, and 8-ohm loads, while an 8" blue watt meter provides a prominent indication of amplifier output.

Features

600 W Into 2, 4, or 8 Ohms

McIntosh Autoformer output technology allows the MC611 to deliver its full rated 600 W into 2-, 4-, or 8-ohm loudspeakers rather than reserving maximum output for a single nominal impedance.

Quad Balanced Circuitry

McIntosh’s Quad Balanced topology uses matched amplifier sections operating in push-pull to cancel noise and distortion components while providing the current capability required for high-power operation.

2.8 dB Dynamic Headroom

Double the filter capacity of its predecessor provides greater energy storage and increases dynamic headroom to 2.8 dB, giving the amplifier additional short-term output capability for musical peaks.

Power Guard

Power Guard continuously compares the amplifier’s input and output signals and adjusts the input when necessary to prevent clipping that could otherwise produce harsh distortion or damage loudspeakers.

Sentry Monitor

Sentry Monitor provides fuse-less short-circuit protection for the output stage, disengaging it before current exceeds safe operating limits and automatically restoring operation when conditions return to normal.

Monogrammed Heatsinks

Two McIntosh Monogrammed Heatsinks are connected to the high-current output transistors to provide efficient thermal management and help minimize thermal equilibrium lag.

Flexible System Connections

Balanced and unbalanced pass-through outputs can feed another amplifier for bi-amping or tri-amping, a powered subwoofer, or a secondary system without requiring an additional output from the preamplifier.

Solid Cinch Speaker Binding Posts

Three sets of McIntosh Solid Cinch speaker binding posts provide dedicated connections for 2-, 4-, and 8-ohm loudspeakers, with additional spacing between the terminal sets to simplify speaker-cable management.

Power Control

McIntosh Power Control allows compatible components to receive coordinated power-on and power-off commands as part of a complete McIntosh system.

What’s Included

• McIntosh MC611 1-Channel Power Amplifier
• AC power cord

Specifications

Type: Solid-state monoblock power amplifier

Channels: 1

Power Output: 600 W into 2, 4, or 8 ohms

Rated Power Band: 20 Hz–20 kHz

Frequency Response: 20 Hz–20 kHz, +0/–0.25 dB; 10 Hz–100 kHz (+0/–3 dB)

Total Harmonic Distortion: 0.005% maximum, 250 mW to rated power, 20 Hz–20 kHz

Intermodulation Distortion: 0.005% maximum

Signal-to-Noise Ratio: 124 dB balanced; 120 dB unbalanced, A-weighted

Dynamic Headroom: 2.8 dB

Damping Factor: Greater than 40, wideband

Input Sensitivity: 4.8 V balanced; 2.4 V unbalanced

Input Impedance: 22 kΩ balanced; 22 kΩ unbalanced

Voltage Gain: 29 dB into 8 ohms; 26 dB into 4 ohms; 23 dB into 2 ohms

Circuit Configuration: Quad Balanced

Output Type: Autoformer

Balanced Inputs: 1

Unbalanced Inputs: 1

Balanced Outputs: 1

Unbalanced Outputs: 1

Remote Power Control: Yes

Output Meter: Yes

Meter Light Switch: Yes

Speaker Connections: Solid Cinch speaker binding posts

Front Panel: Glass with handles

Illumination: Direct LED

Chassis: Polished stainless steel and black painted steel

Standby Power Consumption: Less than 0.5 W

Dimensions (H × W × D): 9-7/16" × 17-1/2" × 22" (23.97 × 44.45 × 55.88 cm), including feet, front panel, handles, and cables

Weight: 97.5 lb. (44.32 kg)
