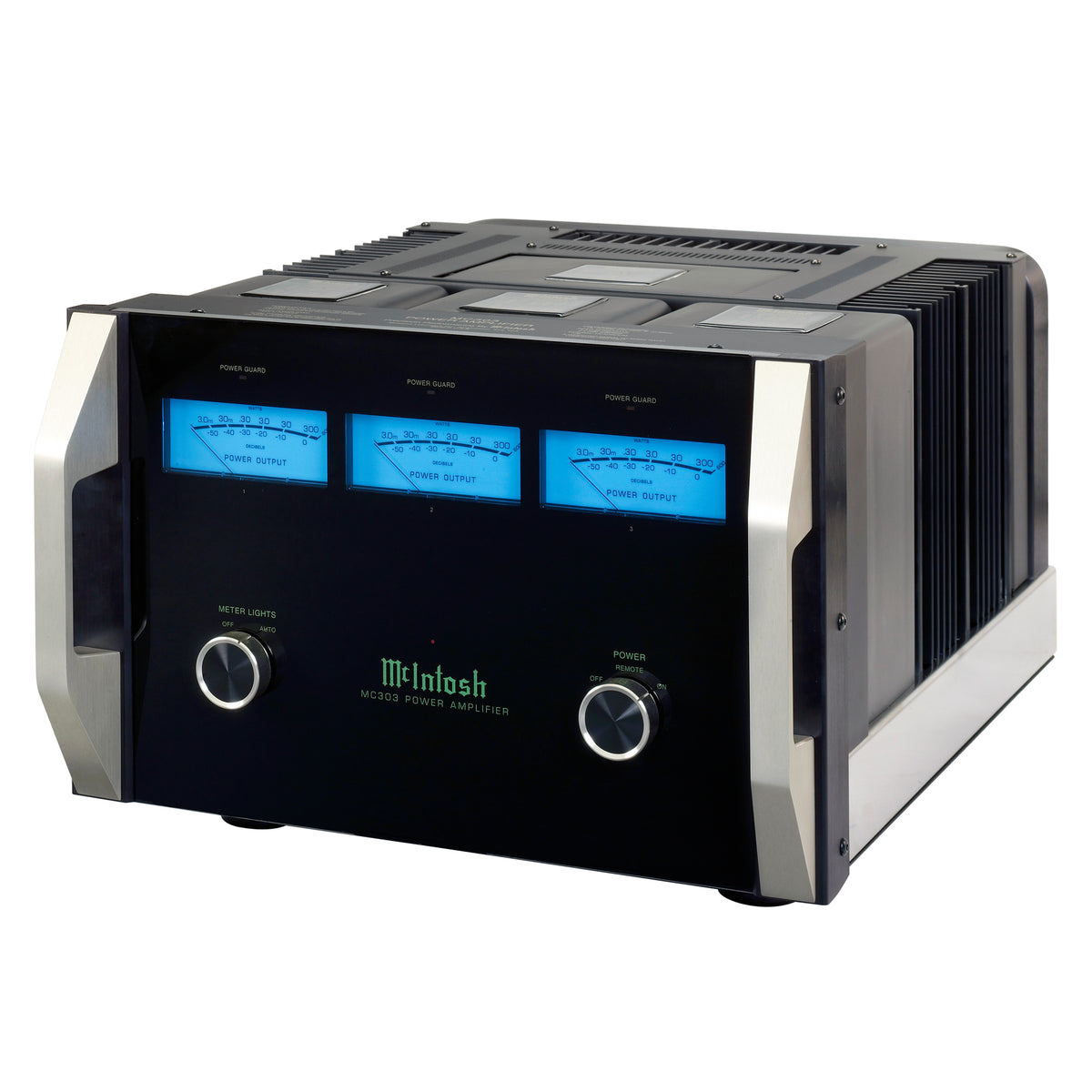

McIntosh MC303 3-Channel Power Amplifier

300 Wpc into 2, 4, or 8 ohms, with Autoformers, balanced inputs, and three Watt Meters

The McIntosh MC303 is a 3-channel solid-state power amplifier designed primarily to drive the front left, center, and right speakers in a high-performance home theater system. It delivers 300 W from each channel into 2-, 4-, or 8-ohm loudspeakers.

McIntosh Autoformers™ couple each output stage to the loudspeaker, allowing the amplifier to deliver its full rated power across all three supported impedances. The MC303 can also be used for tri-amping compatible loudspeakers in a 2-channel music system.

Power Guard® monitors the output signal and prevents clipping that could damage loudspeakers, while Sentry Monitor™ provides fuse-free short-circuit protection. Balanced and unbalanced inputs provide system flexibility, and three blue McIntosh Watt Meters display the real-time output of each channel. The meters can be switched off for theater installations.

Features

• 300 W per channel into 2, 4, or 8 ohms
• Three McIntosh Autoformers™
• Balanced and unbalanced analog inputs
• Three blue McIntosh Watt Meters
• Power Guard® signal overload protection
• Sentry Monitor™ short-circuit protection
• Remote Power Control
• Gold-plated 5-way speaker binding posts
• Polished stainless steel chassis
• Black glass front panel with machined aluminum handles

Specifications

Power Output: 300 W per channel into 2, 4, or 8 ohms

Number of Channels: 3

Signal-to-Noise Ratio: 112 dB below rated output

Dynamic Headroom: 1.8 dB

Damping Factor: >40

Rated Power Band: 20 Hz–20 kHz

Circuit Configuration: Push-pull complementary Autoformers

Circuit Design: Solid state

Output Type: Autoformer™

Meters: 3

Dimensions (H × W × D): 12-3/8" × 17-3/4" × 22" (314.3 × 450.9 × 558.8 mm)

Weight: 155 lb. (70.3 kg)
