Marantz AMP 30 6-Channel Power Amplifier

Six-channel slimline power amp rated at 200 W per channel into 8 Ω, with balanced line-level inputs plus bi-amp and bridged modes

The Marantz AMP 30 is a reference 6-channel, 200-watt-per-channel slimline amplifier designed to power a dedicated home theater. It features Marantz HDAM, Current Feedback Amplification, and balanced line-level inputs, and is intended to pair with the Marantz AV 30 as part of a separates-based theater system.

The Upscale View

Marantz is one of very few household-name audio brands that we recommend even to critical listeners. Marantz has been able to stay on top of technological advances without losing sight of its heritage. For home cinema especially, we unhesitatingly recommend Marantz as the affordable yet high-fidelity solution when most of your hard-earned money is going into your reference stereo rig.

Flexibility Built-In

The AMP 30 has six powered channels for a 5+1 home cinema setup. You can also use is in bi-amp mode to power your stereo speakers' high-frequency and low-frequency drivers separately (requires loudspeakers with separate inputs). Finally, a bridged setting, called BTL Mode increases power by combining channels, allowing three channels of 400 W.

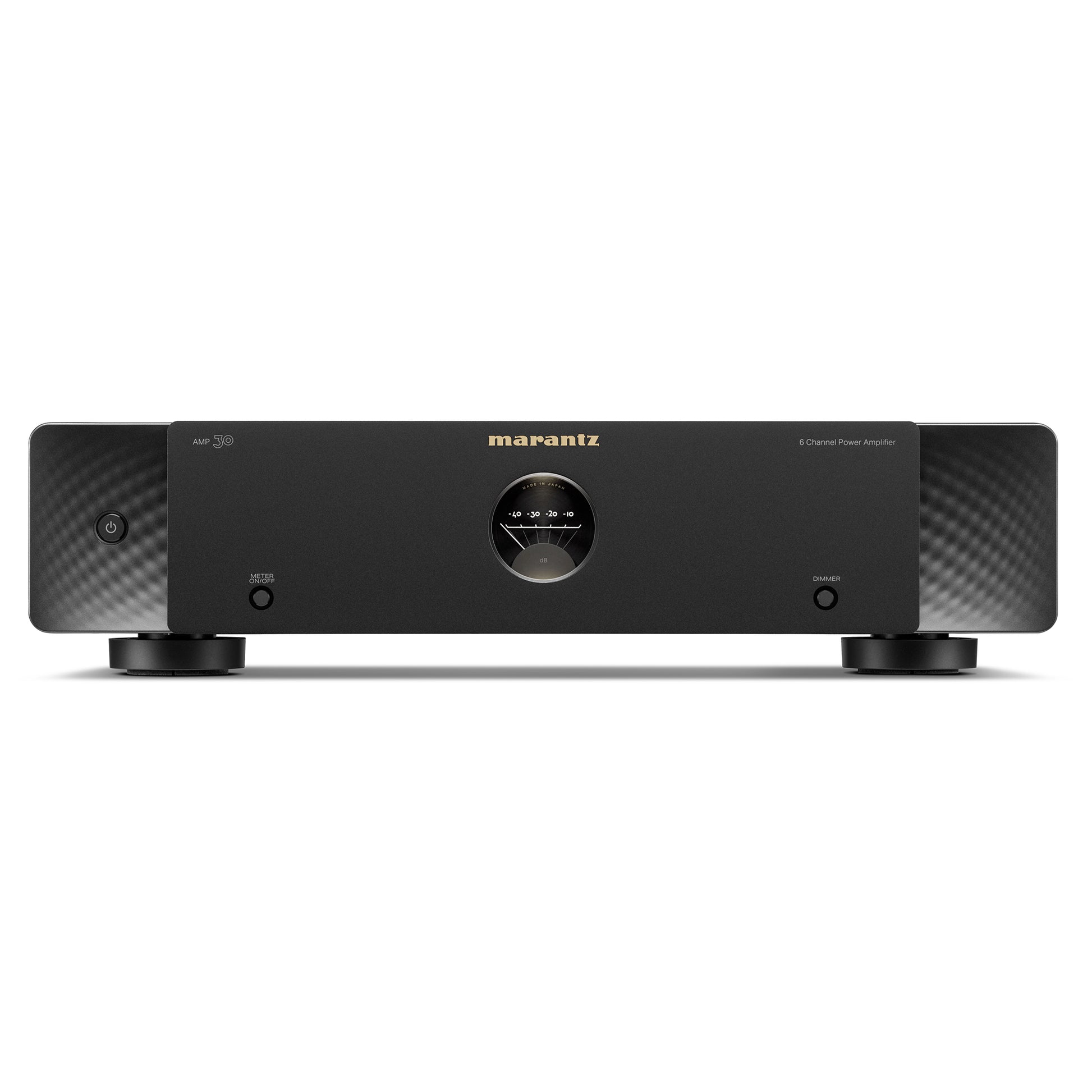

For connectivity and system integration, AMP 30 includes balanced XLR input for reducing input noise, plus control provisions including RS232, IR Flasher In, Marantz Remote Bus, and DC trigger input/output. A porthole with an analog meter measures output, and soft side lights illuminate the front panel.

What's In the Box

• Marantz AMP 30
• Quick start guide
• AC cord
• Amp control cable
• Remote control cable

Specifications

Power Output
Two Channel (8 ohm, 8 ohm BTL, 4 ohm): 200 W, 400 W, 400 W
Five Channel (8 ohm):  200 W

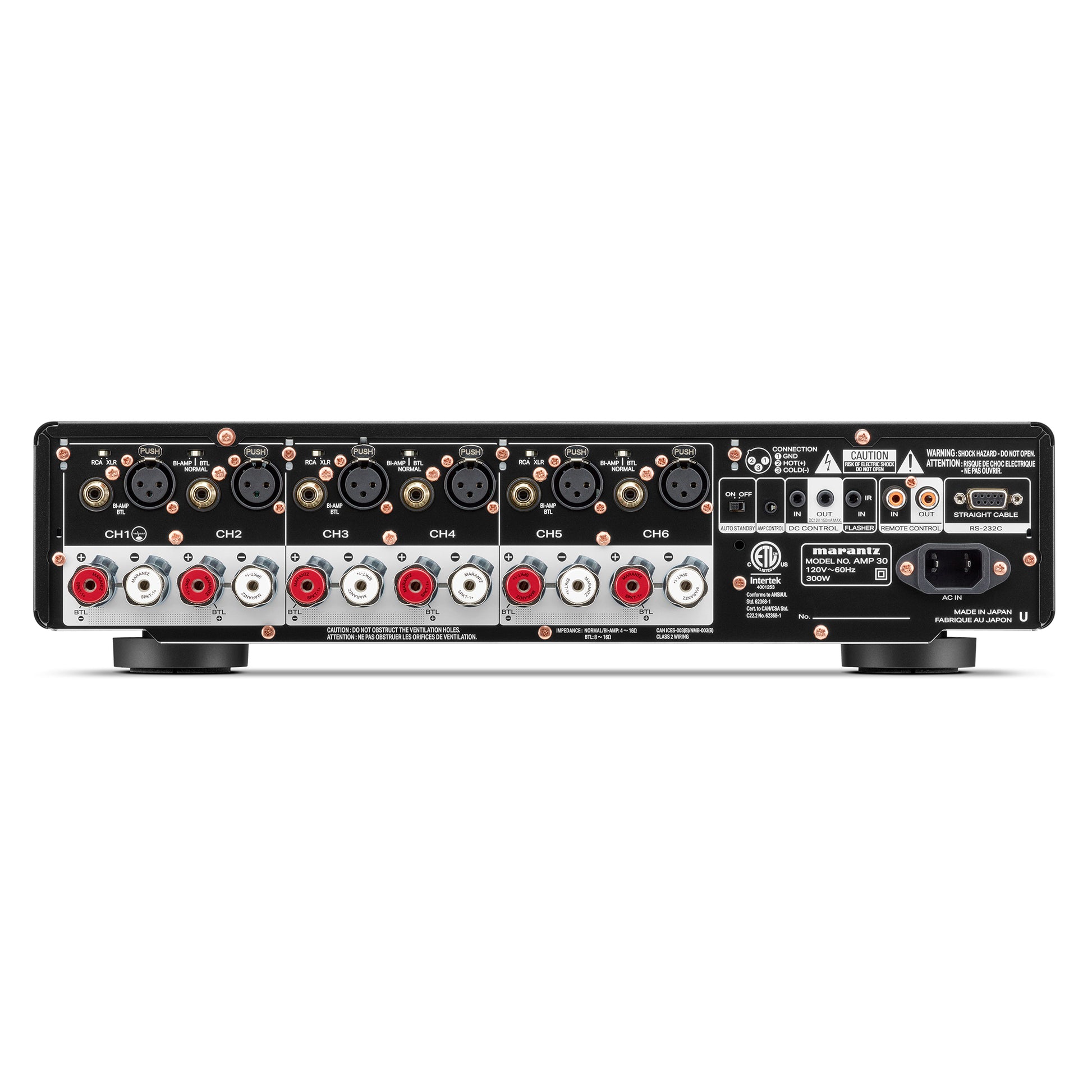

Inputs: 6 x RCA line, 6 x XLR line, IR, DC control, Remote, RS232

Outputs: 6 x SPKT-1+ pair, DC control, Remote

Power Consumption (Operation, Eco, Stand-By): 300 W, 70 W, 0.2 W

Maximum Dimensions (W x D x H): 17.4" x 17.4" x 4.4"(442 x 442 x 112 mm)

Weight: 22 lb. (10 kg)
