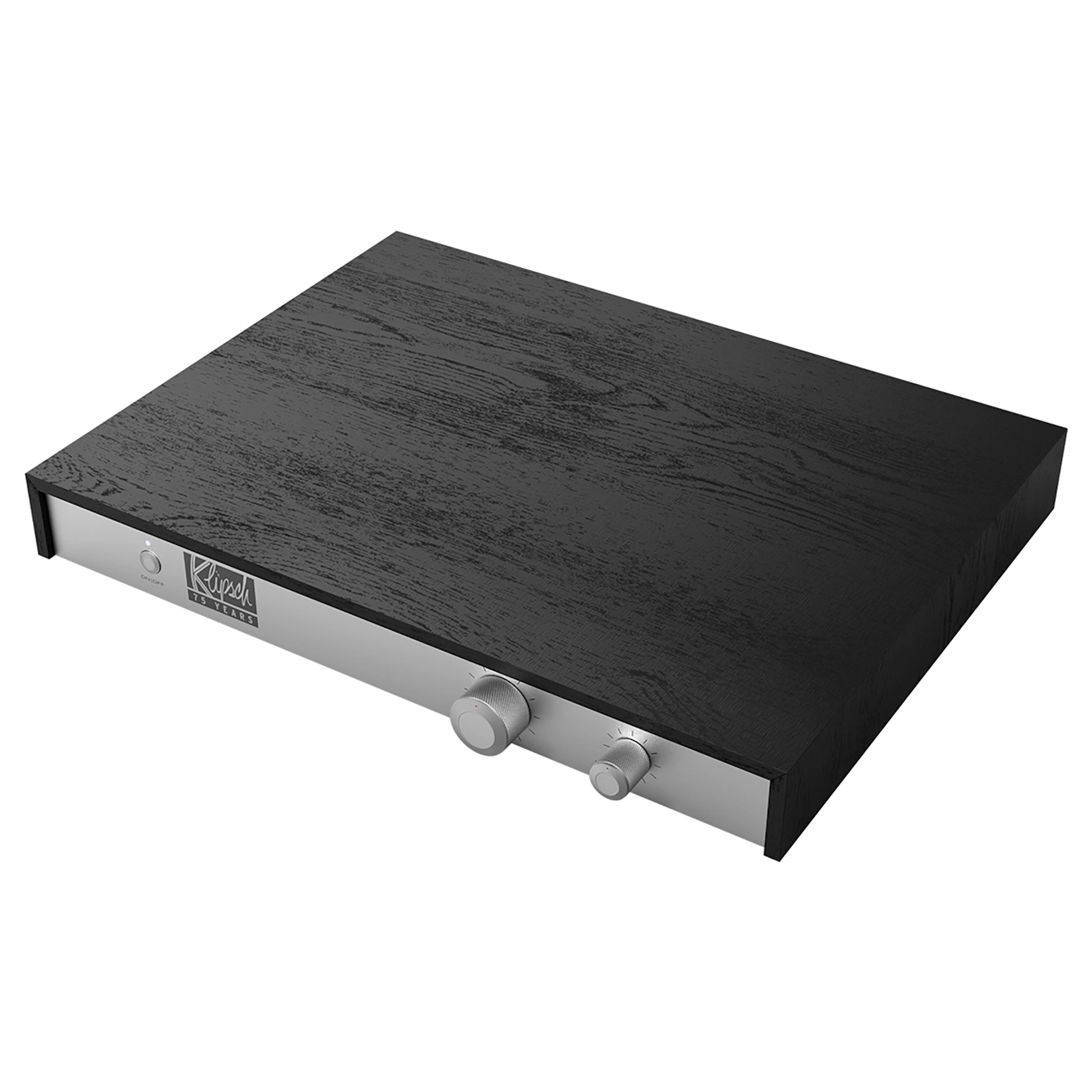

Klipsch Heritage Active Crossover with DSP - La Scala AL6
An active crossover specially tuned and timed for the AK6
Klipsch's new active crossover uses trickle-down technology from the active DSP used for the mighty Klipsch Jubilee. This version is specially tuned and timed to enhance the sound of the La Scala AL6. Another version is available for the Klipschorn AK7.
These special products have been tuned by legendary acoustician Roy Delgado to deliver unparalleled time and phase alignment, balanced EQ, and true-to-source response. They use advanced DSP technology to precisely manage crossover points, ensuring a seamless transition between frequency bands while preserving the power, detail, and realism these speakers are known for.

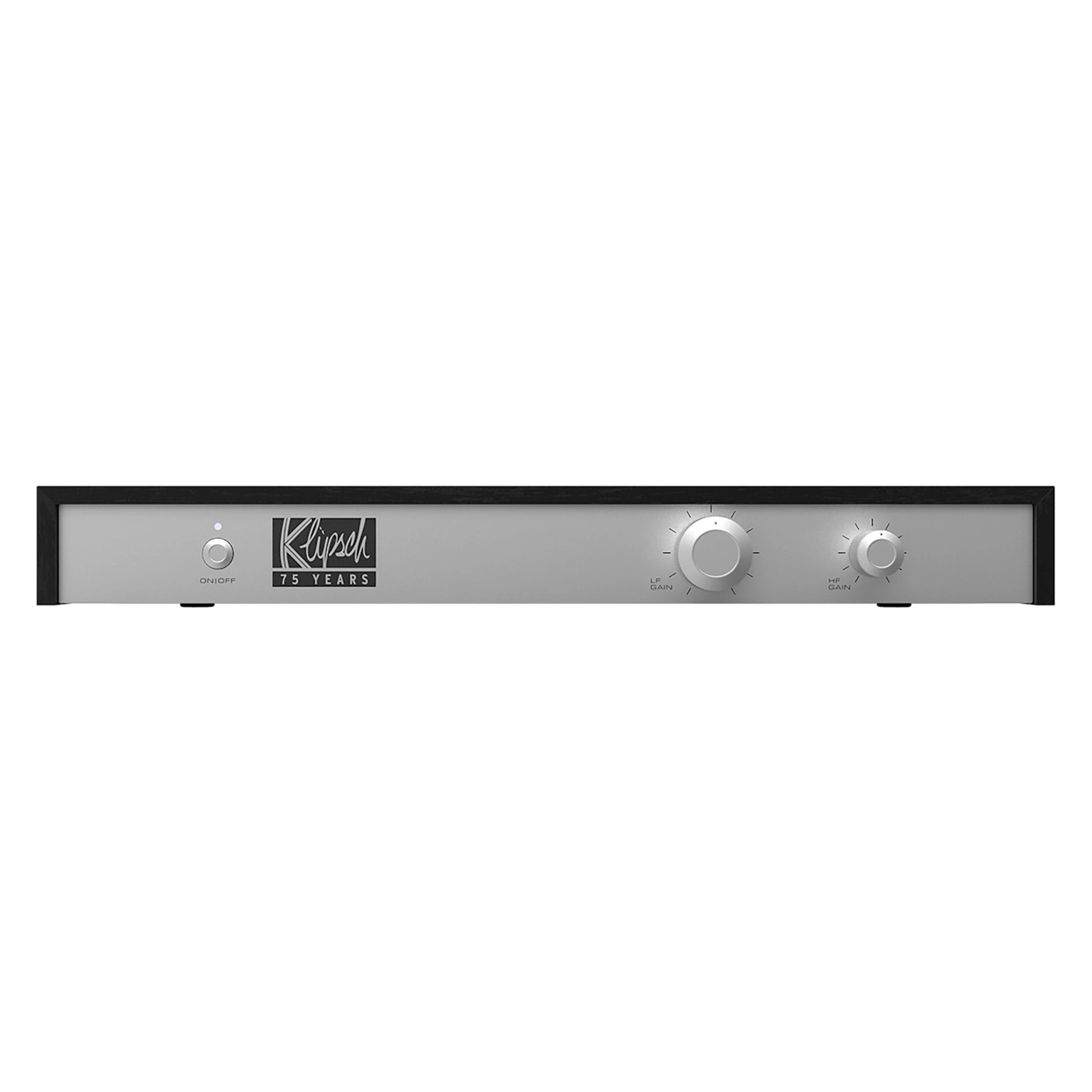

The Heritage Active Crossover offers user-adjustable low-frequency and high-frequency gain controls, allowing listeners to fine-tune the system. This ensures optimal performance across different audio setups, enhancing clarity and tonal accuracy without introducing coloration.
Using advanced signal processing, the Heritage Active Crossover not only refines crossover filtering but also delays the signal to individual drivers, ensuring all frequencies arrive at the listener’s ears in perfect alignment—resulting in an incredibly immersive listening experience.
Specifications
Frequency Response (+/- 0.5 dB): 10 Hz-45 kHz
Inputs: 2 x balanced XLR, 2 x RCA
Input Impedance: 10 kOhm
Max. Input Level (XLR, RCA): 4 Vrms, 2 Vrms

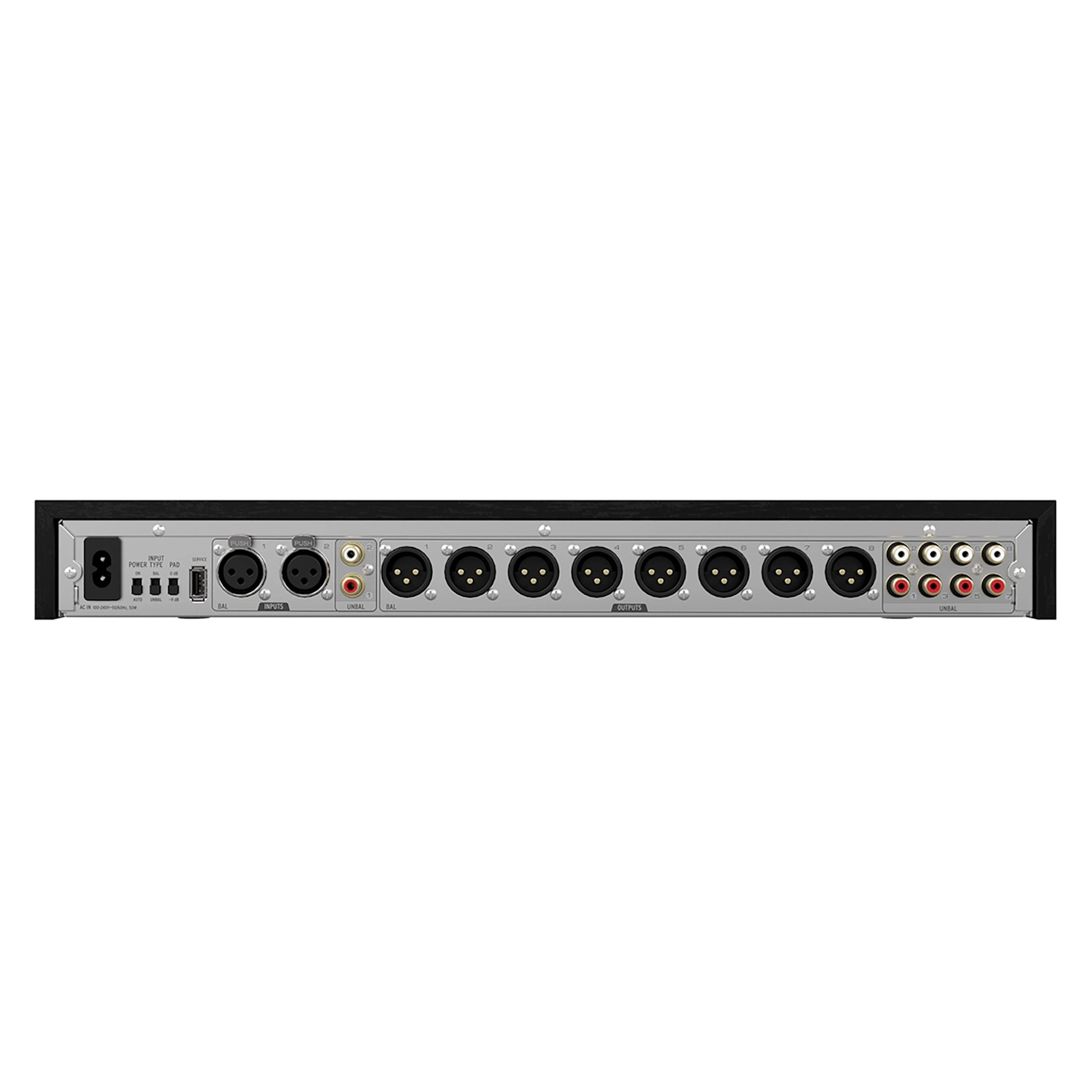

Outputs: 8 x balanced XLR, 8 x RCA
Dimensions (HWD): 2.75” x 17” x 14.125” (70 x 432 x 359 mm)
Weight: 8.9 lb. (4 kg)
Klipsch History
Founded by one of America's most celebrated audio pioneers, Klipsch has been making legendary loudspeakers since 1946. Paul W. Klipsch's goal was to reproduce the excitement of a live orchestra in his living room, and the Klipschorn was, and still is, the shining pinnacle of his achievements.
Legendary Heritage
All of the brilliance of that original corner horn has been distilled and poured through Klipsch's Heritage series, a line of horn-loaded speakers made from premium materials and following the four core principles of the Klipsch sound. Designed and assembled in the USA.
