KLH Model Four Floorstanding Speakers

Three-way acoustic suspension performance in a compact, placement-friendly design

The KLH Model Four brings the three-way architecture of the Model Five to a slimmer cabinet designed for rooms where space is limited. Positioned between the Model Three and Model Five, it combines the Model Three’s 8" woofer with the 4" midrange driver, 1" aluminum-dome tweeter, and crossover architecture of the Model Five.

Its sealed acoustic suspension enclosure provides controlled bass without requiring the generous rear clearance commonly needed by ported speakers. The cabinet measures just 8.25" deep without its riser base, making the Model Four well suited to placement near a wall while preserving the wide-baffle proportions of KLH’s larger Model Collection speakers.

Three-Way Acoustic Suspension Design

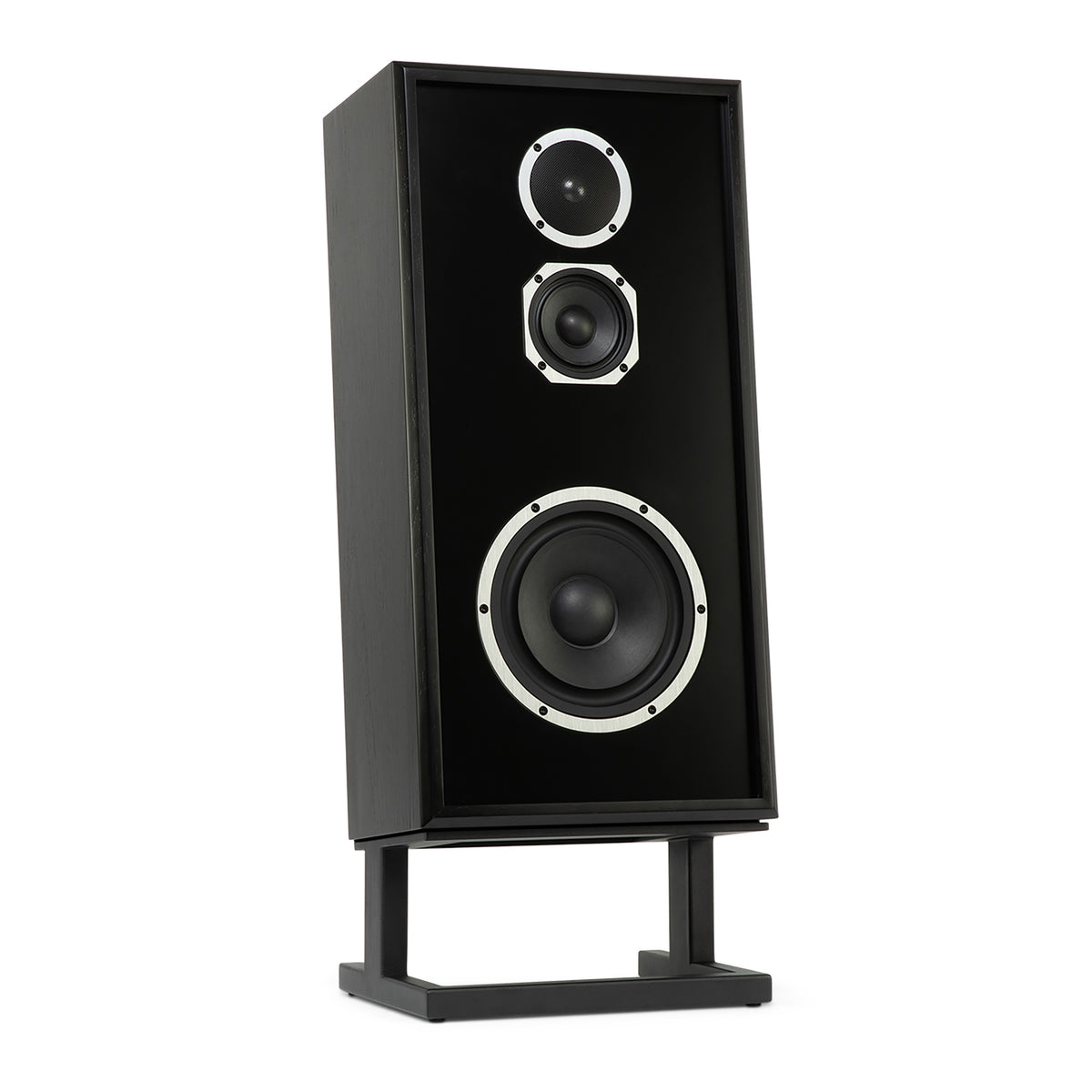

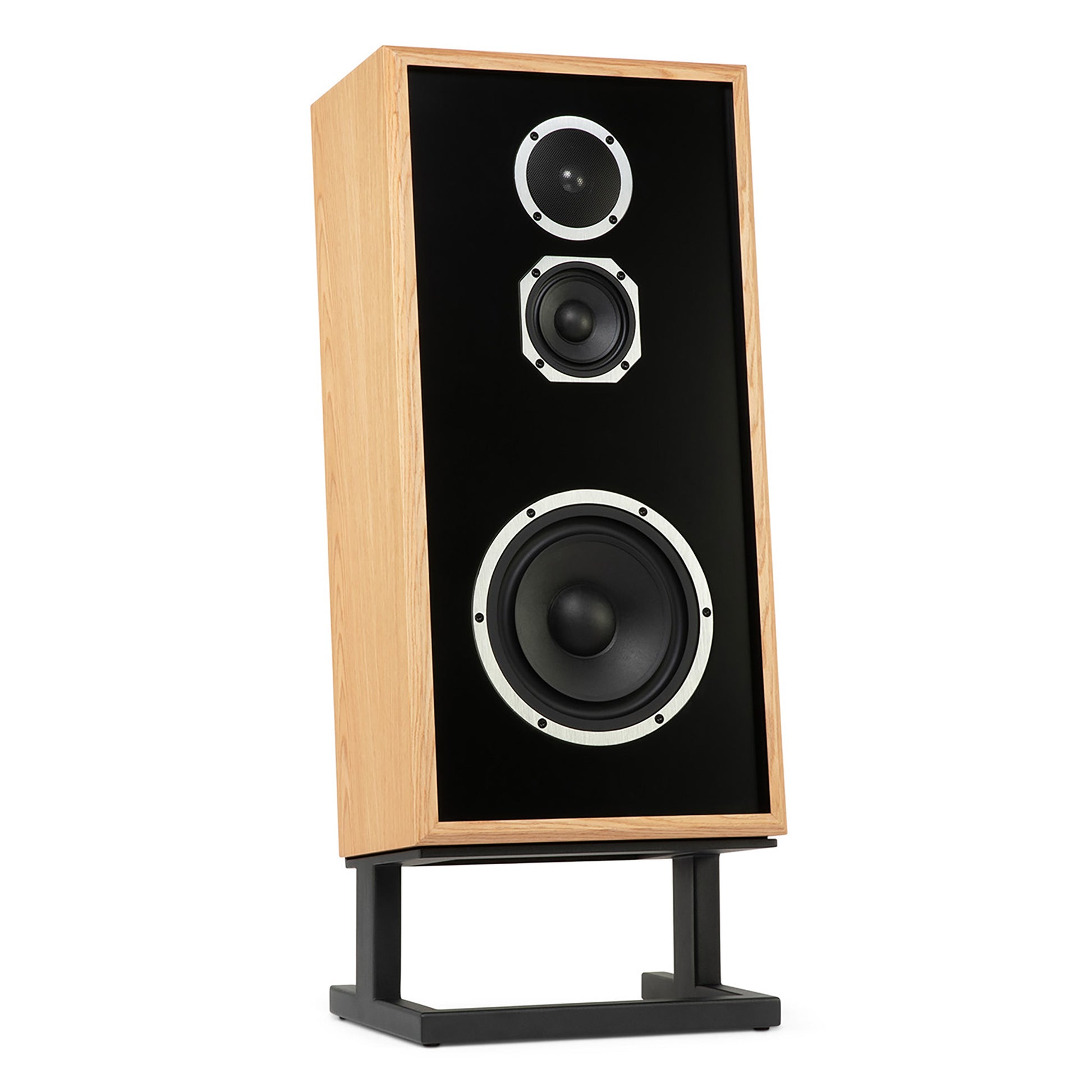

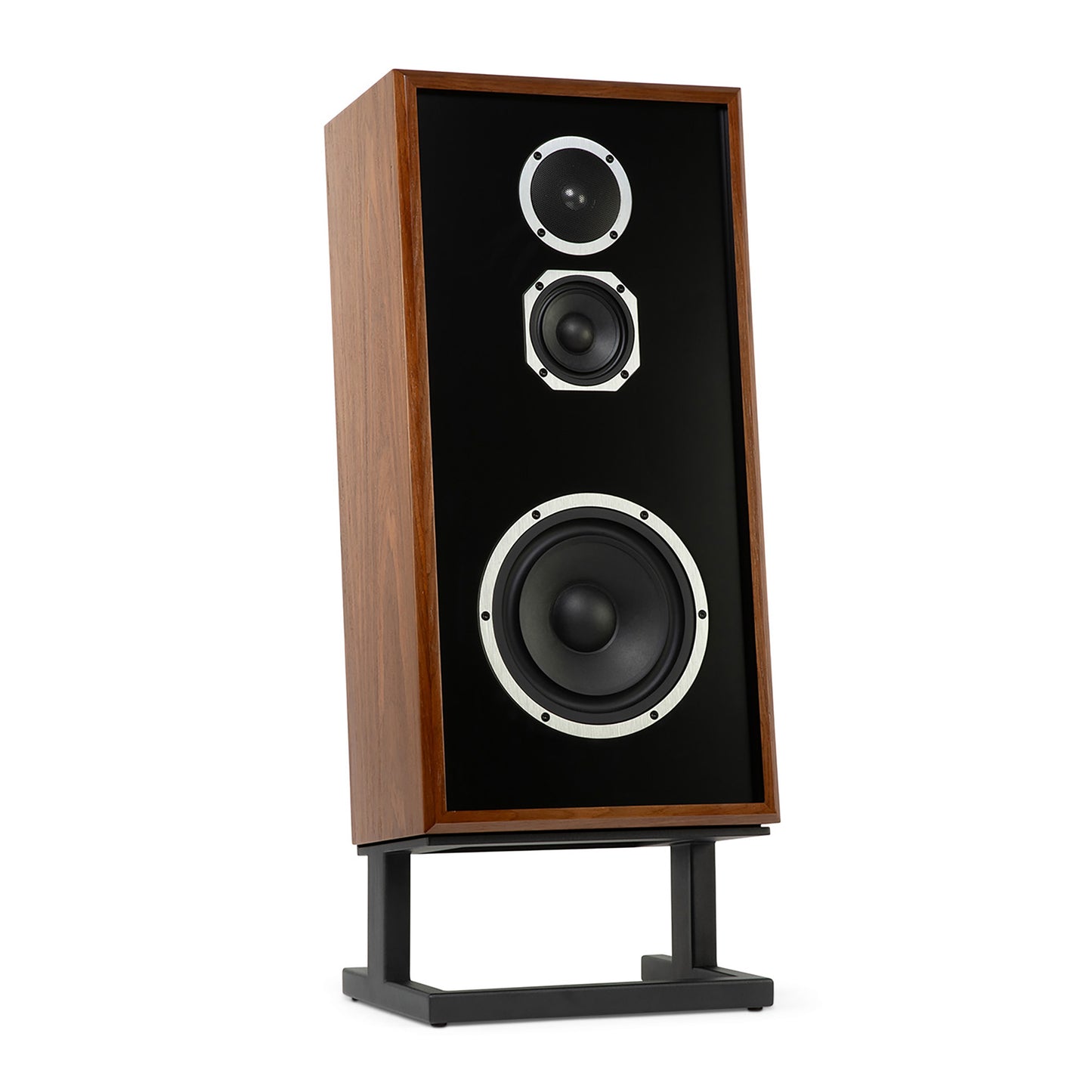

An 8" pulp-paper cone woofer extends the frequency response down to 46 Hz, while a dedicated 4" pulp-paper cone midrange handles the critical vocal range. A 1" aluminum-dome tweeter completes the three-way system, allowing each driver to operate across a more focused portion of the frequency spectrum.

Acoustic Balance Control

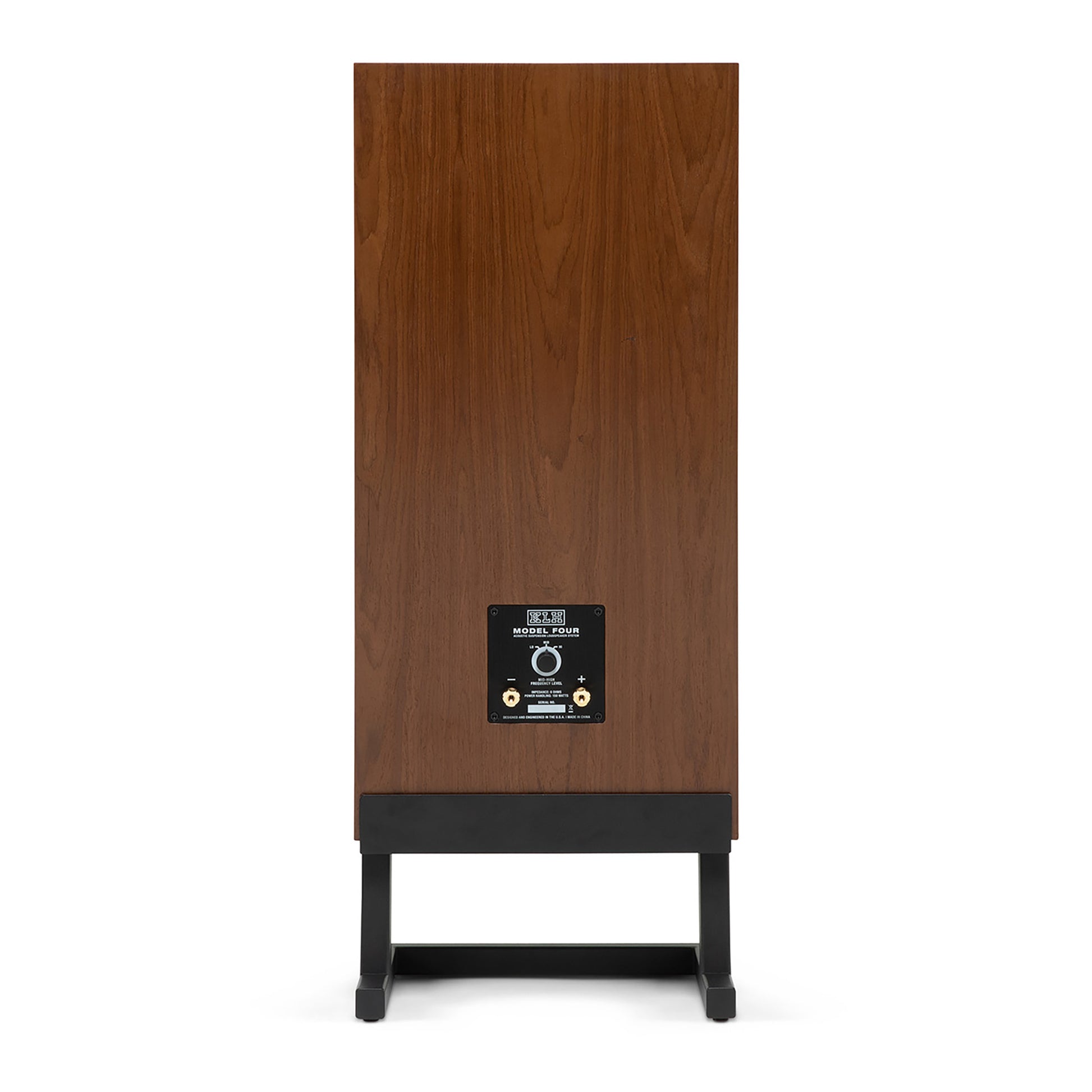

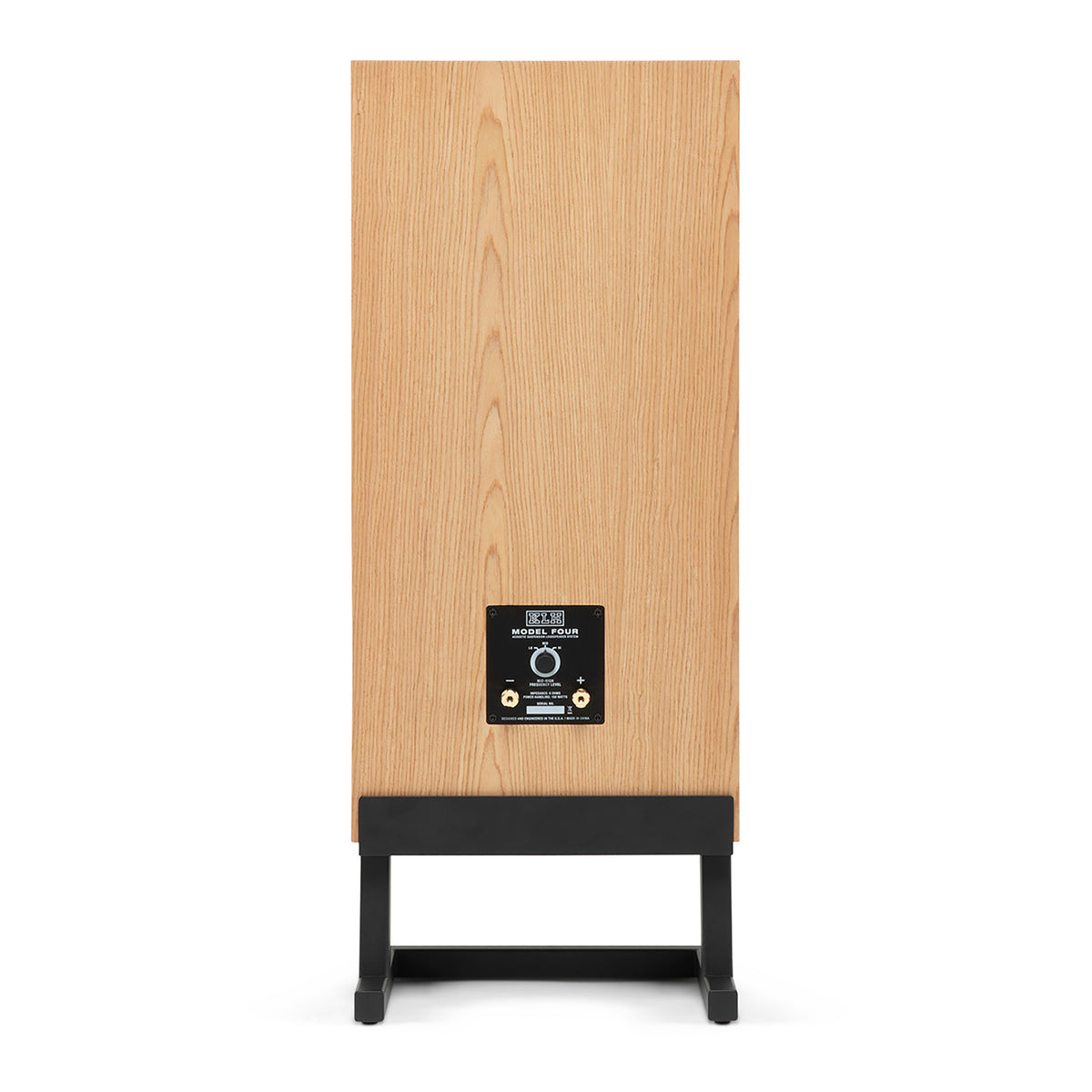

The three-position Acoustic Balance Control lets you adjust the speaker’s midrange and high-frequency output to suit the room, speaker placement, and listening position. This modern implementation revives a KLH feature first introduced during the 1960s.

Compact Footprint, Proper Listening Height

Each Model Four includes a matte-black riser base that angles the cabinet backward by 6°, aligning the midrange driver and tweeter with the listener. With the riser installed, the speaker stands 32.2" high while occupying a footprint less than 11" deep.

Features

• Three-way acoustic suspension design
• Sealed, structurally reinforced MDF enclosure
• 8" pulp-paper cone woofer with reverse-roll rubber suspension
• 4" pulp-paper cone midrange driver with reverse-roll rubber suspension
• 1" aluminum-dome tweeter with soft rubber suspension

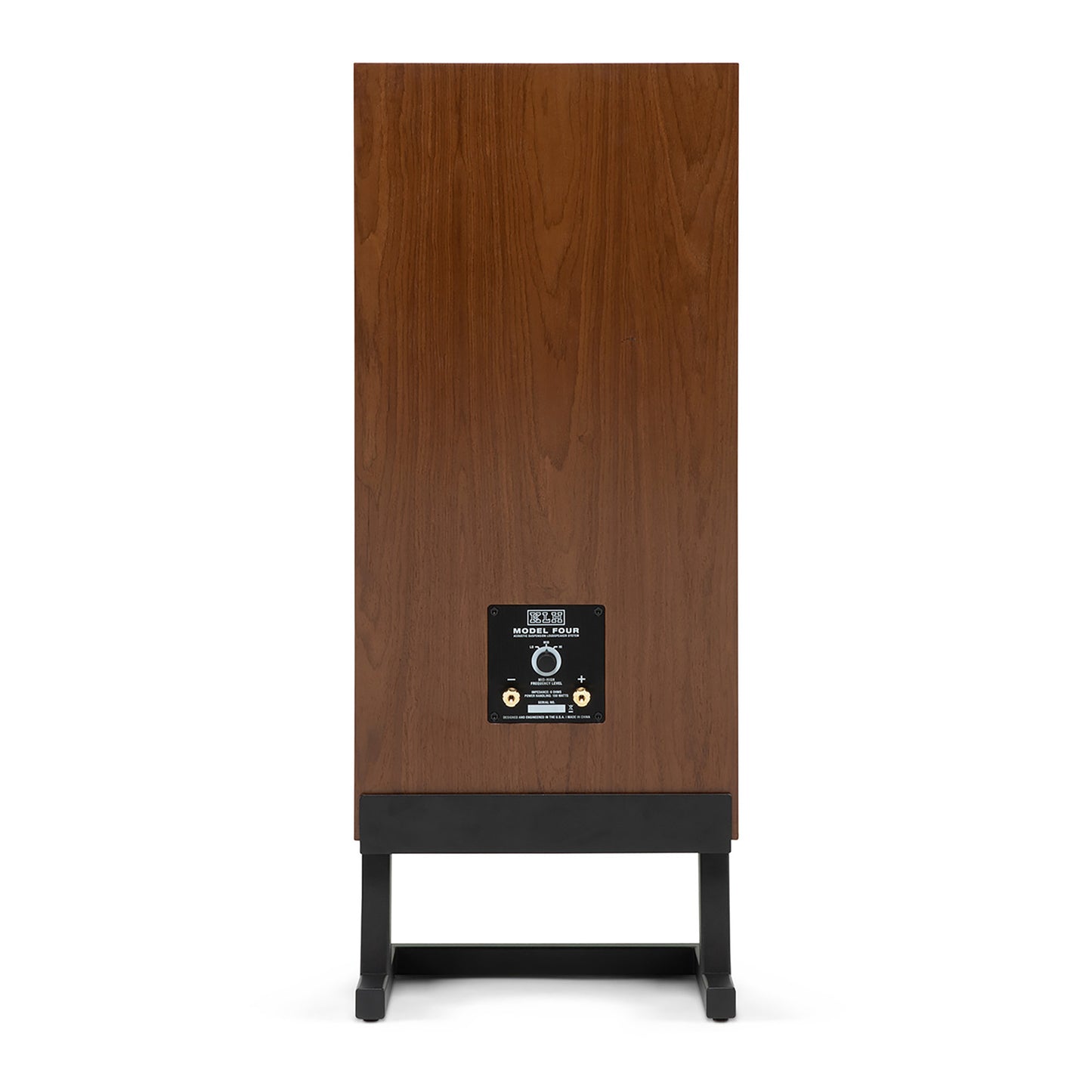

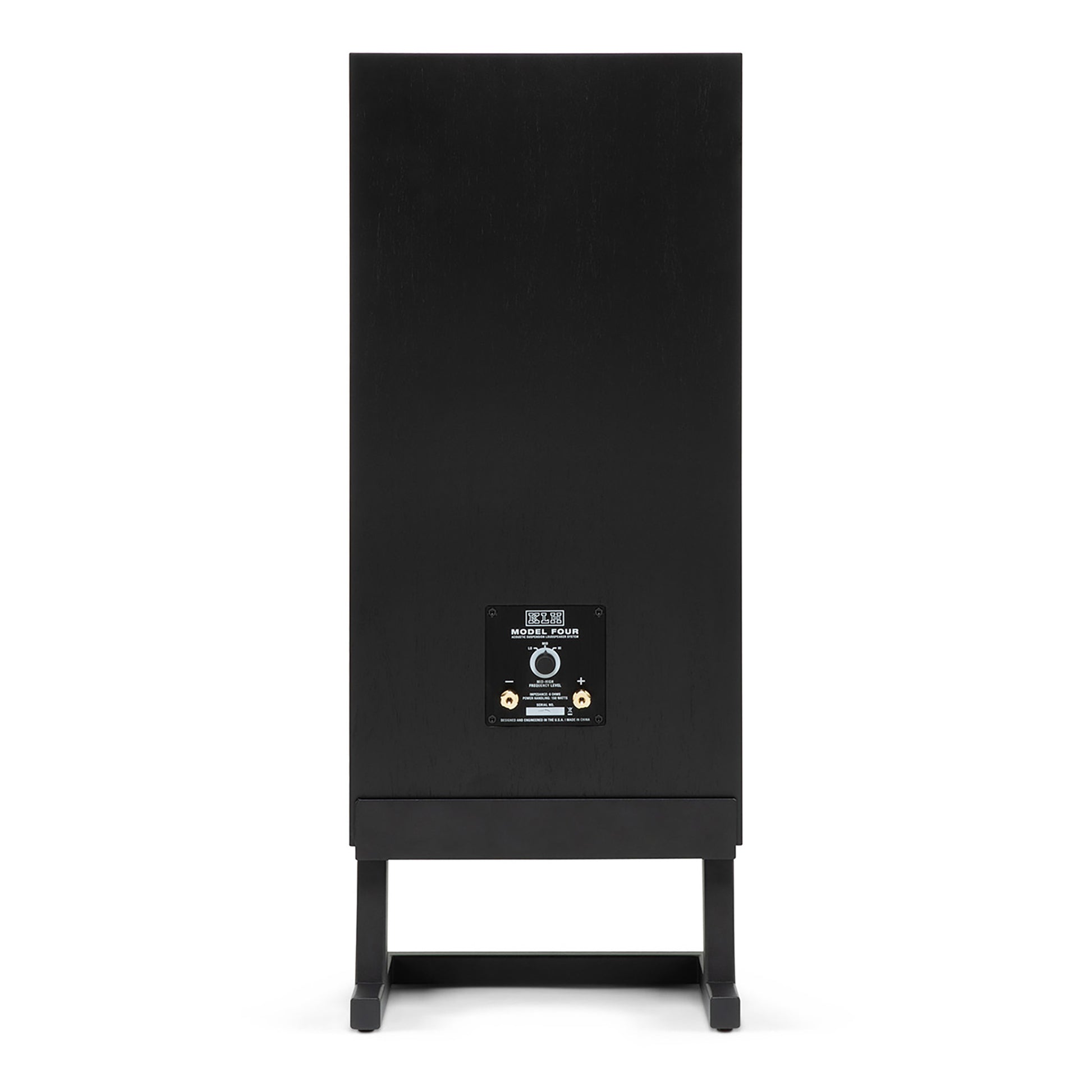

• Three-position Acoustic Balance Control
• Five-way gold-plated binding posts

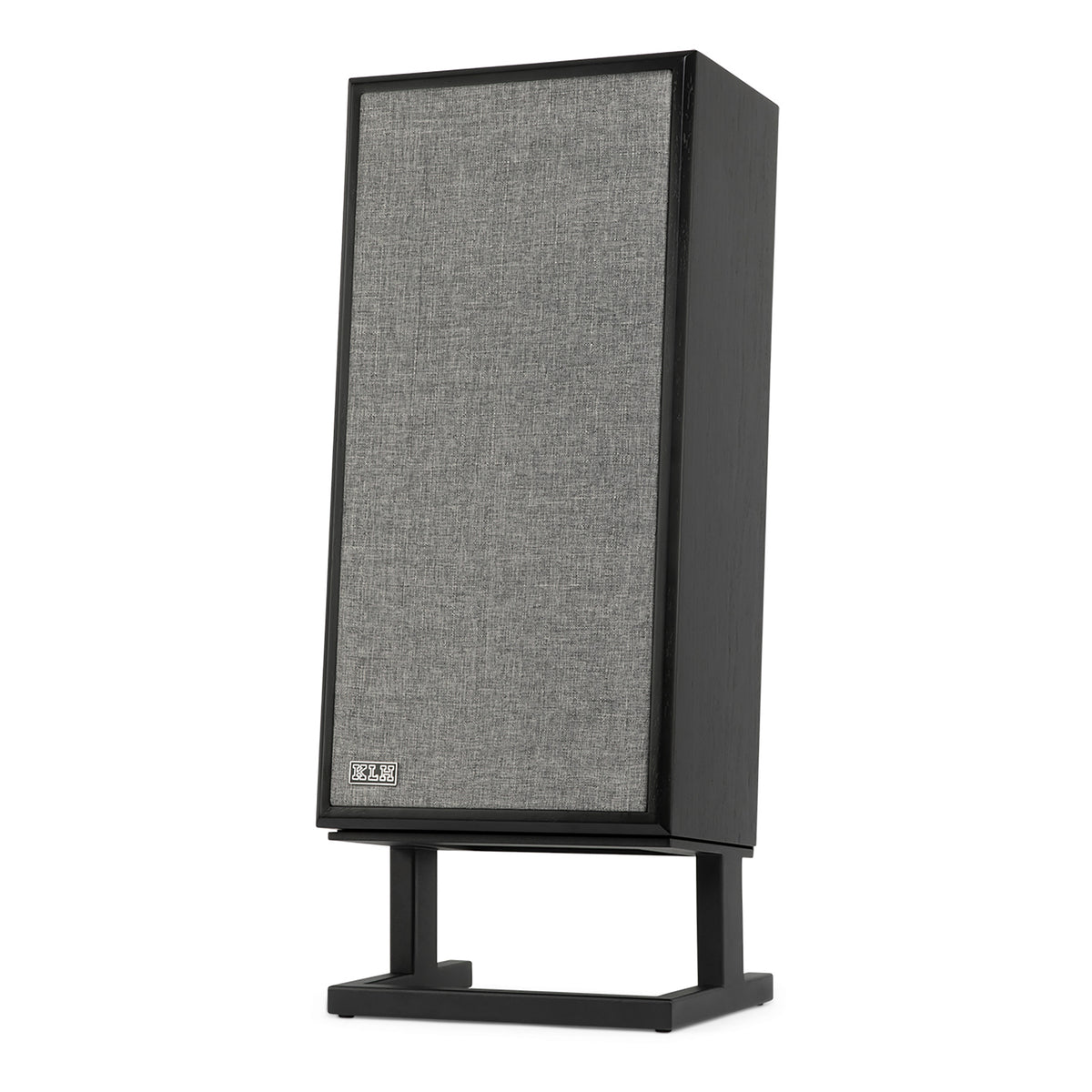

• Magnetically attached knit grille

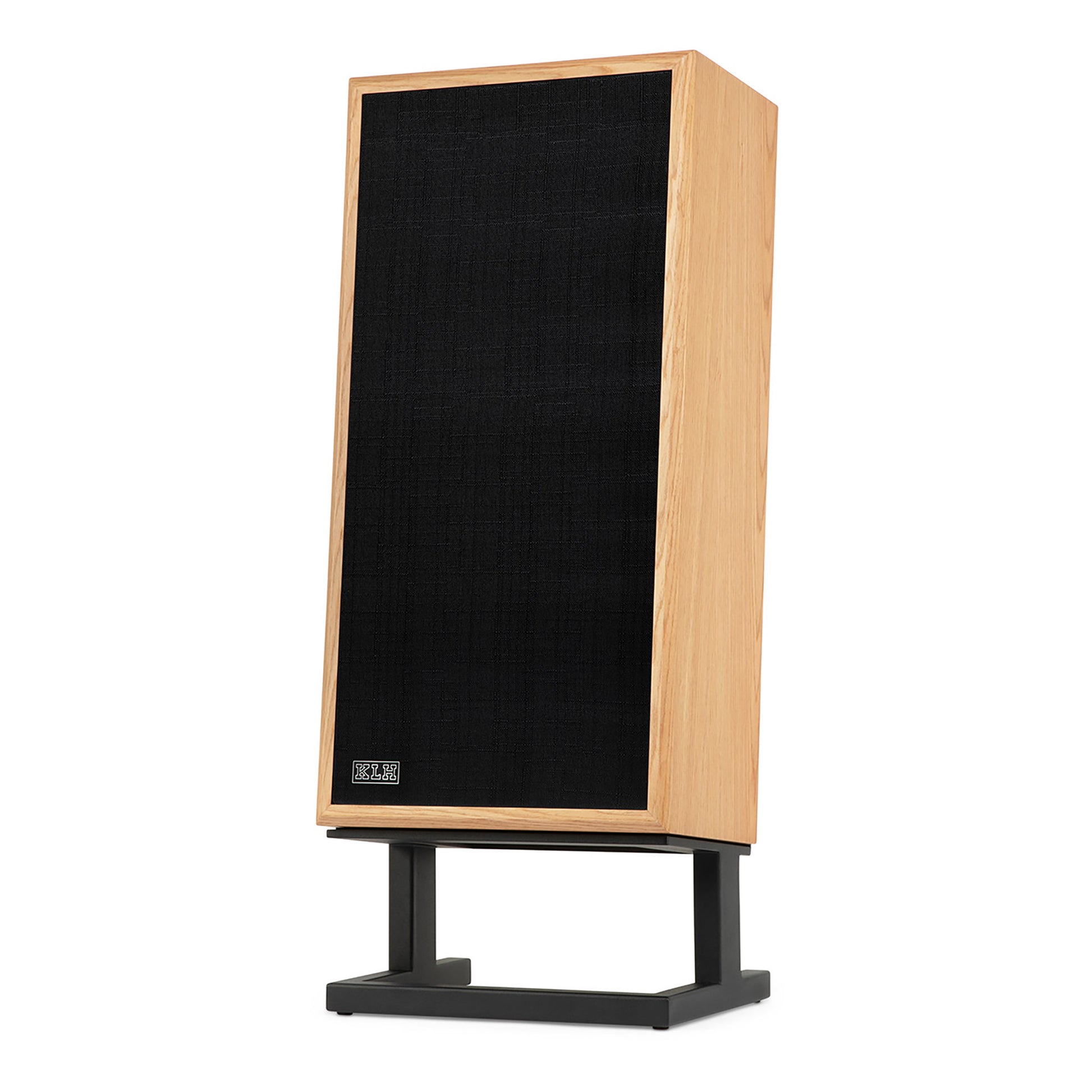

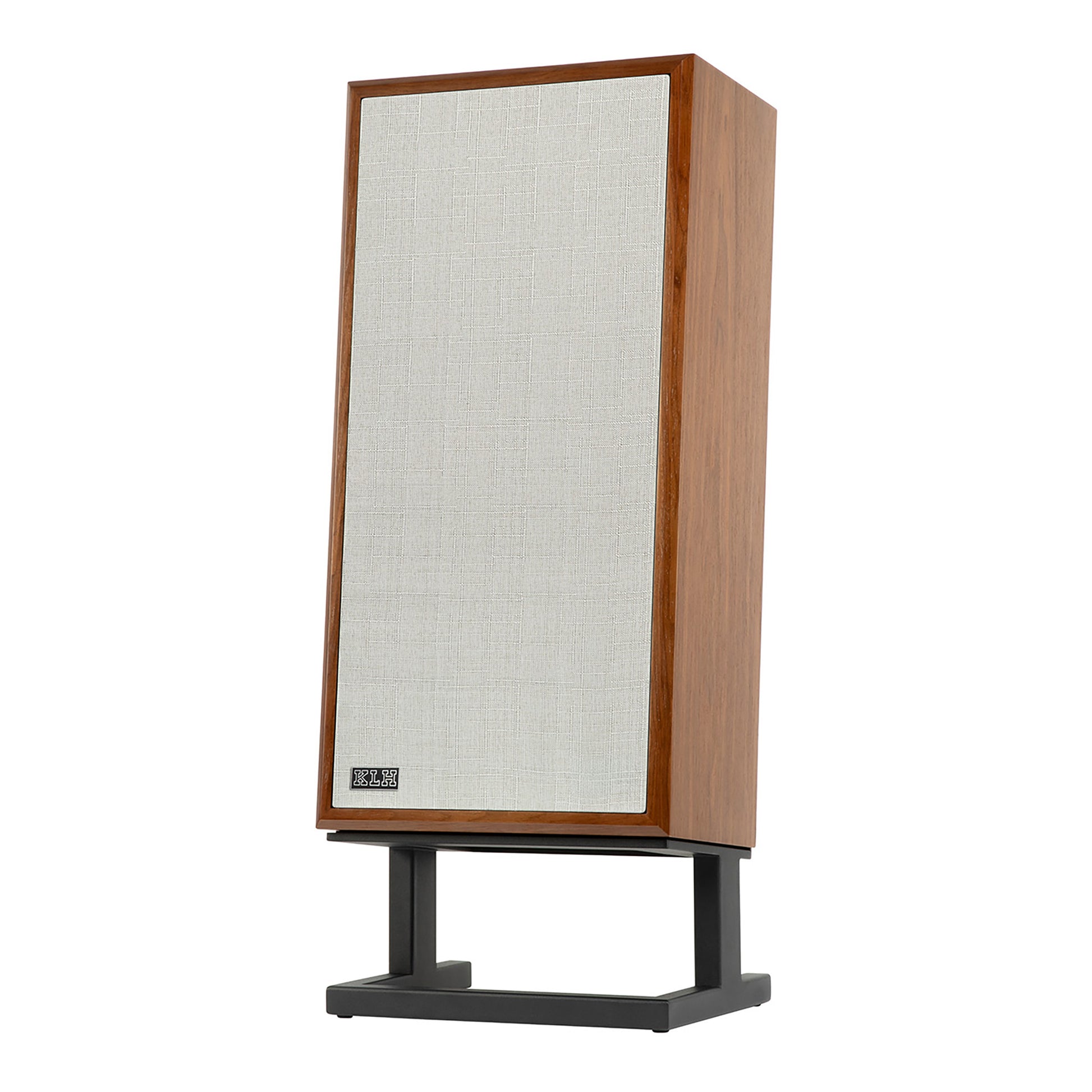

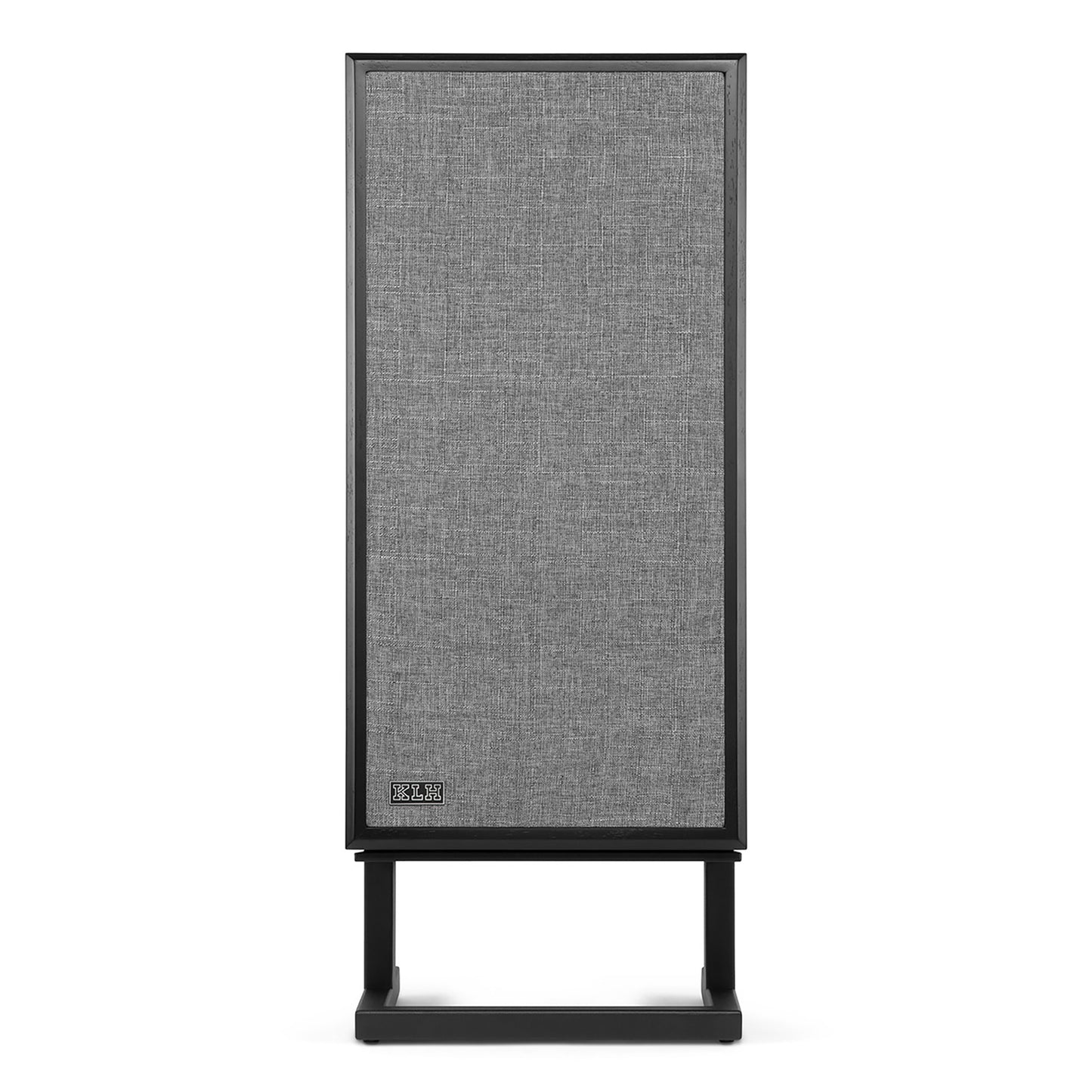

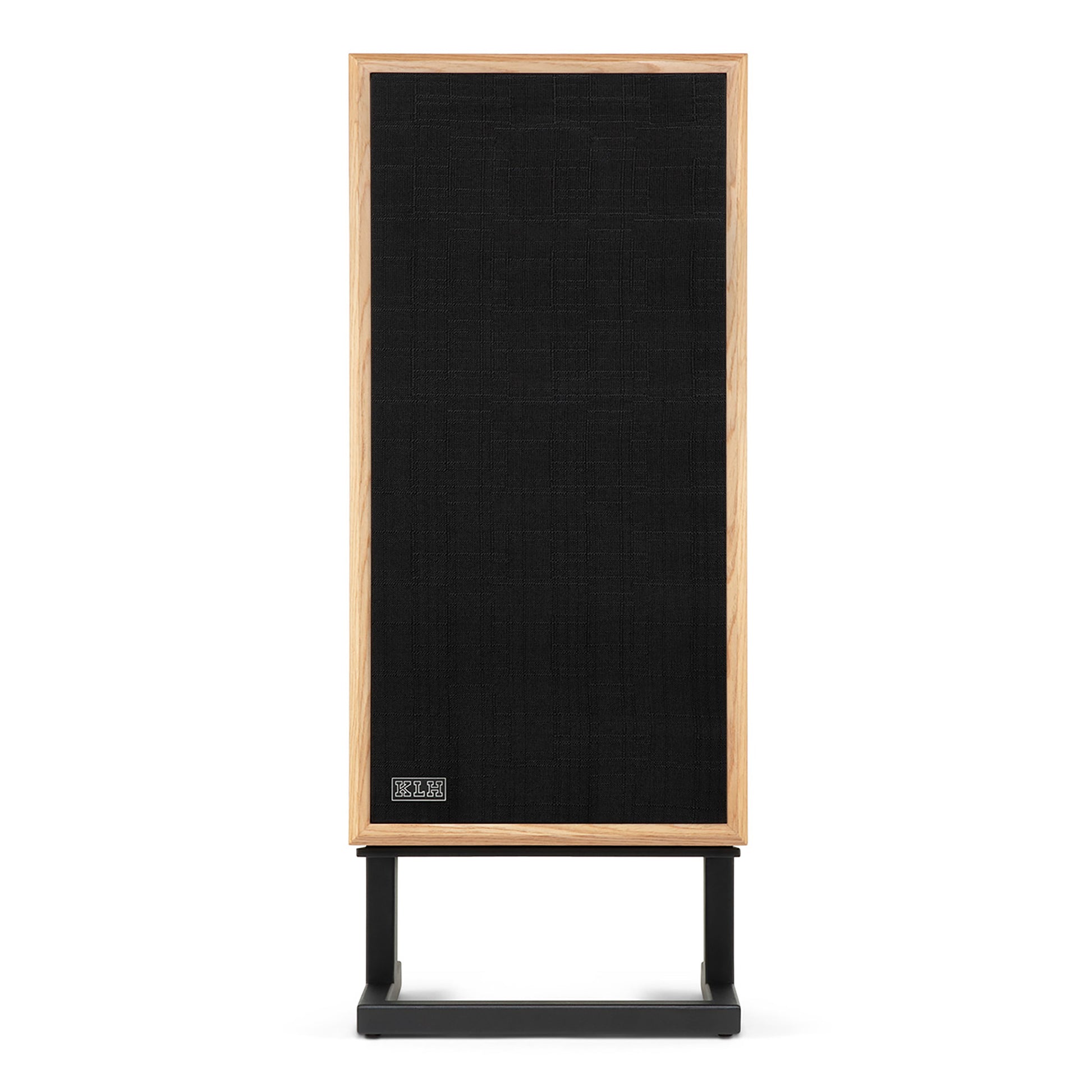

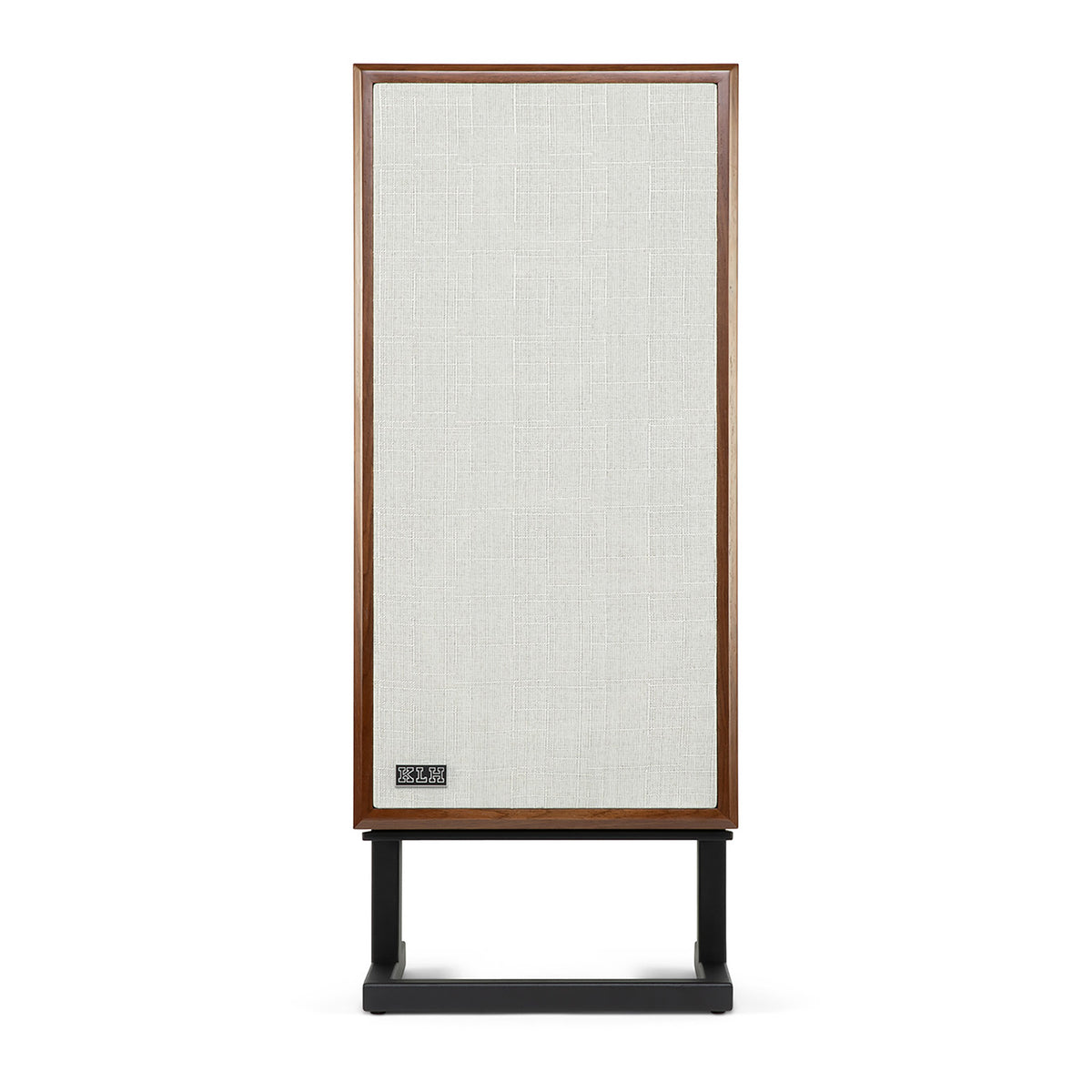

• Available in English Walnut, Black Ash, and White Oak finishes
• 10-year manufacturer warranty

Included Accessories

• Matte-black 6° riser base
• Magnetic knit grille

Specifications

Type: Three-way acoustic suspension loudspeaker

High-Frequency Driver: 1" aluminum dome with soft rubber suspension

Midrange Driver: 4" pulp-paper cone with reverse-roll rubber suspension

Low-Frequency Driver: 8" pulp-paper cone with reverse-roll rubber suspension

Frequency Response (±3 dB): 46 Hz–20 kHz

Low-Frequency Extension (−10 dB): 35 Hz

In-Room Sensitivity (2.83 V/1 m): 88 dB

Maximum In-Room SPL: 108 dB

Power Handling: 150 W

Peak Power Handling: 600 W

Nominal Impedance: 6 ohms

Minimum Impedance (At 120 Hz): 3.5 ohms

Midrange Crossover Frequency: 380 Hz

High-Frequency Crossover Frequency: 2.5 kHz

Crossover Type: Second-order electro-acoustic

Dimensions Without Riser (H × W × D): 26" × 13" × 8.25" (660 × 330 × 209 mm)

Dimensions With Riser (H × W × D): 32.2" × 13" × 10.9" (818 × 330 × 277 mm)
