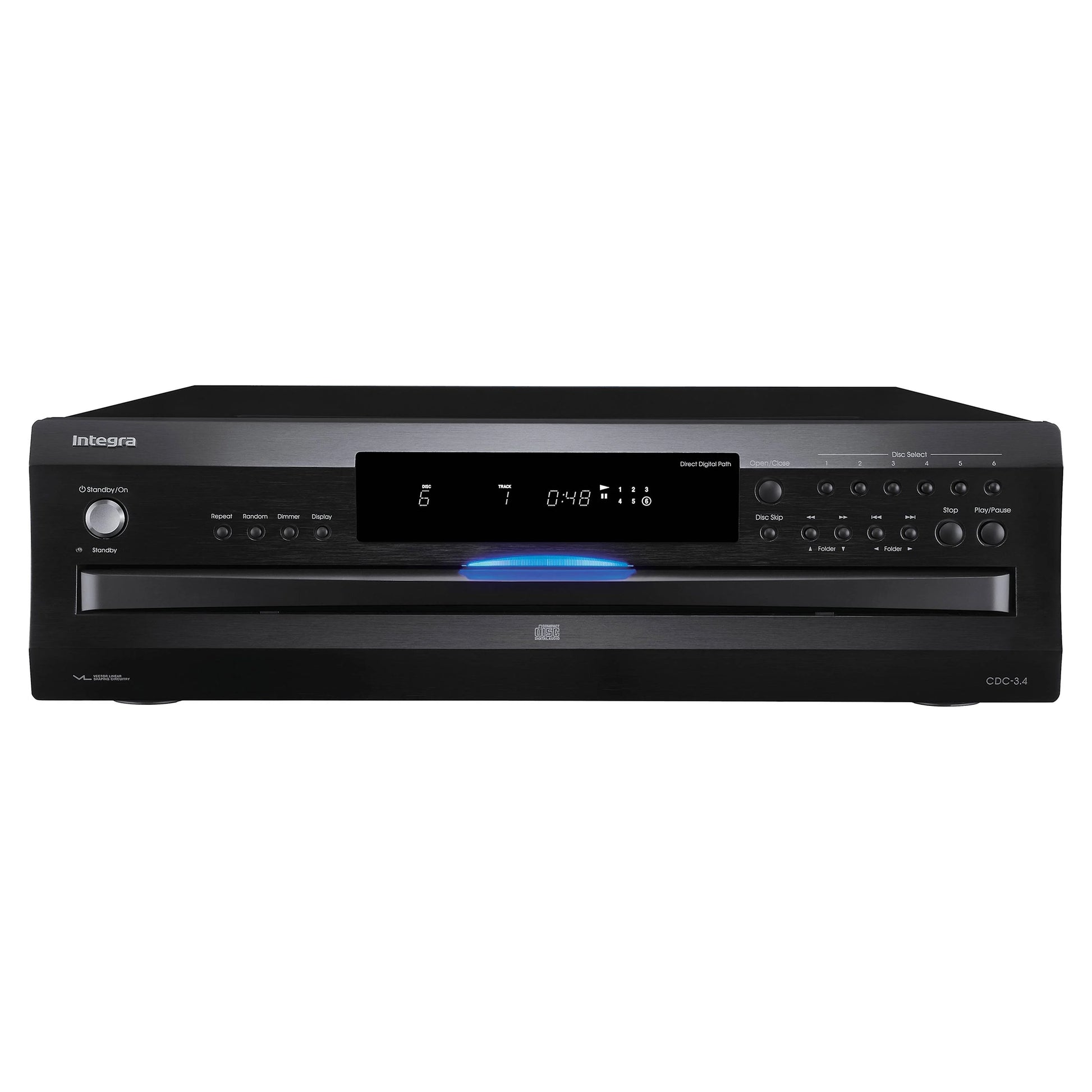

Integra CDC-3.4 Premium 6-Disc CD Carousel

Quiet, smooth 6-disc carousel with Wolfson 192 kHz / 24-bit DACs, VLSC noise-shaping, MP3 support, and full integration control

The CDC-3.4 continues Integra’s original 6-disc carousel design with ultra-smooth, quiet mechanics and an illuminated tray for visibility during loading. You can change up to five discs during playback.

Digital audio is handled by dual Wolfson 192 kHz / 24-bit DACs with 128x oversampling, VLSC (Vector Linear Shaping Circuitry) for a noise-free signal path, and robust CIRC error correction. The Direct Digital Path uses a shielded cable directly to the rear panel to preserve signal integrity.

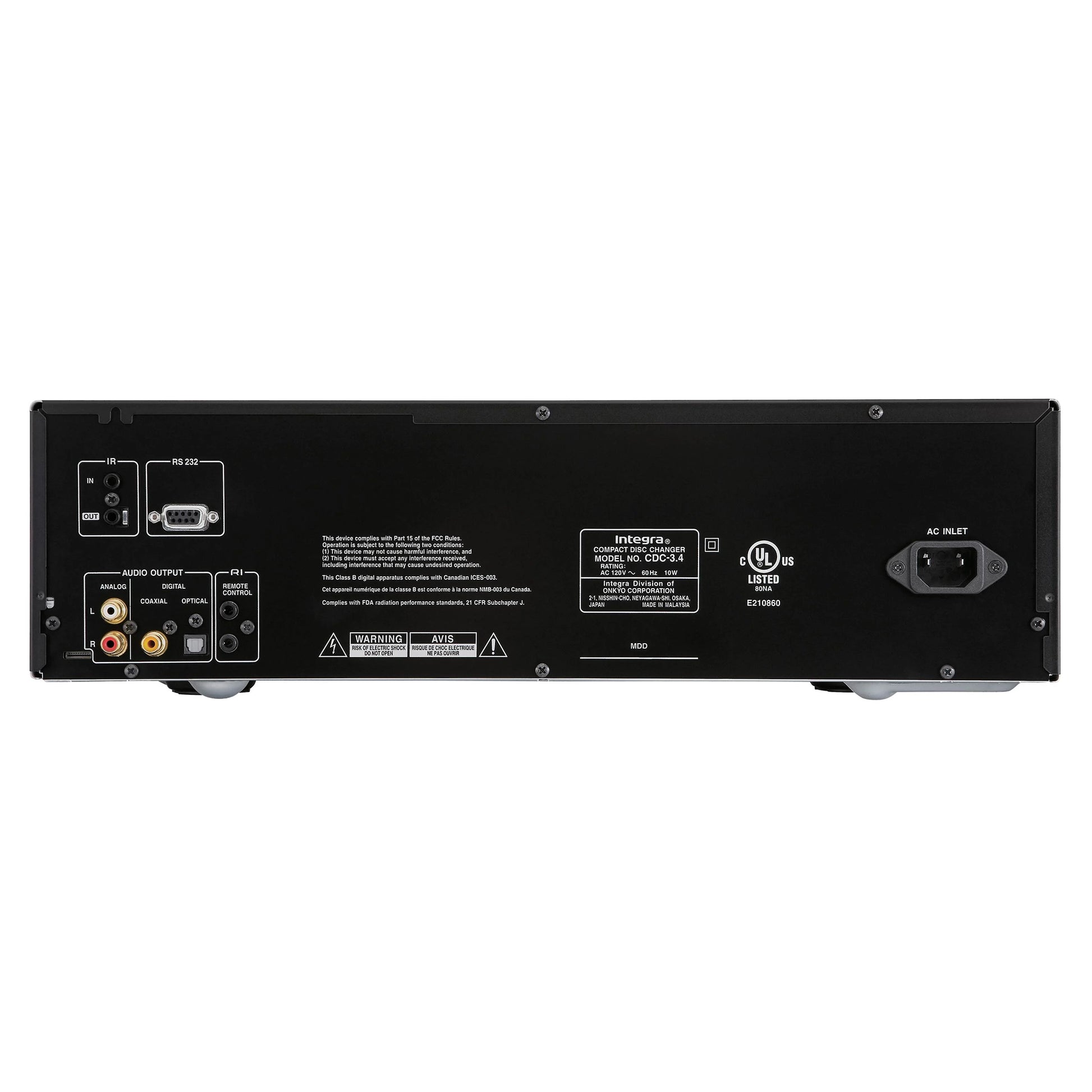

For system flexibility, all outputs are simultaneously active: optical and coaxial digital, plus analog stereo. Custom-install features include bi-directional RS-232, rear-panel IR in/out, RI (Remote Interactive) control, and 9 unique IR code sets for stacking multiple units. An optional rack-mount solution is available.

Specifications

Audio Performance

Error Correction System: Cross-Interleaved Reed-Solomon Code (CIRC)

Multi-Bit D/A Converter: 2 x Wolfson 192 kHz / 24-bit

Digital Filter: 128x oversampling

Outputs

Digital Optical: −22.5 dBm

Digital Coaxial: 0.5 V (p-p), 75 Ω, RCA

Analog Output: 2.0 V RMS, 470 Ω, RCA

Outputs: Parallel — all outputs simultaneously active

Terminals: Gold-plated

Playback

Disc Capacity: 6-disc carousel (change up to 5 discs during playback)

Formats: CD, CD-R/RW with MP3 playback

Repeat Modes: Entire disc, all discs, random tracks, memory tracks, random memory, single folder, single track

Shuffle/Random: Shuffle / true random play (including MP3)

Track Access: Direct track access

Memory: 40-track memory playback

ID3 Tags: Supported

Front Panel

Material: Anti-resonant aluminum

Tray: Illuminated disc tray

Integration & Control

RS-232: Bi-directional control port

IR: Rear-panel input and output

IR Codes: 9 unique sets for stacking

RI Control: Input and output

Rack Mount: Optional IRK-155-3D kit available

General

Power Supply: AC 120 V, 60 Hz

Power Consumption: 10 W

Dimensions (WHD): 17.13" x 5.19" x 17.19" (435 x 131 x 436 mm)

Weight: 15.2 lb. (6.9 kg)

Carton

Dimensions (WHD): 21.25" x 9.75" x 21" (541 x 248 x 533 mm)

Weight: 19 lb. (8.6 kg)
