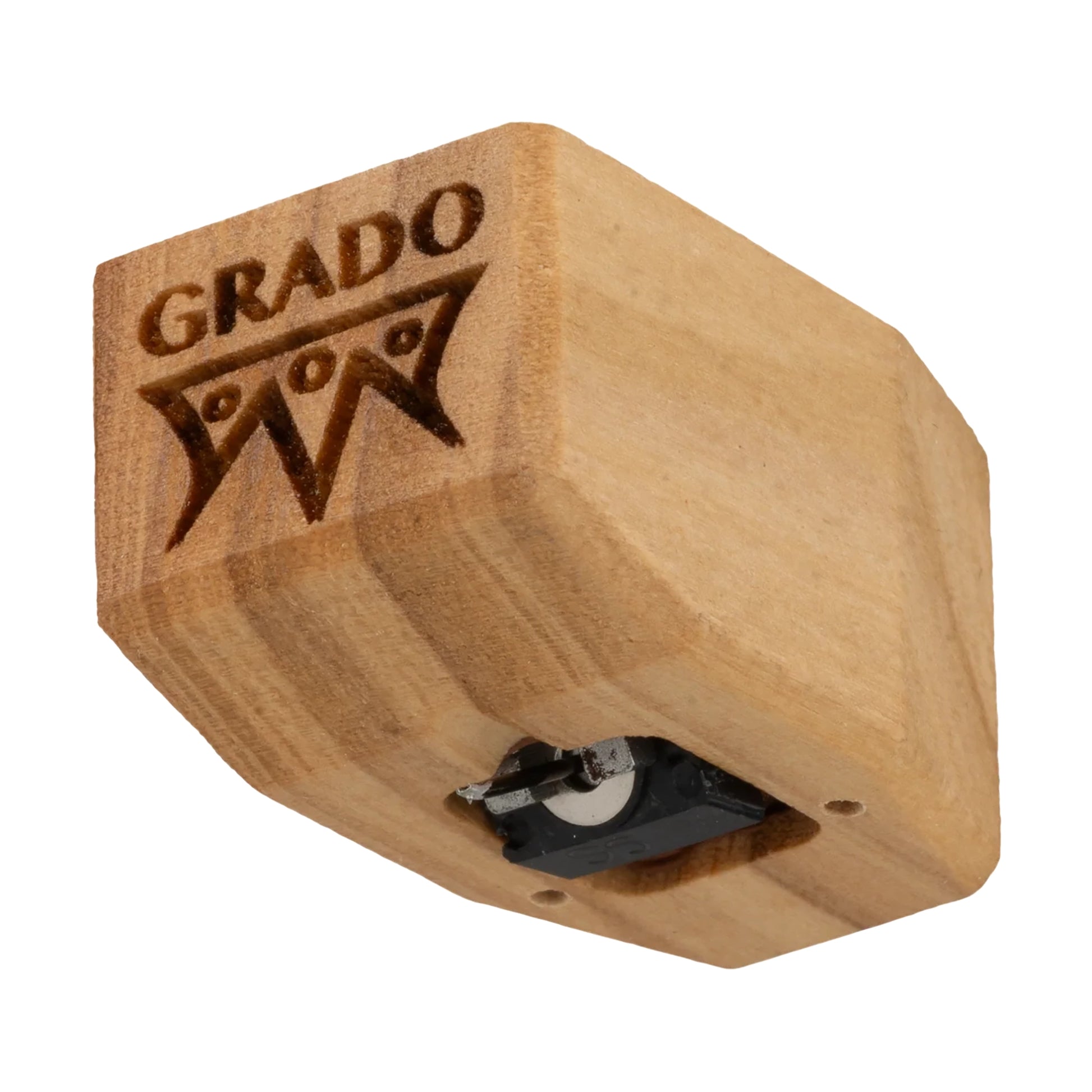

Grado Platinum4 Phono Cartridge

A Timbre Series moving iron cartridge with Mediterranean Olive wood body, bonded elliptical diamond, and aluminum cantilever

The Grado Platinum4 is part of Grado’s Timbre Series, positioned as an accessible wood-body cartridge designed for balance, clarity, and musicality. It uses a Mediterranean Olive wood body chosen to help control resonance, with a reshaped housing that improves cantilever visibility during setup.

Like all Grado cartridges, the Platinum4 is built around a moving iron design based on Joseph Grado’s patented flux-bridger principle. This keeps the coil structure fixed while using low moving mass to generate the signal, giving the cartridge a combination of speed, control, and long-term consistency.

The Platinum4 uses a bonded elliptical diamond mounted to an aluminum cantilever, with an internal signal path made from ultra-high purity 6N OCC copper. Each cartridge also undergoes cryogenic treatment and internal damping to help reduce unwanted resonance and preserve signal integrity.

High-Output, Low-Output, and Mono Builds

Platinum4 is available in high-output and low-output stereo versions, allowing compatibility with a wide range of phonostages. Mono high-output and mono low-output versions are also available as special-order builds.

Moving Iron Design

Grado’s moving iron architecture is designed to combine the low moving mass often associated with moving coil cartridges with the practical stability of a fixed-coil design. The result is a cartridge intended to deliver clarity, separation, and tonal integrity without requiring a fragile moving coil assembly.

Diamond and Cantilever

The bonded elliptical diamond provides effective groove contact and reliable tracking, while the aluminum cantilever contributes to a stable and balanced presentation. This pairing supports the Platinum4’s clarity, control, and smooth top end across a wide range of recordings.

Wood Body Construction

The Mediterranean Olive wood body gives the Platinum4 its distinctive appearance while helping manage resonance. The revised housing shape also improves visibility during alignment, making setup easier across a wide range of tonearms.

Specifications

Body: Mediterranean Olive wood

Generator Type: Moving iron

Cantilever and Stylus: Aluminum cantilever with bonded elliptical diamond

Output (High, Low): 4 mV, 1 mV

Inductance (High, Low): 55 mH, 6 mH

Resistance (High, Low): 660 Ω, 70 Ω

Input Load: 10 kΩ–47 kΩ

Tracking Force: 1.6 g–1.9 g

Compliance: 20 µm/mN

Channel Separation: Average 30 dB, 10 Hz–30 kHz

Controlled Frequency Response: 10 Hz–60 kHz

Capacitive Load: Non-sensitive to capacitive load

Builds: High Output, Low Output, Mono

Weight: 9.4 g
