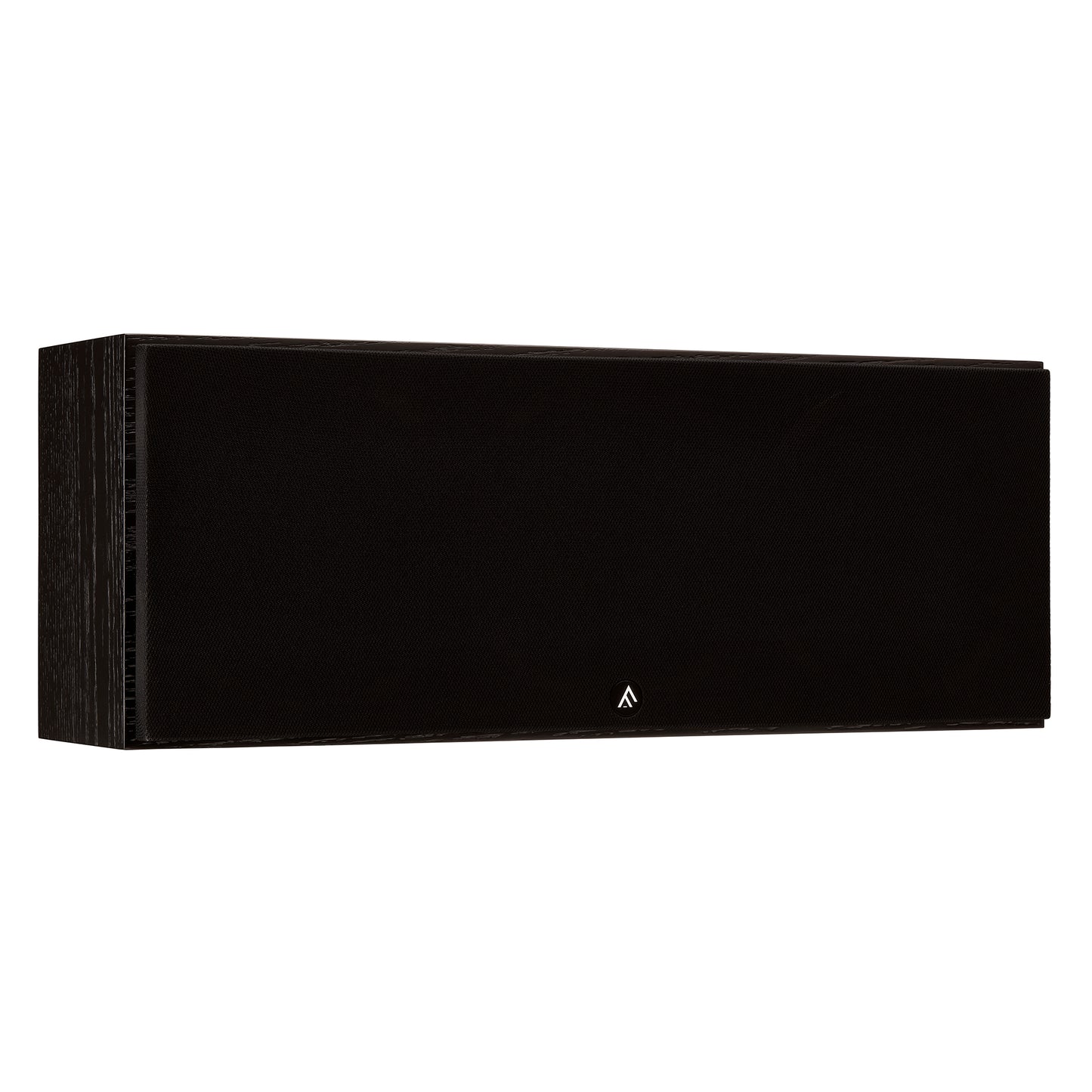

Fyne Audio F500S LCR Loudspeaker (each)

With 6" woofer, 6" ABR, 6" bass-mid driver, 25 mm magnesium dome tweeter, and 90 dB sensitivity

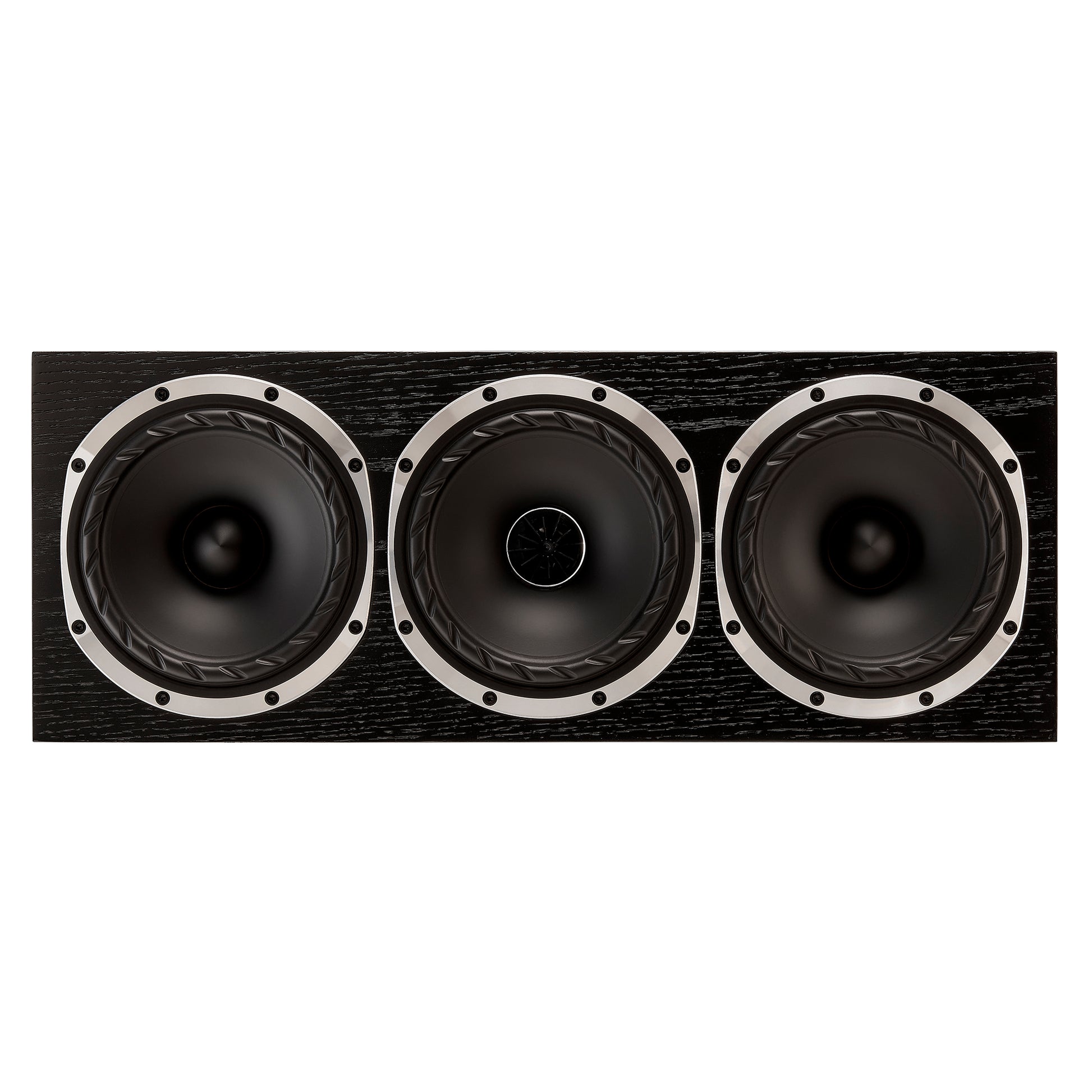

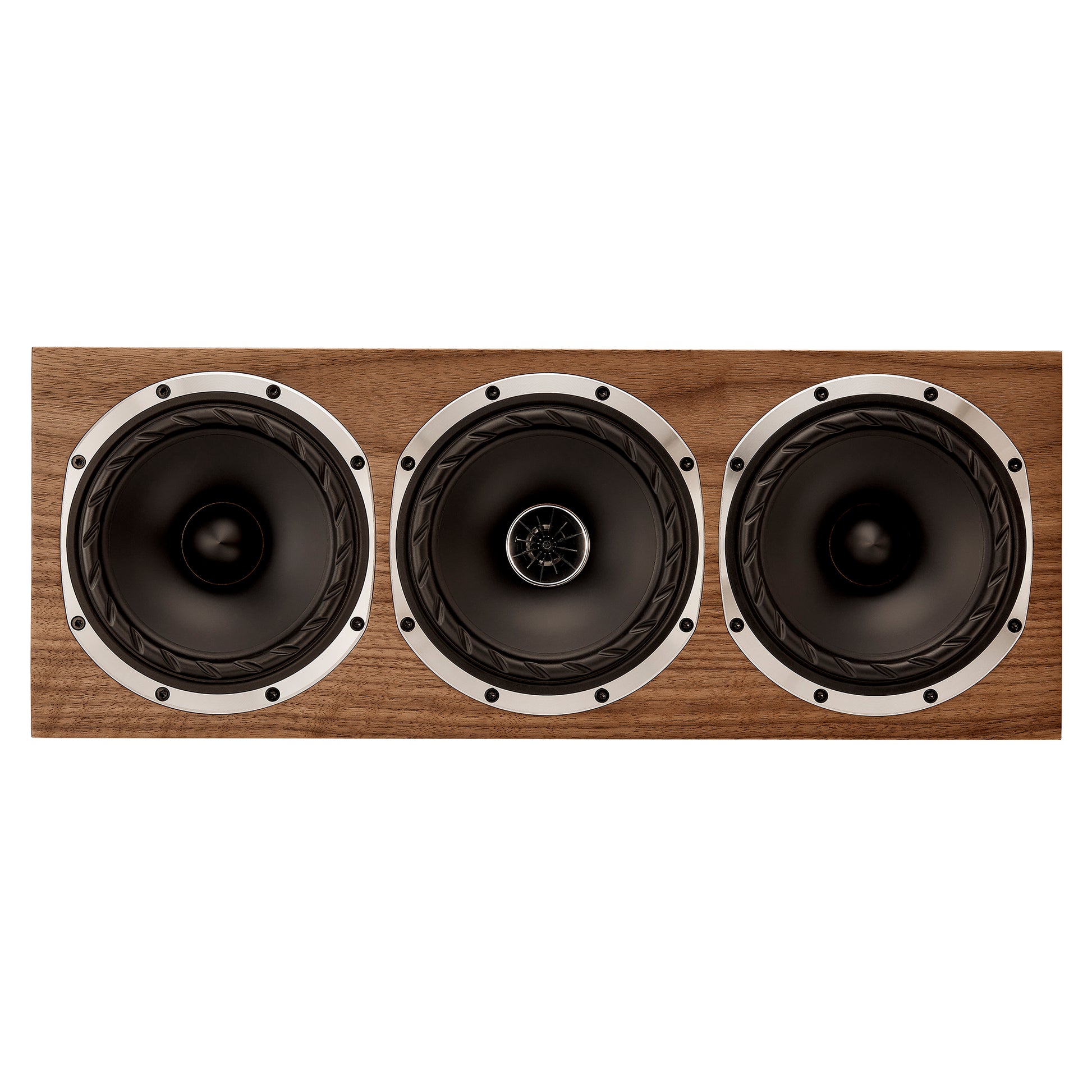

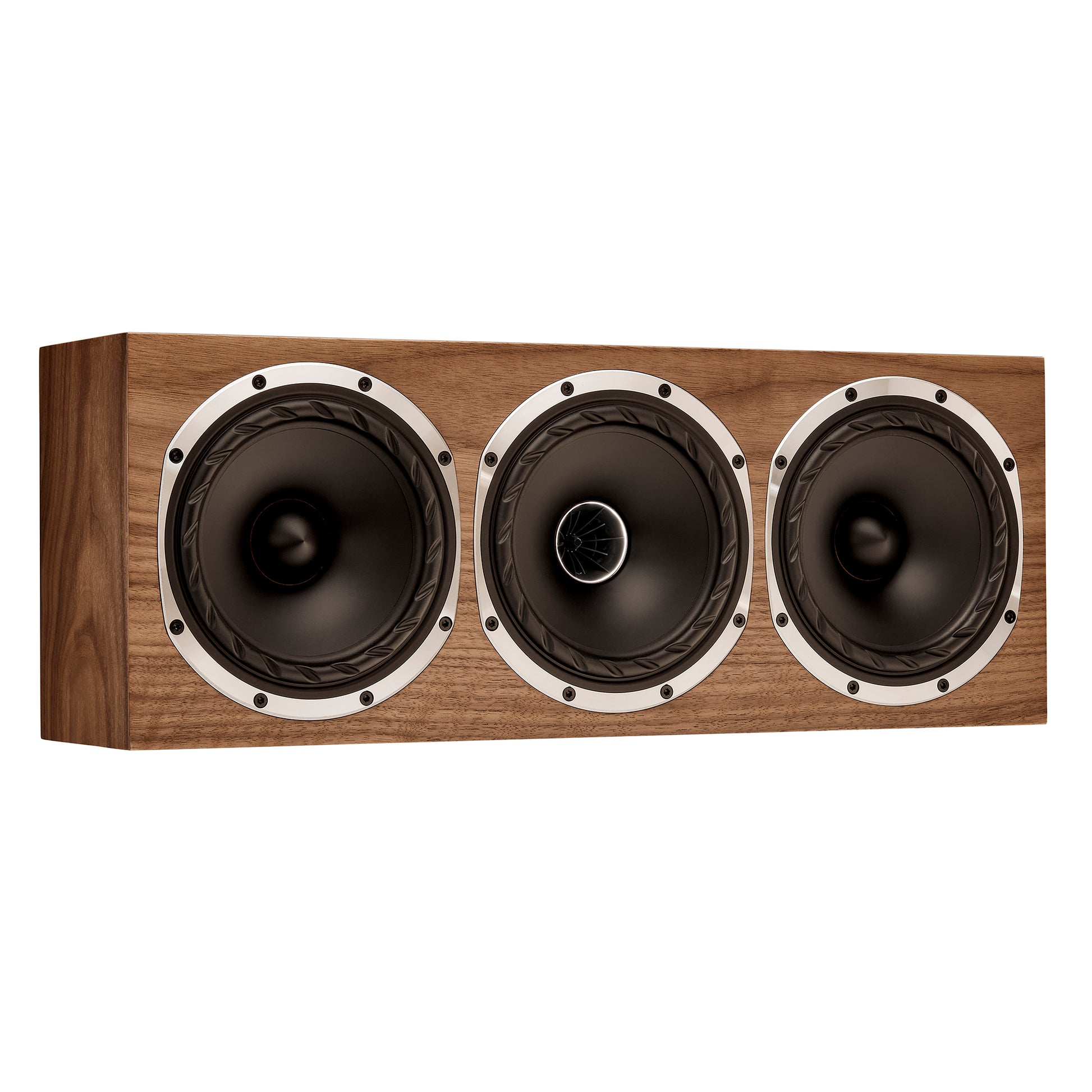

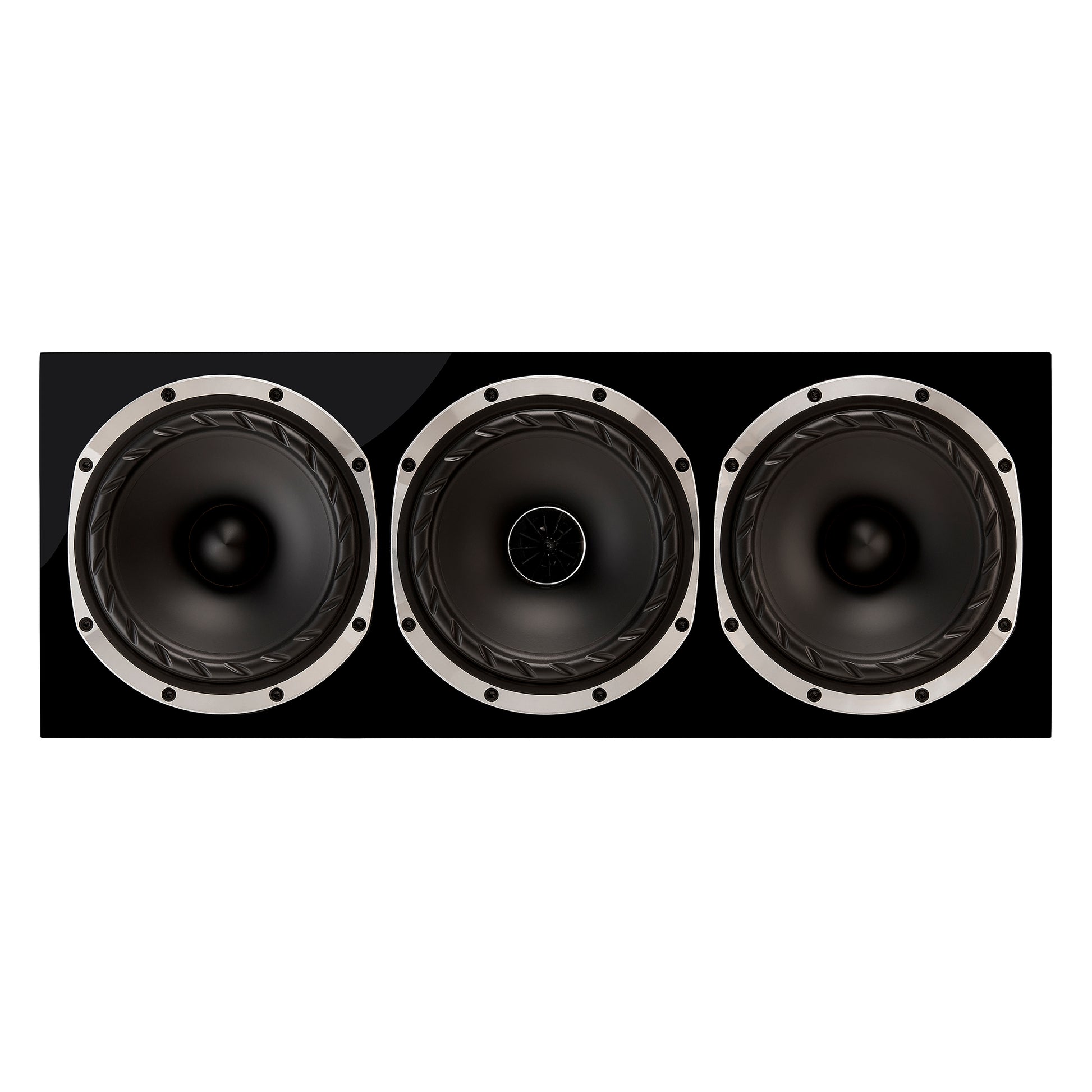

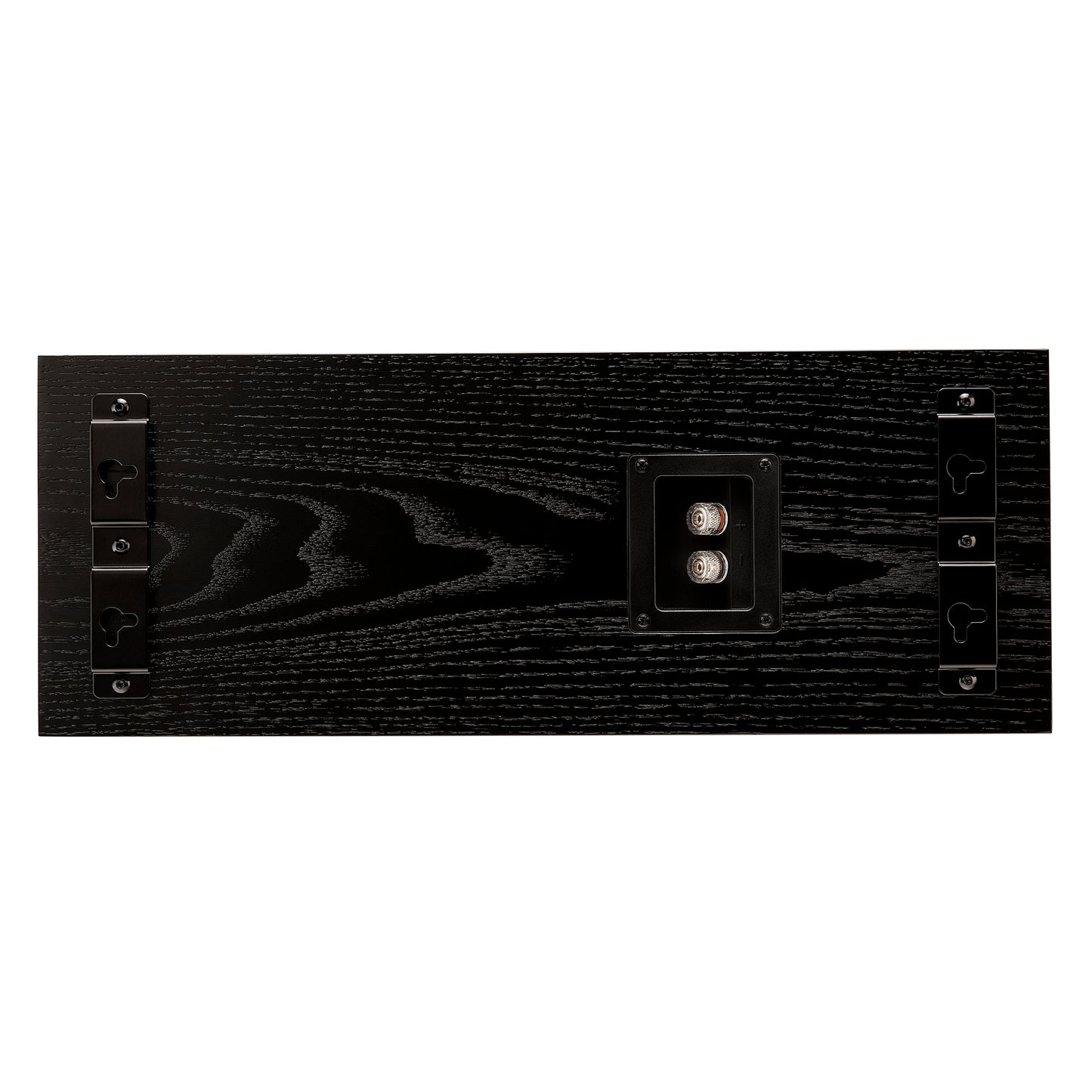

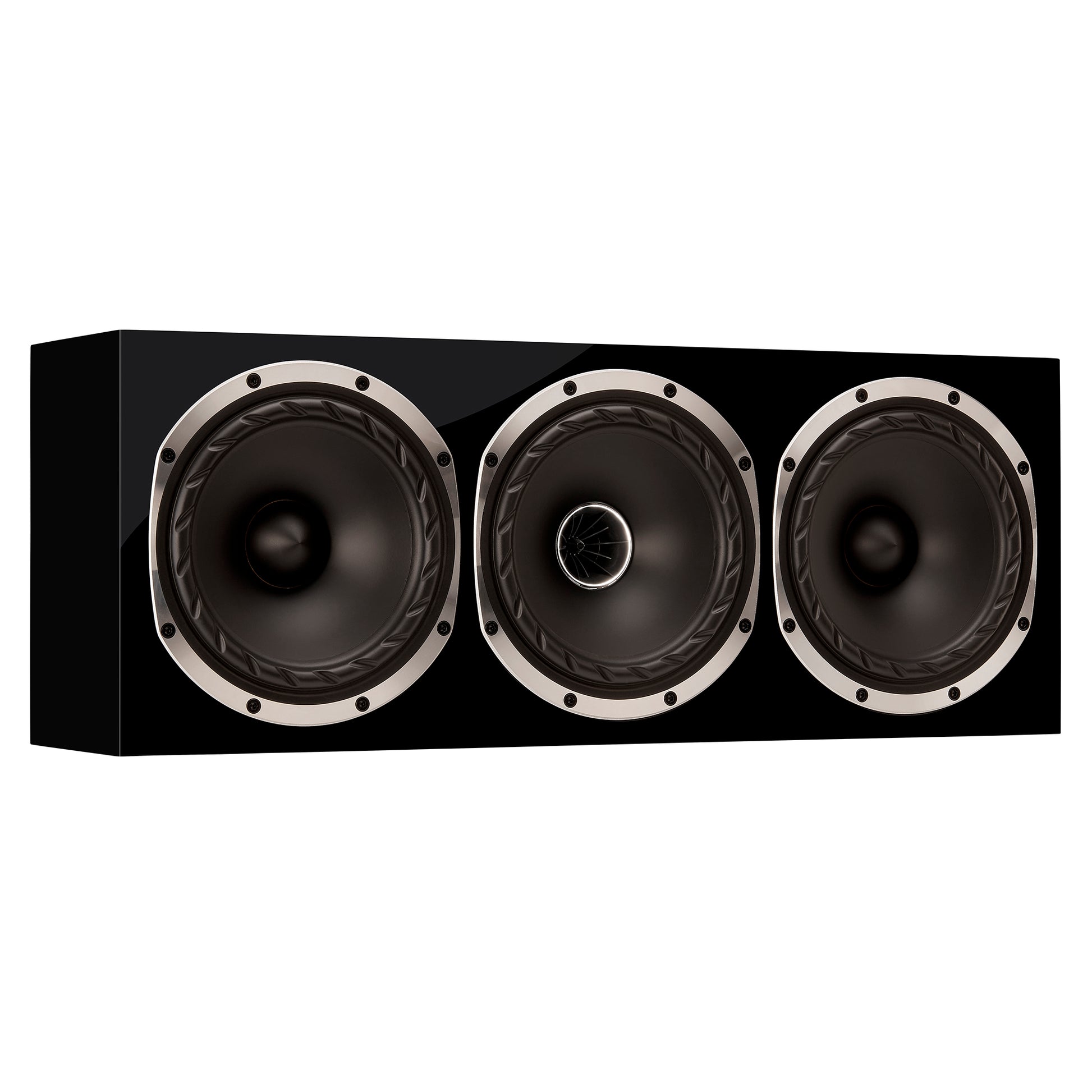

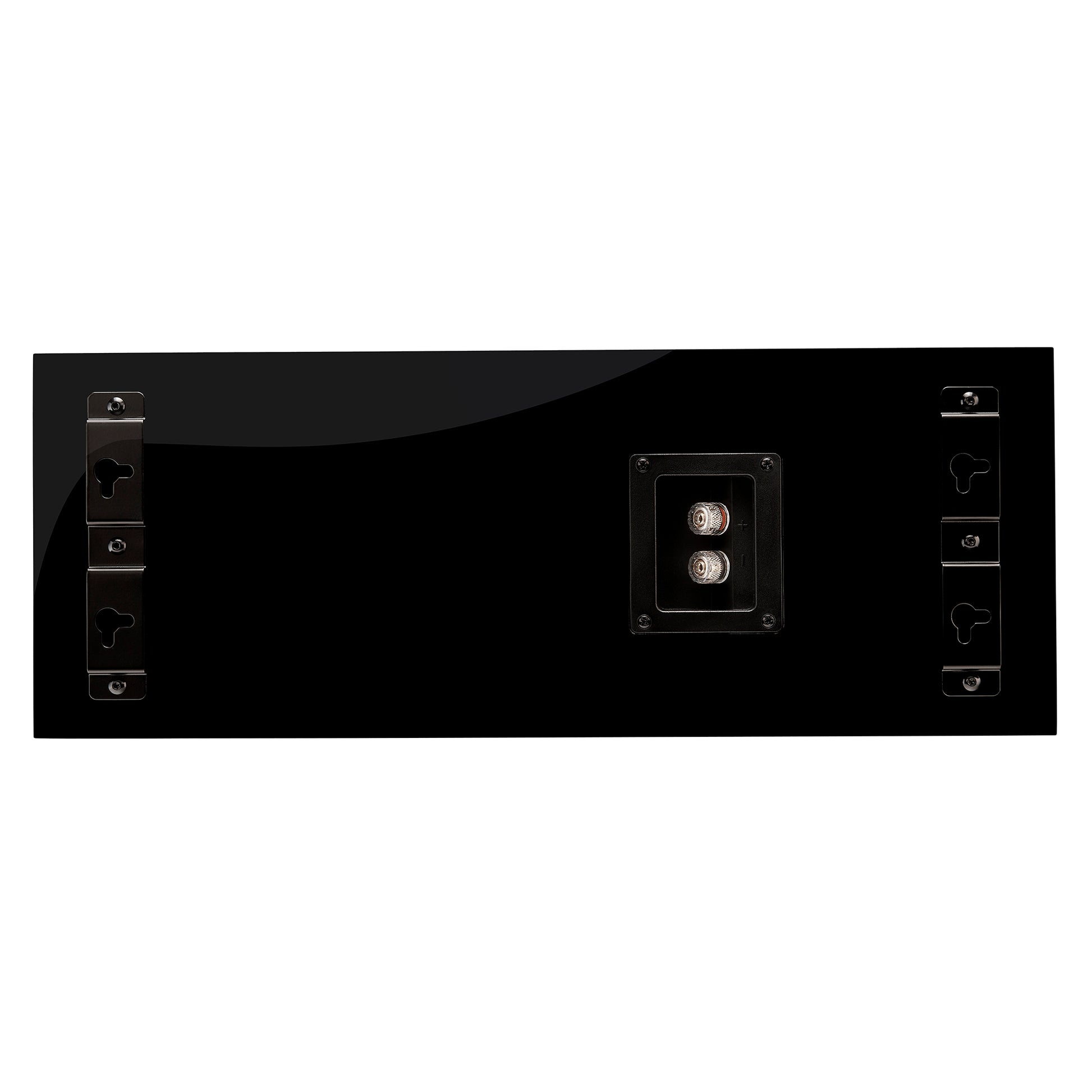

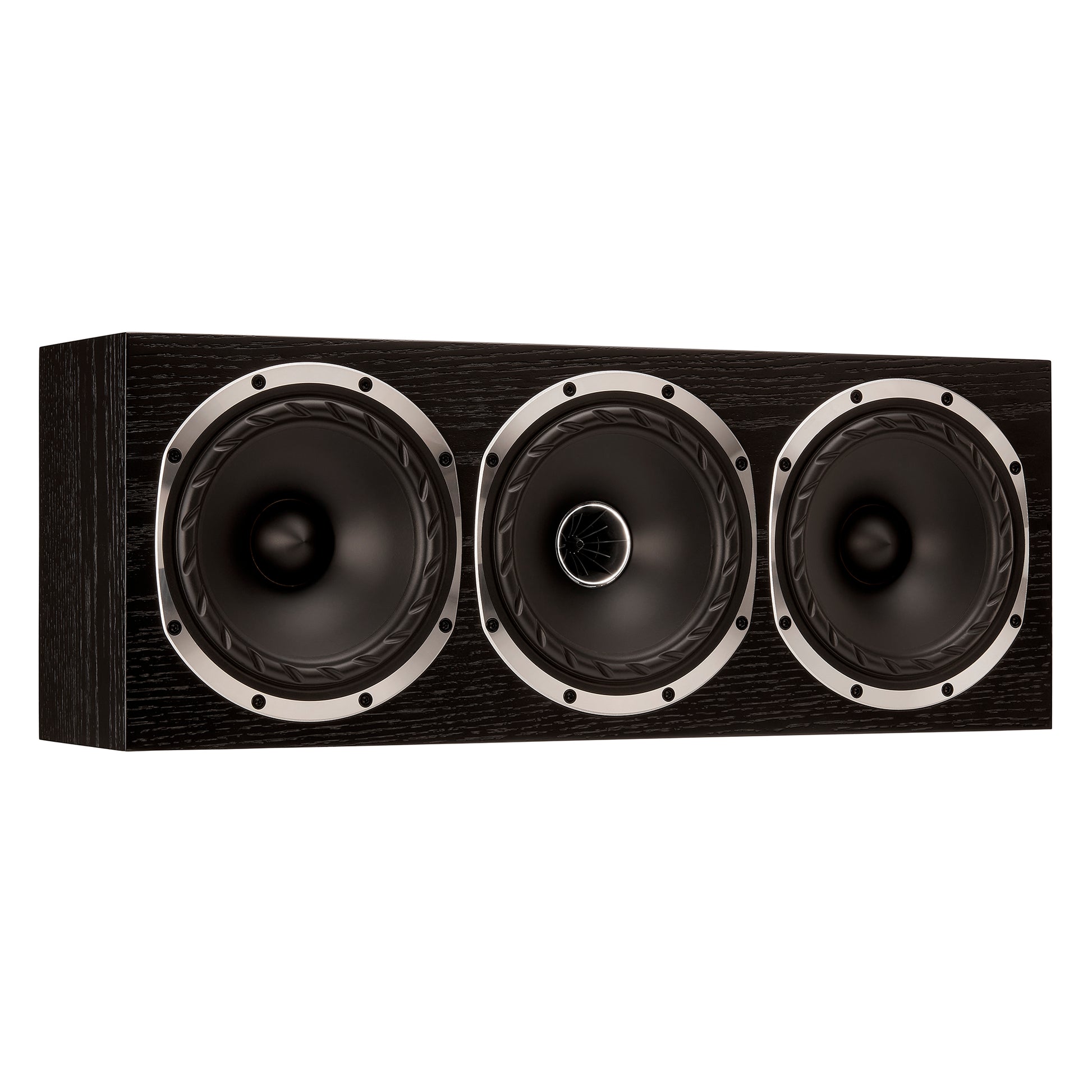

The F500S LCR is a versatile, wall-mountable loudspeaker designed for left, center, or right channel use. It features the next evolution 6” IsoFlare driver with a 25 mm titanium dome tweeter, ensuring clear dialog and an immersive soundstage.

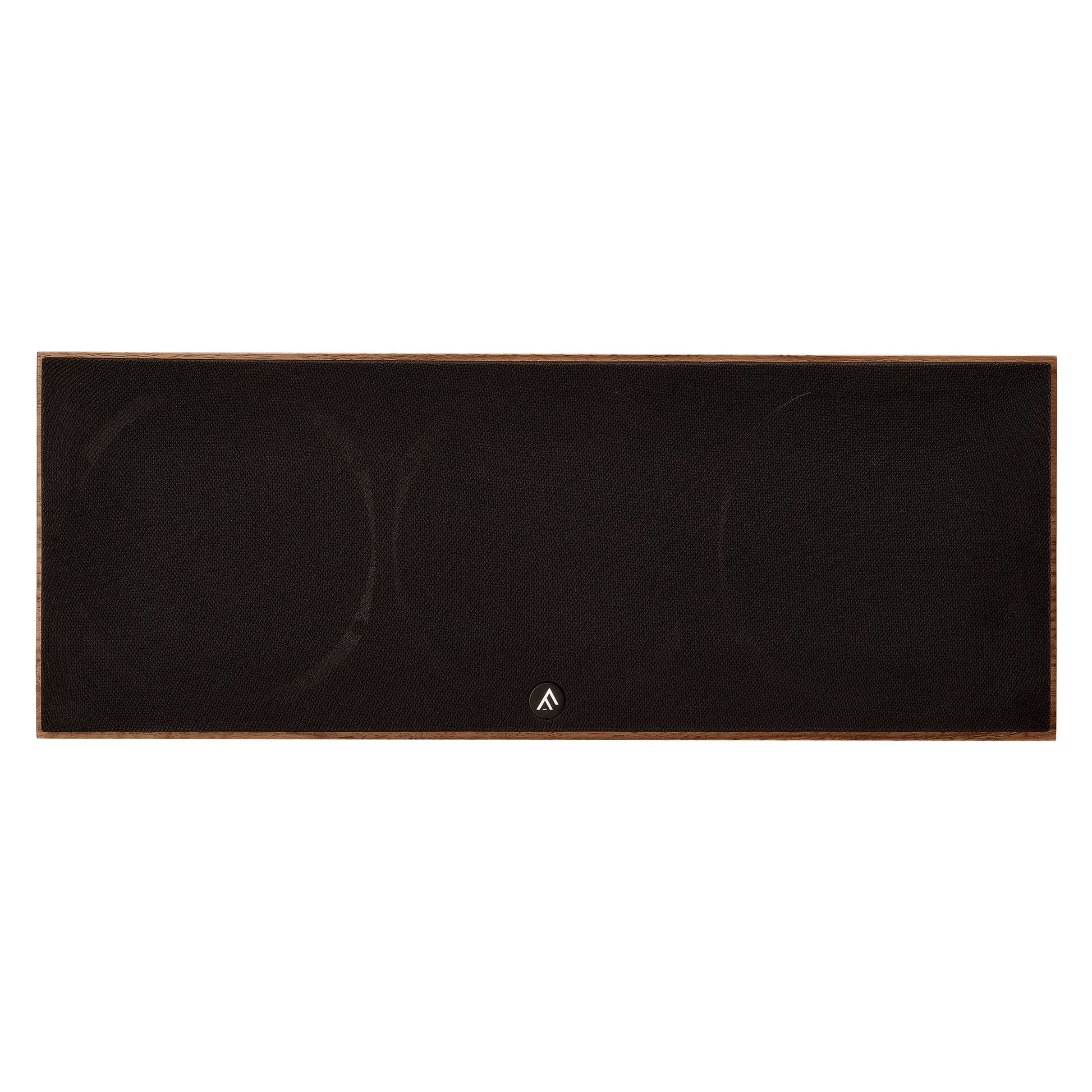

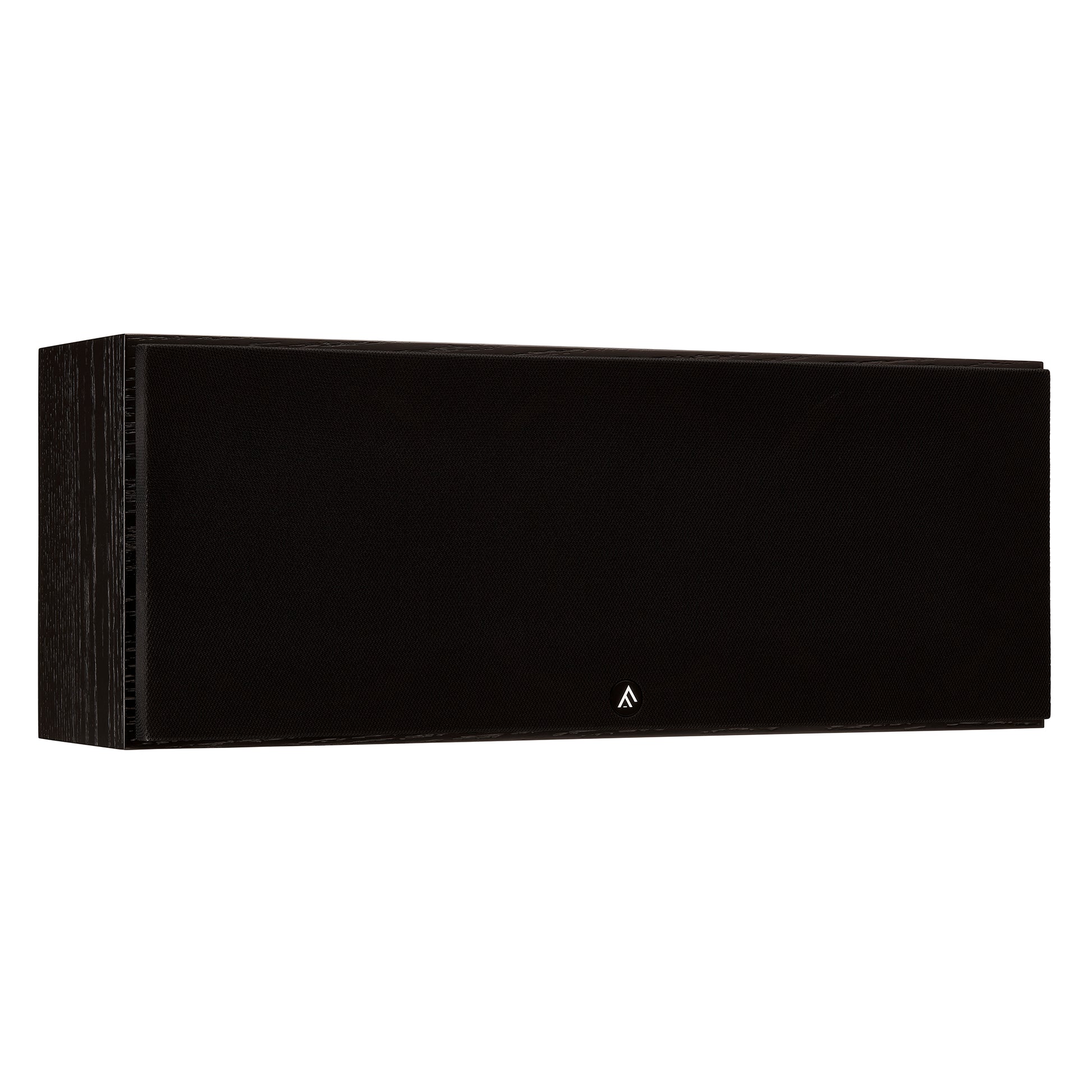

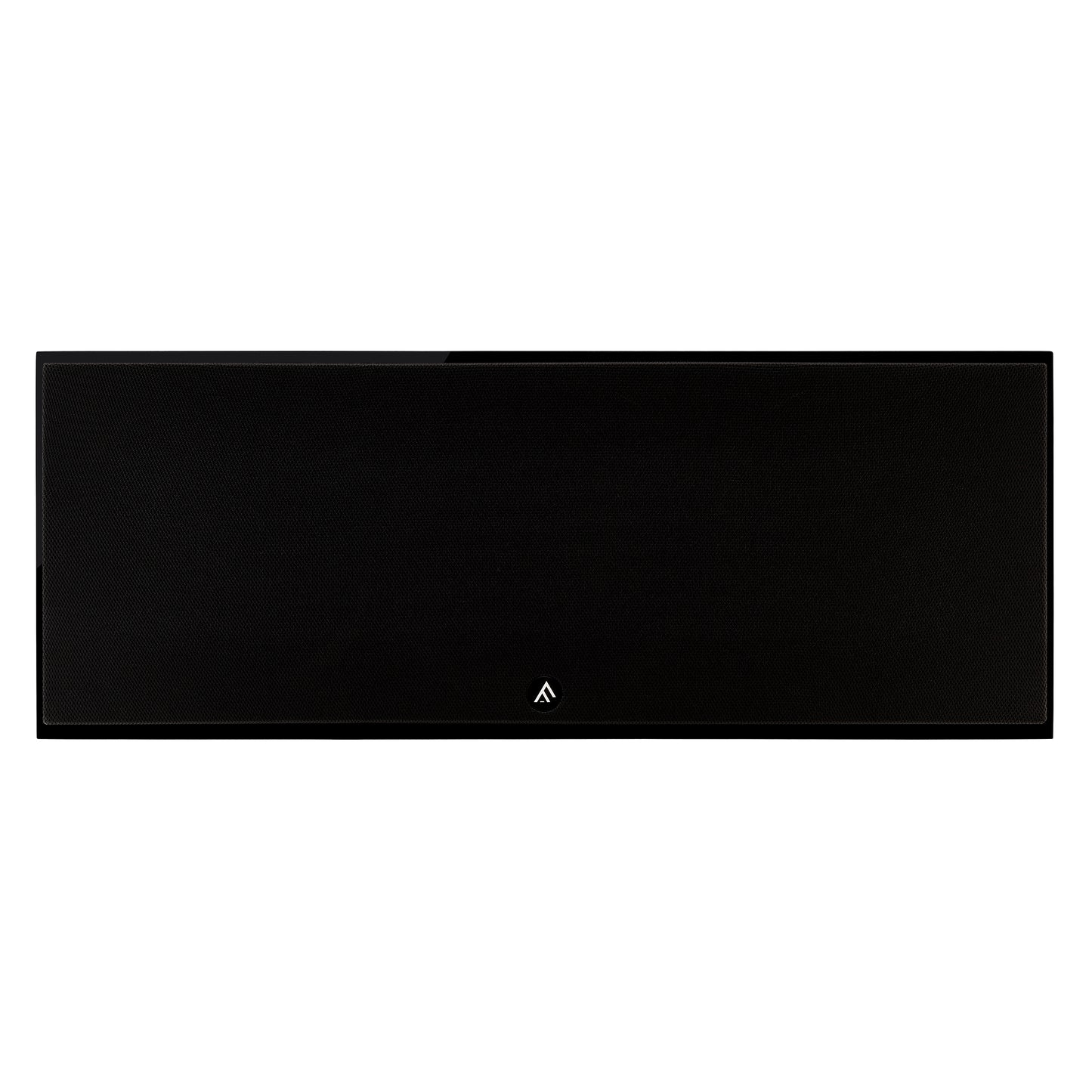

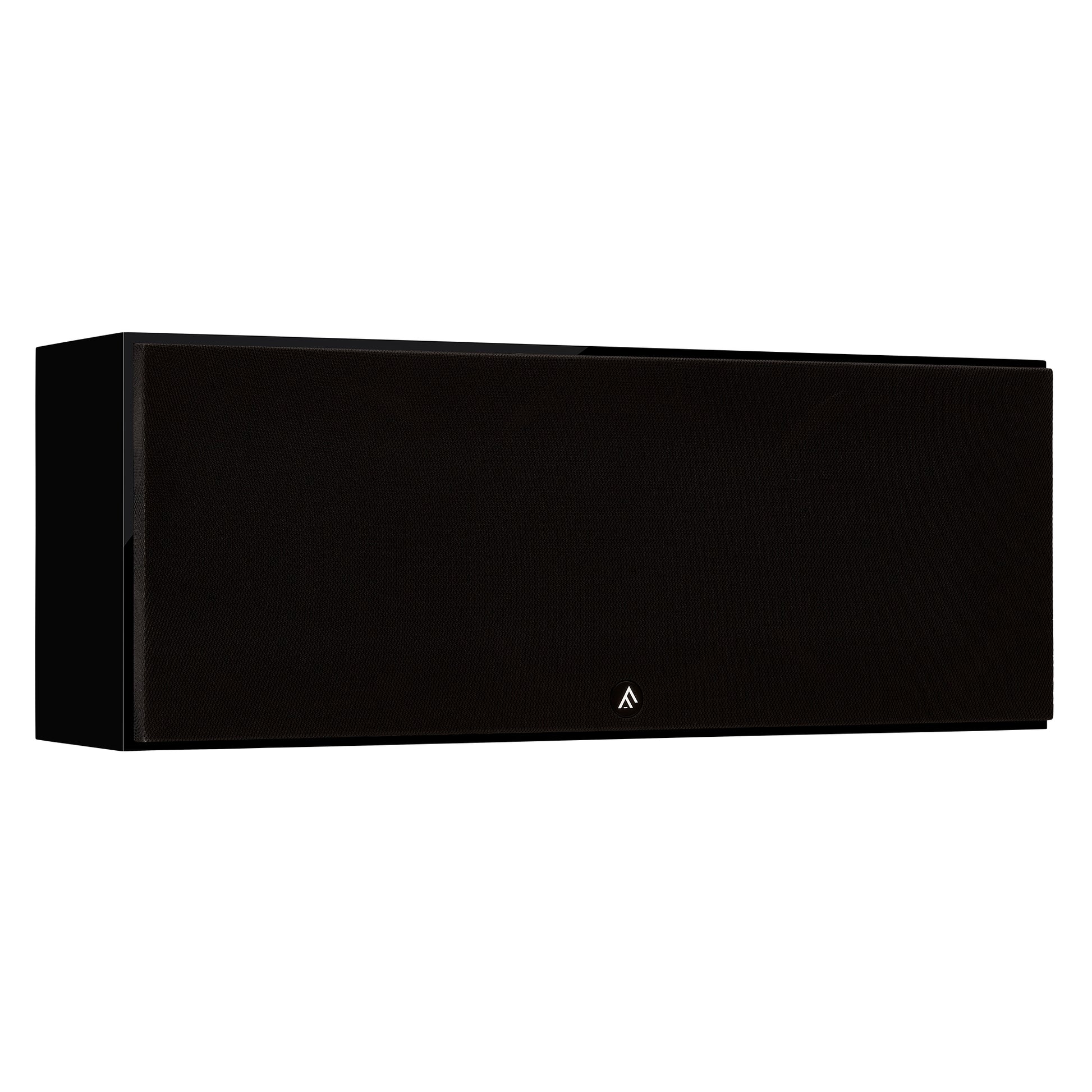

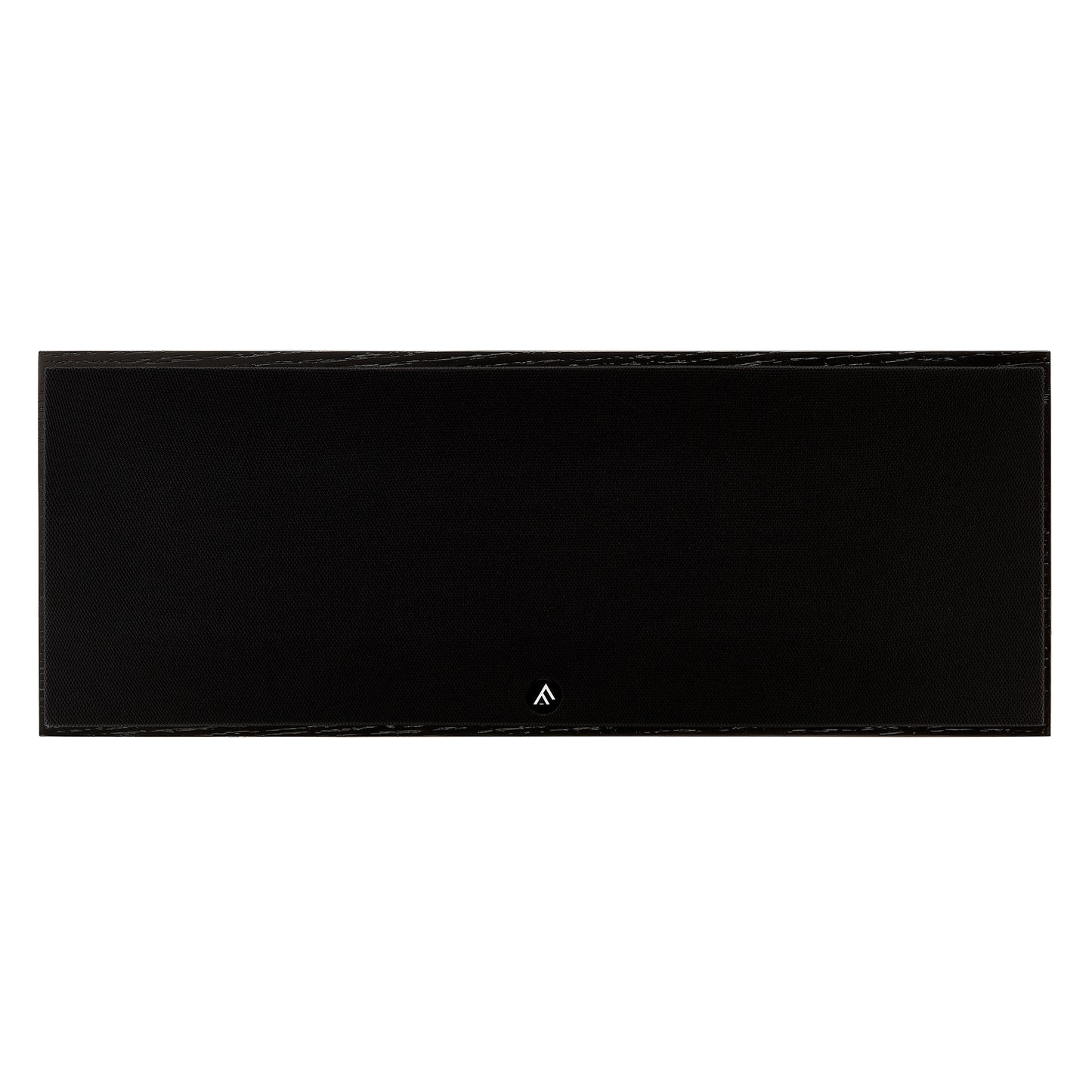

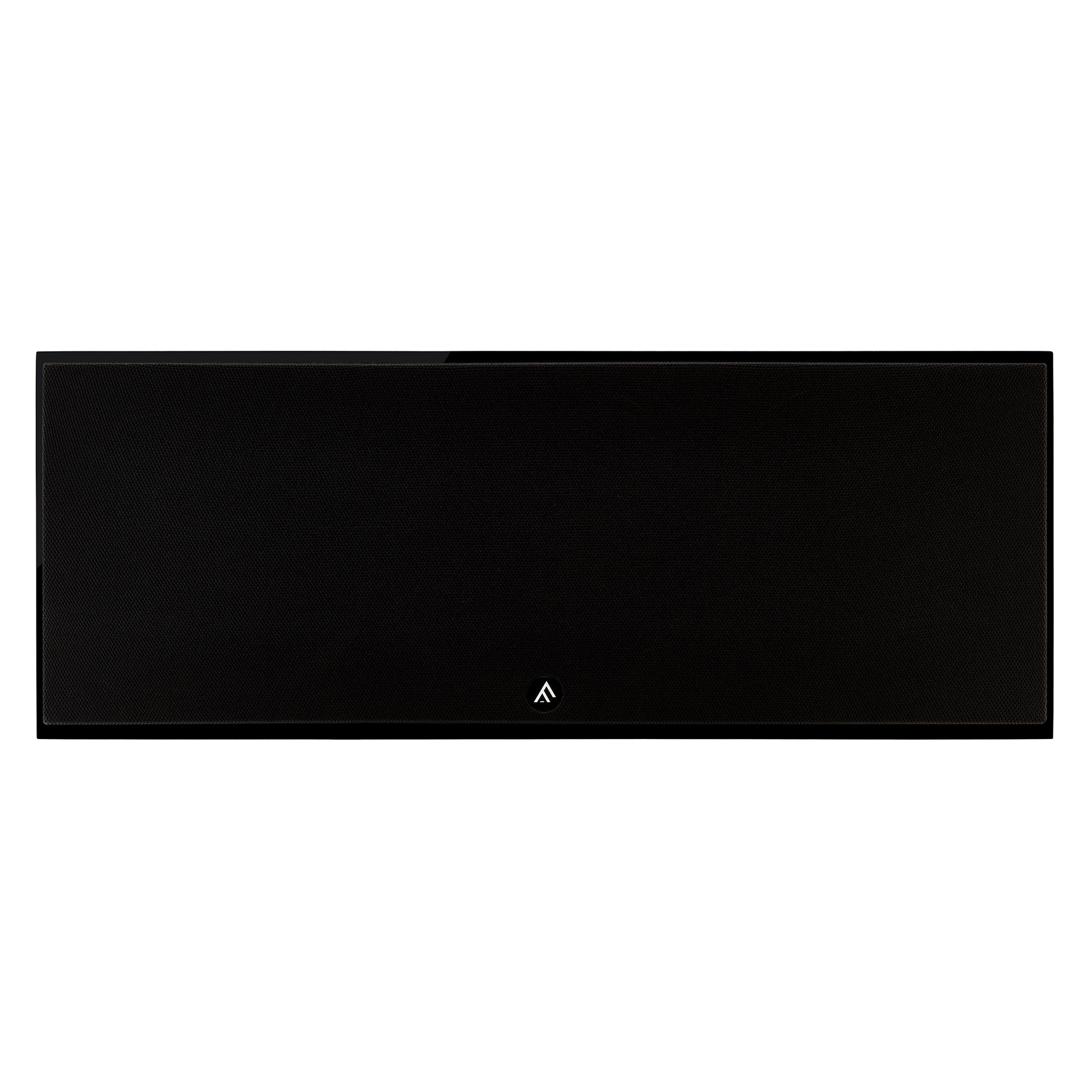

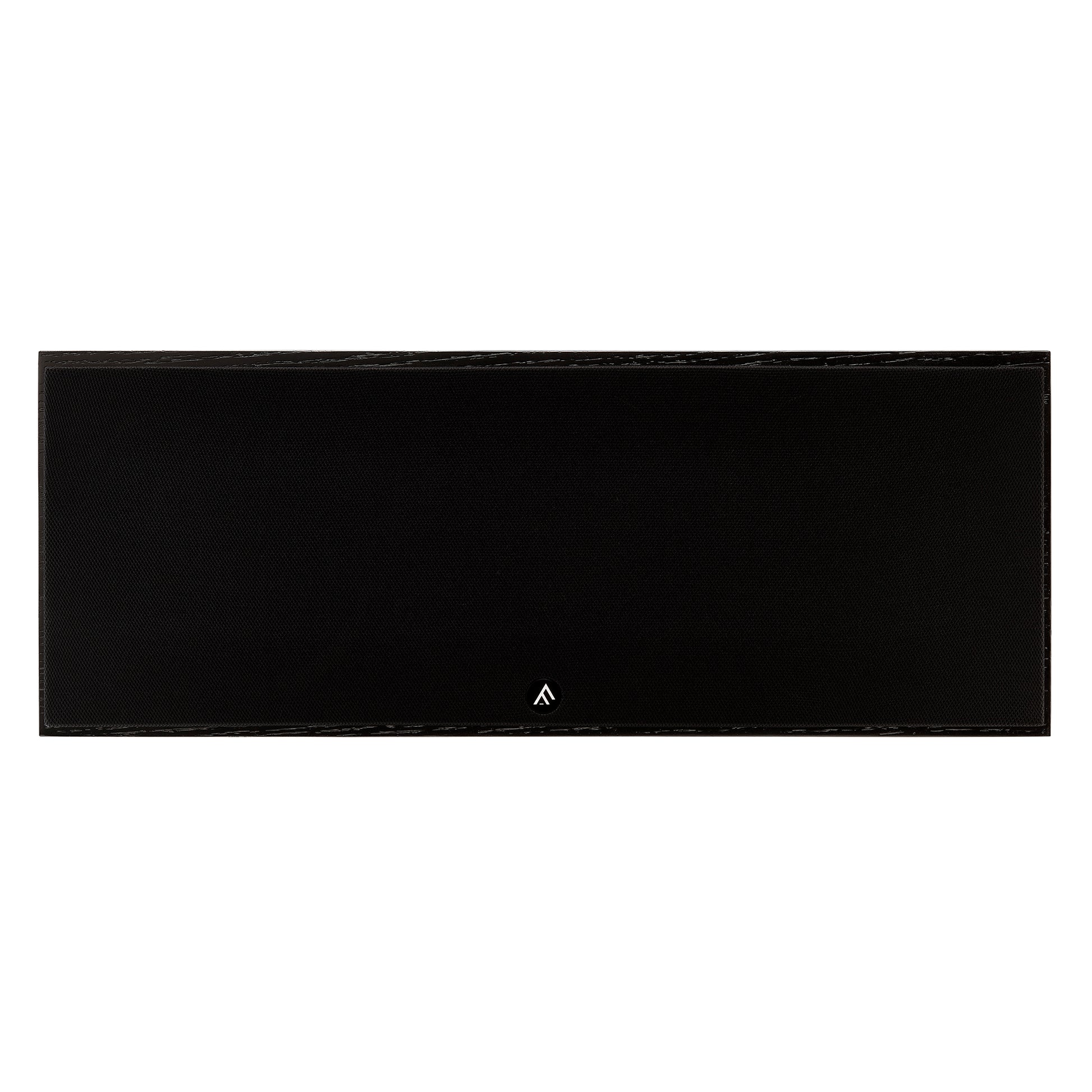

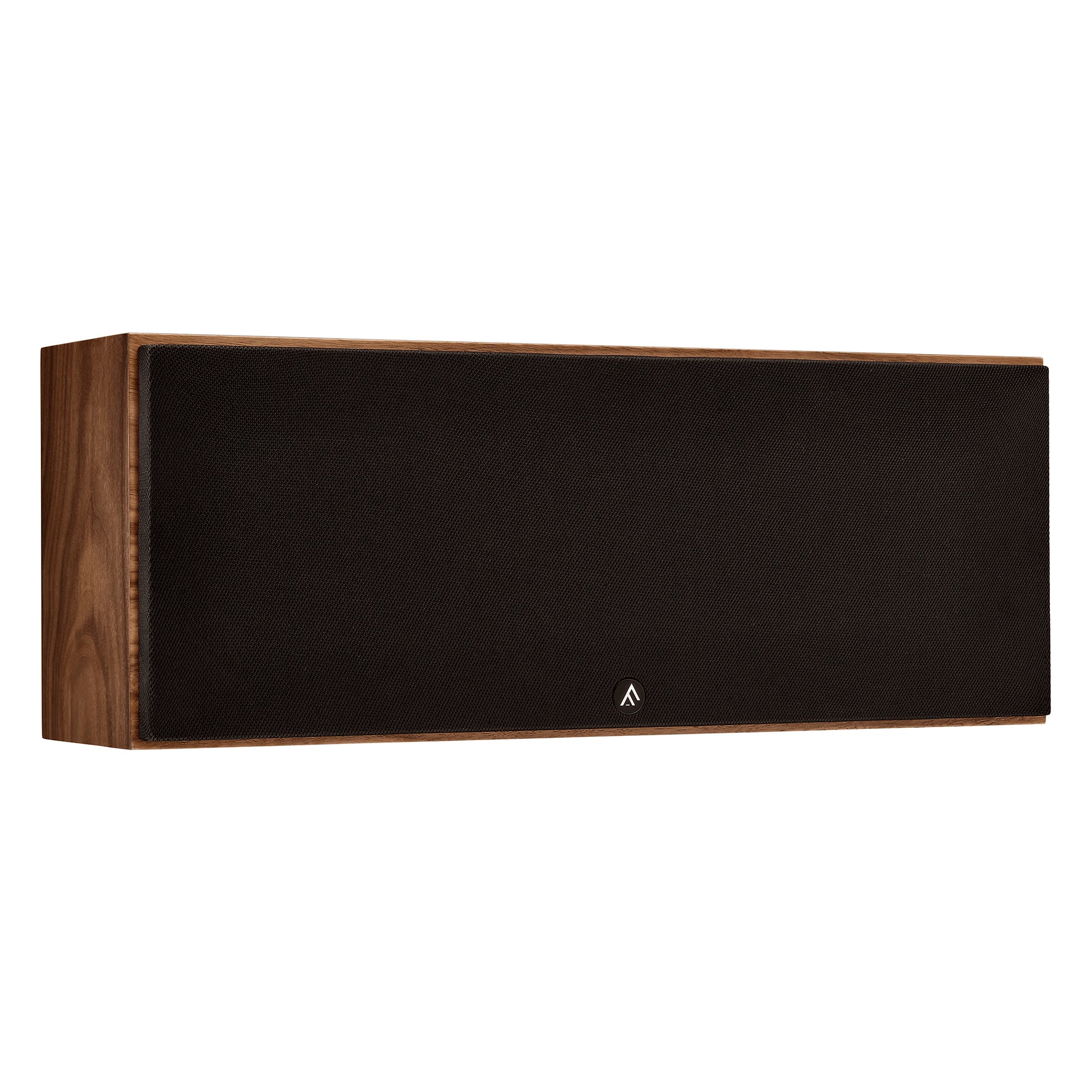

Its auxiliary bass radiator (ABR) system replaces traditional ports, providing tightly controlled bass while allowing flexible placement, including close-to-wall installations. Compact yet powerful, the F500S LCR blends seamlessly into any home cinema setup, delivering precise, dynamic audio with Fyne Audio’s signature clarity. Available in two real wood veneer finishes or Piano Gloss Black, this truly is a versatile speaker for any environment.

Here’s more on the core Fyne Audio technologies that are used in the F500 Series.

IsoFlare

Fyne Audio’s IsoFlare™ technology is a true point source design: low, mid, and high frequencies all emanate from the same physical point, thanks to the coaxial arrangement of the mid/bass cone and magnesium dome tweeter. This architecture ensures perfect time and phase alignment across the frequency spectrum. The result is:

• Unmatched clarity and holographic imaging
• Accurate reproduction of instruments’ natural tonal character
• An immersive experience that draws you into the music
• Whether you're sitting dead-center or off to the side, the IsoFlare™ driver ensures sound remains balanced and true—preserving the relationship between fundamentals and harmonics no matter where you are in the room.


FyneFlute

The flexible surround of a driver cone allows the cone to move back and forth to create sound. This material is not perfect and can reflect energy back onto the cone, or resonate at certain frequencies, a class of distortions called mis-termination effects. Fyne Audio discovered that a variable geometry using special computer designed fluting on the surround, effectively terminates cone energy and eliminates the mis-termination effects and reduces coloration, providing greater musical accuracy.

High-Quality Crossover

The F500S Series features expertly engineered crossovers designed to deliver exceptional sound clarity and detail. Each model incorporates high-quality components, including low-loss laminated core inductors and premium polypropylene film capacitors, to ensure minimal signal degradation.

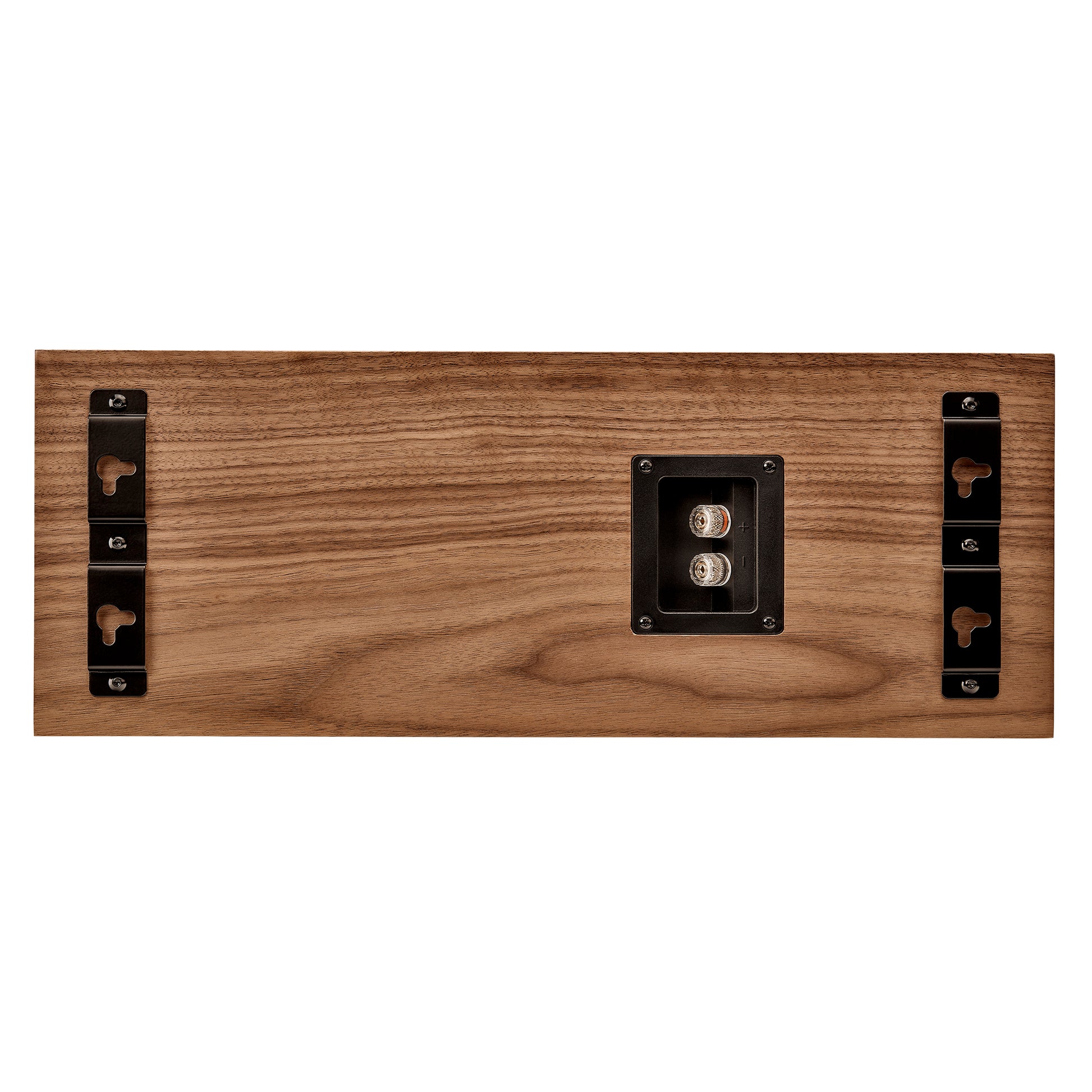

These crossovers are meticulously crafted and computer-optimized, with final adjustments made by ear to achieve a perfectly balanced frequency response. This precise tuning ensures seamless integration between the bass, midrange, and treble drivers, resulting in a natural, immersive soundstage. All but the LCR models also offer bi-wire terminals, allowing for improved signal separation and enhanced audio fidelity, catering to discerning audiophiles.

Specifications

Type: 2.5 way with auxiliary bass radiator

Sensitivity: 90 dB

Nominal Impedance: 8 ohm

Frequency Response (-6 dB typical in room): 56 Hz-34 kHz

Drivers (Neodymium magnet system)
High: 25 mm magnesium dome compression tweeter
Mid/Bass: 1 x 5.9" (150 mm) IsoFlare point source
Bass: 1 x 5.9" woofer, 1 x 5.9" ABR

Crossover Frequency: 250 Hz, 1.7 kHz

Crossover Type: 2nd order low pass, 1st order high pass

Dimensions (HWD): 7.9" x 20.9" x 6" (200 x 530 x 152 mm)

Weight: 22.5 lb.
