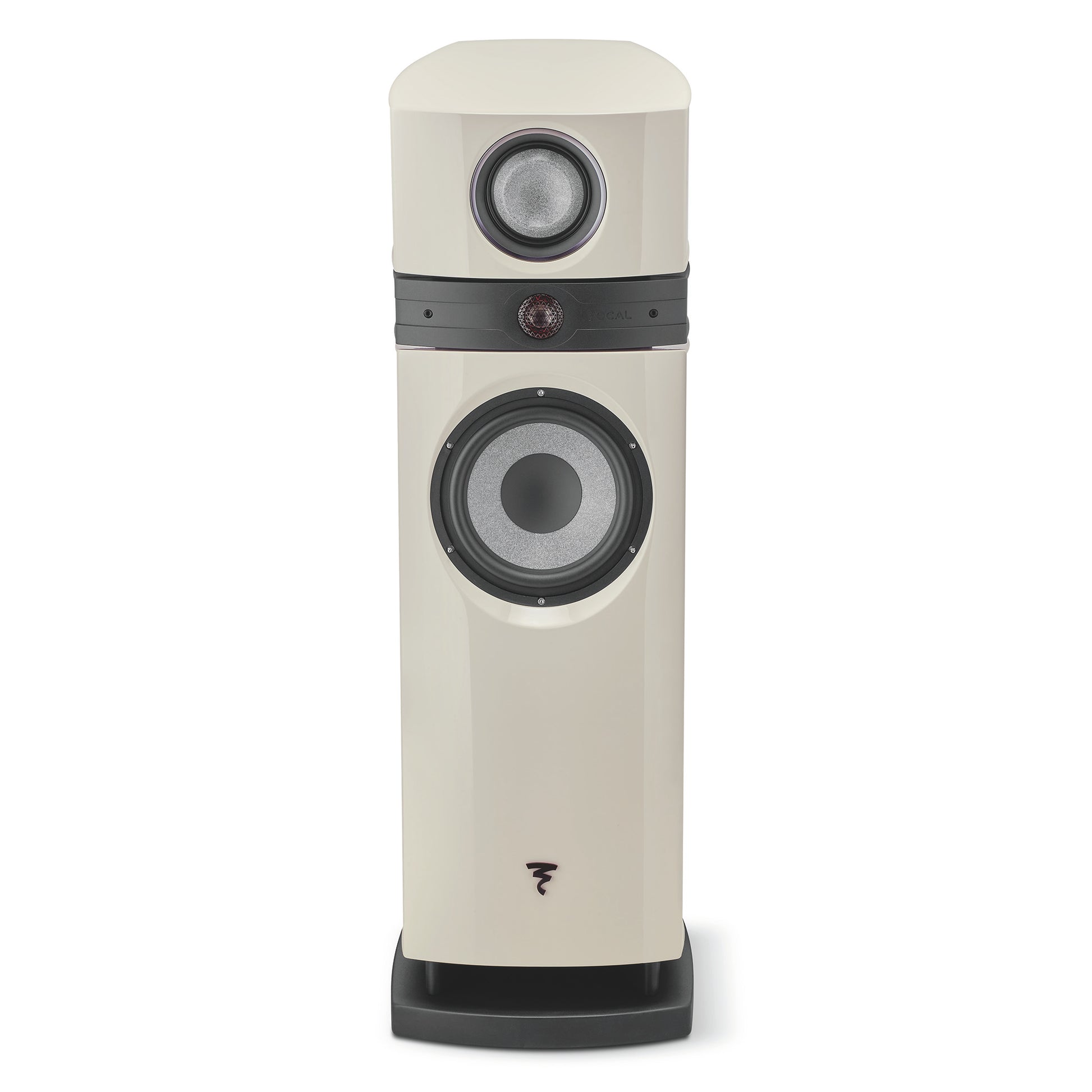

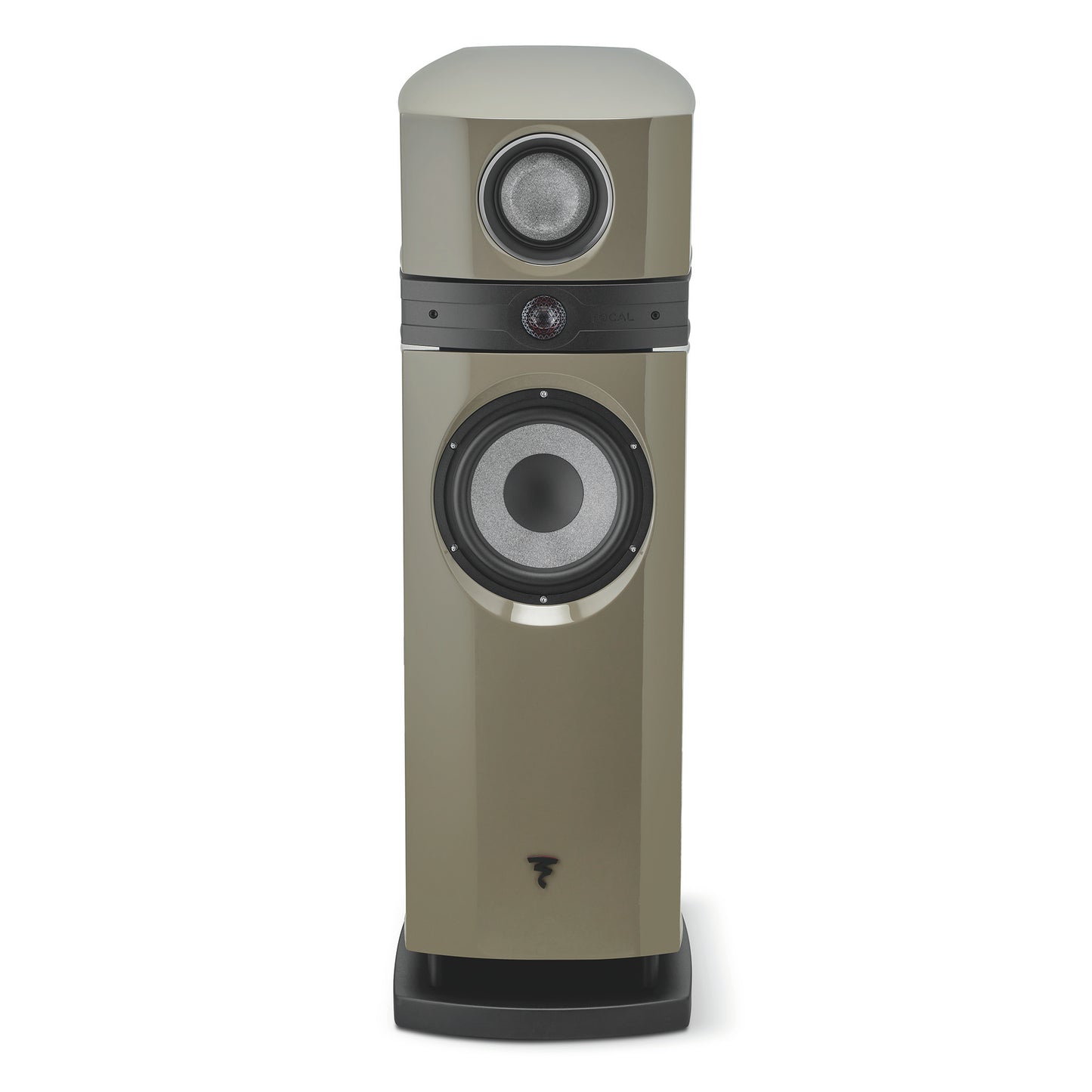

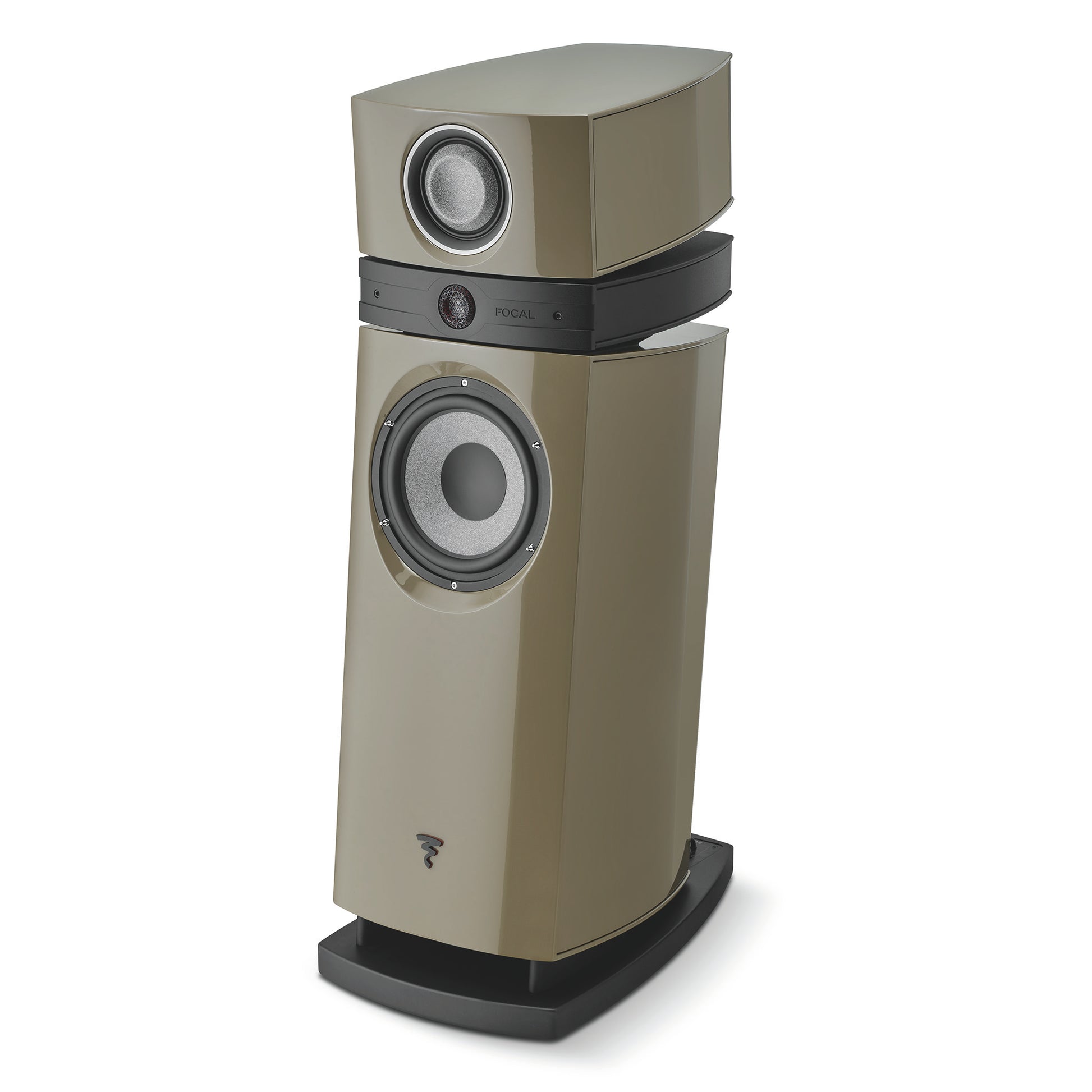

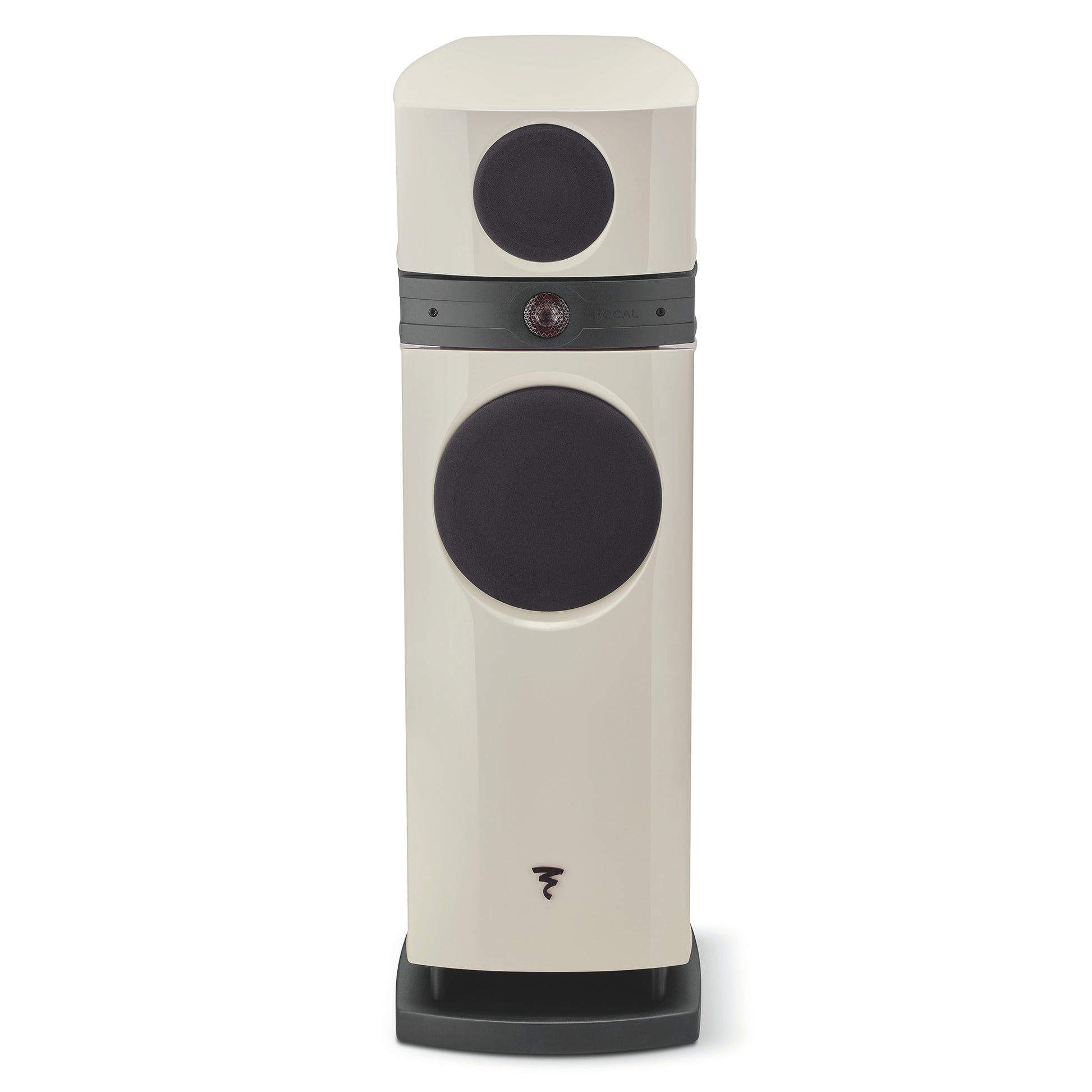

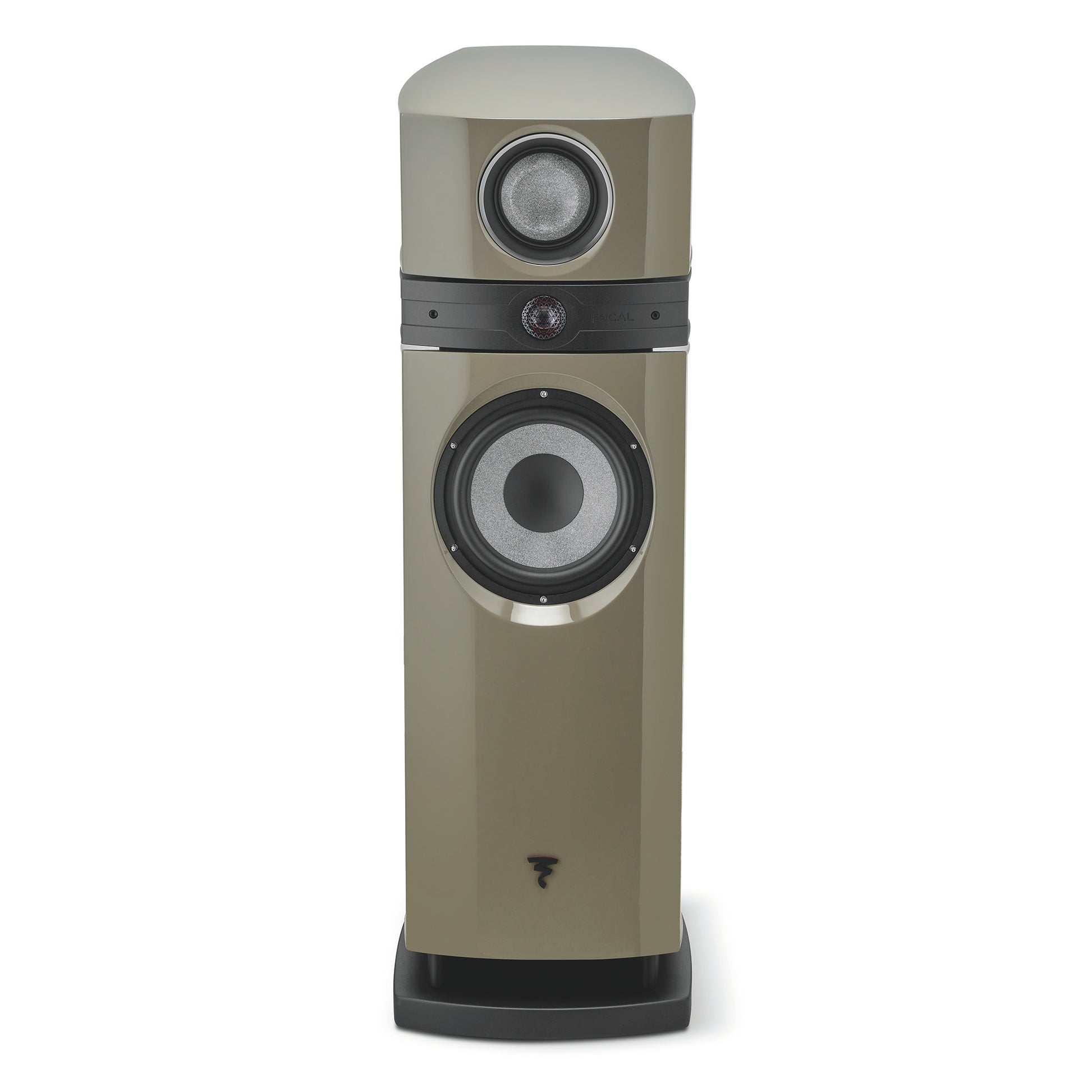

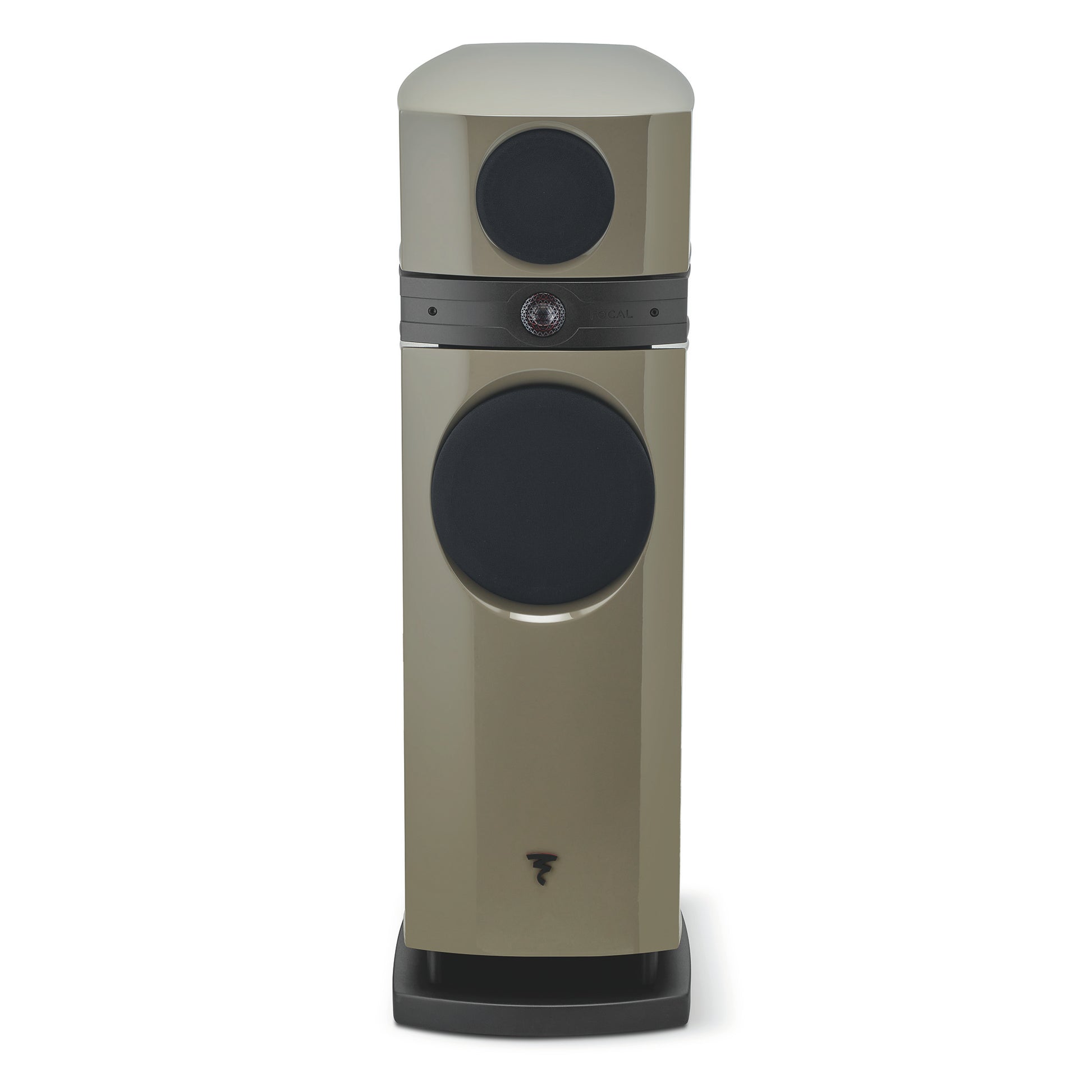

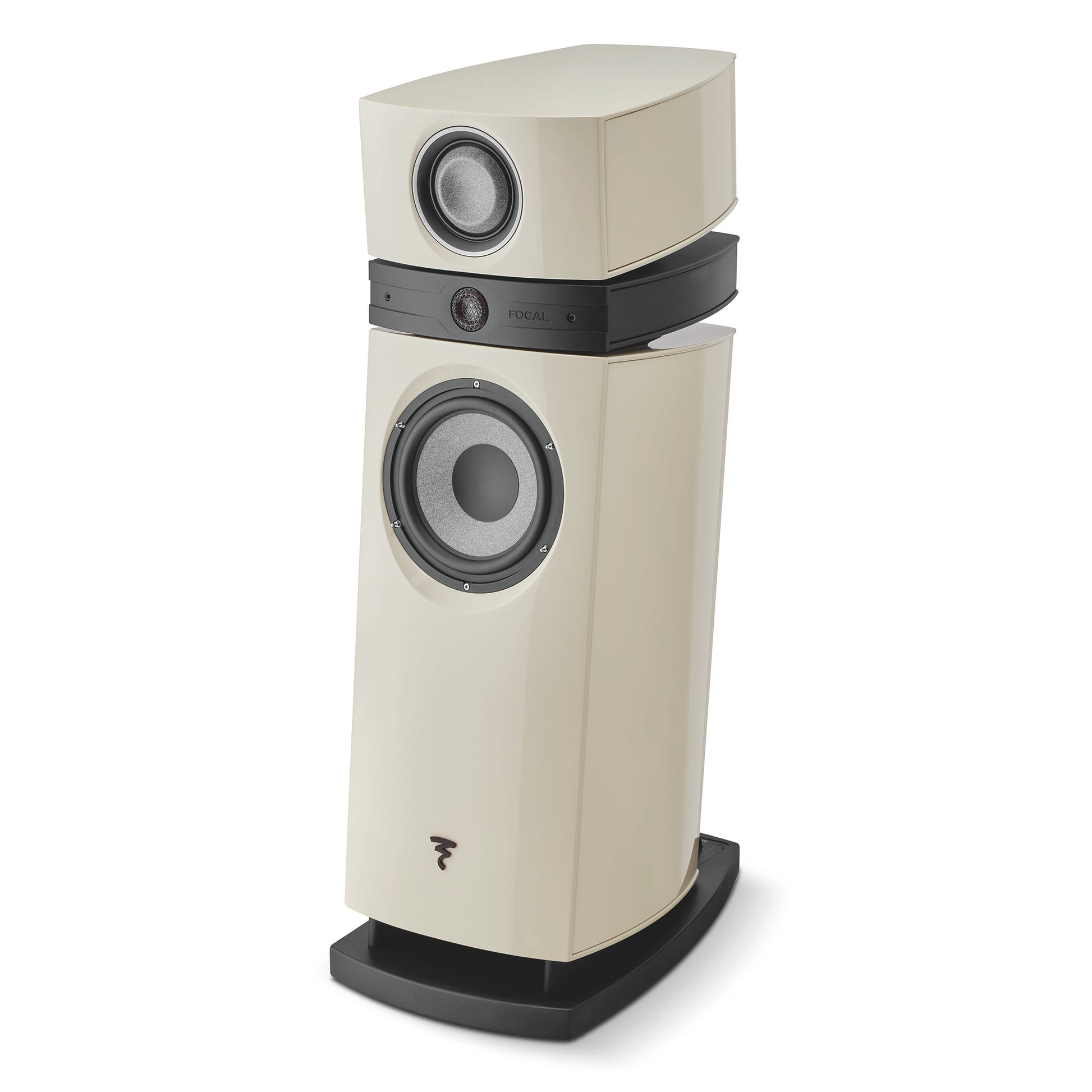

Focal Scala Utopia Evo M Loudspeaker (pair)

A 3-way floorstander with 1" PRISM inverted-dome tweeter, 5" “W” midrange with “M”-profile and TMD suspension, redesigned 11" “W” woofer, Focus Time alignment, Gamma Structure cabinet, and adjustable bass, midrange, and treble levels

The Focal Scala Utopia Evo M opens a new chapter for one of Focal’s most recognizable high-end loudspeakers. It retains the 3-way design and sculptural architecture that made Scala Utopia famous, while incorporating the latest Utopia technologies for greater expression, precision, and control.

At the heart of the Scala Utopia Evo M is a new driver complement that draws from Focal’s most advanced work in both hi-fi and professional audio. The reinforced “W” midrange now features an “M”-profile cone and TMD suspension, while the redesigned 11" “W” woofer uses a large dual-ferrite motor for powerful, tightly controlled bass. High frequencies are handled by Focal’s new PRISM “M”-profile inverted-dome tweeter with IAL2 loading, extending response up to 40 kHz.

Features

• 3-way bass-reflex floorstanding loudspeaker
• 27 mm PRISM “M”-profile inverted-dome tweeter with IAL2
• 5" reinforced “W” midrange with “M”-profile cone and TMD suspension
• 11" “W” woofer with 16cm dual-ferrite motor
• Focus Time mechanical speaker phasing for driver alignment
• Gamma Structure cabinet with high-density MDF panels up to 6cm thick
• OPC+ filtering with bass, midrange, and treble level adjustment
• Large laminar port to reduce airflow noise, distortion, and dynamic bass compression

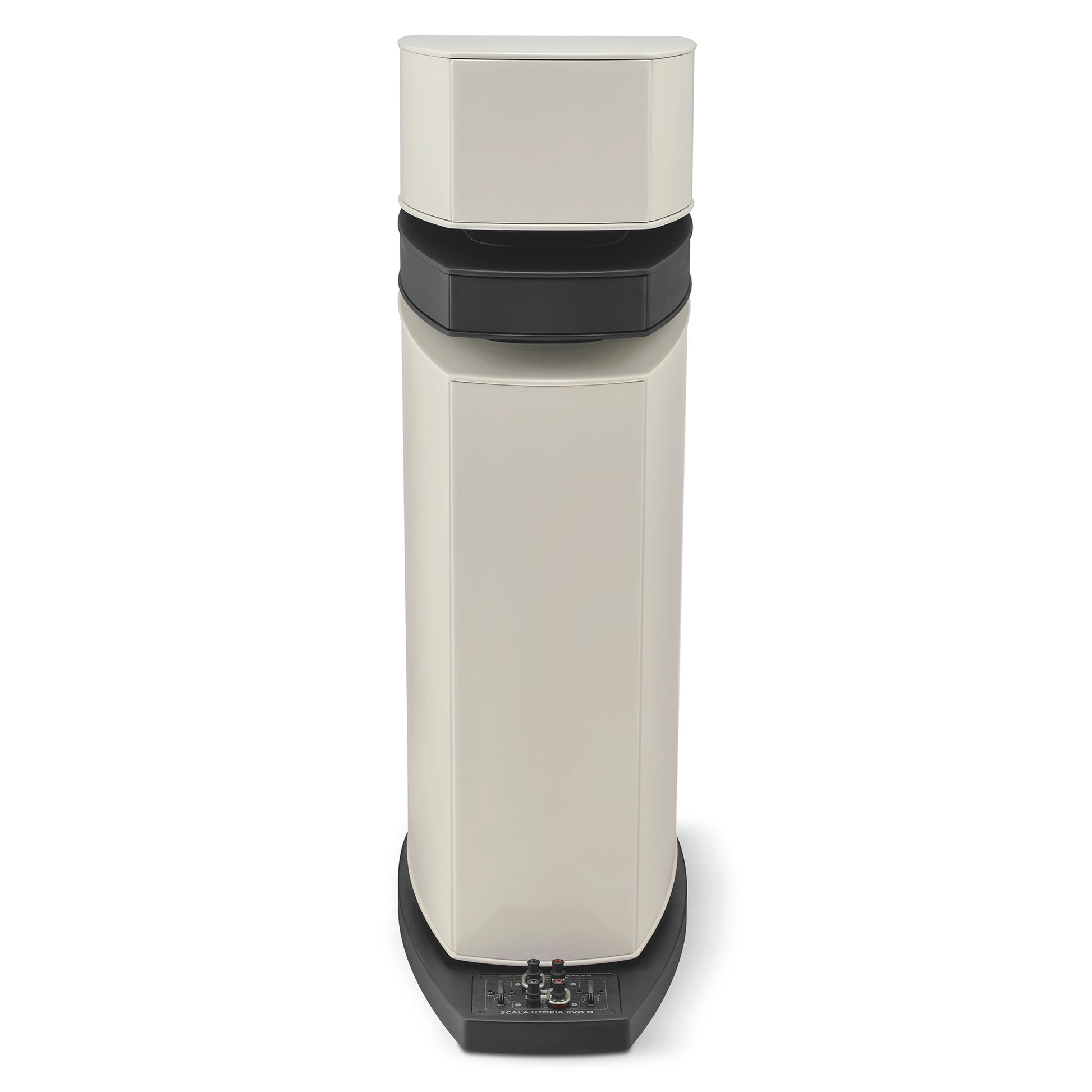

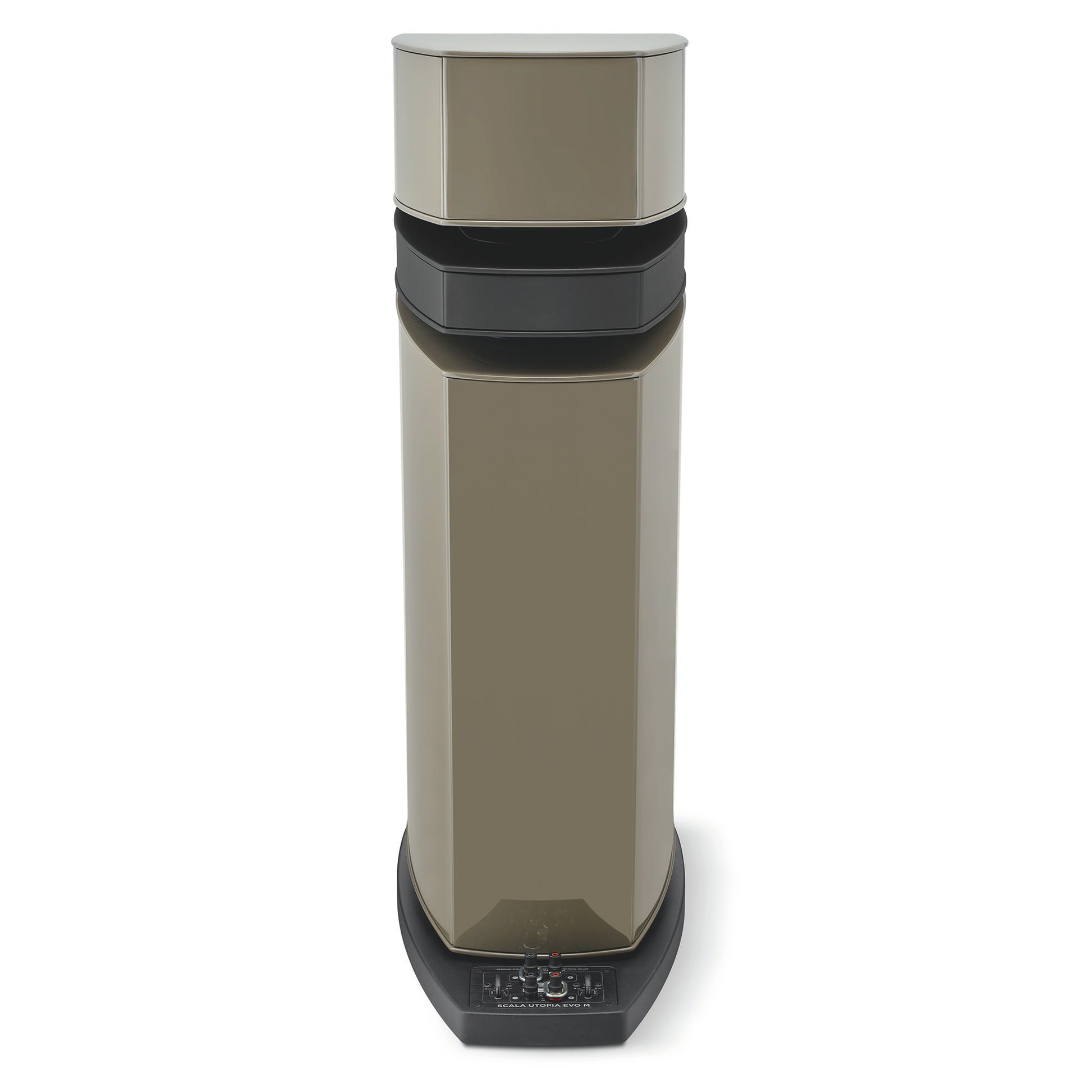

• Four insulated WBT connectors for bi-wiring or bi-amping
• Designed, developed, and manufactured in France in Focal’s workshops

PRISM Tweeter with IAL2

The Scala Utopia Evo M uses Focal’s 27mm PRISM “M”-profile inverted-dome tweeter with IAL2 loading. PRISM stands for Photon-Refined Intelligent Structured Membrane, and the design gives the tweeter very wide bandwidth, extending up to 40 kHz. IAL2 loading lowers the tweeter’s resonance frequency to 528 Hz, supporting smoother integration with the midrange driver.

Reinforced “W” Midrange with “M”-Profile

The 5" midrange driver uses Focal’s reinforced “W” composite sandwich cone with an “M”-profile geometry, inspired by technologies developed for the Utopia Main professional range. The driver is fitted with TMD suspension, a neodymium magnet, and an 80mm voice coil for improved coil centering and high power handling. The result is a natural, highly detailed midrange with very low distortion.

Redesigned “W” Woofer

The 11" woofer uses Focal’s “W” composite sandwich technology with more precise laser cutting, paired with a 16cm dual-ferrite motor. This redesigned low-frequency driver is built for more precise reproduction and stronger control, giving the Scala Utopia Evo M deep, powerful bass with the speed and articulation expected from a Utopia loudspeaker.

Focus Time and Gamma Structure

Focal’s Focus Time architecture mechanically aligns the drivers and orients them toward the listener for improved phase coherence. The cabinet uses Focal’s Gamma Structure construction, with high-density MDF panels up to 6cm thick to create a stable mechanical reference frame. The heavy, anti-vibration structure is optimized through vibration mapping to reduce cabinet coloration.

OPC+ Filtering and System Matching

The Scala Utopia Evo M uses Focal’s OPC+ filter with very low distortion hi-fi components and large cross-section internal cabling. The design allows bass and treble adjustment to ±1 dB, along with midrange adjustment for room and system tuning. Four insulated WBT connectors allow for bi-wiring or bi-amping.

Finishes

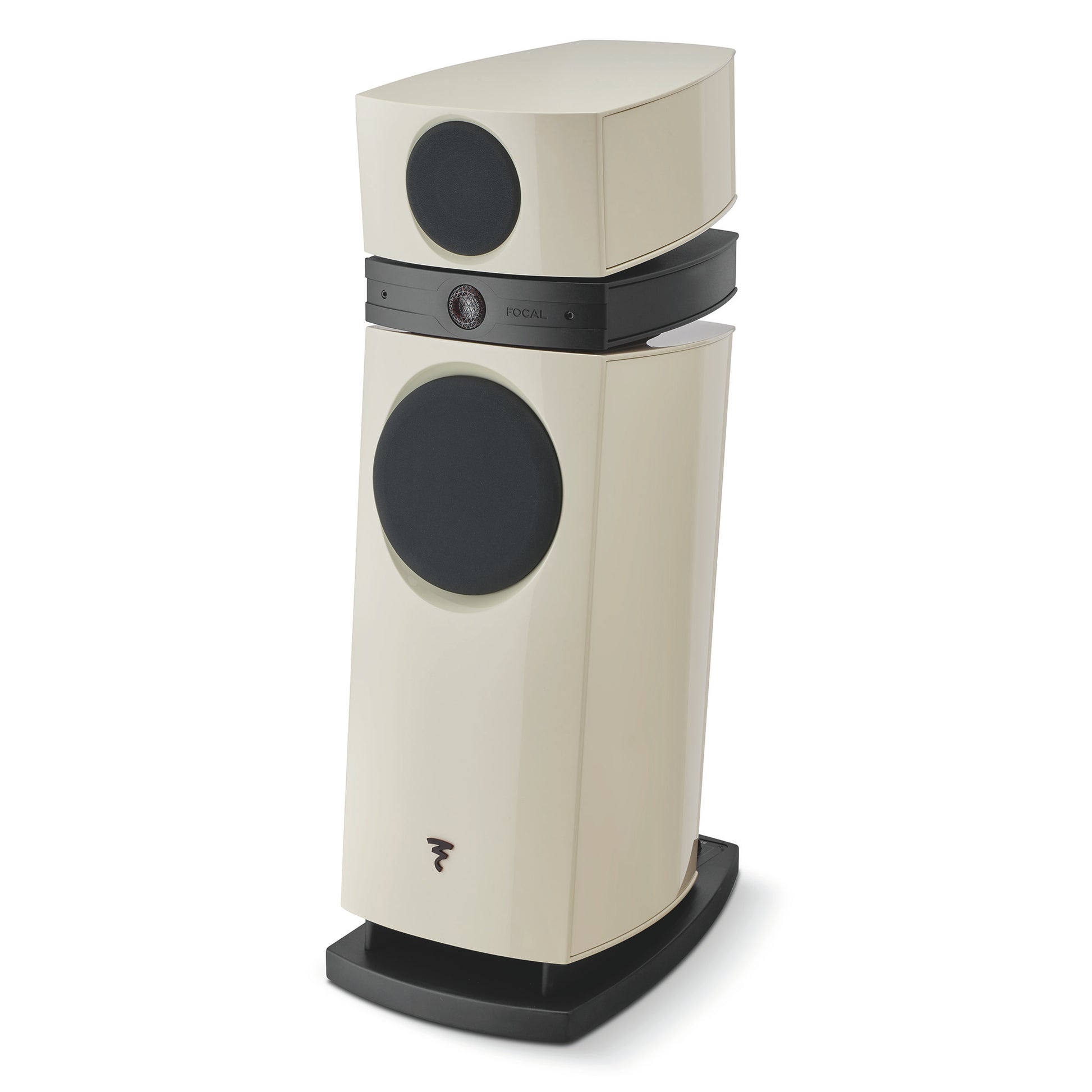

• Off White High Gloss

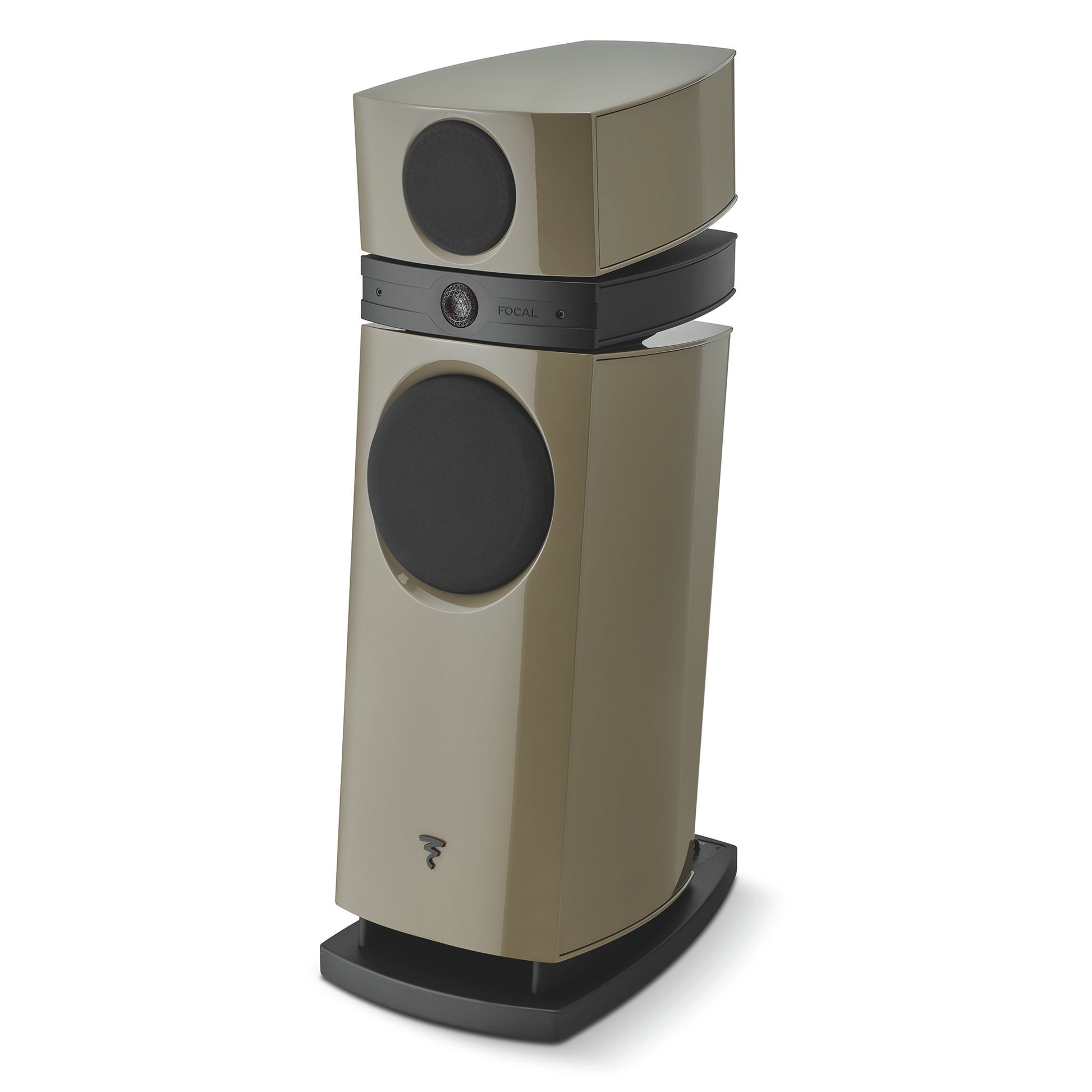

• Warm Taupe High Gloss
• Black High Gloss
• Noyer Foncé, with Black High Gloss front panel
• Noyer Naturel, with Off White front panel

Specifications

Type: 3-way bass-reflex floorstanding loudspeaker

Woofer: 11" (27cm) “W” woofer with 16cm dual-ferrite motor

Midrange: 5" (13cm) reinforced “W” midrange with “M”-profile and TMD suspension

Tweeter: 27mm PRISM “M”-profile inverted-dome tweeter with IAL2

Frequency Response (±3 dB): 27 Hz–40 kHz

Low Frequency Point (-6 dB): 24 Hz

Sensitivity (2.83 V/1 m): 92 dB

Nominal Impedance: 6 ohms

Minimum Impedance: 3 ohms

Crossover Frequency: 230 Hz / 2,800 Hz

Recommended Amplifier Power: 50–500 W

Dimensions (HWD): 49-1/8" x 15-1/2" x 26-3/8" (124.7 x 39.3 x 67cm)

Weight: 187.4 lb. (85kg)
