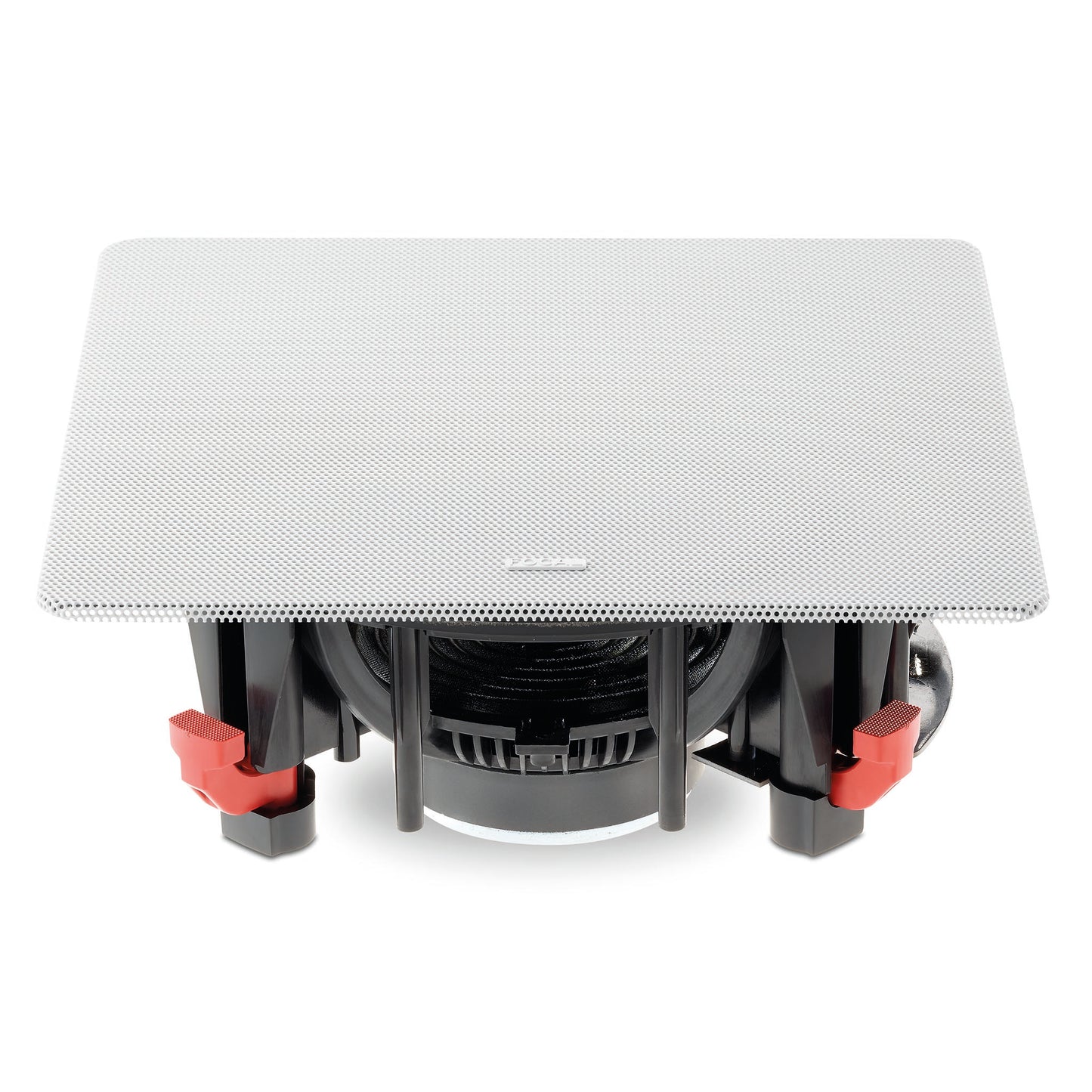

Focal 100ICW8 In-Wall/In-Ceiling Loudspeaker
The 100ICW8 loudspeaker is aimed at small to medium rooms and for three types of use: distributed systems (hallways, living rooms…), stereo systems (bedrooms, kitchens…), and home-cinema systems (in dedicated rooms or living rooms). The product is suitable for every room in the house, even in humid environments such as bathrooms. It can be used in-wall or in-ceiling.
This coaxial loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving sound dispersion. It is also equipped with a new 8" Polyglass cone. A new crossover improves off-axis listening and avoids the “shower effect”.
This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis being redesigned as a single piece and also to square and circular magnetic front grilles, frameless. The 100 Series brings an unexpected musicality to your home with ease.
- Product designed and developed in France by Focal
- Compact product with shallow mounting depth
- For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
- Possible to connect two loudspeakers to the same amplifier output
- Ready-to-paint grille
Drivers: 1" aluminum inverted dome tweeter, 8" Polyglass midbass
Sensitivity (2.83 V /1 m): 90 dB
Frequency response (+/-3 dB): 53 Hz-23 kHz
Low-frequency point (-6dB): 40 Hz
Nominal impedance: 8 Ώ
Minimal impedance: 6.9 Ώ
External dimensions (Ø/Depth): 9-49/64"x4-3/8" (248x111 mm)
Cut-out diameter: 8-13/16" (224 mm)
Depth from wall: 4-7/32" (107 mm)
Net weight (with front grille): 4.73 lb (2.6 kg)
