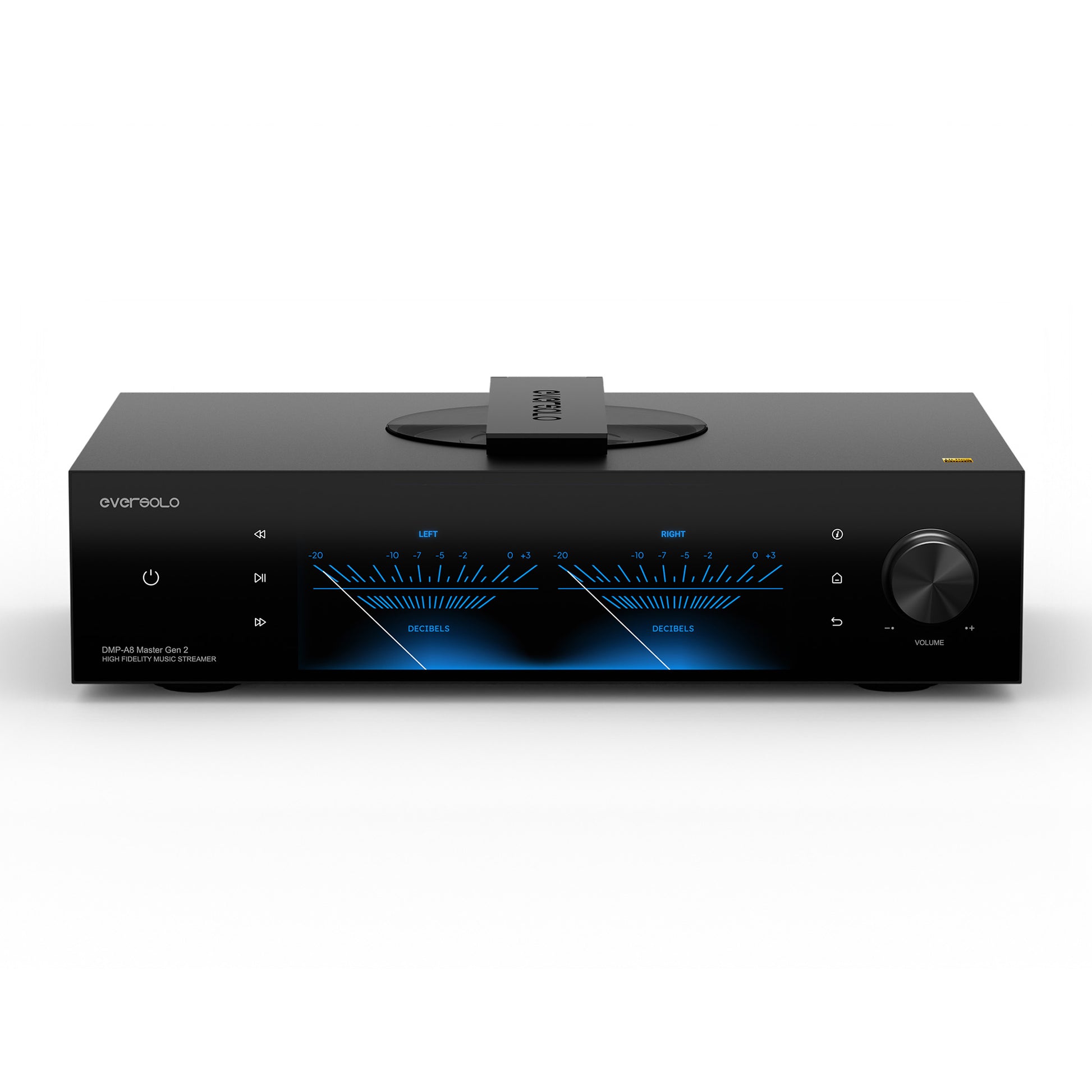

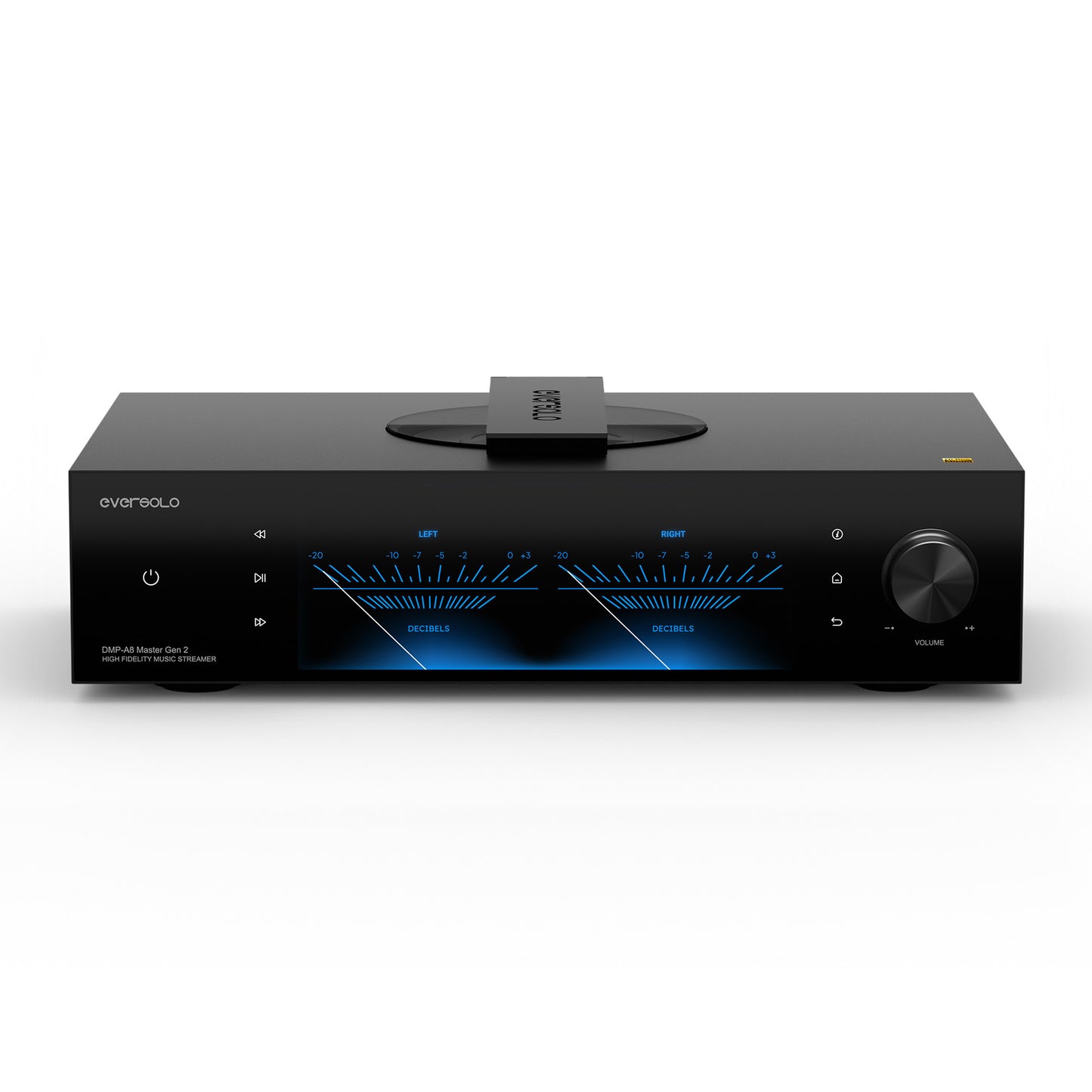

Eversolo DMP-A8 Master Gen 2 Streamer, DAC, CD Player, Preamp

With a top-loading CD player, OCXO clocking, a 10 MHz external clock input, an 8.6" touchscreen, room correction, and a fully balanced analog preamp

The Eversolo DMP-A8 Master Gen 2 builds on the DMP-A8 Gen 2 platform with an integrated CD player and a more advanced clock system. It combines network streaming, local file playback, CD playback and ripping, digital-to-analog conversion, digital transport functions, room correction, and analog preamp control in one full-width component.

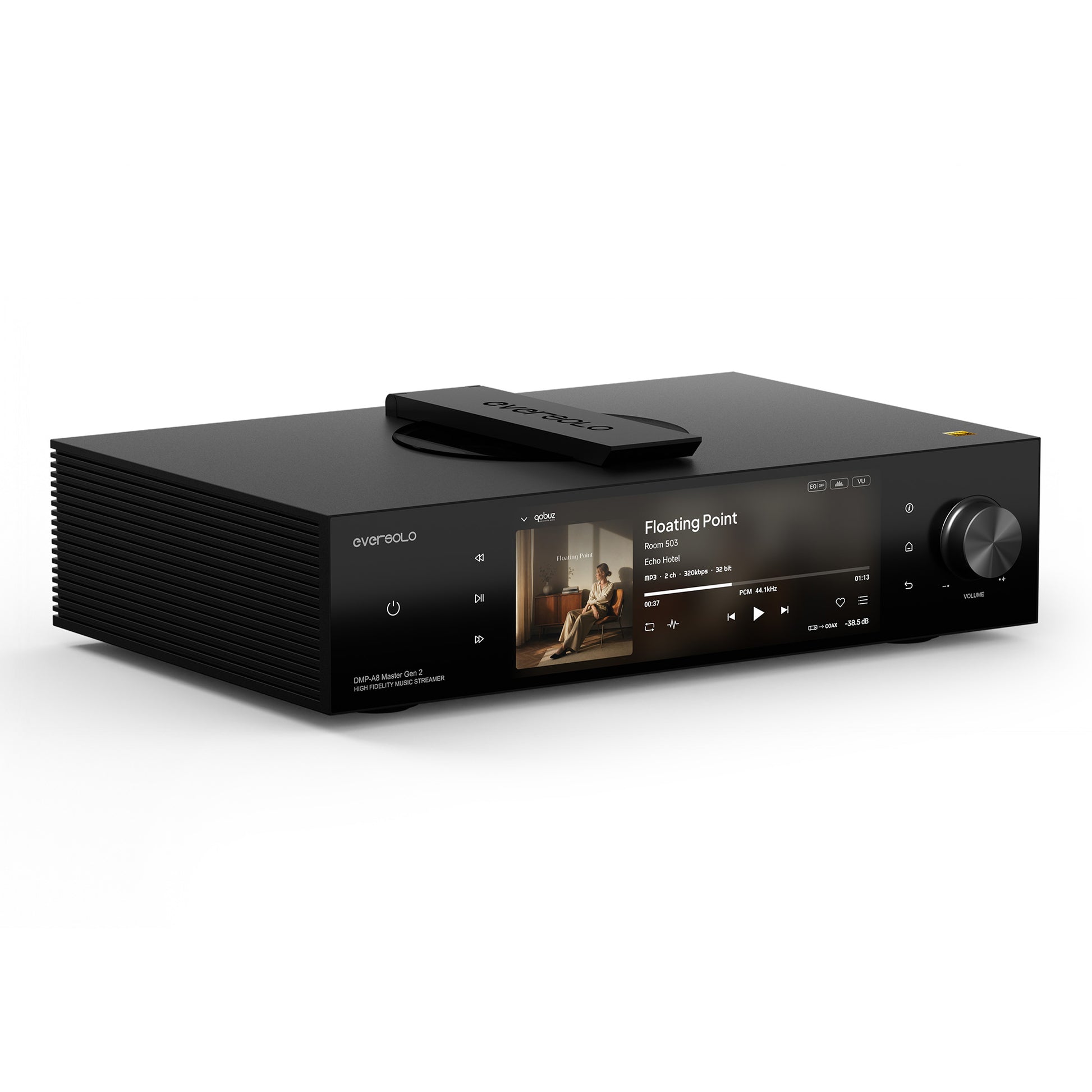

The CNC-machined aluminum-alloy chassis carries an 8.6" LCD touchscreen with a redesigned interface, large album artwork, VU meters, spectrum displays, and direct access to playback and system controls. A 64-bit octa-core processor works with 8 GB of memory and 64 GB of internal system storage for faster browsing, library indexing, and general operation.

Integrated CD Playback and Ripping

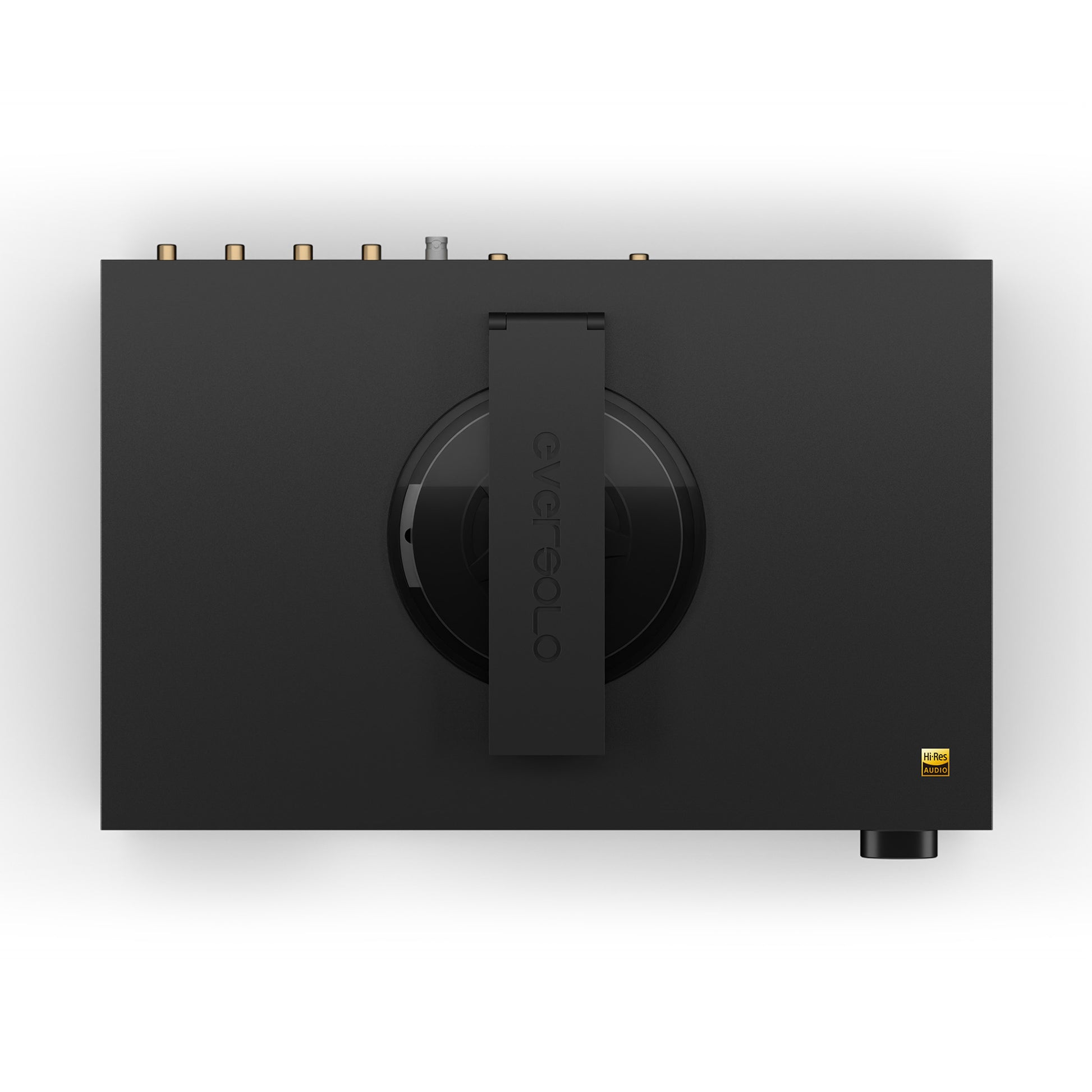

The Master model adds a custom top-loading CD mechanism designed for quiet playback and precise disc reading. Its error-correction and data-compensation systems help recover information from imperfect discs, while online metadata retrieval can add album artwork and track information.

CDs can also be ripped to a compatible internal SSD or external USB storage device. The library-management system can identify discs that have already been imported, helping prevent duplicate rips.

OCXO Clocking and External Clock Input

A low-phase-noise oven-controlled crystal oscillator keeps the clock at a stable operating temperature to reduce frequency drift caused by changes in the surrounding environment. Eversolo combines the OCXO with phase-locked loop technology and specifies clock jitter below 50 fs under its stated test conditions.

A 10 MHz external clock input allows the DMP-A8 Master Gen 2 to synchronize with a compatible standalone master clock. This gives owners of advanced digital systems the option of using a common timing reference across multiple components.

Flagship AKM DAC Architecture

The DAC section combines an AK4191EQ digital processor with an AK4499EX DAC. Separating digital processing from digital-to-analog conversion allows each section to be optimized independently. Compatible inputs support native DSD512 and PCM up to 768 kHz/32-bit.

Eversolo's AuralEngine USB audio processor manages high-resolution audio transmission and processing. The dual-power architecture separates the digital and analog supplies, while a dedicated linear supply for the analog circuits is specified with a noise level as low as 20 µV.

Fully Balanced Analog Preamp

The fully balanced analog preamp provides up to 10 dB of analog gain and uses a precision R-2R resistor network for volume control. Balanced XLR and single-ended RCA inputs allow an additional analog source to be connected, while XLR and RCA preamp outputs can drive a power amplifier or active loudspeakers directly.

A dedicated RCA subwoofer output provides an adjustable low-pass crossover from 40 to 500 Hz, allowing the DMP-A8 Master Gen 2 to manage a 2.1-channel system without an external crossover or surround processor.

Room Correction and DSP

The evotune Pro room-correction system can measure the listening room using a compatible USB measurement microphone or supported mobile-device microphone. It generates FIR correction filters and allows custom target curves and room-correction profiles to be saved.

Manual DSP functions include a 20-band parametric equalizer, imported FIR filters, high-pass and low-pass filtering, loudness compensation, dynamic compression, channel delay, crossover adjustment, and bass management. Global EQ can be applied across supported local, streaming, and digital-input sources.

Streaming, Networking, and Storage

Native music services include TIDAL, Qobuz, Amazon Music, Apple Music, Deezer, HIGHRESAUDIO, Presto Music, Radio Paradise, and others. TIDAL Connect, Qobuz Connect, Spotify Connect Lossless, DLNA, and Bluetooth reception provide additional playback options.

The DMP-A8 Master Gen 2 supports SMB, NFS, and WebDAV network storage. Wired connections include Gigabit Ethernet and an SFP fiber-network port, while wireless connections include dual-band Wi-Fi 6 and Bluetooth 5.4 through a Qualcomm QCC3095 receiver.

A bottom-access M.2 NVMe PCIe 3.0 2280 slot supports one optional SSD with a capacity of up to 8 TB. Two USB 3.0 ports accommodate external storage and compatible accessories.

Digital Inputs and Outputs

HDMI ARC/eARC accepts stereo audio from a compatible television or projector. Other digital inputs include USB-B, coaxial, and optical.

Digital outputs include USB Audio, AES/EBU, coaxial, optical, and HDMI I2S. The I2S output offers eight configurable pinout modes for compatibility with different external DACs.

Features

• Custom top-loading CD player with playback and ripping
• CD error correction, data compensation, and metadata retrieval
• Low-phase-noise OCXO clock
• Phase-locked loop clock processing
• 10 MHz external master-clock input
• 8.6" LCD touchscreen with redesigned interface
• 64-bit octa-core processor
• 8 GB of memory and 64 GB of internal system storage
• AK4191EQ digital processor and AK4499EX DAC
• Native DSD512 and PCM 768 kHz/32-bit decoding
• Eversolo AuralEngine USB audio processor
• Fully balanced analog preamp with up to 10 dB of gain
• Precision R-2R resistor-ladder volume control
• Balanced XLR and single-ended RCA analog inputs and outputs
• evotune Pro room correction
• 20-band parametric EQ and FIR filter support
• Dedicated subwoofer output with adjustable crossover
• HDMI ARC/eARC input
• USB Audio, AES/EBU, coaxial, optical, and HDMI I2S outputs
• Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4, and SFP fiber networking
• Internal M.2 SSD slot supporting up to 8 TB
• Dual-mode Bluetooth and infrared remote control

Specifications

Chassis Material: Aluminum alloy

Display: 8.6" LCD touchscreen

Processor: 64-bit octa-core

System Memory: 8 GB

Internal System Storage: 64 GB eMMC

Expandable Storage: 1 × M.2 NVMe PCIe 3.0 2280 slot, supporting up to 8 TB

USB Ports: 2 × USB 3.0

CD System: Custom top-loading CD playback and ripping mechanism

DAC Architecture: AK4191EQ digital processor and AK4499EX DAC

Audio Processor: Eversolo AuralEngine proprietary USB audio interface

Audio Clock: Low-phase-noise OCXO with PLL technology

Clock Jitter: Less than 50 fs under specified operating conditions

External Clock Input: 10 MHz

Analog Preamplifier: Fully balanced

Volume Control: Precision R-2R resistor network with Eversolo EVC processing

Room Correction: evotune Pro with FIR correction and custom target curves

Parametric EQ: 20-band

Network Storage Protocols: SMB, NFS, and WebDAV

Ethernet: RJ-45 Gigabit Ethernet

Fiber Network: SFP Gigabit fiber port; SFP module not included

Wi-Fi: Dual-band Wi-Fi 6, 2.4 and 5 GHz

Bluetooth: Bluetooth 5.4 with Qualcomm QCC3095 receiver

Control: Touchscreen, Eversolo Control app, web interface, television app, and Bluetooth/infrared remote

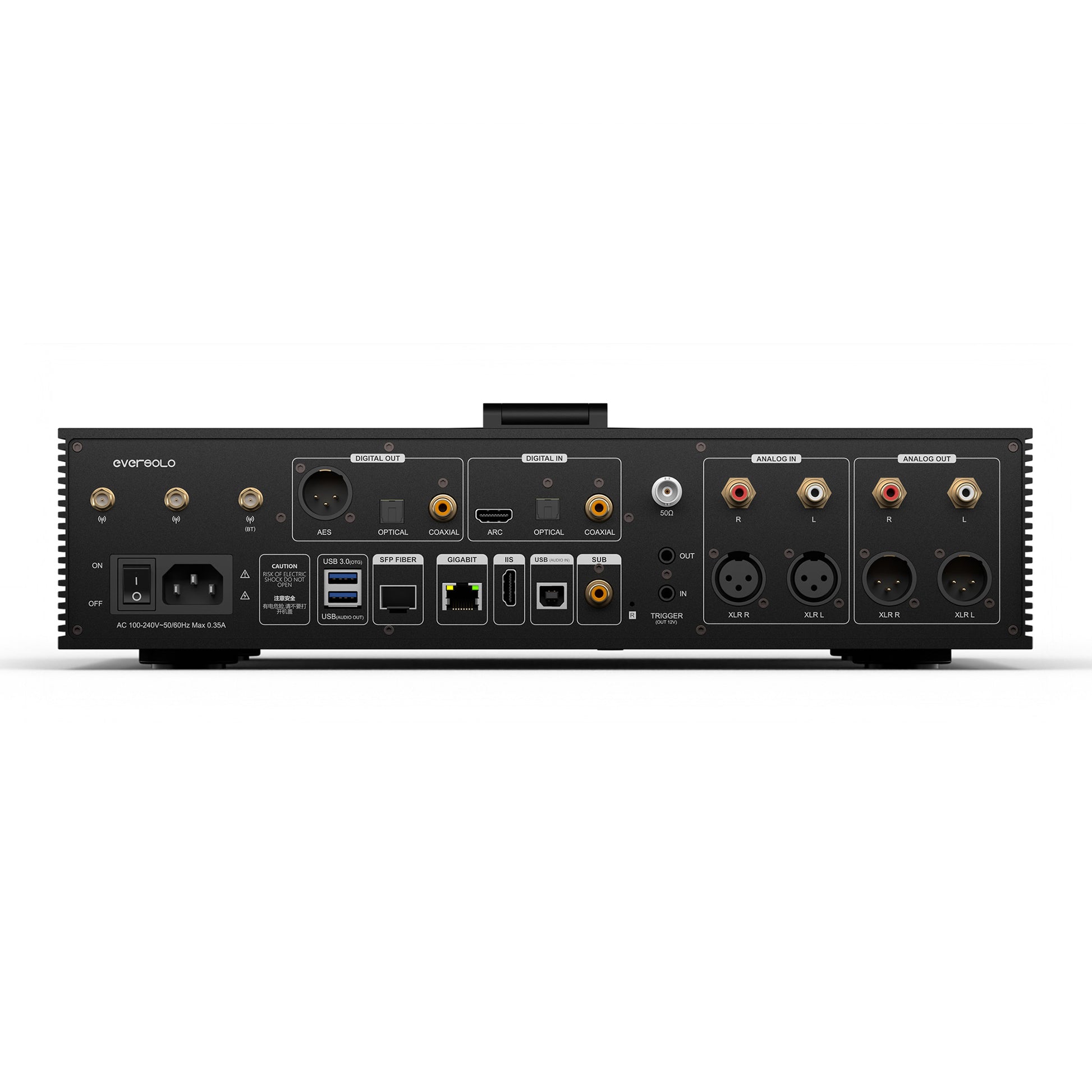

Digital Inputs: 1 × USB-B, 1 × coaxial, 1 × TOSLINK, 1 × HDMI ARC/eARC

Analog Inputs: 1 × stereo RCA, 1 × stereo XLR

Clock Input: 1 × 10 MHz BNC

Digital Outputs: 1 × USB Audio, 1 × AES/EBU, 1 × coaxial, 1 × TOSLINK, 1 × HDMI I2S

Analog Outputs: 1 × stereo RCA, 1 × stereo XLR

Subwoofer Output: 1 × RCA

Subwoofer Crossover Range: 40–500 Hz

USB-B Audio Input: Native DSD512 and PCM 768 kHz/32-bit

Coaxial and Optical Inputs: PCM 192 kHz/24-bit and DoP64

USB Audio Output: Native DSD512 and PCM 768 kHz/32-bit with compatible UAC DACs

HDMI I2S Output: Native DSD512 and PCM 768 kHz/32-bit; eight configurable pinout modes

AES/EBU, Coaxial, and Optical Outputs: PCM 192 kHz/24-bit and DoP64

HDMI ARC/eARC Input: PCM 192 kHz/24-bit

Maximum DAC Decoding: Native DSD512 and PCM 768 kHz/32-bit

Preamp Gain: Up to 10 dB

THD+N: As low as 0.000075%

Signal-to-Noise Ratio: Up to 129 dB

Dynamic Range: Up to 129 dB

Dimensions (HWD): 3.9" × 15.3" × 10.4" (98.5 × 388 × 265 mm)

Weight: 13.2 lb. (6 kg)
