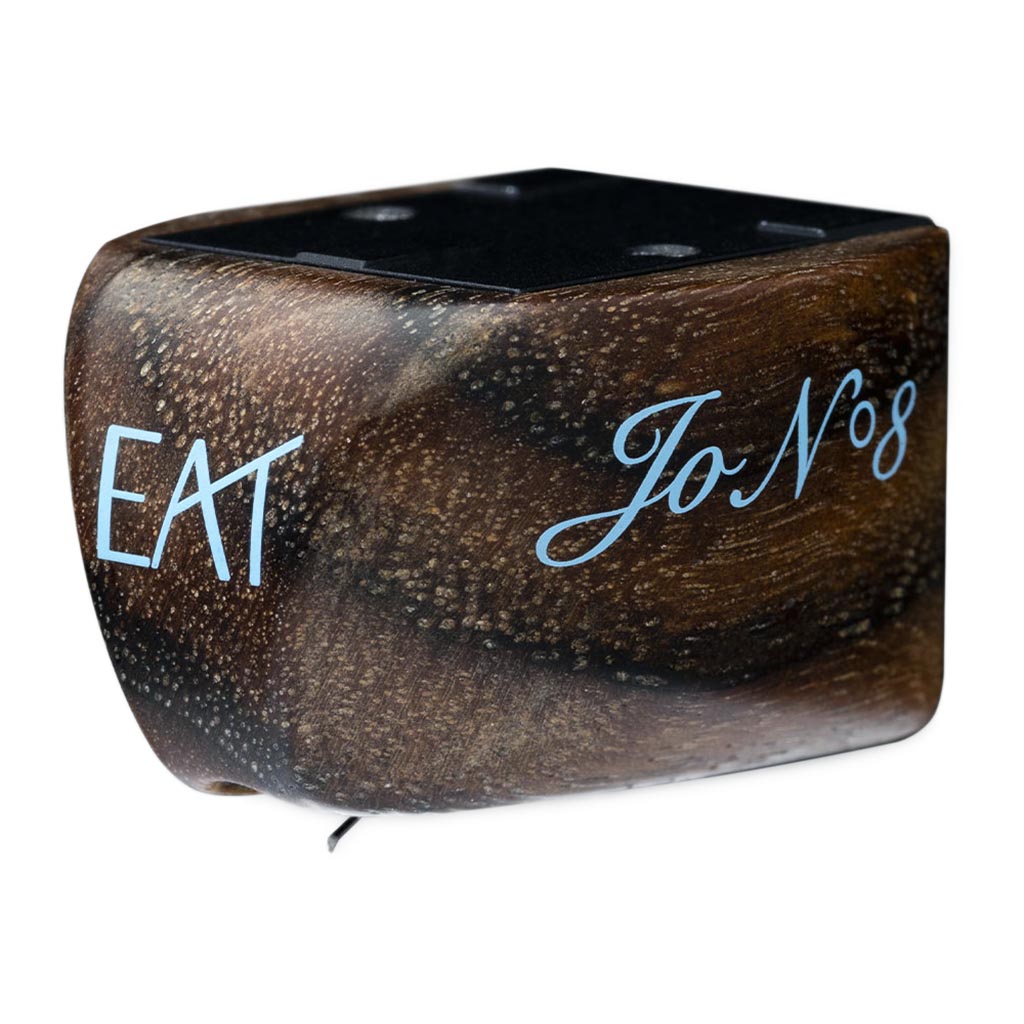

EAT Jo No8 Moving Coil Cartridge
A high-performance MC with nude Shibata stylus, boron cantilever, and a chestnut/aluminum body.
The No8 was developed following the success of the No5, to answer the question about E.A.T. could do with this format with no price constraints.
The designers carefullly thought about how all the parts worked in perfect harmony: the stylus, the cantilever, the bearing, the suspension, the "motor", and the body shell.
To elevate the already-exceptional performance of the No5, E.A.T. made the No8 with a nude Shibata stylus on a boron cantilever, contained in a matte-finished wooden body made of solid chestnut. A perfect match for the new F-Note tonearm, the Jo N°8 moving-coil cartridge will extract more from the groove than previously imagined.
- Moving Coil
- Nude Shibata
- Boron cantilever
- Elegant looks
- 8 nines pure copper coil wire
- Selection for smallest tolerances
- Special TPE suspension
- Stabilized chestnut/aluminum body
- Exclusive real wood jewelry box
Stylus Type: Nude Shibata on boron cantilever
Frequency Response (-3 dB): 20 – 30,000 Hz
Output Voltage: 0.3 mV
Channel Separation (1 kHz, 15 kHz): >25 dB, >17 dB
Tracking Force Range: 2.0-2.5 g (20-25 mN)
Tracking Force, Recommended: 2.3 g (23 mN)
Internal Impedance: 5 ohm
Load Resistance, Recommended: > 15 ohm
Weight: 12.5 g
