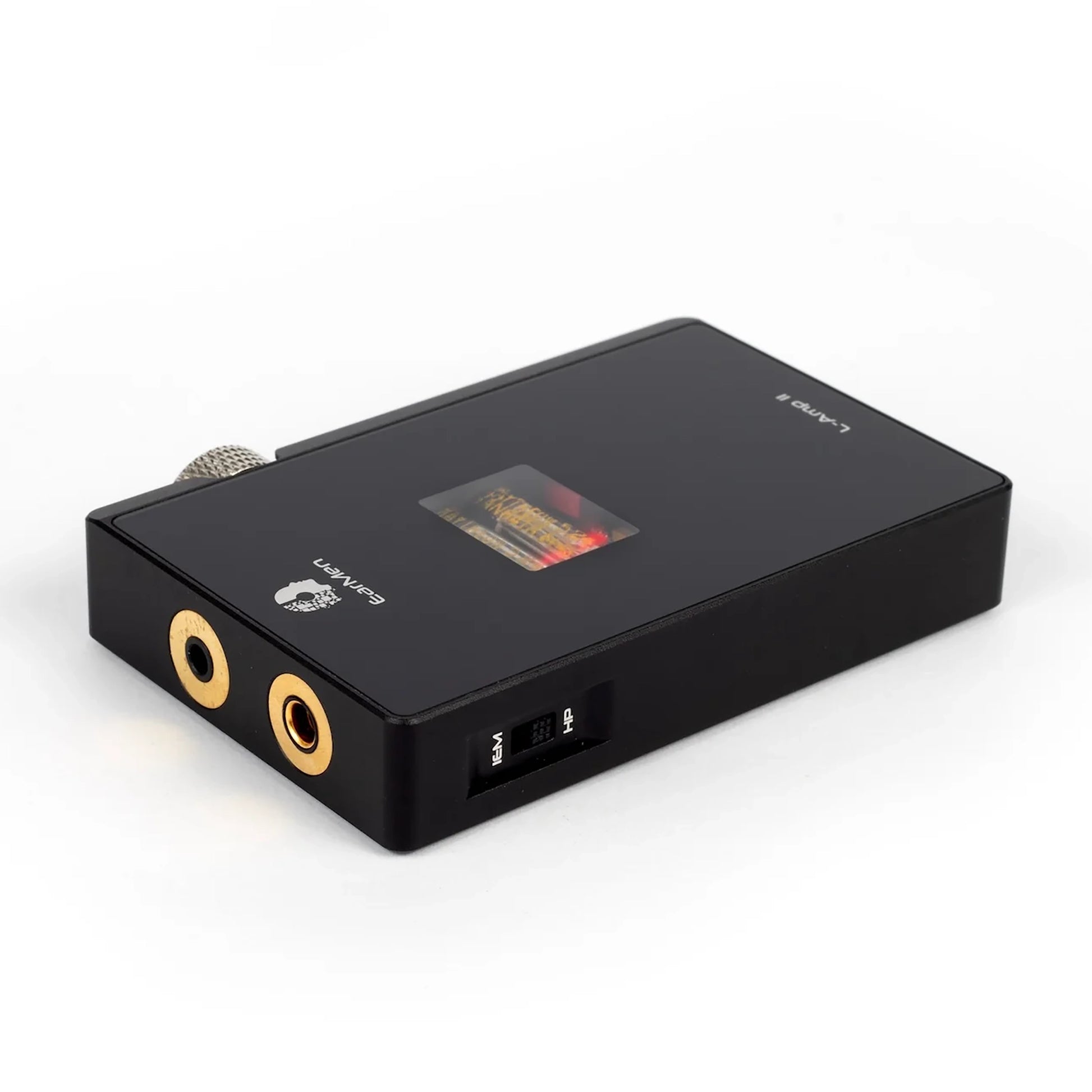

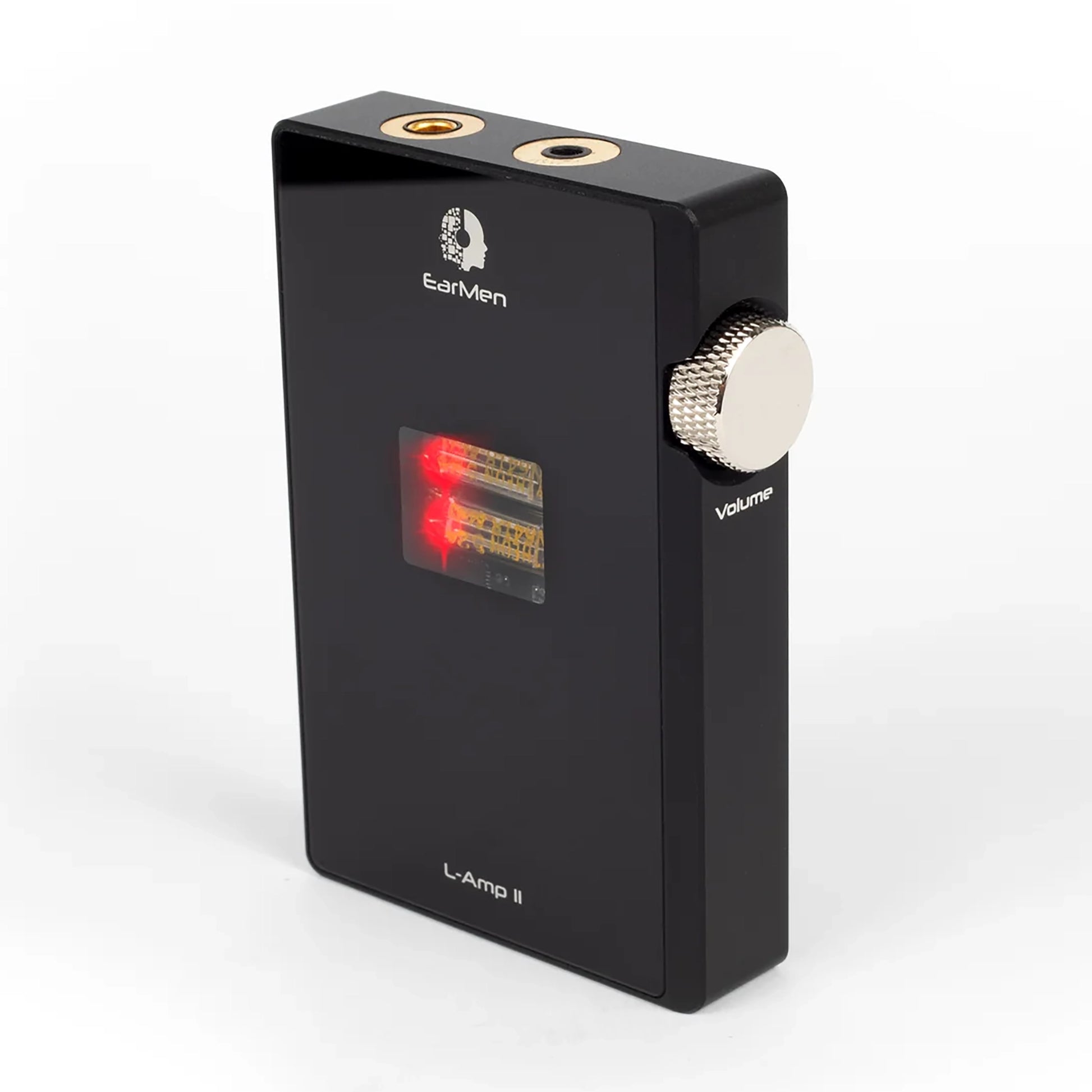

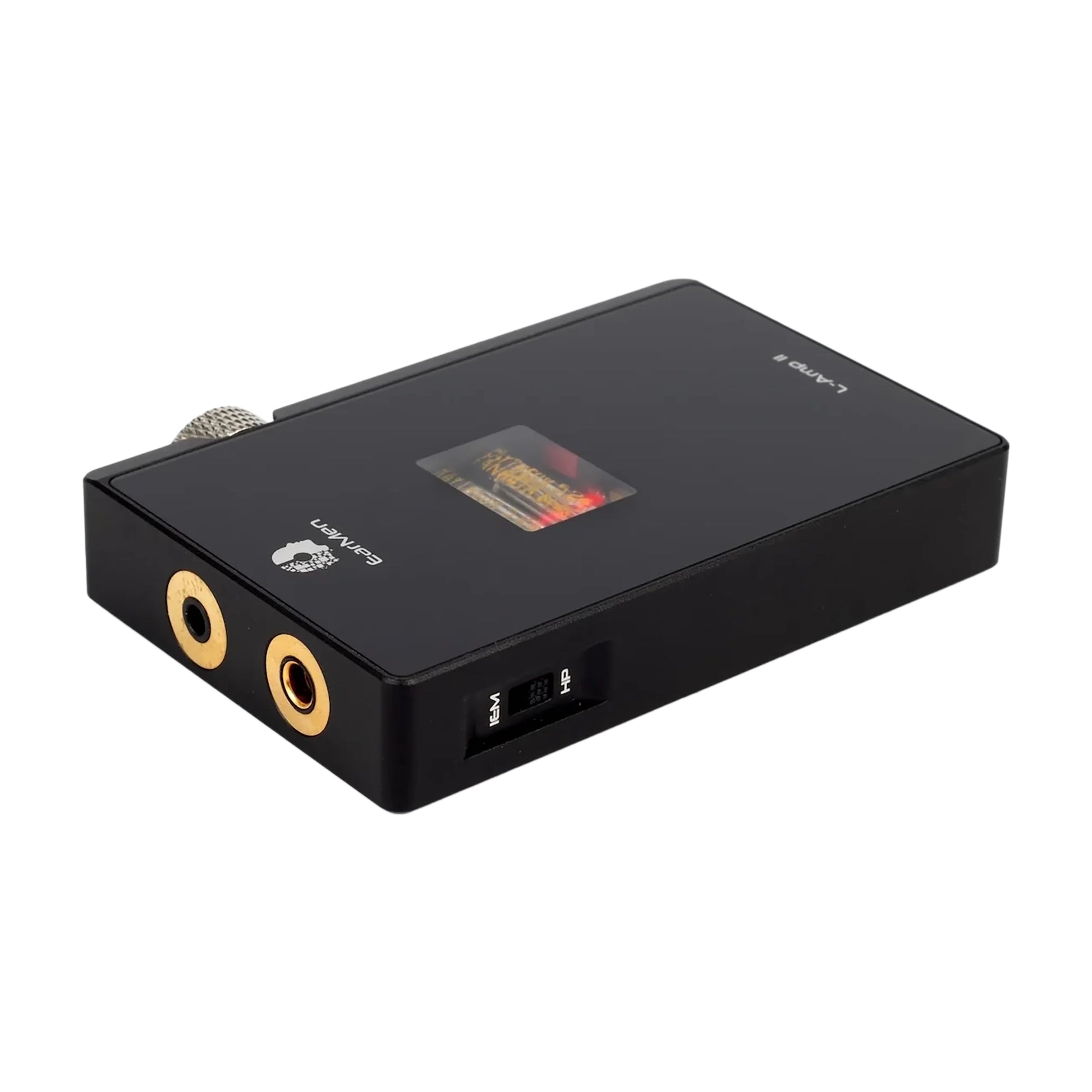

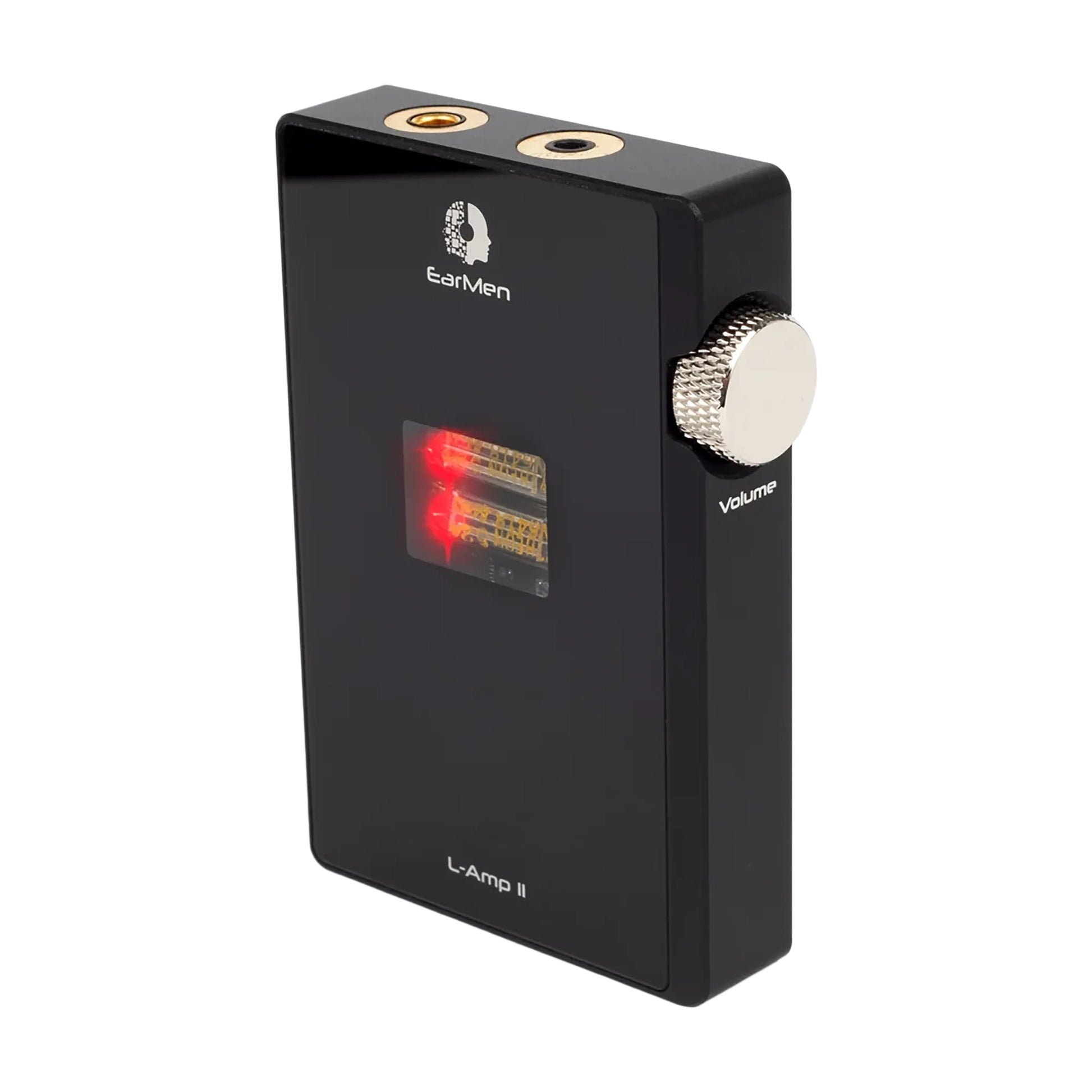

EarMen L-Amp MK2 Portable Tube  DAC/Headphone Amplifier

A compact tube headphone amplifier and DAC with NOS JAN6418 vacuum tubes, balanced and single-ended operation, and ESS SABRE decoding up to 32 bit/384 kHz PCM

Tube audio on the go! With its four-point silicone suspended NOS JAN6418 vacuum tubes and onboard DAC, the EarMen L-Amp MK2 is the ultimate statement of classic and contemporary in one stunning unit.

This limited-edition Miki’s Signature model builds on the first version with a true analog logarithmic potentiometer, refined power-supply control, and improved mechanical isolation for the vacuum tubes.

At the heart of the L-Amp MK2 are NOS JAN6418 vacuum tubes, suspended in a 4-point silicone system to help reduce vibration and mechanical feedback. The circuit is designed to deliver the warmth, texture, and harmonic richness associated with tubes, while offering the control and precision needed for headphones and sensitive IEMs.

The L-Amp MK2 also includes an integrated ESS SABRE DAC section, dual USB-C ports for data and external power, balanced 4.4 mm and single-ended 3.5 mm operation, and Burr-Brown INA1620 SoundPlus™ op-amps. Bass X mode can be activated from the volume control, adding bass dynamics at lower listening levels.

Features

NOS JAN6418 Vacuum Tubes

• Authentic NOS military-grade vacuum tubes made in the USA
• Warm, rich, and natural sound signature
• 4-point silicone suspension system helps minimize vibration and mechanical feedback

Analog Logarithmic Volume Control

• True analog logarithmic potentiometer for smooth, precise volume control
• Designed for accurate channel balance and a natural analog feel
• Push-to-activate Bass X mode enhances bass dynamics at lower listening levels

DAC, Power, and Connectivity

• Integrated ESS SABRE DAC supports 32 bit/384 kHz PCM and DSD DoP128
• Balanced 4.4 mm and single-ended 3.5 mm operation

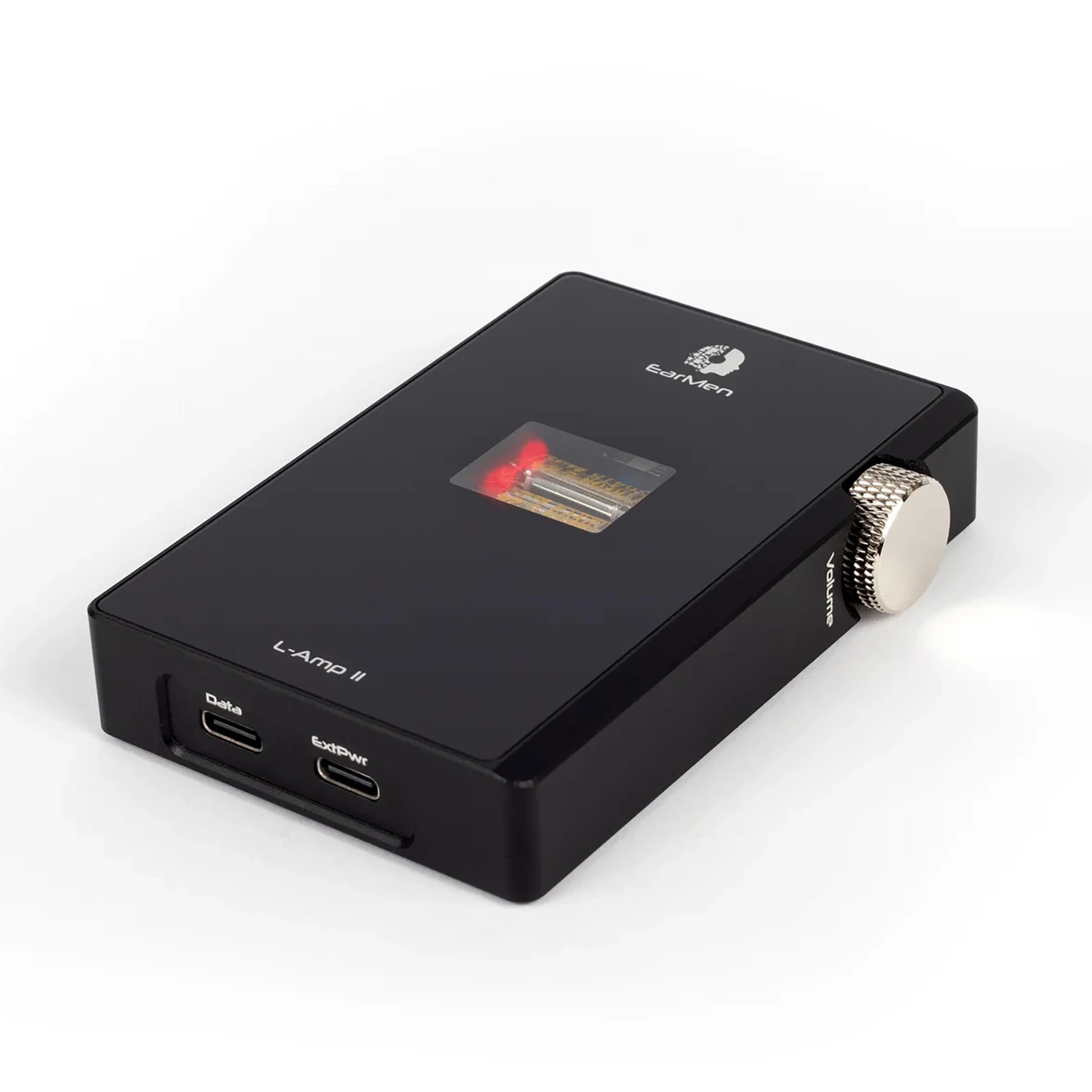

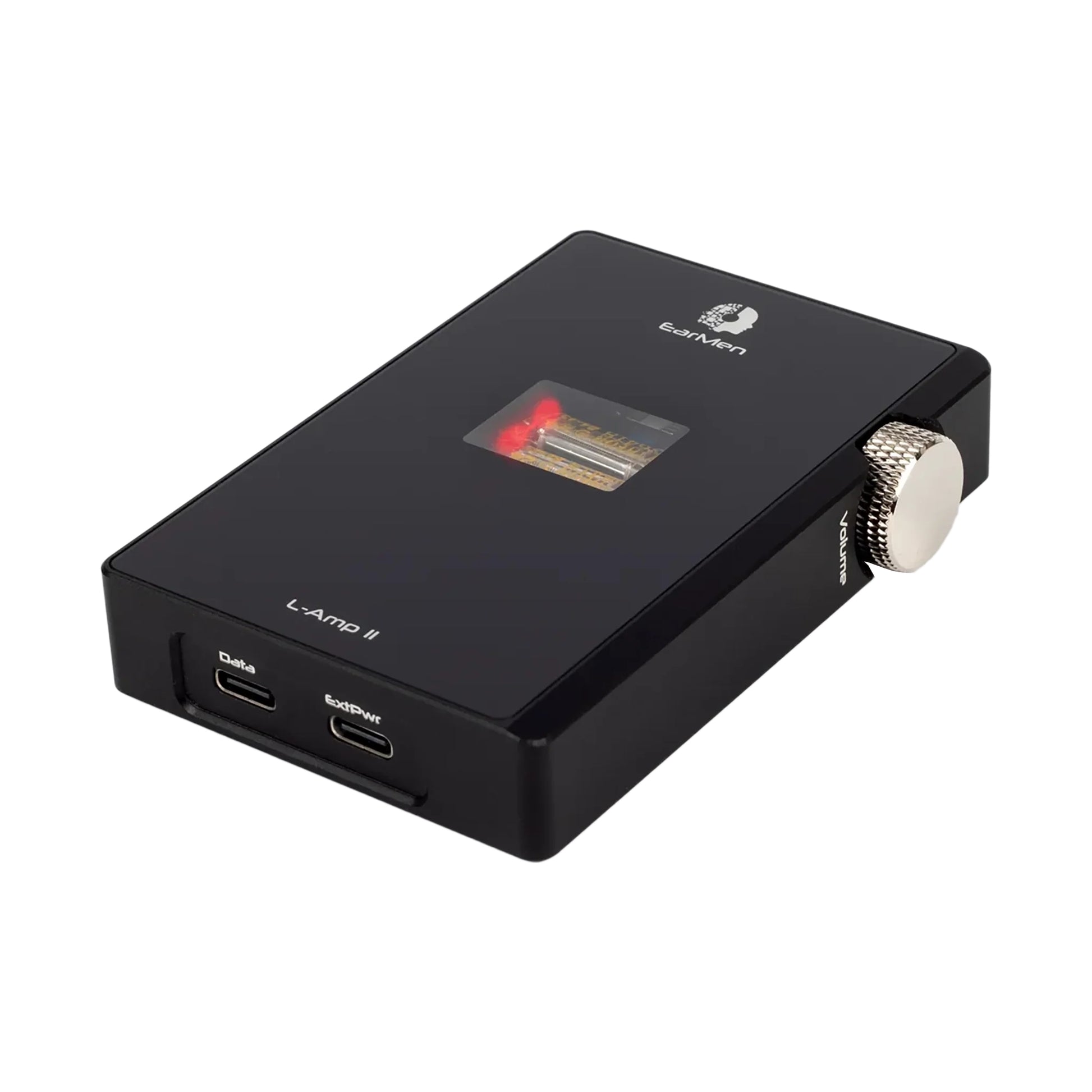

• Dual USB-C ports: one for data and one for external power
• Compatible with USB power banks or external power supplies for continuous playback
• Burr-Brown INA1620 SoundPlus™ op-amps
• No negative feedback design
• Automatic power protection helps safeguard headphones and circuitry from overload
• No pop-and-click startup for silent on/off operation
• Gold-plated PCBs and connectors
• Hand-built and individually tested

Specifications

Tubes: NOS JAN6418 vacuum tubes

Output Power: 1 W @ 8 Ω

DAC: ESS SABRE

PCM Support: Up to 32 bit/384 kHz

DSD Support: DSD DoP128

Balanced Connection: 4.4 mm

Single-Ended Connection: 3.5 mm

USB-C Ports: Dual USB-C ports, one for data and one for external power

Op-Amps: Burr-Brown INA1620 SoundPlus™

Bass Mode: Push-to-activate Bass X

Power Protection: Automatic power protection
