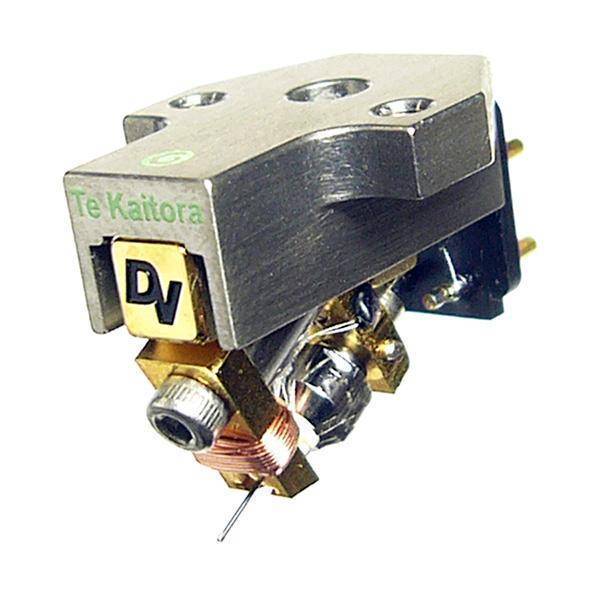

Dynavector Te Kaitora Rua Moving Coil Cartridge
Dynavector Te Kaitora Rua Moving Coil Cartridge
This product is an exception to our normal return policy.
Product questions? Found a lower price?
Let us know: 909.931.9686 or chat.
Couldn't load pickup availability
This item qualifies to earn HiFives. What's a HiFive?
Dynavector Te Kaitora Rua Moving Coil Cartridge
“I developed a very healthy respect for this delightfully smooth and transparent cartridge, but it took a day or three to fall in love with it. There’s very little to criticise about the sound per se, save some lack of vividness and power. It’s very delicate, with a wide dynamic range, but it is also rather laid back in presentation.
This is a real smoothie. The price is high, but it’s well worth checking out if you’re looking for laid-back transparency, and value the low level of needle-talk.”
A titanium-head low-output design with PCOCC copper coils, a solid boron cantilever, and Dynavector’s Pathfinder line-contact stylus
The original Te Kaitora moving coil cartridge was developed through a collaboration between Dynavector Japan and Dynavector New Zealand. Its name means “The Discoverer” in Māori, while Rua identifies this improved model as the second version.
The Te Kaitora Rua incorporates technology developed for Dynavector cartridges including the XV-1s and XX-2. It retains the original model’s open, silk-like treble while introducing a revised coil, headpiece, armature, and magnetic circuit intended to deliver smoother and more linear performance.
PCOCC Copper Coils
For the Rua, Dynavector replaced the original Te Kaitora’s silver coil wire with PCOCC copper. The change is intended to produce smoother, more musical performance while preserving the responsiveness of the lightweight moving assembly.
Rigid Titanium Headpiece
The titanium headpiece provides a rigid mounting platform for the cartridge’s generator. A miniature stainless steel bolt couples the front and rear yokes to the magnetic circuit assembly, strengthening the connection between the cartridge’s mechanical and magnetic structures.
M2.5 threaded mounting holes are incorporated into the headpiece, allowing the cartridge to be installed using the supplied screws without separate mounting nuts.
Solid Boron Cantilever and Pathfinder Stylus
The Te Kaitora Rua uses a 6 mm-long, 0.3 mm-diameter solid boron cantilever fitted with Dynavector’s Pathfinder line-contact stylus. This stylus profile, also used on the XV-1s and XX-2, has contact radii of 7 × 30 microns for precise tracing of fine groove modulations.
Advanced Magnetic Circuit
A square armature operates within a matching square aperture in the front yoke, producing a more linear distribution of magnetic flux. High-flux-density Alnico magnets work with Dynavector’s flux damper to control the magnetic circuit and reduce distortion.
Features
- Low-output moving coil design
- Flux damper and Alnico magnet
- PCOCC copper coil wire
- Rigid titanium headpiece
- Stainless steel bolt coupling the front and rear yokes
- Square armature and matching front-yoke aperture
- 6 mm solid boron cantilever
- Pathfinder line-contact stylus with 7 × 30 micron radii
- M2.5 threaded mounting holes
What’s Included
- Mounting screws
- Stylus-cleaning brush
Specifications
Type: Low-output moving coil cartridge
Magnetic System: Flux damper and Alnico magnet
Coil Wire: PCOCC copper
Headpiece: Titanium
Cantilever: 6 mm long, 0.3 mm diameter solid boron
Stylus: Pathfinder line contact
Stylus Radii: 7 × 30 microns
Mounting Thread: M2.5
Mounting-Hole Spacing: 0.5" (12.7 mm)
Output Voltage (At 1 kHz, 5 cm/sec.): 0.26 mV
Frequency Response: 20 Hz–20 kHz, ±1 dB
Channel Separation (At 1 kHz): 30 dB
Channel Balance (At 1 kHz): 1 dB
Compliance: 10 × 10−6 cm/dyne (10 mm/N)
DC Resistance: 6 ohms
Recommended Load Impedance: Greater than 30 ohms
Tracking Force: 1.8–2.2 g
Dimensions (H × W × D): 0.74" × 0.71" × 1.08" (18.7 × 18 × 27.5 mm)
Weight: 9.8 g
