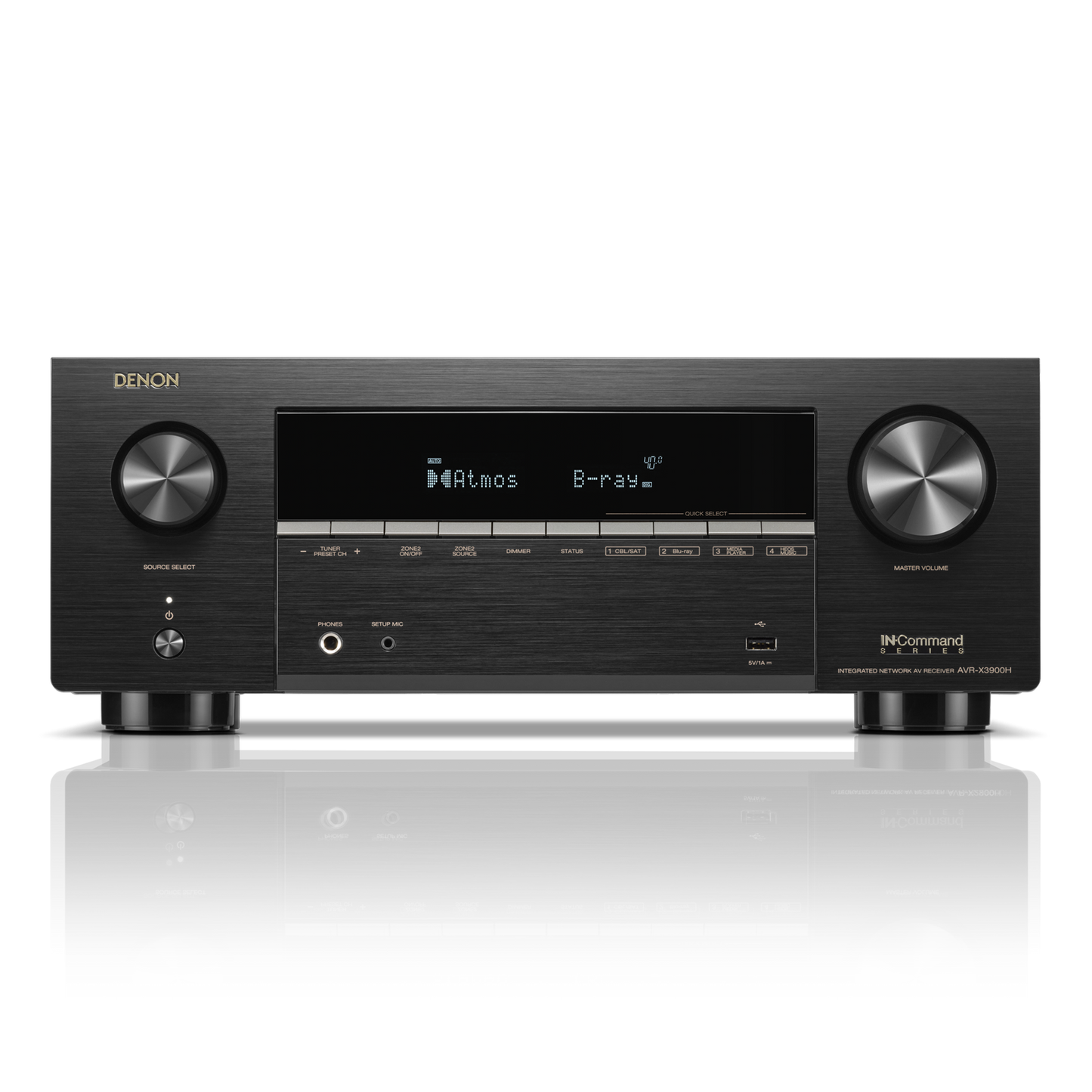

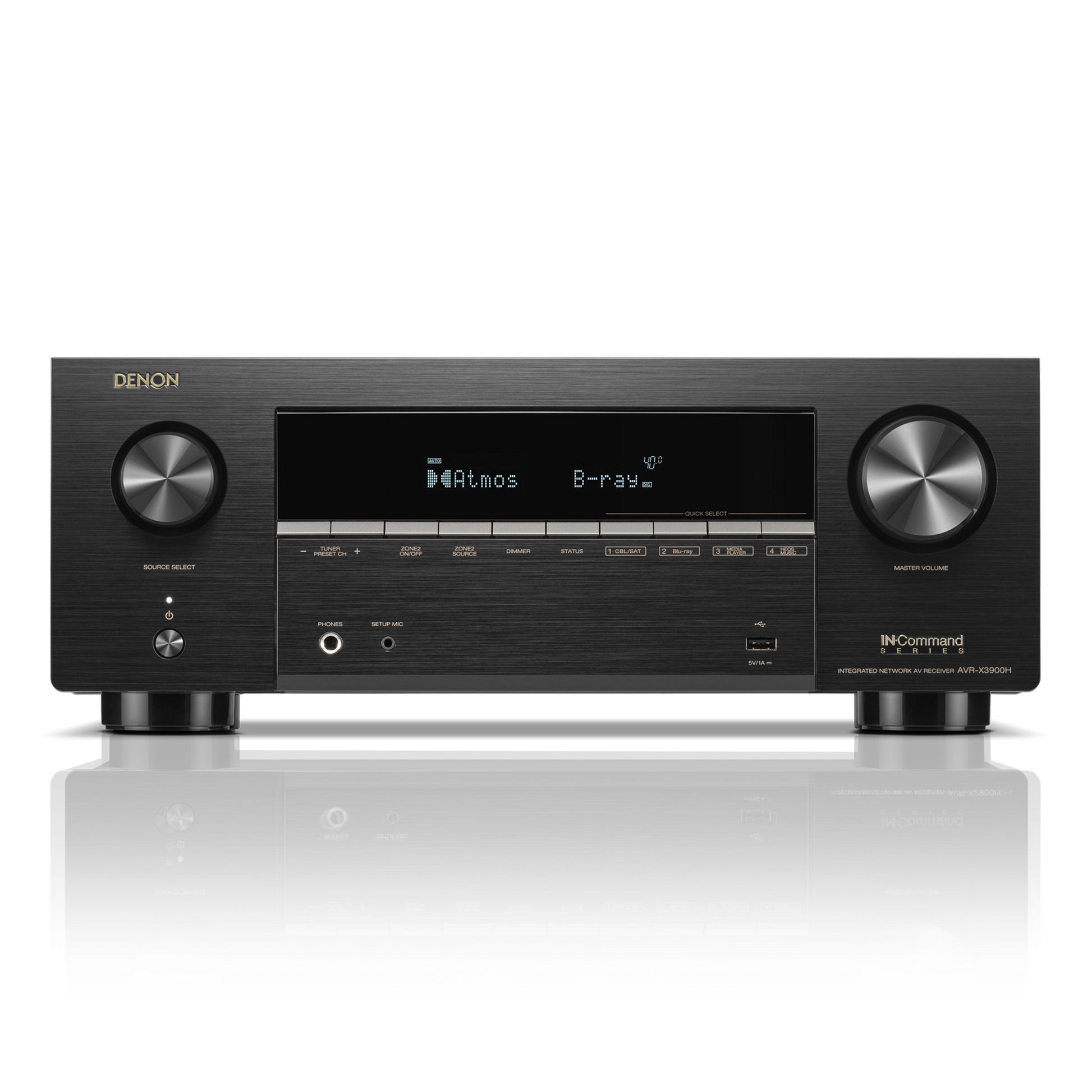

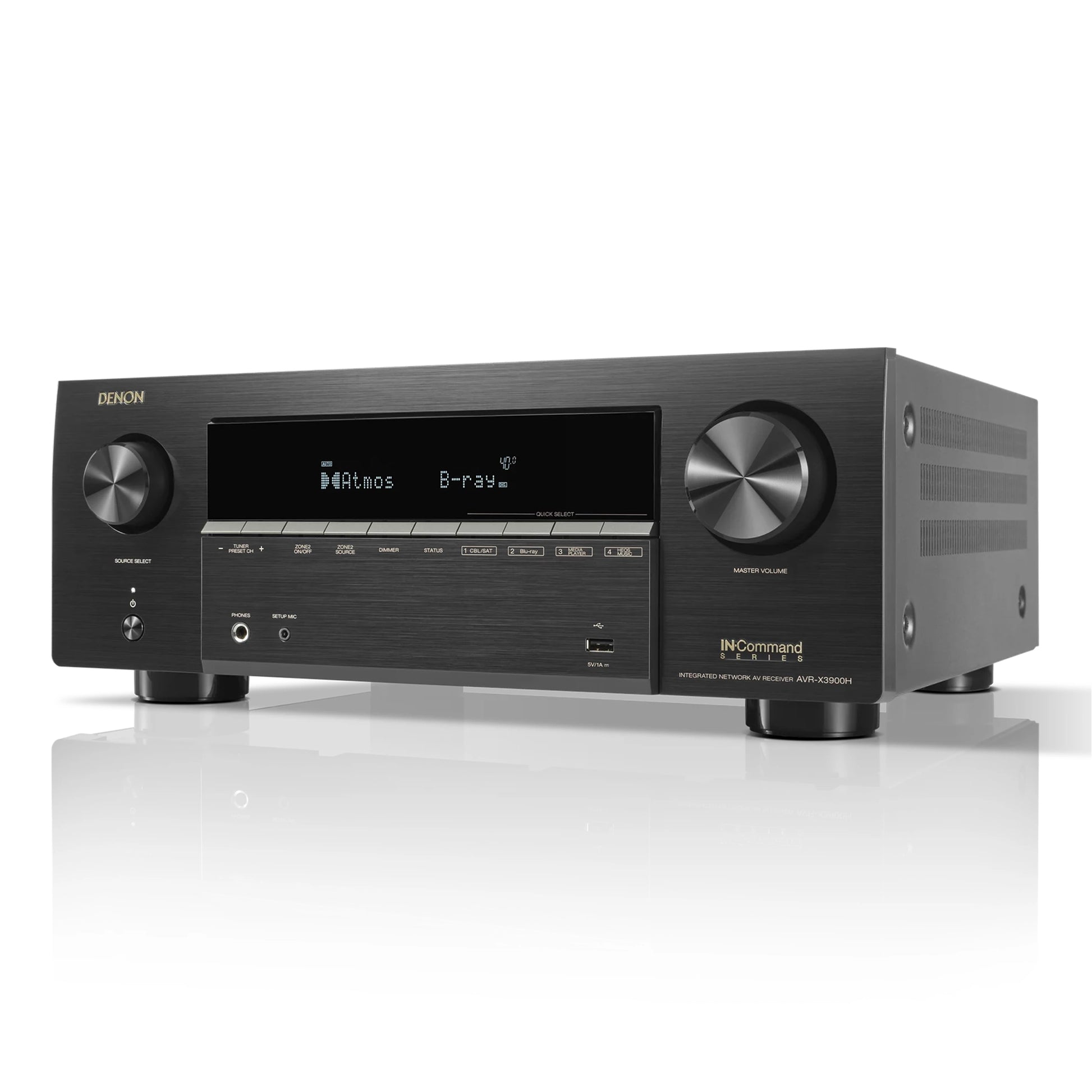

Denon AVR-X3900H 9.4-Channel 8K AV Receiver

9-channel X-Series AV receiver with 105 W per channel, 11.4-channel processing, 8K HDMI, Powered by HEOS, Audyssey MultEQ XT32, and Dirac Live upgradeability

Denon's AVR-X3900H is an X-Series AV receiver built for serious home theater systems, with 9 channels of onboard amplification, 11.4-channel processing, and support for flexible surround and height speaker layouts. Rated at 105 W per channel, it can drive up to 9 speakers and four independent subwoofers, with 11.4-channel pre-outs available for system expansion.

Six HDMI inputs and two HDMI outputs support modern video systems, including 8K pass-through, 8K upscaling, HDCP 2.3, HDR10+, Dynamic HDR, HLG, Dolby Vision, ARC/eARC, VRR, QFT, and ALLM. The AVR-X3900H also supports immersive formats including Dolby Atmos, DTS:X, IMAX Enhanced, AURO-3D, and 360 Reality Audio.

Denon designed the AVR-X3900H as a unified hub for TV, gaming, and music, with high-resolution video support, advanced HDMI connectivity, Bluetooth audio transmission, and app-based control. Powered by HEOS adds streaming and multi-room playback with compatible HEOS products.

Setup is handled through Denon's guided Setup Assistant and Audyssey MultEQ XT32 room correction. For deeper acoustic tuning, the full Dirac Live suite is available as an optional upgrade, including Room Correction, Bass Control, and Active Room Treatment.

Features

• 9-channel amplifier rated at 105 W per channel
• 11.4-channel processing for flexible surround and height speaker layouts
• Dolby Atmos, DTS:X, IMAX Enhanced, AURO-3D, and 360 Reality Audio support
• Six HDMI inputs and two HDMI outputs with 8K video support
• HDR10+, Dynamic HDR, HLG, Dolby Vision, HDCP 2.3, ARC/eARC, VRR, QFT, and ALLM support
• Four independent subwoofer outputs and 11.4-channel pre-outs
• Powered by HEOS for streaming and multi-room playback
• Audyssey MultEQ XT32 included; full Dirac Live suite available as an optional upgrade
• Two-source, two-zone audio support
• Bluetooth audio transmitter for headphone listening

Specifications

Audio

Number of Processing Channels: 11.4

Number of Power Amps: 9

Power Output (8 ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven): 105 W per channel

Power Output (6 ohms, 1 kHz, 0.7%, 2 Channels Driven): 135 W per channel

Immersive Audio Support: Dolby Atmos, DTS:X, IMAX Enhanced, AURO-3D, 360 Reality Audio

Subwoofer Out: 4 independent

Auto Speaker Setup by Microphone: Audyssey MultEQ XT32

Dirac Live: Optional upgrade

Multi-Source / Multi-Zone: 2

GUI Languages: 3 (English, French, Spanish)

Video

HDMI In/Out: 6 / 2

HDMI Video Support: 8K pass-through, 8K upscaling, HDCP 2.3

HDR Support: HDR10+, Dynamic HDR, HDR, HLG, Dolby Vision

Gaming Support: VRR, QFT, ALLM

ARC/eARC: Yes

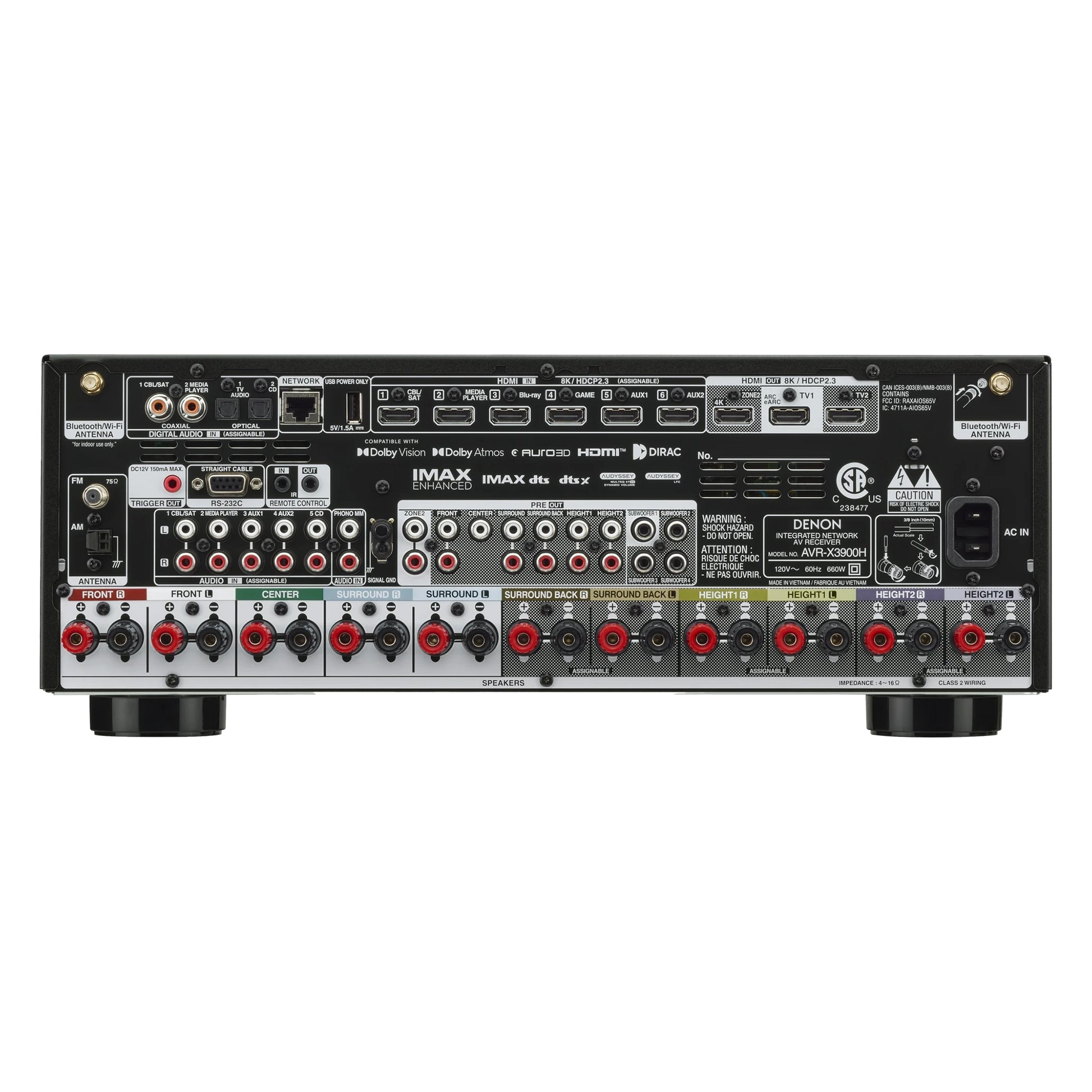

Inputs and Outputs

Analog In/Out: 5 / 0

Phono (MM) In: Yes

Digital Inputs (Optical / Coaxial): 2 / 2

Multi-Zone Analog Preouts: 1

Multichannel Pre-Out: Yes (11.4)

Subwoofer Out: 4 independent

Number of Speaker Terminals: 11

Speaker A/B: Assignable

Bi-Amp Drive: Assignable

Multi-Zone Speaker Terminal: Assignable

Streaming and Playback

Streaming: Powered by HEOS, AirPlay 2

Bluetooth Audio Transmitter: Yes

High-Resolution Audio Support: Yes

General

System Remote Control: RC-1262

Power Consumption: 660 W

Power Consumption, No Sound (ECO On / Off): 60 W / 100 W

Standby Consumption: 0.1 W

CEC Standby Consumption: 0.5 W

Network Standby Consumption: Less than 2 W

Dimensions Without Antenna (WHD): 17.1" x 6.6" x 14.9" (434.34 x 167.64 x 378.46 mm)

Maximum Dimensions, Antenna Horizontal (WHD): 17.1" x 6.6" x 15.3" (434.34 x 167.64 x 388.62 mm)

Maximum Dimensions, Antenna Vertical (WHD): 17.1" x 9.3" x 15.3" (434.34 x 236.22 x 388.62 mm)

Weight: 27.6 lb. (12.52 kg)
